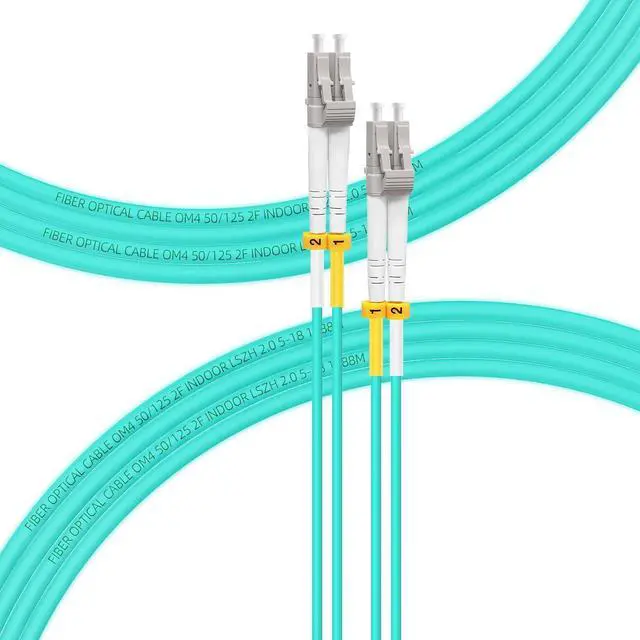

50M-1Pack OM4 LC to LC Fiber Patch Cable Multi Mode, MM Fiber Optic Cable, MMF Multimode Fiber Jumper Cord, 10Gb/40Gb/100Gb, Duplex, 50/125um, LSZH, 50M(164ft)-1Pack

This 50M (164ft) 1-Pack OM4 LC-LC Multimode Fiber Patch Cable is engineered for high-density applications in gigabit Ethernet, fiber channel, local area networks, data centers, premise installation, wide area networks, and commercial settings. It is perfect for connecting 40G BIDI SR, 10G SR, QSFP+, and SFP+ transceivers, making it appropriate for 10G/40G/100G Ethernet connections. It is the favored fiber specification for 40G/100G applications. Maximum Transmission Distance: - 1Gb Ethernet: 550 meters at 850nm - 10Gb Ethernet: 300 meters at 850nm - 40Gb Ethernet: 300 meters at 850nm - 100Gb Ethernet: 200 meters at 850nm Bandwidth is 2000 MHz·km @850nm. It features a 7.5mm minimum bend radius. The high-rated 50/125um fiber and cladding are resistant to bending, simple to peel and weld, ensuring minimal optical loss and stable transmission (insertion loss 0.3dB, return loss 30dB). This makes it excellent for SAN network cabinets that require 20 or more bends or for high-density installations where cables are packed into an extremely small space. Construction Design: - LSZH environmentally friendly jacket. - Adjustable connector clips permit individual fiber access. - Embossed A/B position labels on the duplex clip and jacket tag rings labeled 1 & 2 offer quick identification of Tx and Rx during installation, testing, and troubleshooting. - UPC polish and Japan-made zirconia ceramic ferrules provide high return loss, low insertion loss, and low attenuation, delivering precise alignment to ensure signal integrity. Each cable is factory-tested to satisfy quality control and insertion loss requirements
