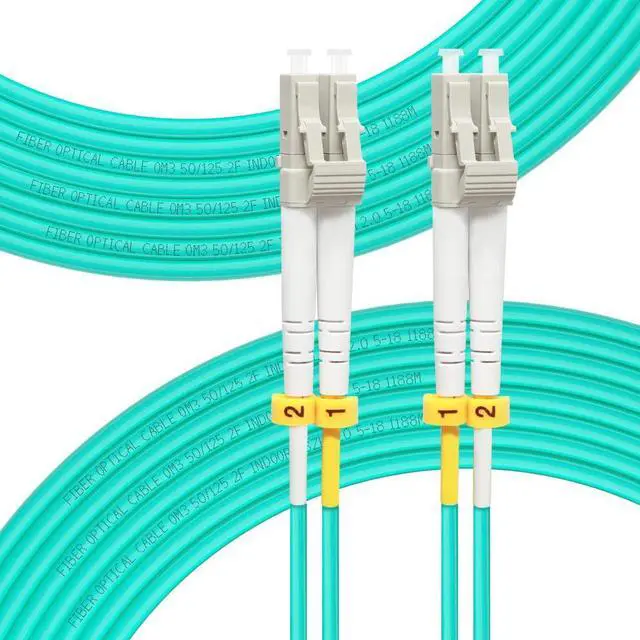

LC to LC Fiber Patch Cable OM3 100M/328ft, Length Options: 0.2m-200m, 10GB/40GB Multimode Duplex 50/125um Fiber Optic Cable Cord LSZH-100Meter(328ft)

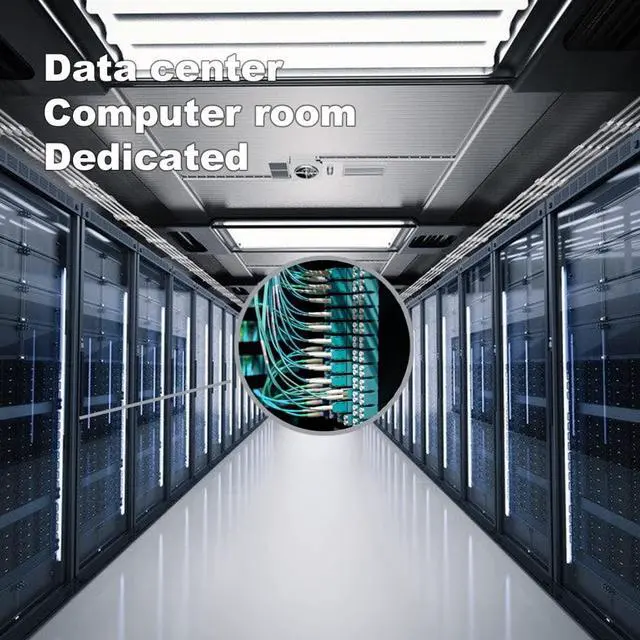

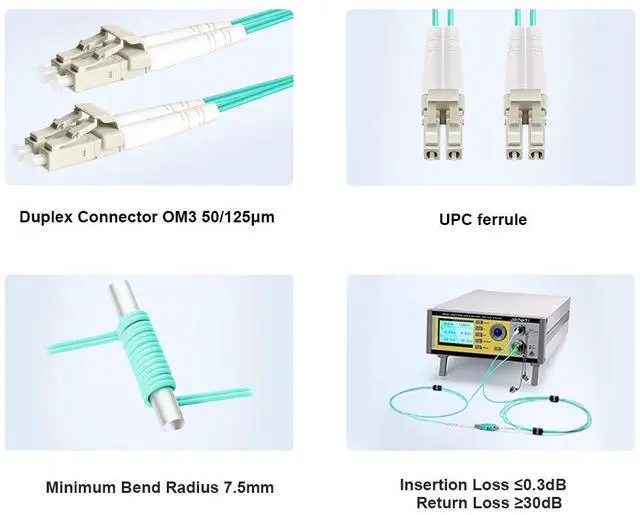

This 100M (328ft) OM3 LC-LC Multimode Fiber Optic Patch Cable is engineered for high-density applications in gigabit Ethernet, fiber channel, local area networks, data centers, premise installation, wide area networks, and commercial environments. It is perfect for connecting 10G SR, 10G LRM, and SFP+ transceivers, supporting 10G/40G/100G Ethernet connections. It is the preferred fiber specification for 10G Ethernet. Maximum Transmission Distance: - 1Gb Ethernet: 550 meters at 850nm - 10Gb Ethernet: 300 meters at 850nm - 40Gb Ethernet: 300 meters at 850nm - 100Gb Ethernet: 200 meters at 850nm Bandwidth: 2000 MHz·km @850nm. It features a 7.5mm minimum bend radius. The high-rated 50/125um fiber and cladding are resistant to bending, simple to peel and weld, ensuring minimal optical loss and stable transmission (insertion loss 0.3dB, return loss 30dB). This makes it suitable for SAN network cabinets requiring 20 or more bends or for high-density installations where cables are packed into an extremely small space. Construction Design: - LSZH environmentally friendly jacket. - Adjustable connector clips for individual fiber access. - Embossed A/B position labels on the duplex clip and jacket tag rings labeled 1 & 2 for rapid identification of Tx and Rx during installation, testing, and troubleshooting. - UPC polish and Japan-made zirconia ceramic ferrules deliver high return loss, low insertion loss, and low attenuation for accurate alignment and signal integrity. Each cable is factory-tested to meet quality control and insertion loss requirements
