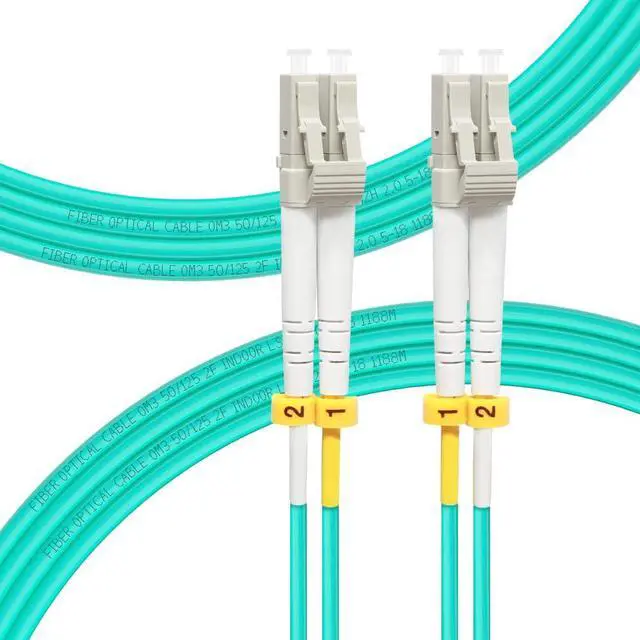

LC to LC Fiber Patch Cable OM3 3M/10ft, Length Options: 0.2m-200m, 10GB/40GB Multimode Duplex 50/125um Fiber Optic Cable Cord LSZH-3Meter(10ft), 20pack

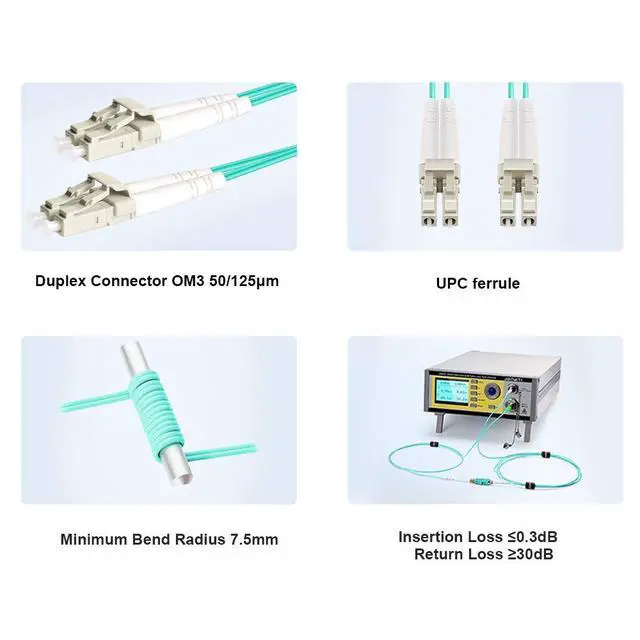

This 3M (10ft) OM3 LC-LC Fiber Optic Patch Cable - 20-Pack Multimode 10Gb is engineered for high-density applications in gigabit Ethernet, fiber channel, local area networks, data centers, premise installation, wide area networks, and commercial environments. It is perfect for connecting 10G SR, 10G LRM, and SFP+ transceivers, supporting 10G/40G/100G Ethernet connections. It is the recommended fiber specification for 14G Ethernet connections. Maximum Transmission Distance: - 1Gb Ethernet: 550 meters at 850nm - 10Gb Ethernet: 300 meters at 850nm - 40Gb Ethernet: 300 meters at 850nm - 100Gb Ethernet: 200 meters at 850nm Bandwidth is 2000 MHz·km @850nm. 7.5mm Minimum Bend Radius: It features high-grade 50/125um fiber and cladding, which is resistant to bending, simple to peel and weld, ensuring minimal optical loss and reliable transmission (insertion loss 0.3dB, return loss 30dB). Excellent for SAN network cabinets that require 20 or more bends or for high-density installations where cables are packed into a very small space. Construction Design: - LSZH environmentally friendly jacket. - Adjustable connector clips permit individual fiber access. - Embossed A/B position labels on the duplex clip and jacket tag rings labeled 1 & 2 enable quick identification of Tx and Rx during installation, testing, and troubleshooting. - UPC polish and Japan-made zirconia ceramic ferrules deliver high return loss, low insertion loss, and low attenuation, offering precise alignment to maintain signal integrity. Each cable is factory-tested to satisfy quality control and insertion loss requirements
