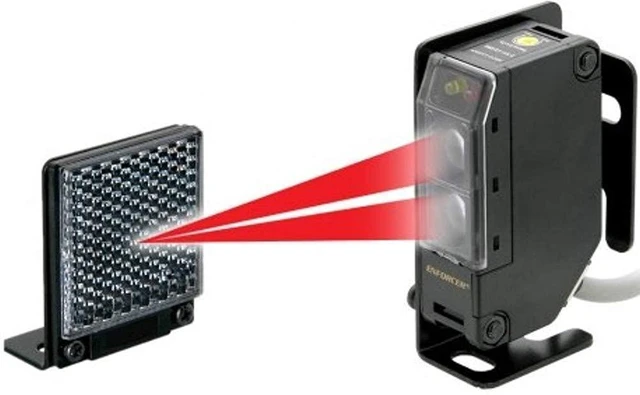

Seco-Larm E-931-S35RRQ NIR Reflective Photoelectric Sensor; For outdoors gates, garage doors, etc; Weatherproof (IP66) construction for indoor/outdoor usage; Adjustable sensing distance- Pack of 1
- For outdoors gates, garage doors, etc; Weatherproof (IP66) construction for indoor/outdoor usage; Dark ON operation, Adjustable sensing distance, Compact size; 12~240VDC / 24~240VAC Operation, Current: Up to 40mA@12VDC; Bracket and mountinghardware Included, Pre-wired 6ft (1.8m) cord; Sensing Range: 0.5' to 35' (0.1 - 11m), Response Time: 10ms (Max)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Seco-Larm E-931-S35RRQ NIR Reflective Photoelectric Sensor; For outdoors gates, garage doors, etc; Weatherproof (IP66) construction for indoor/outdoor usage; Adjustable sensing distance SECO-LARM E-931-S35RRQ NIR Reflective Photoelectric Sensor; For outdoors gates, garage doors, etc; Weatherproof (IP66) construction for indoor/outdoor usage; Dark ON operation; Adjustable sensing distance; Compact size Key Features - For outdoors gates, garage doors, etc - Weatherproof (IP66) construction for indoor/outdoor usage - Dark ON operation - Adjustable sensing distance - Compact size - 12~240VDC / 24~240VAC
Operation - Current: Up to 40mA@12VDC - Bracket and mountinghardware Included - Pre-wired 6ft ( 1.8 m) cord - New single-gang box and wall-mount brackets available
Sensing Range: 0.5 ' to 35' ( 0.1 - 11m) -
Current Draw: Standby- 12VDC@20mA; 24VDC@10mA, Active- 12VDC@40mA; 24VDC@20mA -
Operating Voltage: 12~240VDC or 24~240VAC -
Response Time: 10ms (Max) -
Light Source: IR LED -
LEDs - Red: Active -
LEDs - Yellow: Standby -
Output: SPDT Relay Output -
Switching Capacity: 250VAC/1A, 30VDC/2A -
Enclosure: IP66
Waterproof - Operating Temperature: -4 Degree ~131 Degree F (-20 Degree ~55 Degree C)
Operation - Current: Up to 40mA@12VDC - Bracket and mountinghardware Included - Pre-wired 6ft ( 1.8 m) cord - New single-gang box and wall-mount brackets available
Specifications
-Sensing Range: 0.5 ' to 35' ( 0.1 - 11m) -
Current Draw: Standby- 12VDC@20mA; 24VDC@10mA, Active- 12VDC@40mA; 24VDC@20mA -
Operating Voltage: 12~240VDC or 24~240VAC -
Response Time: 10ms (Max) -
Light Source: IR LED -
LEDs - Red: Active -
LEDs - Yellow: Standby -
Output: SPDT Relay Output -
Switching Capacity: 250VAC/1A, 30VDC/2A -
Enclosure: IP66
Waterproof - Operating Temperature: -4 Degree ~131 Degree F (-20 Degree ~55 Degree C)
