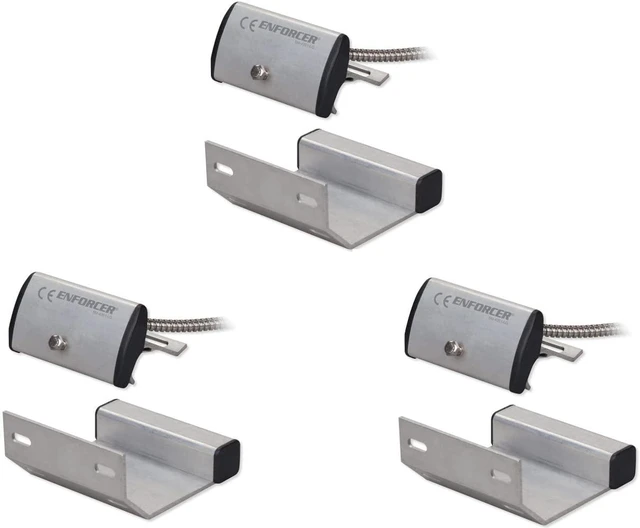

Seco-Larm SM-4201-LQ Pack of 3 Track-Mount Overhead Door Magnetic Contact Switches, Rugged Aluminum Housing, 36" Wire Leads, for Closed-Loop Circuits, 3" Gap, Weatherproof, Mounting Bracket Included

Seco-Larm SM-4201-LQ Pack of 3 Track-Mount Overhead Door Magnetic Contact Switches, Rugged Aluminum Housing, 36" Wire Leads, For Closed-Loop Circuits, 3" Gap, Weatherproof, Mounting Bracket
Included Key Features: - Pack of 3 Track-Mount Overhead Door Magnetic Contact Switches - Used for overhead doors in both industrial and residential situations where a wide gap is present - Adjustable to fit most door-channel widths - Rugged aluminum housing - 36" (91cm) Wire leads enclosed in armored cable -
Contact Type: SPST, iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life - For closed loop circuits - 3" (76mm) Gap - IP65 Weatherproof - Mounting bracket included

Specifications

: -
Loop type: Closed loop -
Electrical configuration: N. O.
(SPST) - Operation Gap: 3" (76mm) -
Connectors: 36" (91cm) Armored leads -
Material:
(Case): Aluminum
; (Contacts): Iridium-plated -
Contact Rating: 0.1A @ 100VDC (max. ); 1.0A @ 10VDC (max); 10W (max. )
- Operating temperature: -15° to 60° F (-25° to 70° C) -
Switch Cycles: 50 Million ( 0.1 mA@5VDC) -
Switch Dimensions: 3.12" x 2.62" x 1.81" -
Magnet Dimensions: 3.25" x 3.56" x 1.75" -
Magnet Type: Ferrite
