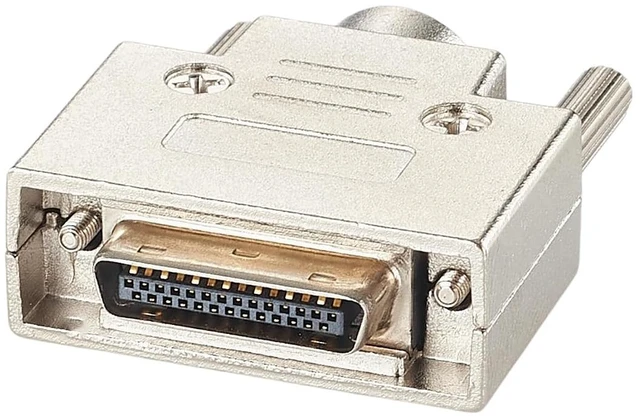

DH40-27S 27 Pin Camera Link Connector for Machine Vision

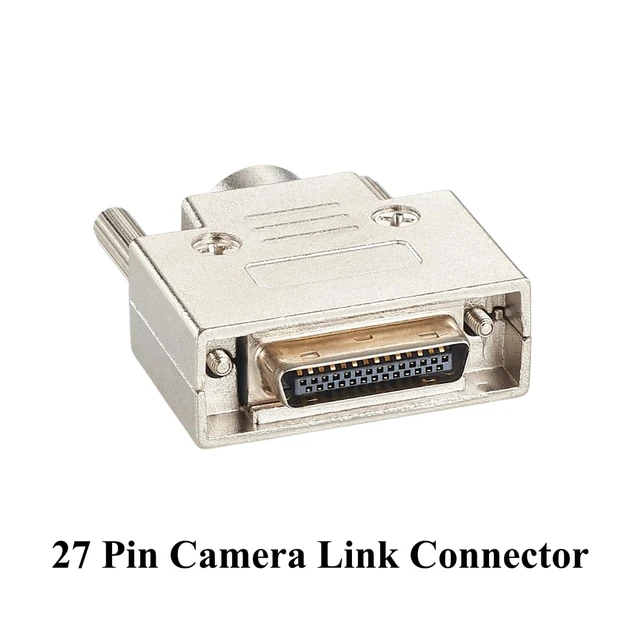

- 27 Pin Camera Link Connector Designed with 27 contacts for compatible high-speed Camera Link applications, this compact connector is suitable for professional machine vision, industrial imaging, and image acquisition systems.
- Compatible with DALSA Xtium Series Designed for use with compatible Teledyne DALSA Xtium, Xtium2, and Xtium-CL Camera Link frame grabbers. Compatible with DH40-27S, DH-27-CV1B, DH-27-CV2B Connector.

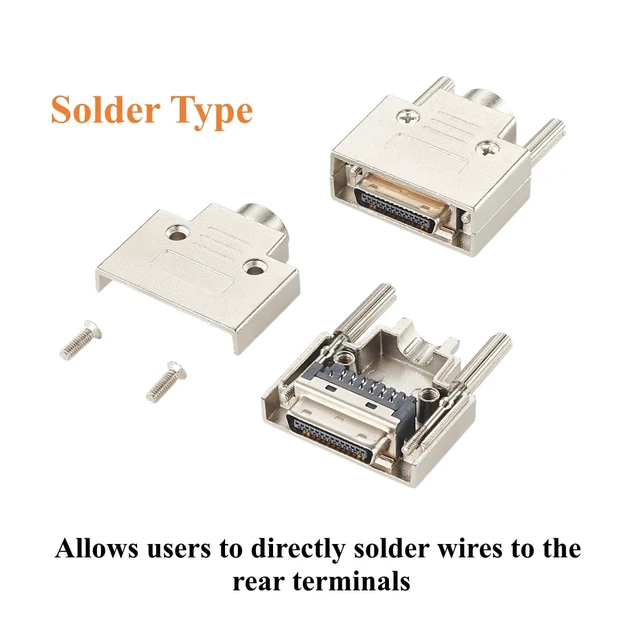

- Solder Type This 27 Pin connector featuring a solder termination design, allows users to directly solder wires to the rear terminals for flexible cable customization.

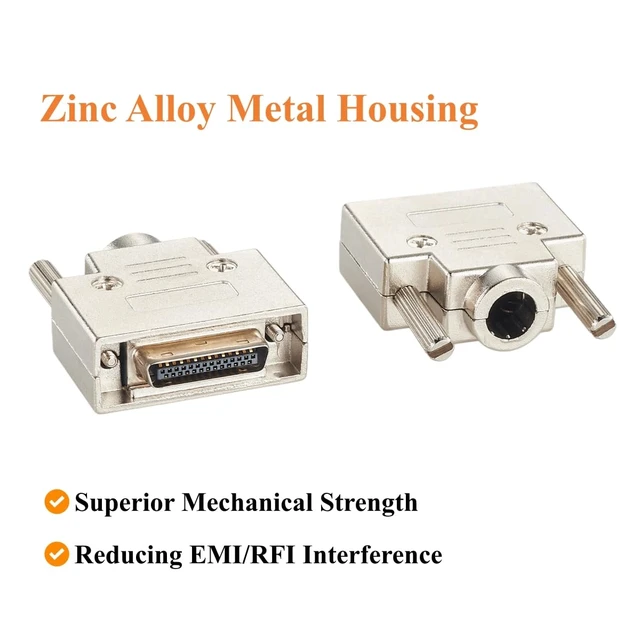

- Durable Metal Shield Shell 27 Pin Camera Connector is constructed with a rugged zinc alloy metal shield shell, offering superior mechanical strength while minimizing EMI/RFI interference, reducing signal crosstalk, and maintaining reliable high-density data transmission.

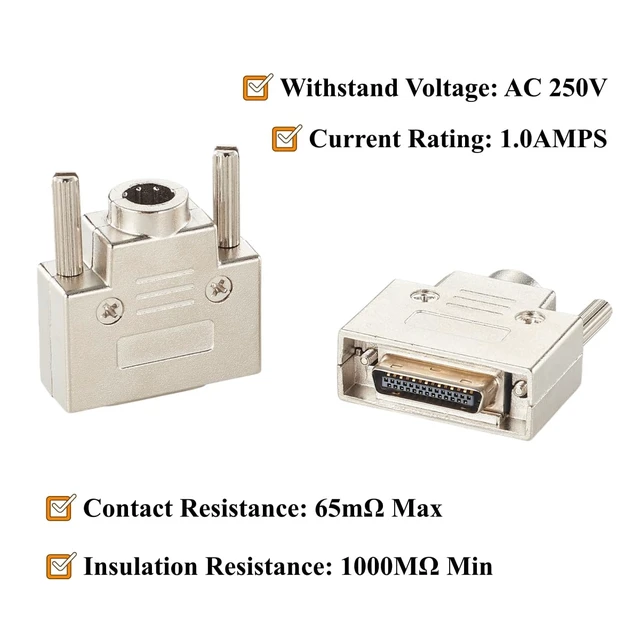

- Electrical Performance 27 Pin Connector is designed for stable and accurate signal transmission, featuring a 1A current rating, AC 250V withstand voltage, 65m contact resistance, and 1000M insulation resistance.
- Wide Applications Ideal for Camera Link machine vision, industrial cameras, frame grabbers, image acquisition equipment, AOI inspection, factory automation, robotic, high-speed imaging, quality control, and custom Camera Link cable assembly or repair applications.
- Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if t...
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

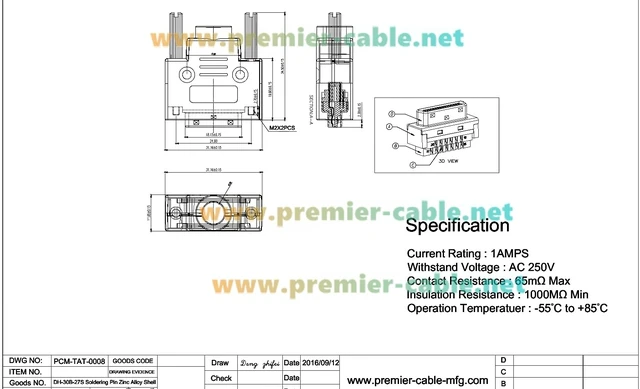

Specification: Product
Name: DH40-27S 27 Pin Camera Link Connector
Part No.: PCM-TAT-0008
Connector A: 27 Pin
Connector Shell: Zinc Alloy
Metal Housing Current Rating: 1.0AMPS
Withstand Voltage: AC 250V
Contact Resistance: 65m
Max Insulation Resistance: 1000M Min
Operation Temperatuer: -55°C to +85°C Compatible with DH40-27S, DH-27-CV1B, DH-27-CV2B
Name: DH40-27S 27 Pin Camera Link Connector
Part No.: PCM-TAT-0008
Connector A: 27 Pin
Connector Shell: Zinc Alloy
Metal Housing Current Rating: 1.0AMPS
Withstand Voltage: AC 250V
Contact Resistance: 65m
Max Insulation Resistance: 1000M Min
Operation Temperatuer: -55°C to +85°C Compatible with DH40-27S, DH-27-CV1B, DH-27-CV2B
