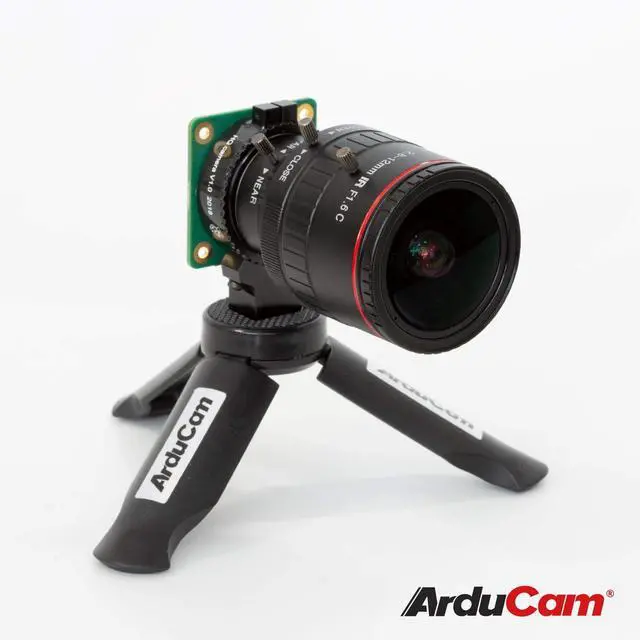

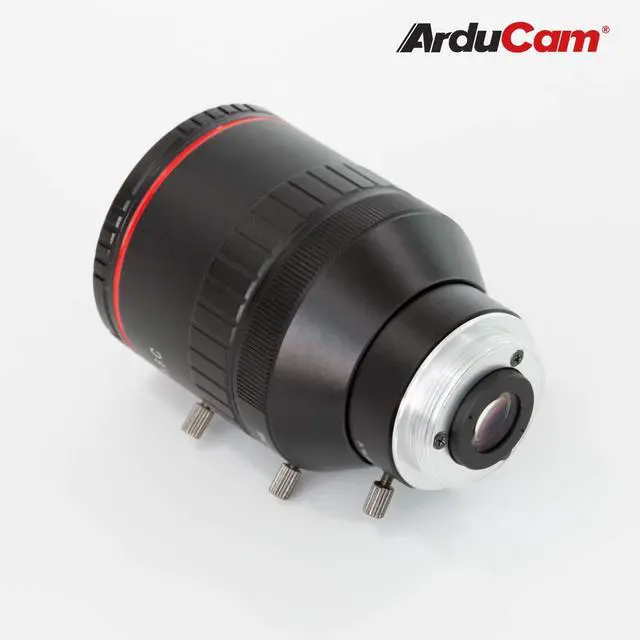

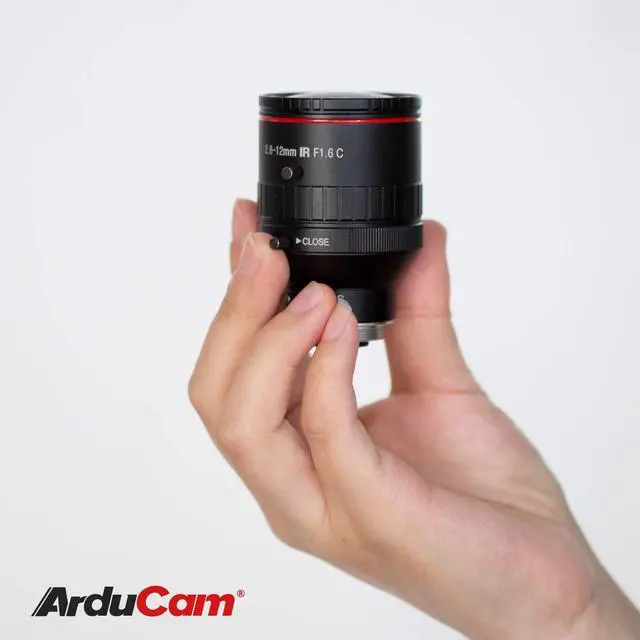

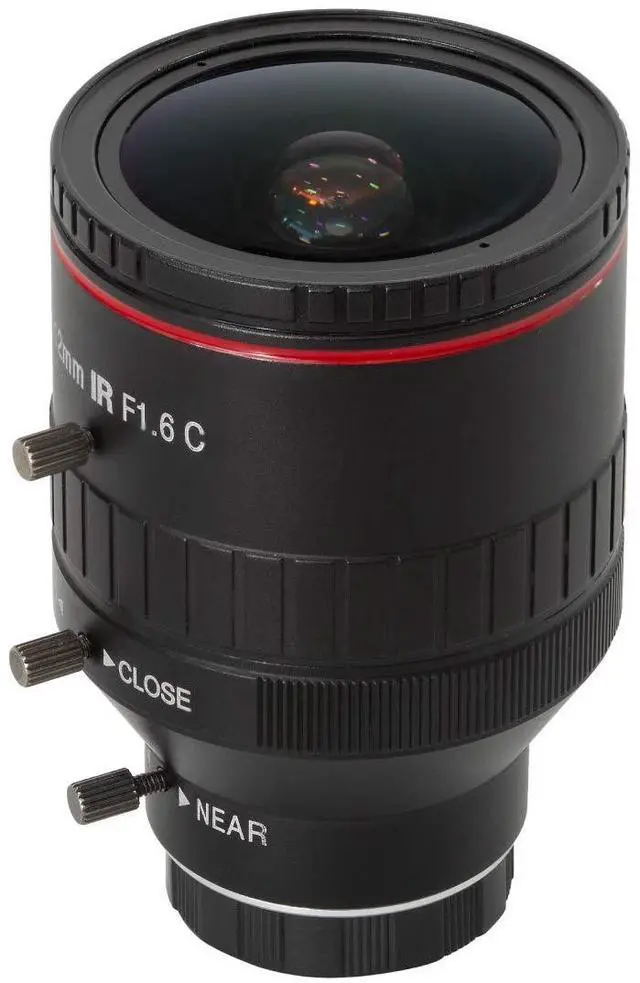

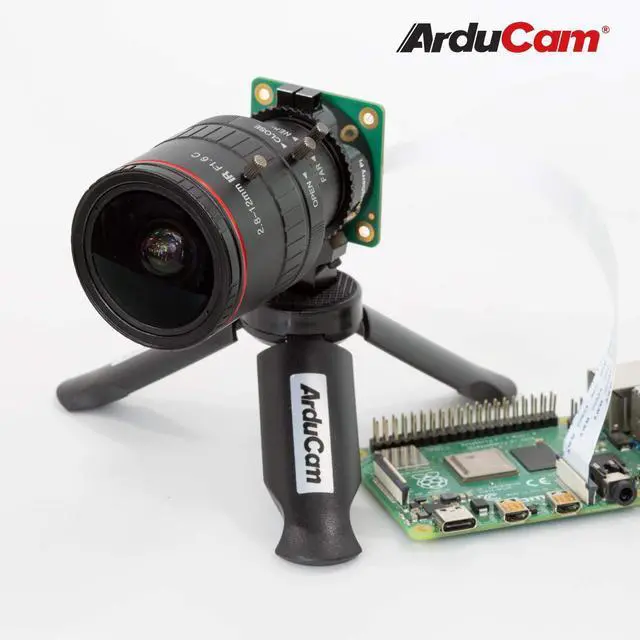

In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of C-mount, CS-mount and M12 lenses from long focus to wide angle for shooting on your Rpi HQ cameras and decide to release this 2.8-12mm varifocal C-mount lens. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.

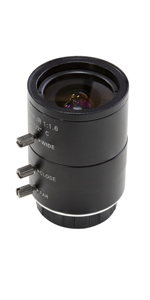

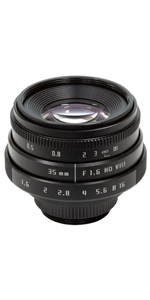

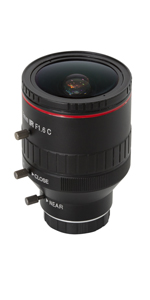

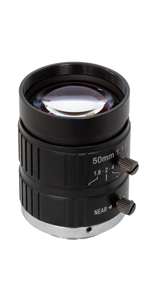

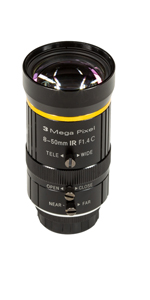

 4-12mm Varifocal Rpi Lens with C-CS adapter |  2.8-12mm Varifocal Rpi Lens with C-CS adapter |  35mm Rpi Mirrorless Lens with C-CS adapter |  50mm RPI HQ Camera Lens |  8-50mm C-Mount RPI Lens Zoom Lens with C-CS adapter | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |

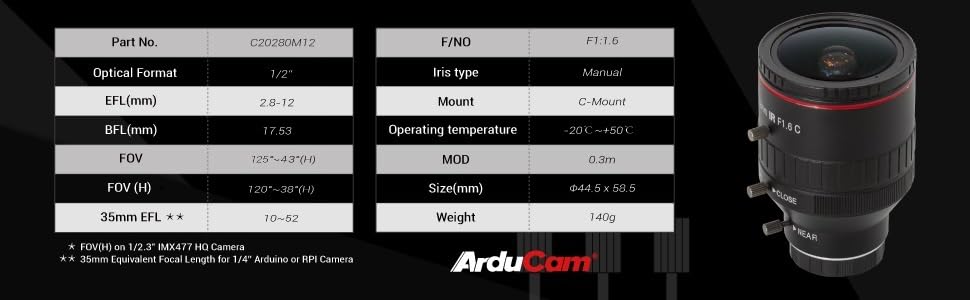

| Optical Format | 1/2" | 1/2" | 2/3? | 2/3? | 1/2.3? |
| Aperture | F1:1.6 | F1:1.6 | F1.6 ~ F16 | F1.8-F16 | F1.4 |

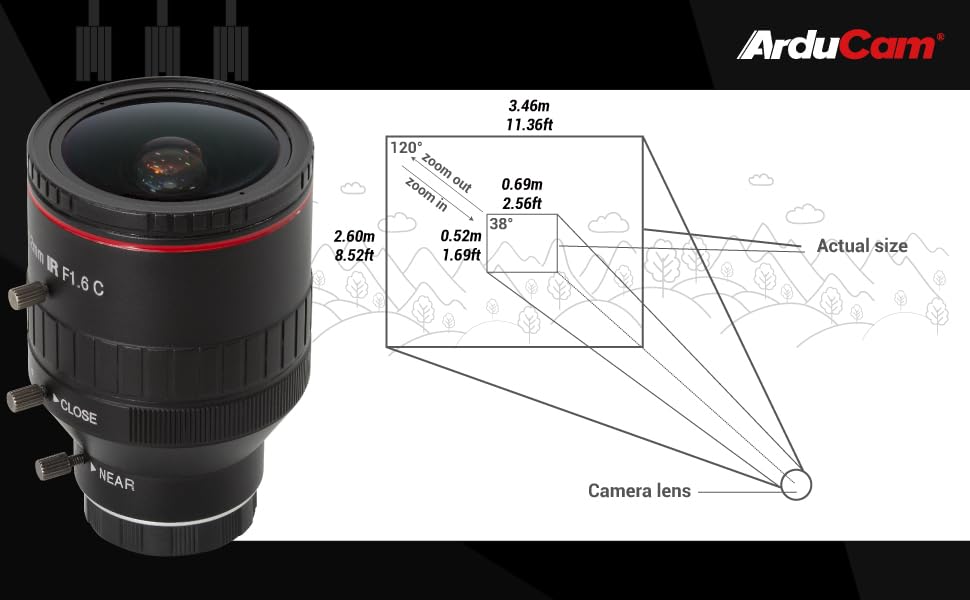

| Field of View (FOV) | 14.3°(H)×10.8°(V), 10°(H) on 1/2.3" IMX477 High Quality Camera | 125°(H)-43°(H), 120°(H)-38°(H) on 1/2.3" IMX477 High Quality Camera | 18°(H) | 125°(H)-43°(H), 120°(H)-38°(H) on 1/2.3" IMX477 High Quality Camera | 45°(H)~5.35°(H), |
| Back Focal Length | 17.53mm | 17.53mm | 17.53mm | 17.53mm | 17.53mm |
| MOD | 0.2m | 0.3m | 0.3m | 0.5m | 0.2m |
| Dimension | F33×43mm | F44.5×58.5mm | F50×35.5mm; | F34×40.5mm | F40 x 68.3mm |
| Weight | 67.5g | 140g | 108g | 86.82g | 148g |
