Behringer WING RACK 48-Channel / 28-Bus Full-Stereo Digital Mixing Console (Pro Black, 4 RU)

Digital Mixing Engine

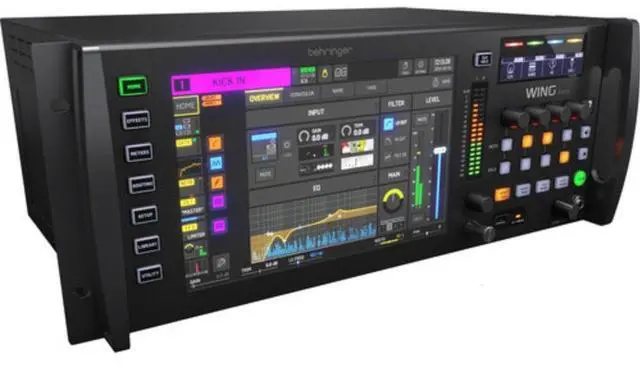

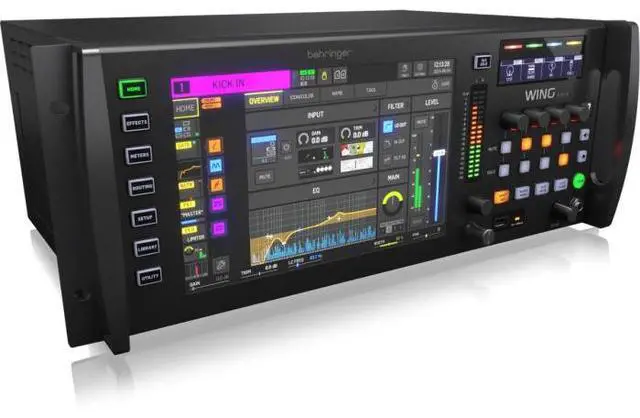

Behringer WING RACK is a powerful rackmount digital mixing engine designed for live sound, monitor mixing, and installed audio systems. Delivering the full performance of the WING platform in a compact 4U format, it offers flexible control, massive I/O capability, and premium sound quality.

Behringer WING RACK Competitive Differences

• 48 fully configurable stereo channels with mono, stereo, or M/S operation
• 24 Midas PRO preamps for high-end audio performance

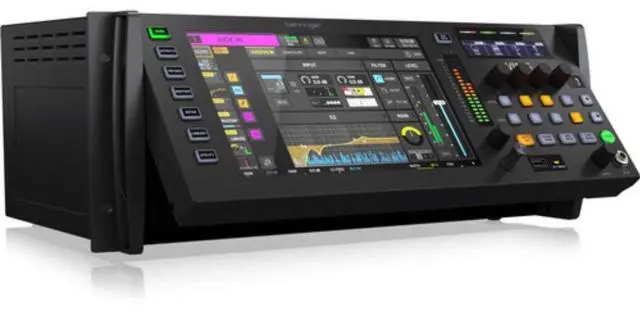

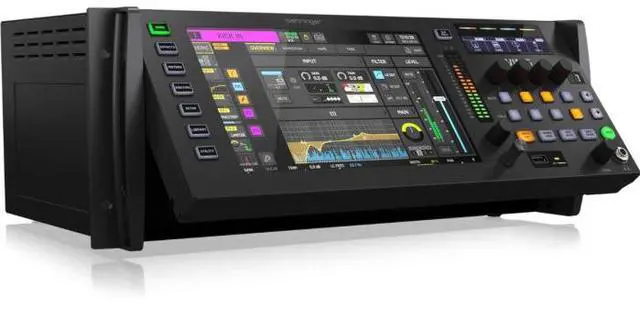

• Rackmount 4U design with adjustable front control panel
• 28 stereo buses optimized for immersive monitoring workflows
• Dual SD card recorder with up to 64-track recording

Behringer WING RACK Description

The Behringer WING RACK brings the full capabilities of the WING mixing system into a streamlined rackmount format, making it ideal for touring racks, installed systems, and monitor mixing setups. Its innovative FlexChannel architecture allows every channel to operate in mono, stereo, or mid/side mode without sacrificing processing power.

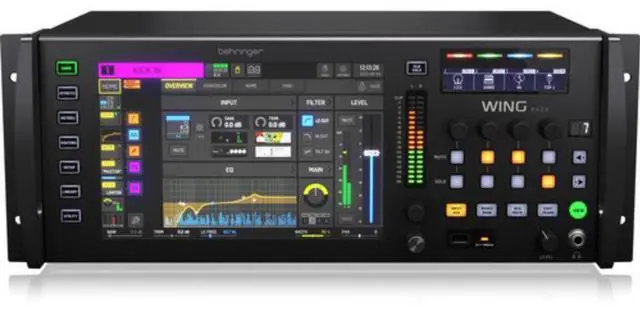

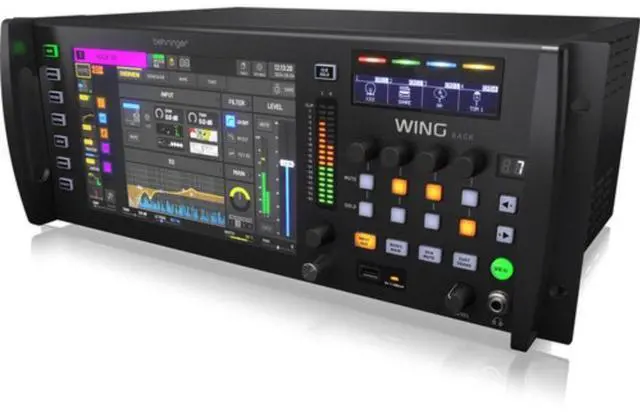

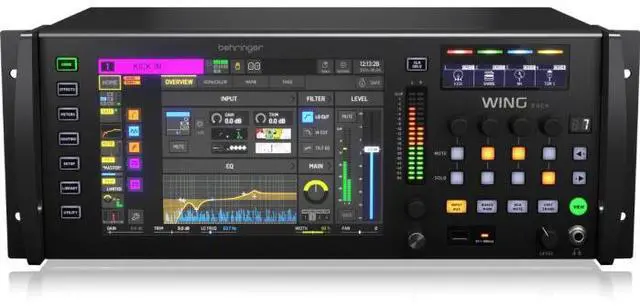

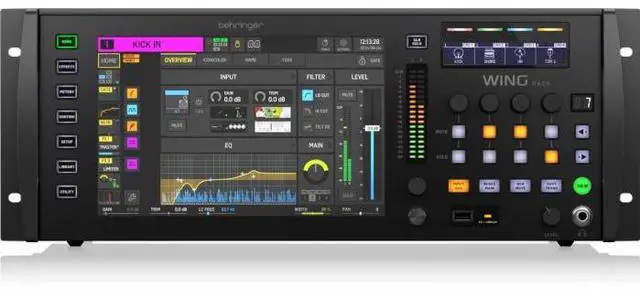

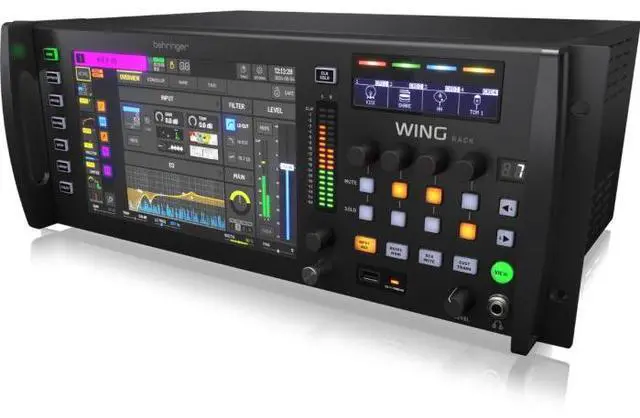

With 24 Midas PRO mic preamps onboard, the WING RACK delivers exceptional clarity, dynamic range, and low-noise performance. Its unique adjustable front panel with integrated 10.1" touchscreen and rotary controls provides intuitive access to key parameters, even when mounted in a rack.

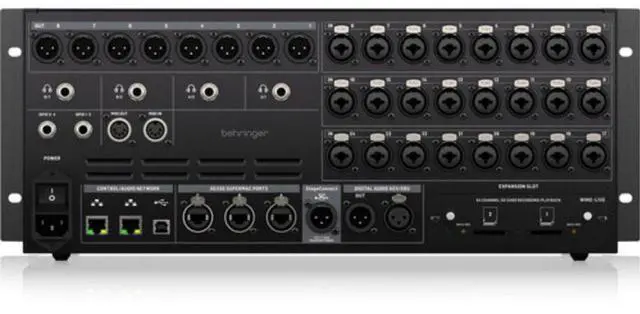

The system features extensive I/O with AES50 connectivity, StageConnect integration, and a built-in 48x48 USB audio interface for seamless DAW workflows. The included dual SD card recorder supports up to 64-track recording and playback, making it ideal for virtual soundchecks and live production capture.

Powered by 40-bit internal processing and equipped with 16 stereo FX engines and over 80 premium effects, the WING RACK eliminates the need for external processing. Its flexible control options, network capabilities, and expansion slots make it a future-ready solution for professional audio environments.

WING RACK Features

• 48 stereo channels configurable as mono, stereo, or M/S
• 28 stereo buses with full processing and inserts
• 24 Midas PRO mic preamps and 8 outputs
• Rackmount 4U design with adjustable control panel
• 10.1" capacitive touchscreen with rotary controls

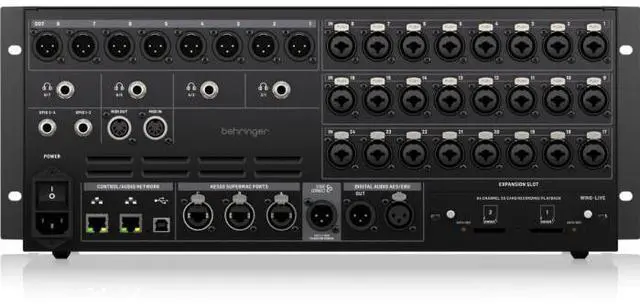

• 3 AES50 ports with 144x144 channels and ultra-low latency
• StageConnect 32-channel bidirectional audio over XLR
• 48x48 USB audio interface for DAW integration
• Dual SD card recorder with up to 64 tracks
• 16 stereo FX engines with 80+ effect algorithms
• 4 headphone outputs with high-performance amps for IEM use
• GPIO, MIDI, AES/EBU, and network control support
• Expansion slot for Dante, Waves SoundGrid, MADI, and more

WING RACK Specifications

• Frequency Response: 10 Hz â?? 20 kHz
• Dynamic Range (Analog In to Out): 111 dB (XLR), 108 dB (Aux)
• A/D Dynamic Range: 112 dB (XLR), 110 dB (Aux)
• D/A Dynamic Range: 118 dB (XLR), 112 dB (Aux)
• Main Display: 10.1" TFT LCD, 1280 x 800, multi-touch
• USB Audio Interface: 48x48 channels
• Recorder: Dual SD card, up to 64 tracks
• Power Supply: 100â??240 VAC, auto-ranging
• Power Consumption: 130 W
• Dimensions: 19.1 x 12.8 x 7.
