Enttec PLink Injector (5V) | Pixel link protocol

What is the

ENTTEC PLink (Pixel Link)

system?

ENTTECs Pixel link protocol (or PLink) has been specially designed to extend your LED Pixel or Constant Voltage layout over long distances.



The PLink Injectors receive PLink protocol from a Pixelator family controller. Our protocol transmits up to 1024 channels (2 Universes) over a 300m distance using Cat5e/Cat6 cable from a Pixelator product to each PLink Injector. This means that each injector can control 340 RGB or 256 RGBW pixels. As a result, this satellite system provides great flexibility, and since the Pixelator processes all data conversion, the PLink injector is kept as compact as possible.KEY_TAB KEY_TAB



The Pixelator family is a group of products that converts sACN, Art-Net, ESP, and Kling-Net into PLink data. 2 Universes are then sent through either 8 (24 universes) or 24 (48 universes) RJ-45 ports with perfect synchronization across all eight of its outputs.KEY_TAB KEY_TAB Alternatively, use ENTTECs CVC4 to control Constant Voltage (CV) LED tape using the same method!

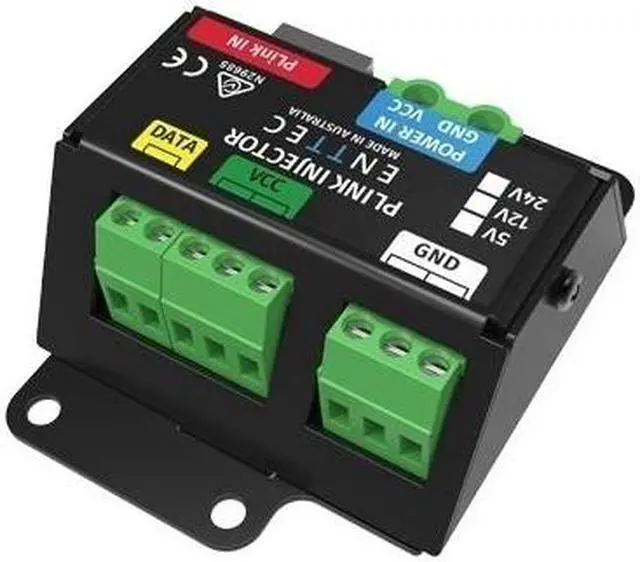

The PLink Injector has been engineered to work as part of an ENTTEC Pixelator Series set up to make it fast, easy and affordable for you to control LED pixel strips or pixel dots over long distances. The injector features an external DC power supply as well as high-power screw terminal connectors. In addition, they are ideal for custom shape pixel LED installations and their scalable design is perfect for large projects.



You can choose from the 5V or 12-24V options depending upon your layout. Then simply re-inject power from an external source, and youre away!



Depending on your applications, our Plink Injector comes also in a rugged IP66-rated version, ideal for extreme weather conditions and outdoor installations.



Features

Each PLink port can drive up to 340 RGB individual pixels (2 DMX universes)

The PLink is designed for use with the Pixelator system

External DC power supply

Data extensions up to 300 meters over Cat5/Cat5e/Cat6 cable

Small, light and easy to hide design

Scalable design for large projects

Ideal for custom shape pixel LED installations

High power screw terminal connectors

Easy wiring using Cat5/Cat5e/Cat6 standard connections



Safety

This unit is intended for indoor use only. Do not

expose to rain or moisture, doing this will void

the warranty.

Make all the connections before you plug in the

mains power.

Do not remove the cover, there are no serviceable

parts inside.

Never plug this unit into a dimmer pack.



SPECFICATIONS:



Type 5VDC

(73546)

12-24V DC

(73544)

Connectors

1* PLINK Input (RJ45)

1* Power In (rising clamp)

1* Pixel Output (rising

clamp)

IP Rating IP20

LED Indicators Yes

Input Data PLINK data

Output Data

SPI. See the ENTTEC

website for all supported

protocols

Pixels Per PLINK 340 RGB Pixels /

256 RGBW Pixels

Input Voltage 5VDC 12-24V DC

Maximum Throughput

Capacity

10 Amps 10 Amps

50 Watt

12V: 120 Watt

24V:240 Watt

Max. Power Draw 3.
