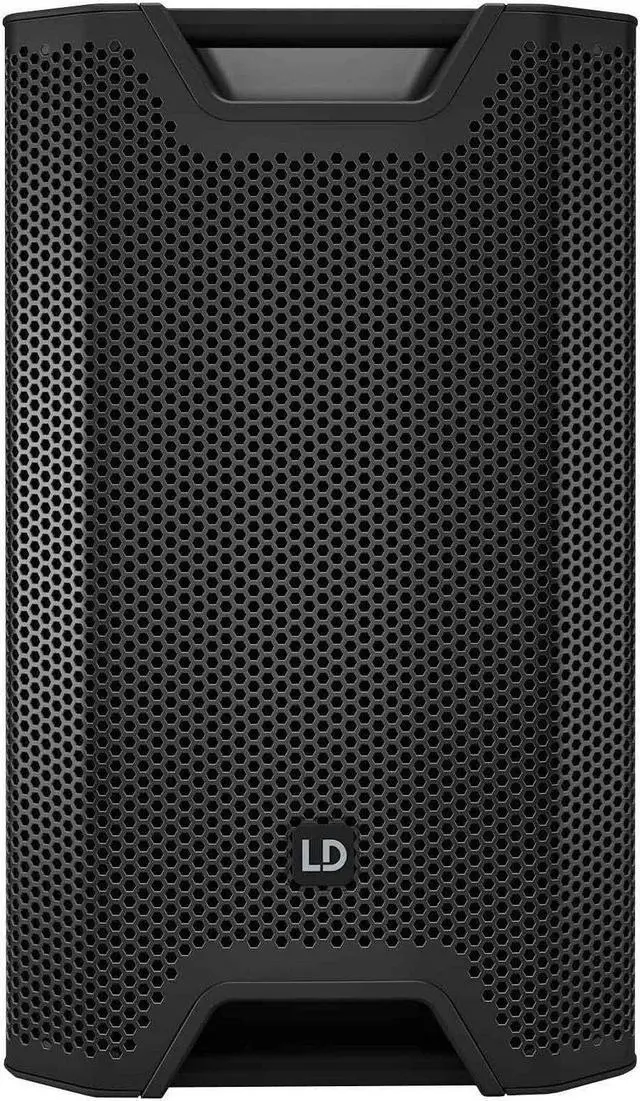

LD Systems ICOA 12ABT | 12in - 126dB

The ICOA 12 A BT is a full-range loudspeaker with its outstanding sound, even at low frequencies. The ICOA 12 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimized CD horn and extensive and precisely calibrated DynX DSP presets make this active 12" loudspeaker exceptionally flexible.



Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminum handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.



Features:



A genuine all-rounder for full-range, satellite and monitor applications

126 dB max. SPL and 1200 W peak power

Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimized CD horn (Patent Pending)

Horn-loaded woofer

DynX DSP with 4 presets, 3-band EQ and delay function

2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model

36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand

Shock-resistant front grille for optimal protection of the speaker

4 aluminum grips with ergonomic, rubber surface

Extensive, optionally available accessories for installation and transport

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 300 W RMS performance. Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth streaming and the wireless connection of playback devices - ideal for playing content from a phone or tablet.



Specifications:



Product Type: PA loudspeaker

Type: Actives

Bluetooth Audio Decoder: Bluetooth 4.0

Low/Mid Driver Dimensions: 12 "

Woofer Size: 304.8 mm

Woofer Magnet: Ferrite

Woofer Brand: Custom-made

Horn: BEM optimized CD Horn

HF Driver Dimensions: 1 "

HF Driver Size: 25.4 mm

HF Driver Magnet: Ferrite

HF Driver Brand: Custom-made

HF Driver Voice Coil: 1 "

HF Driver Voice Coil: 25.4 mm

Amplifier: Class D

Dispersion (H x V): 90 ° x 50 °

RMS: 300 W

Peak Power: 1200 W

Frequency Response: 50 - 20000 Hz

Crossover Frequency kHz: 2 kHz

Max.
