Chauvet DJ Gig Bar 2

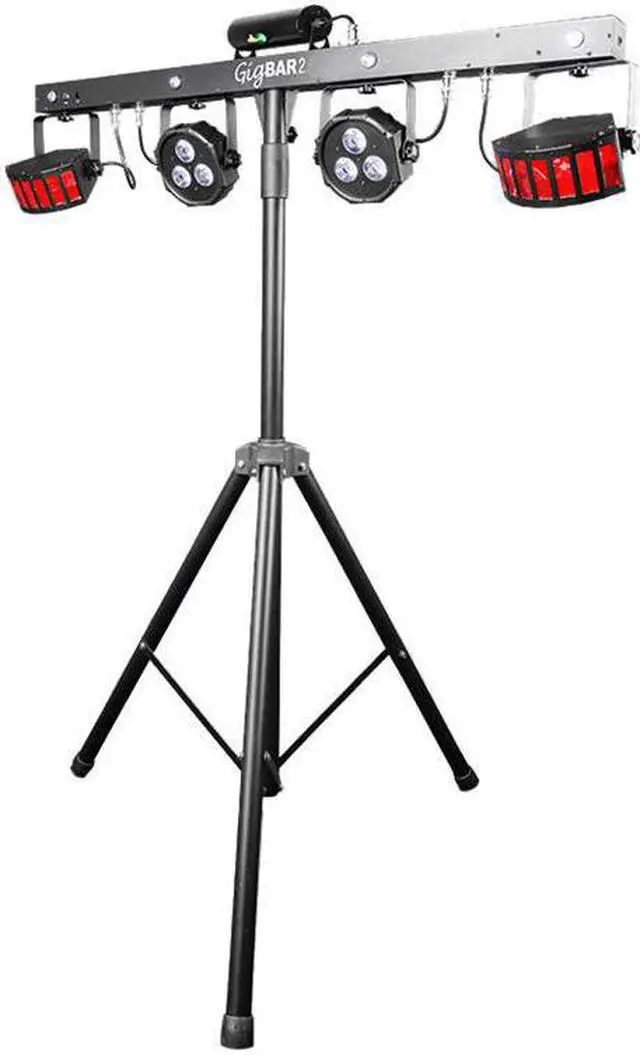

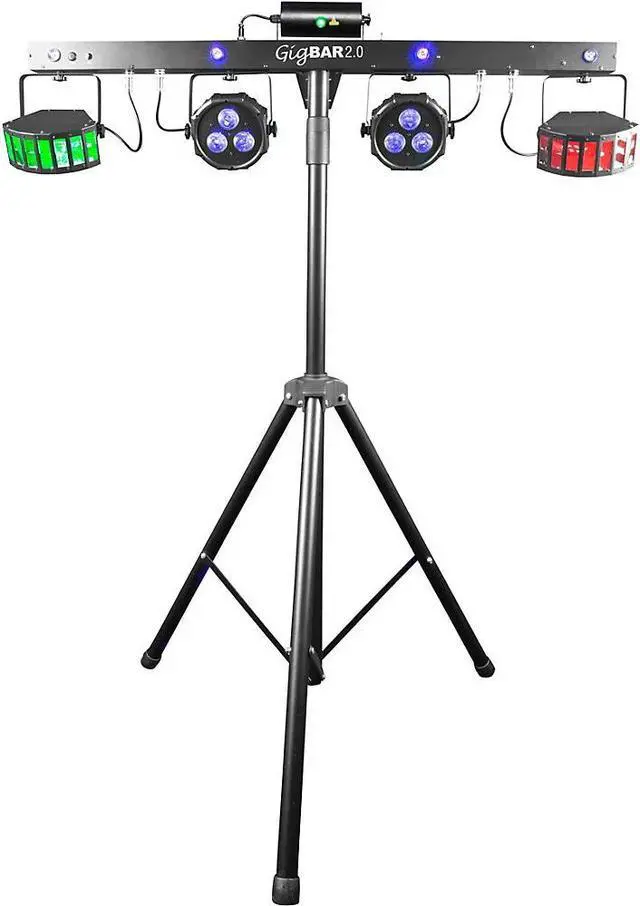

Multi-Effect DJ Lighting System The Chauvet DJ GigBAR 2 is an all-in-one mobile lighting rig designed for quick setup and dynamic stage coverage. Featuring derby effects, UV-enhanced wash lights, a built-in laser, and high-powered strobes, it's ideal for DJs, bands, and event professionals looking for fast, powerful light shows without complex programming or cabling. Chauvet DJ GigBAR 2 Competitive Differences

• All-in-one bar with LED pars, strobes, derbies, and a laser
• Includes tripod, wireless footswitch, and carry bags

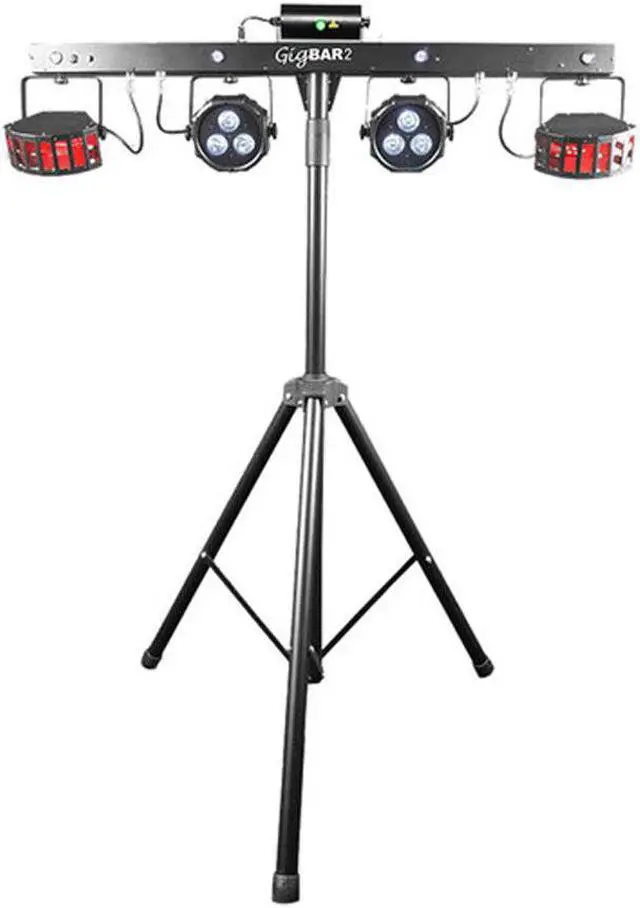

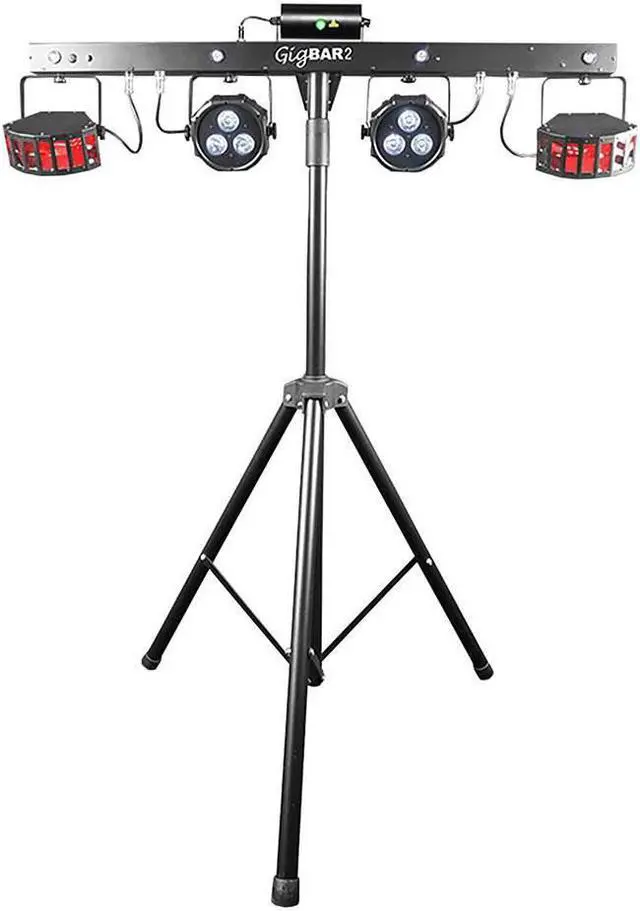

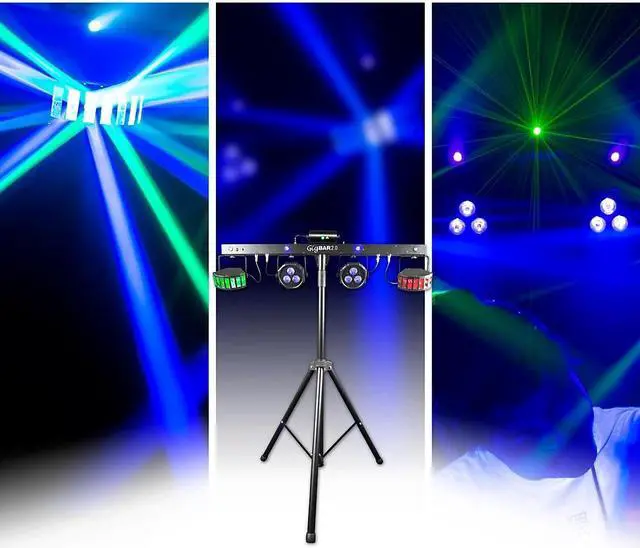

Chauvet DJ GigBAR 2 Description The GigBAR 2 simplifies portable lighting by combining four versatile effects on a single bar. This 4-in-1 fixture includes a pair of LED derby effects, RGB+UV wash lights, a red/green laser, and four high-powered strobe lights. Each effect can be independently positioned for full stage or dancefloor coverage. Added UV in the pars and strobes enhances color mixing and creates vibrant, eye-catching effects. The laser scatters hundreds of beams for atmospheric movement, while the LED strobe zones deliver dramatic bursts or slow-motion effects. Built-in automated and sound-activated programs integrate all four effects into a synchronized showâ??perfect for plug-and-play setups. GigBAR 2 is ready to use out of the box with included accessories: a tripod, wireless footswitch, IRC-6 remote, and carry bags. It supports DMX control for advanced users or can run standalone using the footswitch or master/slave configurations. Power linking reduces setup time and cable clutter, making it ideal for mobile performers who need efficiency and performance. Model Features

• 4-in-1 system: LED pars, derbies, strobe, and laser on one bar
• UV LEDs in pars and strobes for enhanced color effects
• Wireless footswitch and IRC-6 remote included
• Interchangeable, individually adjustable fixture heads
• Tripod, carry bags, and mounting brackets included

Model Specifications

• DMX Channels: 3, 11, or 23
• Light Sources:
  • Pars: 6 RGB+UV LEDs, 3.5W each
  • Strobe: 4 white/UV LEDs, 5W each
  • Derby: 6 LEDs (2 red, 2 green, 2 blue), 5W each
  • Laser: Red (650nm/100mW), Green (532nm/30mW)
• Beam Angles: Pars â?? 13°, Strobe â?? 8°
• Field Angles: Pars â?? 24°, Strobe â?? 18°
• Laser Coverage Angle: 93°
• Derby Coverage Angle: 114°
• Illuminance:
  • Pars: 1,205 lux @ 2m (per head)
  • Strobe: 86 lux @ 2m (per zone)
• Power Linking: 8 units @ 120V; 15 units @ 230V
• Power: 68W, 1A @ 120V | 64W, 0.5A @ 230V
• Input Voltage: 100â??240V AC, 50/60 Hz (auto-ranging)
• Dimensions: 46.7 x 4.3 x 15.2 in (1185 x 110 x 386.5 mm)
• Weight: 25.6 lb (11.6 kg)
• Tripod Height: 1.5 to 2.5 m | Leg Width: 1.2 m
• Footswitch Range: Up to 100 ft (30.5 m)
• Approvals: CE, FDA, FCC

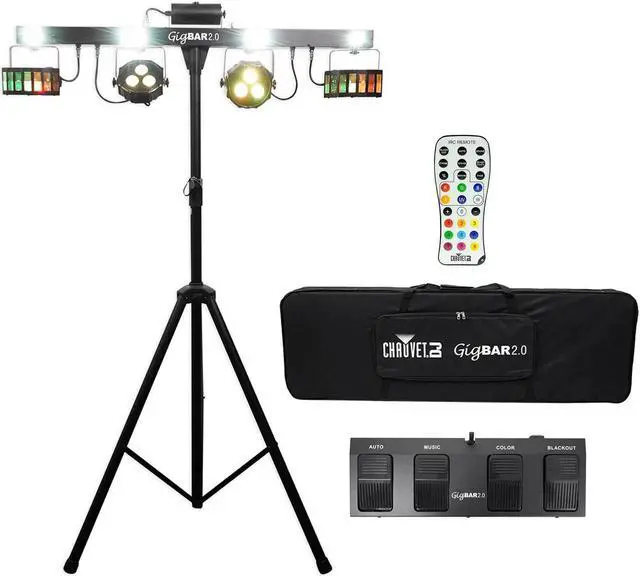

What's In The Box

• GigBAR 2 main unit
• Tripod

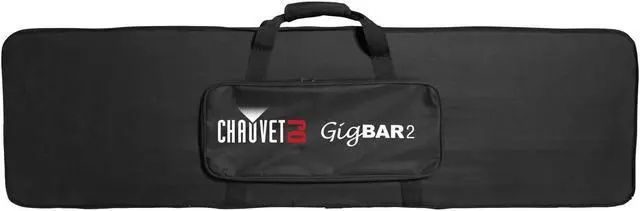

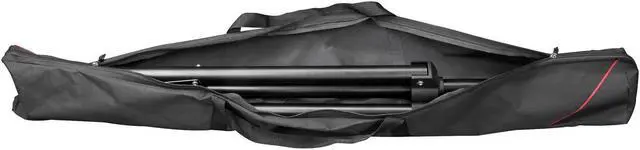

• Tripod carry bag

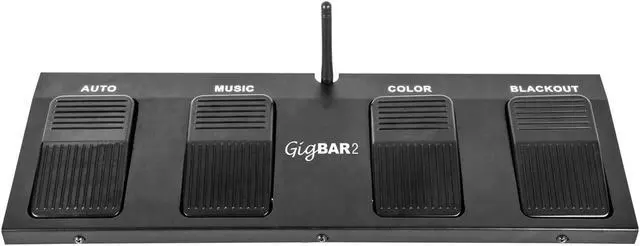

• Wireless footswitch

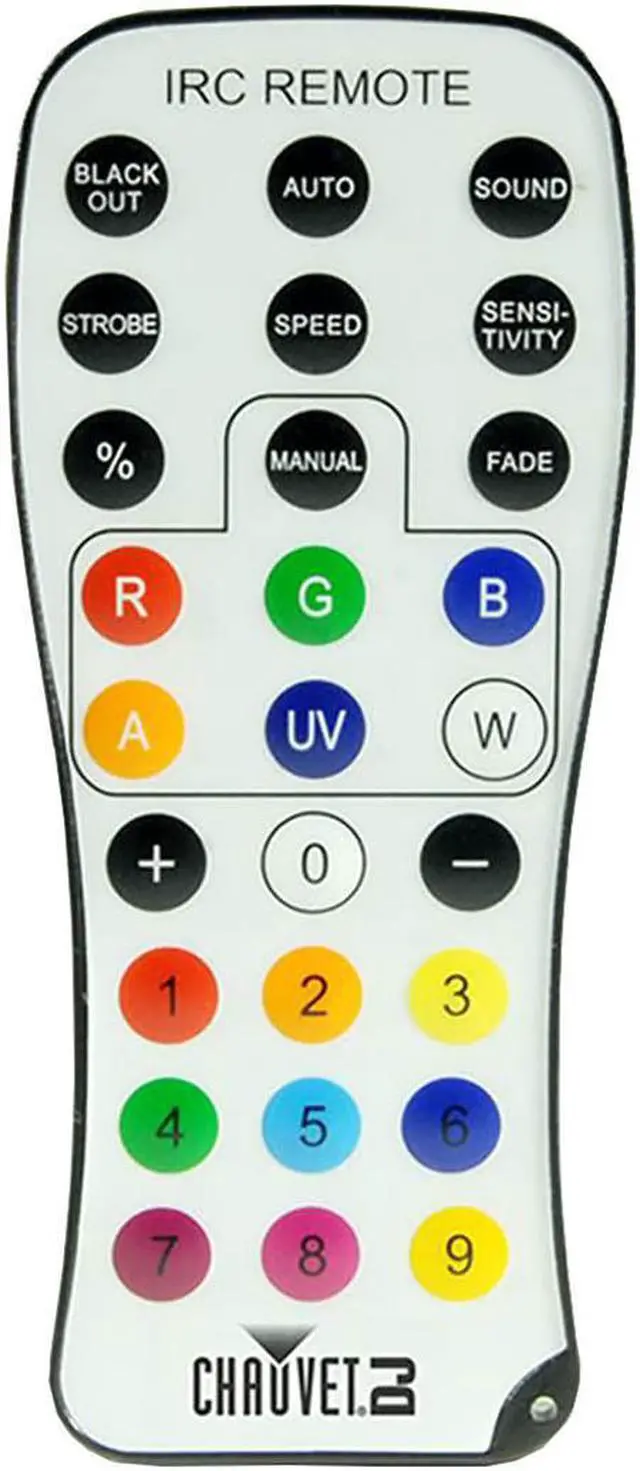

• IRC-6 remote
• Power cord
• User manual
• Warranty card
