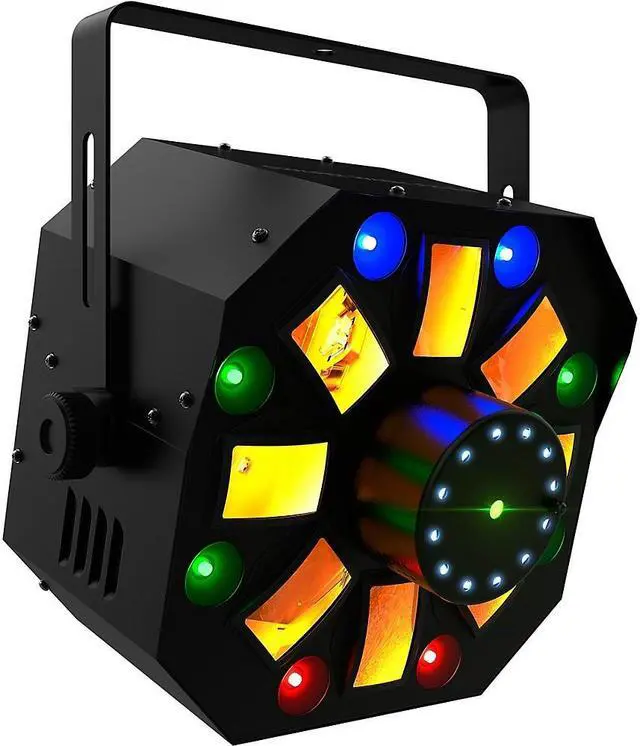

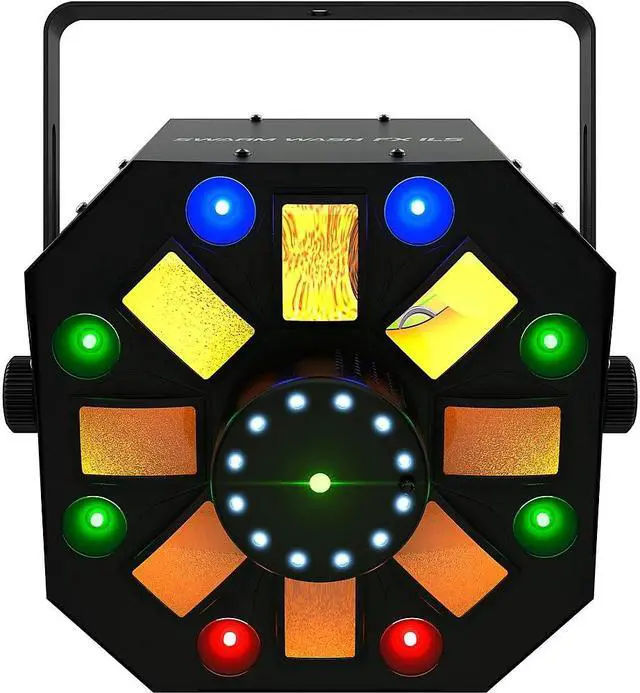

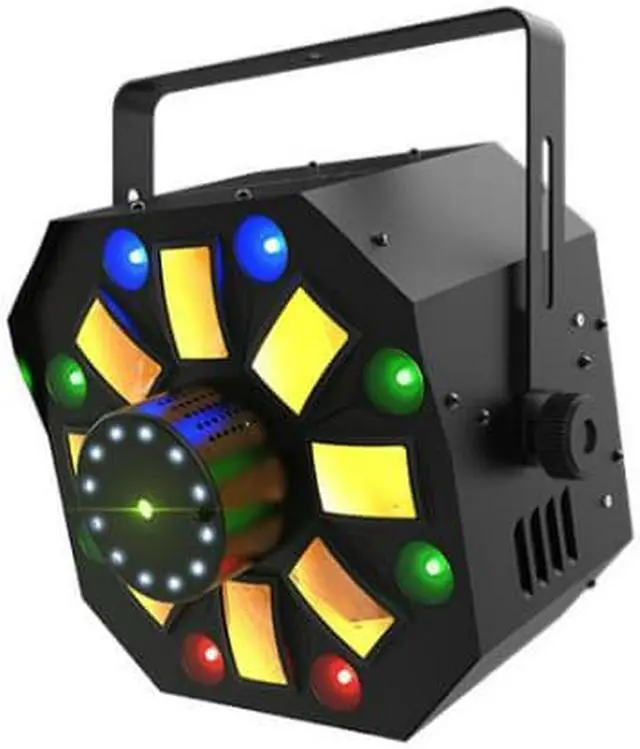

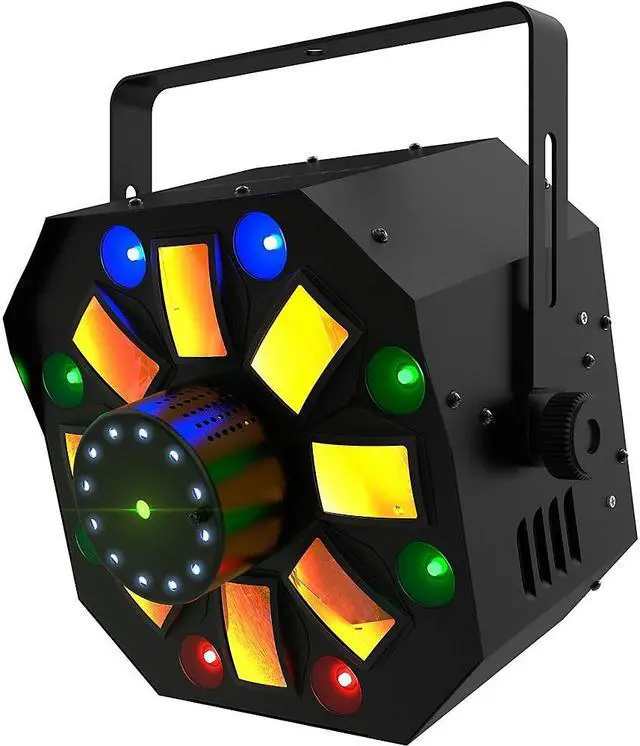

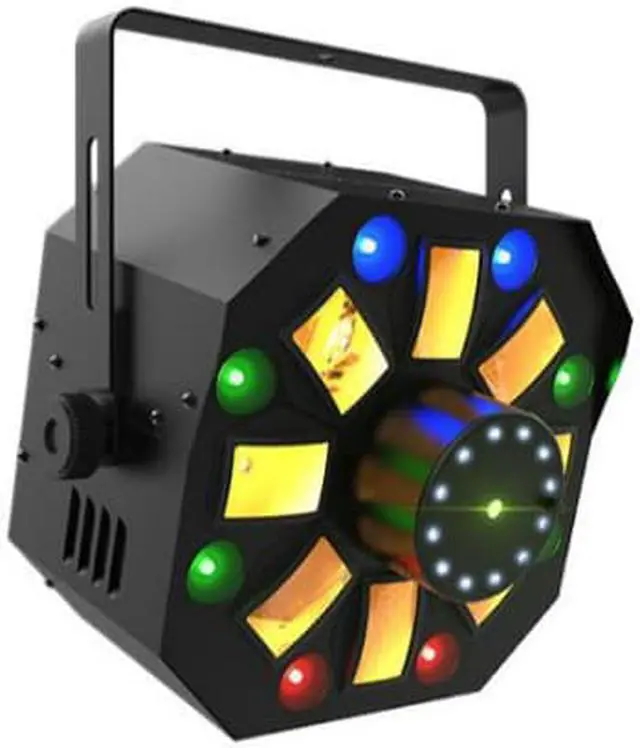

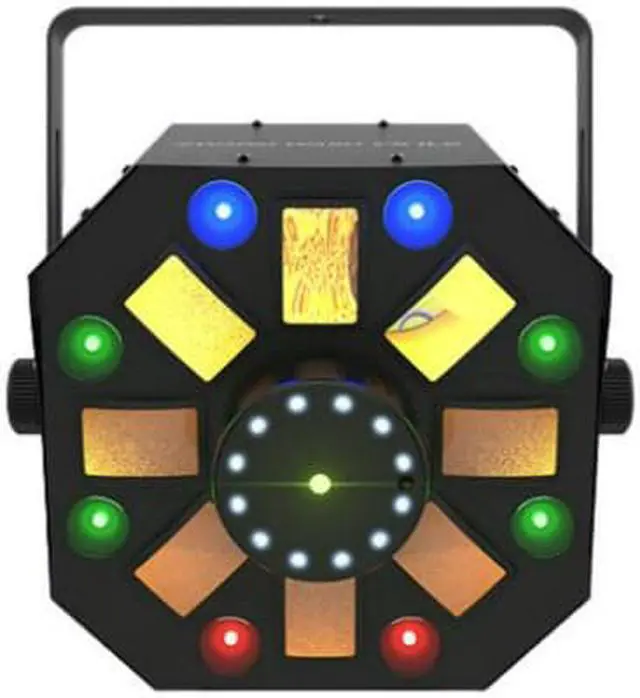

Chauvet DJ Swarm Wash FX ILS Light

Multi-Effect LED Light Chauvet DJ Swarm Wash FX ILS is a powerhouse 4-in-1 lighting fixture that delivers stunning visual excitement for parties, performances, and events. Combining derby-style beams, UV-infused wash lighting, red and green lasers, and a ring of white strobe LEDs, this all-in-one unit is packed with versatility and performanceâ??now enhanced with ILS and wireless D-Fi USB compatibility. Chauvet DJ Swarm Wash FX ILS Competitive Differences

• 4-in-1 effects: RGBAW derby, RGB+UV wash, red/green laser, and SMD strobes
• ILS and D-Fi USB compatible for easy wireless light show syncing

Chauvet DJ Swarm Wash FX ILS Description The Chauvet DJ Swarm Wash FX ILS is a dynamic lighting solution that creates immersive atmospheres with a single fixture. At its core is a rotating RGBAW derby that casts razor-sharp, multicolor beams in all directions, complemented by an RGB+UV wash for rich color floods and blacklight effects. A red and green laser projects thousands of sharp beams across your venue, while a ring of 12 white SMD strobes adds pulsing intensity and rhythmic energy. Thanks to ILS (Integrated Lighting System) compatibility, the Swarm Wash FX ILS can sync with other ILS-enabled fixtures to produce fully coordinated light shows without complex programming. It also supports wireless Master/Slave and DMX operation via optional D-Fi USB, giving you cable-free control for faster setups. With built-in auto and sound-activated programs, you can instantly generate impactful looks, or take full control via 2 or 18 DMX channels. Itâ??s also compatible with the IRC-6 remote for quick, handheld control of programs, colors, and effects. Portable and powerful, the fixture fits inside the CHS-40 VIP Gear Bag, making it a perfect choice for mobile DJs, venues, and event lighting techs who want maximum effect with minimal gear. Model Features

• 4-in-1 LED fixture: rotating derby, RGB+UV wash, strobe, and laser
• ILS compatible for easy synchronization across multiple fixtures
• D-Fi USB compatible for wireless DMX and Master/Slave control
• Red and green laser casts thousands of beams
• Built-in auto and sound-activated programs
• Works in DMX, Master/Slave, or IR modes
• Control with IRC-6 remote (sold separately)
• Power linking reduces cable clutter during setup
• Fits in CHS-40 VIP Gear Bag

Model Specifications

• DMX Channels: 2 or 18
• Derby LEDs: RGBAW (power not individually listed)
• Wash LEDs: 8x 1.5W RGB+UV (50,000 hrs)
• Strobe LEDs: 12x 1W White SMD (50,000 hrs)
• Laser: Red 100mW (650 nm), Green 30mW (520 nm)
• Coverage Angles:
  • Laser: 82°
  • Swarm: 65°
  • Strobe: 71°
  • Wash: 46°
• Strobe Rate: 0â??20 Hz
• Power and Current: 51W, 0.7A @ 120V | 50W, 0.4A @ 230V
• Power Linking: 11 units @ 120V | 20 units @ 230V
• Input Voltage: 100â??240V AC, 50/60Hz (auto-ranging)
• DMX Connectors: 3-pin XLR
• Dimensions: 13.1 x 13 x 9.4 in (335 x 332 x 241 mm)
• Weight: 9.5 lb (4.3 kg)
• Approvals: CE, FDA, RoHS, UKCA
• Laser Classification: EN/IEC 60825-1:2014 compliant

What's In The Box

• Swarm Wash FX ILS fixture
• Power cord
• User manual
• Key and interlock (EU only)
