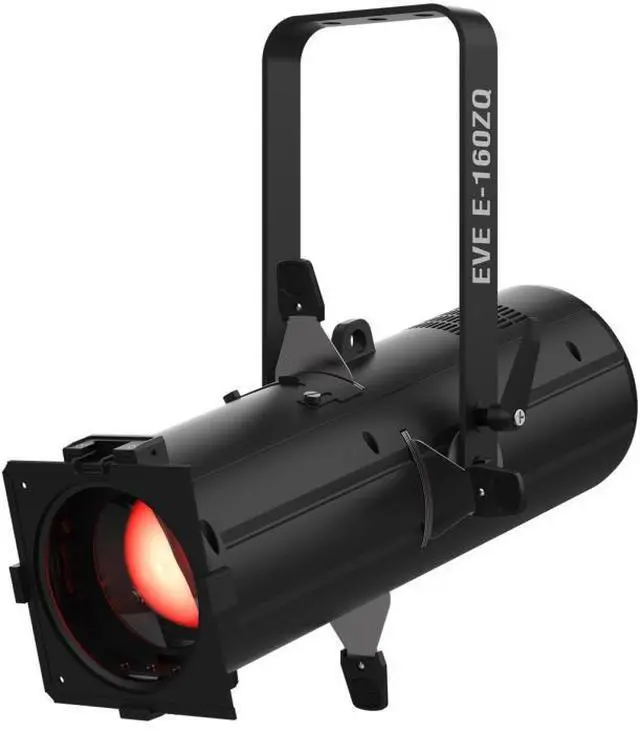

Chauvet DJ EVE E-160ZQ | RGB+WW Ellipsoidal LED Spotlight | Zoom 24°37° with D-Fi USB & Flicker-Free Output

Full-Color LED Ellipsoidal Spotlight The Chauvet DJ EVE E-160ZQ is a powerful, zoomable ellipsoidal LED fixture designed for stage lighting, installations, and mobile production. Equipped with a 160W quad-color (RGB+WW) LED, it delivers rich, customizable color and accurate white tones with variable color temperature presets. Built for flexibility, it features quiet, flicker-free performance and wireless DMX compatibility via D-Fi USB. Chauvet DJ EVE E-160ZQ Competitive Differences

• 160W RGB+WW LED with adjustable zoom from 24° to 37°
• Pre-set color temperatures and flicker-free dimming for broadcast-ready output

Chauvet DJ EVE E-160ZQ Description The Chauvet DJ EVE E-160ZQ elevates lighting for theaters, houses of worship, live events, and broadcast environments with precise optics and vibrant color mixing. Its quad-color LED source combines RGB with warm white, allowing for rich saturated hues or natural white tones between 2800K and 8000Kâ??without the need for gels or filters. This fixture features a smooth zoom range (24°â??37°), ensuring that your subject stays clearly lit across various throw distances. Pre-set color temperature macros make it easy to match other fixtures or ambient lighting without manual programming. With D-Fi USB support, the EVE E-160ZQ can be controlled wirelessly via DMX, reducing cable clutter for mobile or fixed setups. Flicker-free operation makes this ellipsoidal spotlight ideal for use on camera, while its silent performance and power linking capability make it production-friendly. It also supports metal and glass gobos (M-size) for image projection and comes with a gobo holder and gel frame. Model Features

• 160W RGB+WW quad-color LED engine
• Zoomable beam angle from 24° to 37°
• Pre-set color temperatures from 2800K to 8000K
• D-Fi USB compatible for wireless DMX control
• Flicker-free output for video and livestreaming
• Supports glass and metal gobos (M size)
• PowerCON-compatible input/output for linking

Model Specifications

• DMX Channels: 3, 4, or 11
• DMX Connectors: 3-pin and 5-pin XLR
• Light Source: 160W RGB+WW LED
• Zoom Angle: 24° to 37°
• Illuminance (24°): 7072 lux @ 2m | 1132 lux @ 5m
• Illuminance (37°): 2964 lux @ 2m | 474 lux @ 5m
• Strobe Rate: 1 to 30 Hz
• Color Temperature Range: 2800K â?? 8000K
• Lumens: 5,231
• Power Linking: 9 units @ 120V; 16 units @ 230V
• Power Consumption: 150W, 1.3A @ 120V | 0.7A @ 230V
• Gobo Size: M (66 mm outer, 48 mm image, 2 mm max thickness)
• Accessory Holder Size: 6.25 in (159 mm)
• Dimensions: 18.4 x 9.8 x 16.9 in (467 x 248 x 429 mm)
• Weight: 12.2 lb (5.5 kg)
• Certifications: CE, RoHS, MET

What's In The Box

• EVE E-160ZQ fixture
• Power cord
• Gel frame
• Metal gobo holder
• Glass gobo holder
• Quick reference guide
