Chauvet DJ GigBAR 3 ILS | 3-in-1 Derby Par Strip System | Complete Lighting System with Tripod & Control

All-in-One DJ Lighting System

Chauvet DJ GigBAR 3 ILS is a complete multi-effect lighting system that combines derby effects, wash pars, and a dynamic LED strip on a single bar. It is designed for mobile entertainers, DJs, and event setups that need fast deployment, synchronized effects, and wide room coverage without complicated rigging.

Chauvet DJ GigBAR 3 ILS Competitive Differences

• Integrated derby, par, and LED strip effects in one bar for full-room coverage from a single fixture
• ILS compatibility allows seamless synchronization with other ILS-enabled fixtures for coordinated light shows

Chauvet DJ GigBAR 3 ILS Description

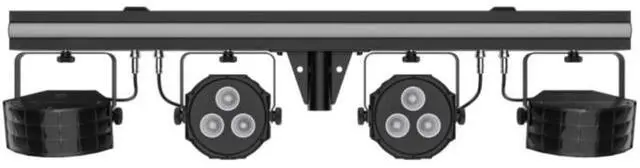

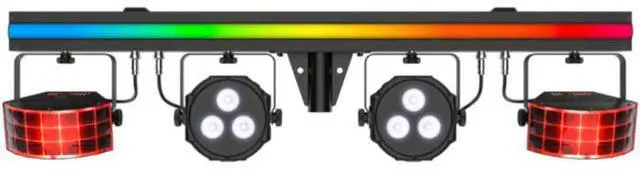

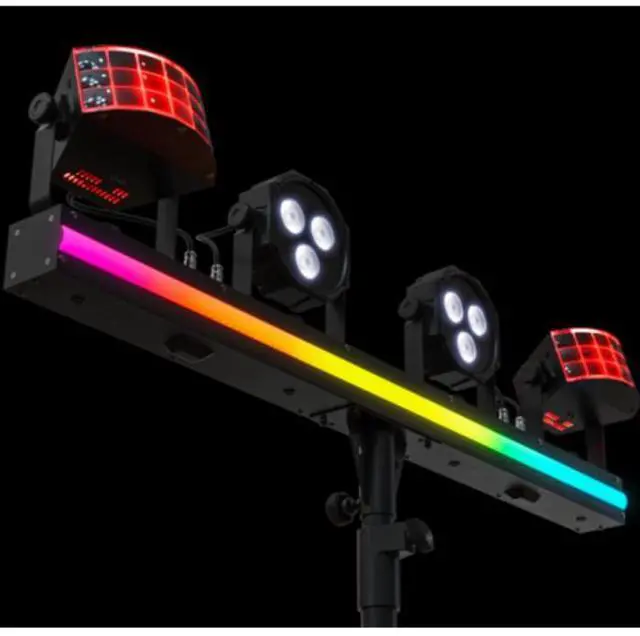

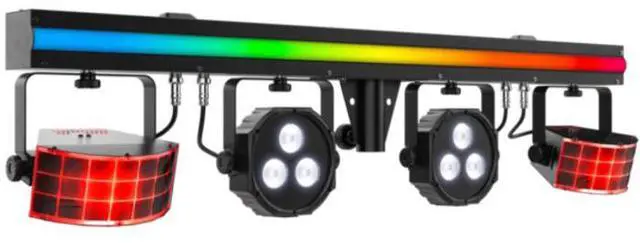

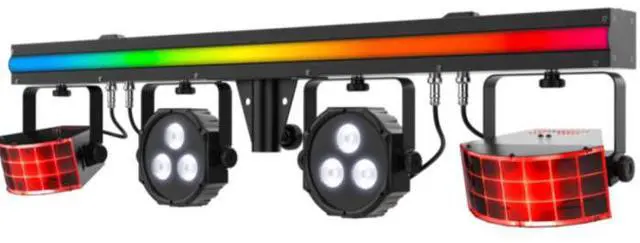

The Chauvet DJ GigBAR 3 ILS is built to simplify lighting setups while delivering dynamic, multi-layered effects. With a pair of LED derbies, RGB+UV pars, and a built-in RGB LED strip, this system creates a complete light show that covers dance floors, stages, and event spaces with ease.

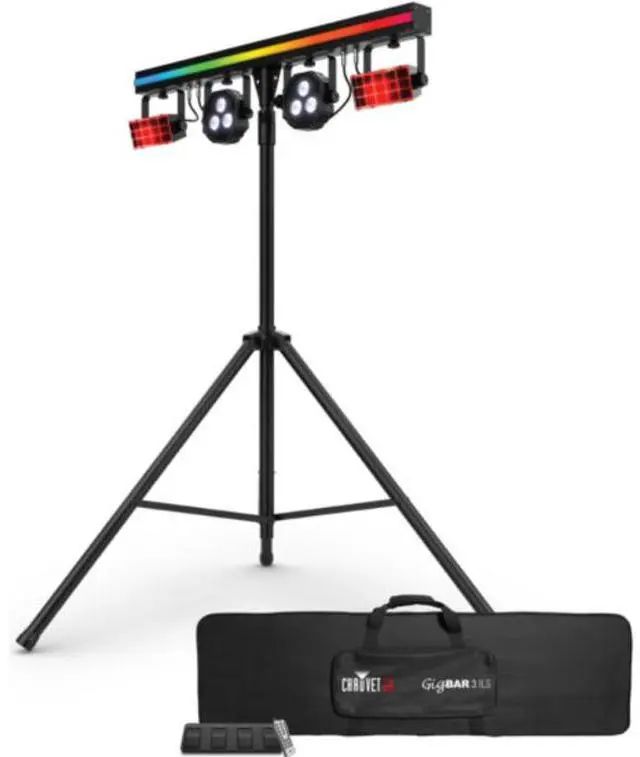

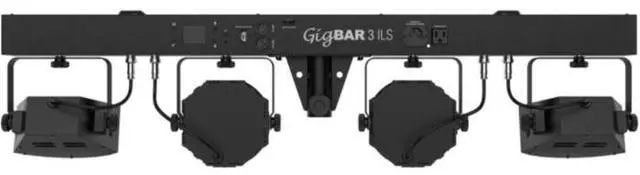

Designed for fast setup and teardown, the system includes a tripod stand, wireless footswitch, RF remote, and carry bags, making it ideal for mobile DJs and event professionals. The reversible mounting bracket allows for flexible positioning, including upside-down mounting for creative setups, while the full-color LCD display provides quick access to settings and programs.

With built-in automated and sound-activated programs, users can generate synchronized effects across all fixtures instantly. For advanced control, the unit supports DMX operation with multiple channel modes, as well as wireless control via ILS, RF remote, or the included footswitch. It also allows additional fixtures to be mounted on top, expanding your lighting rig as needed.

The GigBAR 3 ILS is engineered for efficiency and reliability, offering power linking to reduce cable clutter and flicker-free performance suitable for video applications. Its lightweight yet durable design ensures portability without sacrificing performance, making it a strong choice for DJs, bands, and event production teams.

GigBAR 3 ILS Features

• 3-in-1 lighting system with LED derbies, RGB+UV pars, and RGB LED strip
• ILS compatibility for synchronized lighting across fixtures
• Built-in LED strip adds additional visual effects and coverage
• Includes tripod stand, wireless footswitch, RF remote, and carry bags
• Full-color LCD display for easy navigation and control
• Reversible mounting bracket for flexible positioning
• Supports DMX, RF remote, footswitch, and ILS control
• Built-in automated and sound-activated programs
• Expandable setup with mounting points for additional fixtures
• Power linking capability to reduce cable runs

GigBAR 3 ILS Specifications

• DMX Channels: 2, 21, or 132
• DMX Connectors: 3-pin XLR
• Light Source (Pars): 6 LEDs (RGB + UV), 3.7 W, 1 A, 50,000-hour life expectancy
• Light Source (LED Strip): 74 LEDs (RGB), 5 W, 0.03 A, 50,000-hour life expectancy
• Light Source (Derby): 6 LEDs (2 red, 2 green, 2 blue), 3 W, 0.6 A, 50,000-hour life expectancy
• Strobe Rate: 0 to 20 Hz
• Stand Height: 4.8 ft to 7.8 ft (1.5 to 2.4 m)
• Tripod Leg Width: 3.9 ft (1.2 m)
• Fits Tripod Size: 1.5 in (37.
