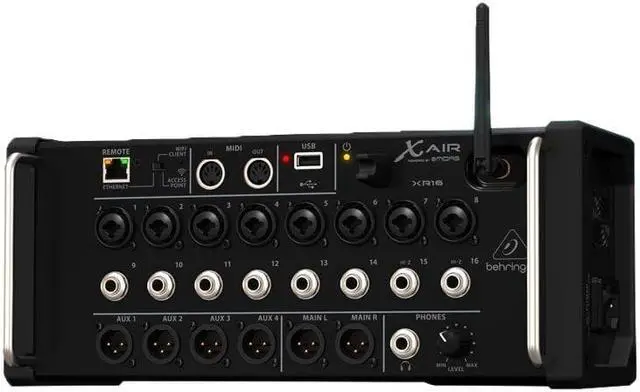

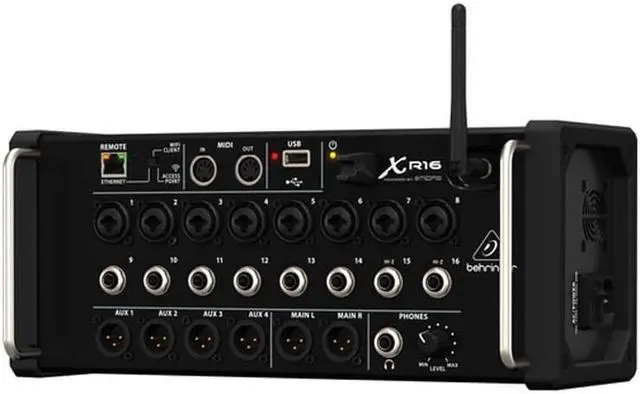

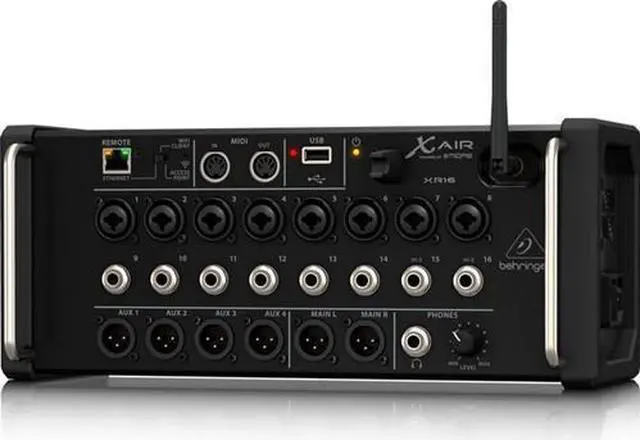

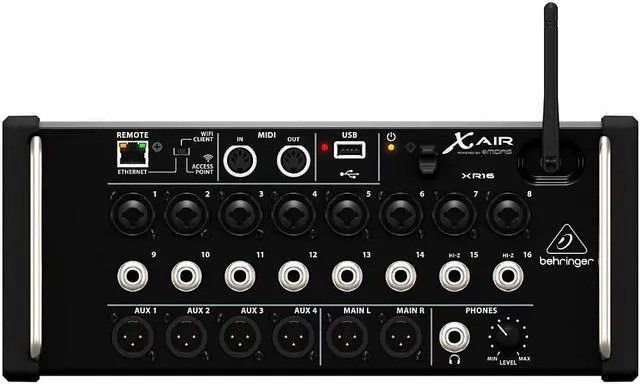

Behringer X Air XR16

Digital Mixer

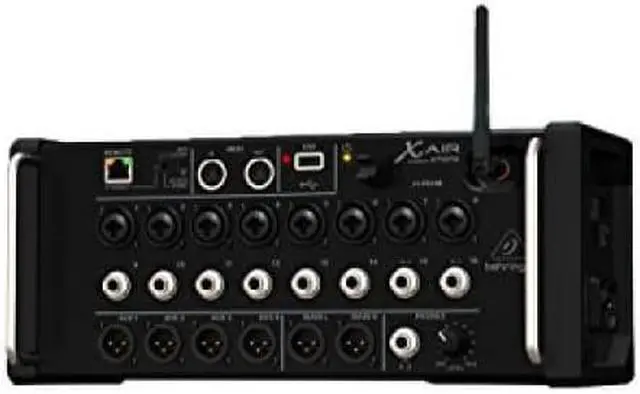

Behringer XR16 X Air is a compact, tablet-controlled digital mixer designed for live sound and recording applications. It combines remote-controlled mixing, high-quality preamps, and onboard DSP processing, making it ideal for bands, small venues, and mobile audio setups.

Behringer XR16 Competitive Differences

• Built-in tri-mode WiFi router for direct wireless mixing without external hardware
• USB stereo recorder for direct WAV recording and playback without a computer

Behringer XR16 Description

The Behringer XR16 X Air delivers powerful digital mixing capabilities in a portable, stage-friendly format. With 16 inputs including 8 Midas-designed programmable mic preamps and 8 line inputs, it provides clean, detailed audio suitable for live performances, rehearsals, and recording sessions.

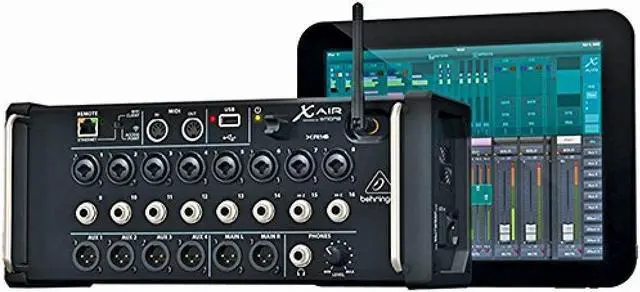

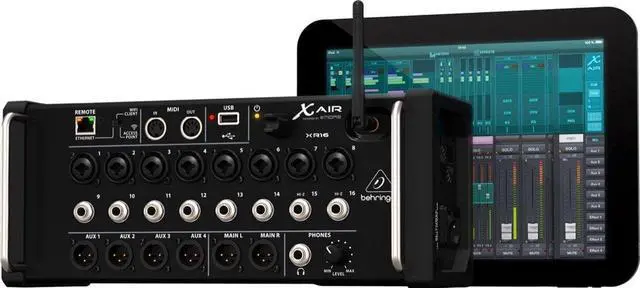

Its integrated tri-mode WiFi router enables direct connection to tablets or computers for wireless control via iOS, Android, or desktop applications. This eliminates the need for additional networking equipment in many setups, while Ethernet connectivity remains available for more stable environments.

The mixer features a built-in USB recorder capable of capturing and playing back uncompressed stereo WAV files, making it ideal for simple recording tasks without requiring a DAW. Additionally, advanced DSP includes a 40-bit floating-point engine, four stereo effects processors from the X32 series, and a 100-band real-time analyzer for precise EQ control.

With flexible routing, six aux buses, and full dynamics processing on all channels, the XR16 is well-suited for small bands, houses of worship, and AV installations. Its rugged, compact design with included rack ears and protection bumpers ensures reliable use in both mobile and installed setups.

XR16 Features

• 16-input digital mixer for tablet and computer control
• 8 Midas-designed, fully programmable mic preamps
• 8 balanced TRS line inputs
• Built-in tri-mode WiFi router for direct wireless operation
• Dugan-style auto-mixing for automatic microphone gain sharing
• USB stereo recorder for WAV recording and playback
• X32 effects rack with 4 stereo FX engines
• 100-band real-time analyzer (RTA) for all channel and bus EQs
• 6 aux buses and main LR with full dynamics and EQ

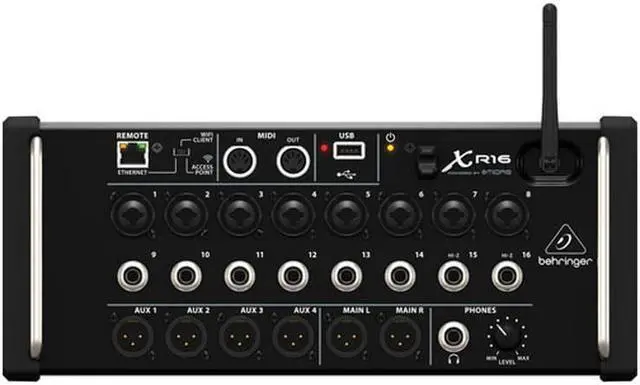

• 4 XLR aux outputs and 2 XLR main outputs
• 40-bit floating-point DSP for high dynamic range and low latency
• Remote control via iOS, Android, PC, Mac, and Linux apps
• MIDI In/Out with Mackie Control support

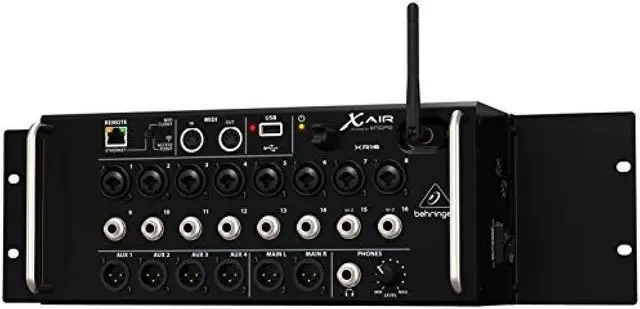

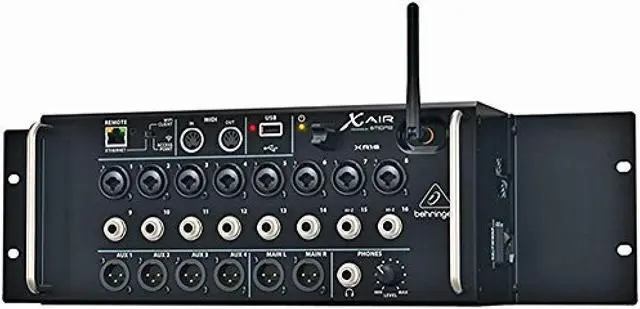

• Rack ears and protection bumpers included

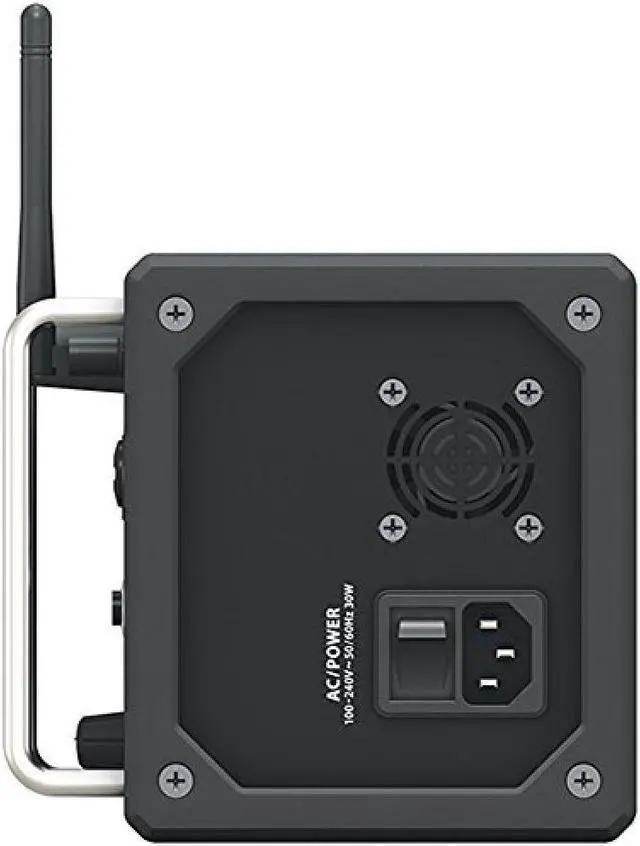

• Internal switch-mode power supply

XR16 Specifications

• Product Type: Digital Mixer
• Processing Channels: 16 inputs, 1 stereo USB return, 4 stereo FX returns
• Mic Inputs: 8 x XLR/TRS combo
• Line Inputs: 8 x TRS (balanced)
• Phantom Power: 48V, per channel
• Main Outputs: 2 x XLR (balanced)
• Aux Outputs: 4 x XLR (balanced)
• Headphone Output: 1 x TRS
• MIDI I/O: 1 x In / 1 x Out (DIN)
• Ethernet: 1 x RJ45
• USB: 1 x Type A (stereo recording/playback)
• Signal Processing: 40-bit floating point
• Sample Rate: 44.1 / 48 kHz
• A/D-D/A Conversion: 24-bit
• Dynamic Range: 114 dB
• Latency: 0.
