ADJ Focus Spot 4Z | 200W LED, 11-22° Motorized Zoom & Focus | Moving Head Spot with Gobos & 2 Prisms

LED Moving Head Spot Light

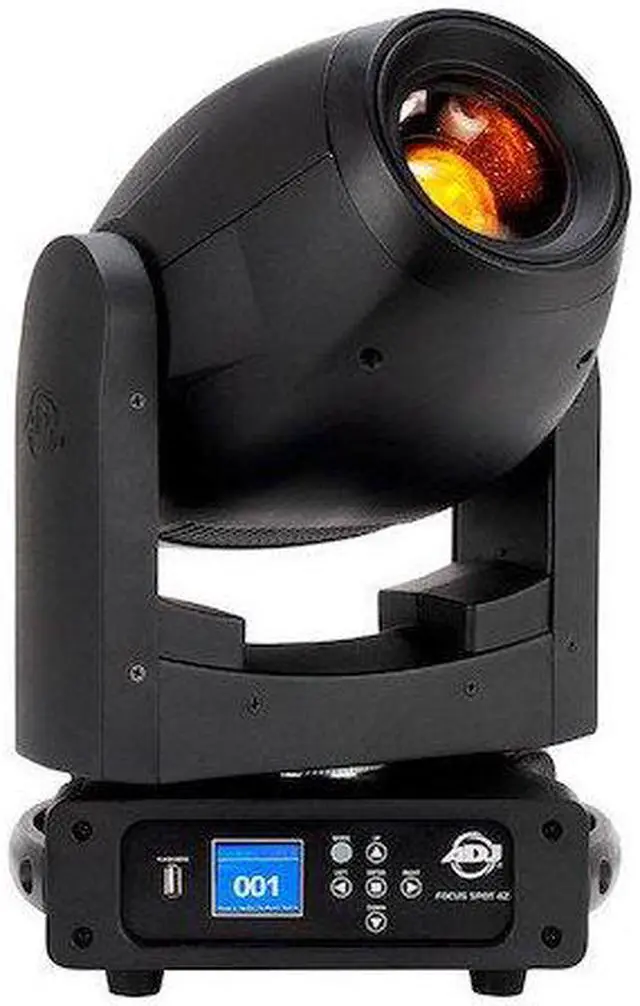

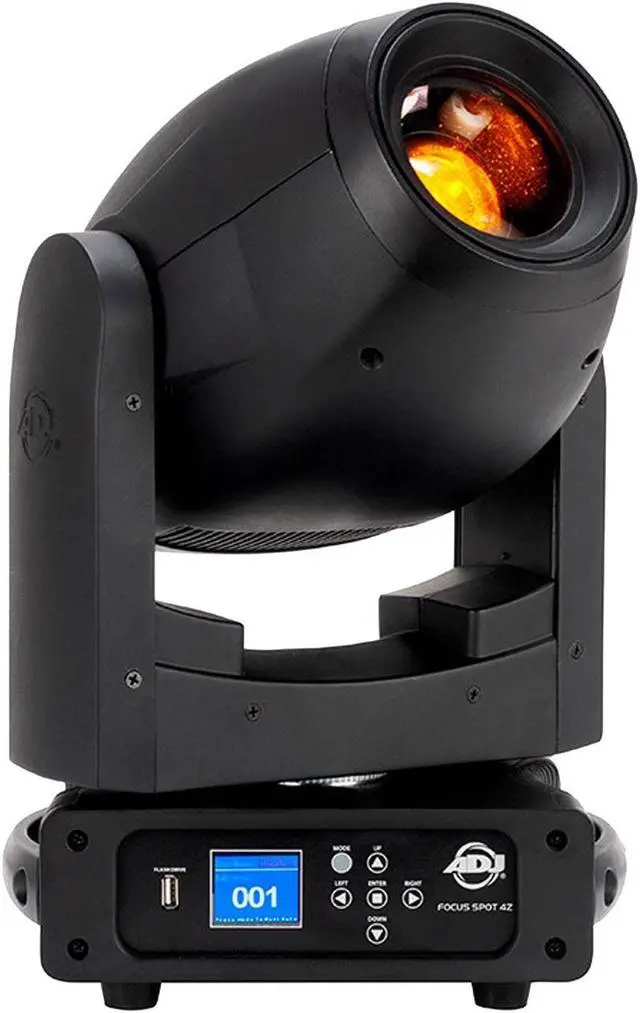

The ADJ Focus Spot 4Z is a 200W LED moving head spot light featuring motorized focus, adjustable 11° to 22° zoom, and a black exterior housing. Delivering 7,000 lumens, this versatile fixture includes 6 rotating and replaceable gobos, 8 dichroic colors plus white, and dual rotating prisms for dynamic aerial effects and pattern projections. Designed for live events, nightclubs, stages, churches, and fixed installations, it combines advanced lighting effects with flexible DMX control and a compact design.

ADJ Focus Spot 4Z Competitive Differences

• 200W Cool White LED Engine: Delivers 7,000 lumens with a rated LED life expectancy of 50,000 hours.
• Motorized Focus and Zoom: Adjustable 11° to 22° beam angle with 16-bit fine zoom control for precise lighting adjustments.
• Dual Rotating Prisms: Features a 5-facet linear prism and a 6-facet circular prism with indexing capabilities for creative beam effects.
• 6 Rotating and Replaceable Gobos: Provides interchangeable aluminum patterns with gobo rotation, indexing, and shake effects.
• 8 Dichroic Colors Plus White: Offers a selection of vibrant colors for aerial effects, projected patterns, and stage lighting.
• Advanced DMX Control: Supports 16, 18, and 22-channel DMX modes with 16-bit fine pan and tilt control.
• Selectable Dimming Curves: Includes six dimming modes with smooth 0-100% electronic dimming.
• Locking Power Connections: Allows power linking of up to 4 fixtures at 120V or 10 fixtures at 240V.
• Standalone Operation: Includes internal automatic programs and Master/Slave functionality for synchronized lighting effects.
• Compact Black Housing: Suitable for mobile lighting rigs, concert stages, nightclubs, and permanent installations.

ADJ Focus Spot 4Z Description

The ADJ Focus Spot 4Z delivers versatile moving head lighting performance in a compact black housing. Powered by a 200W cool white LED engine, it produces 7,000 lumens and features motorized focus and zoom for flexible beam projection. Its adjustable 11° to 22° zoom range allows lighting designers to switch between narrow beams and wider projected patterns, making it suitable for concerts, mobile entertainment, stage productions, churches, and nightclubs.

The fixture features a dedicated color wheel with eight dichroic colors plus white and a separate gobo wheel with six rotating and removable aluminum gobos plus an open position. Gobo indexing allows precise pattern positioning, while rotation and shake effects add movement to projections. Motorized focus helps maintain sharp patterns at different projection distances, providing flexibility for temporary productions and permanent installations.

Two independent rotating prisms expand the creative possibilities of the Focus Spot 4Z. The 5-facet linear prism generates repeated projections in a linear arrangement, while the 6-facet circular prism creates symmetrical beam multiplication effects. Prism rotation and indexing allow different effect orientations and movement styles.
