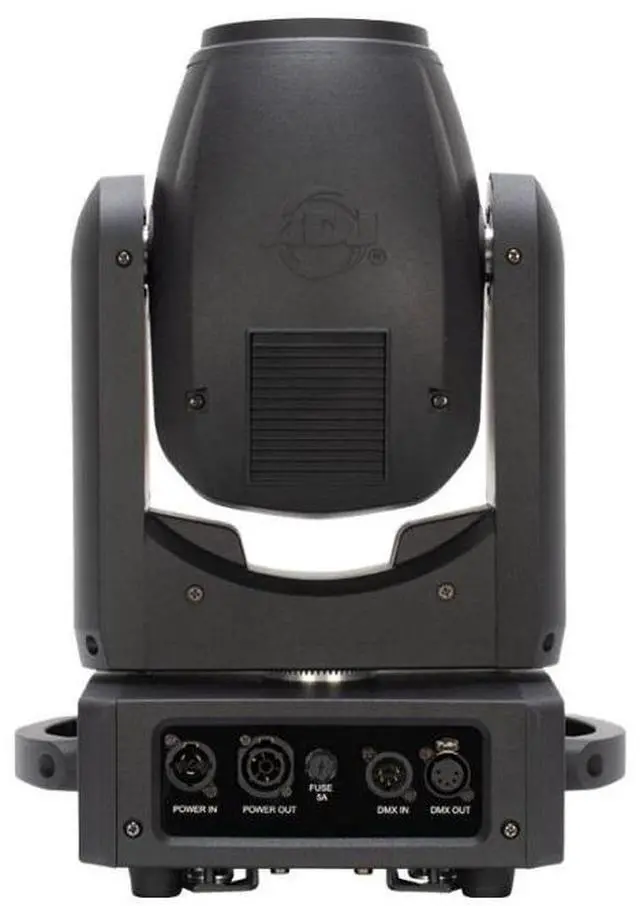

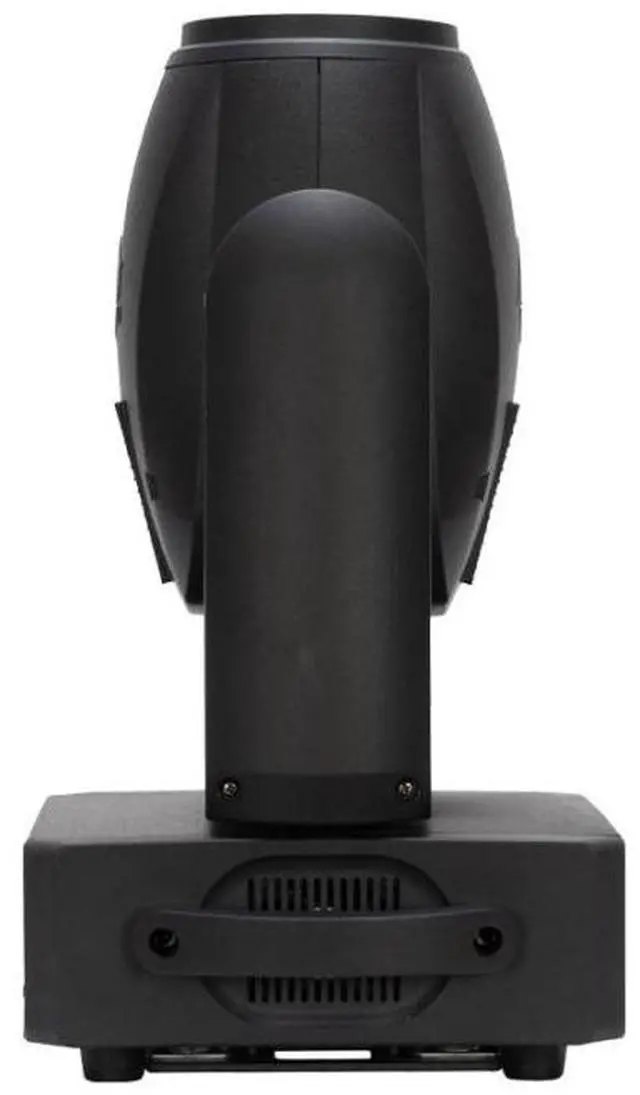

American DJ Vizi Beam RX2

ADJ Lighting Vizi Beam RX2

The ADJ Lighting Vizi Beam RX2 is a compact, high-performance moving head beam fixture featuring a 100W Osram Sirius HRI discharge lamp, a razor-sharp 2-degree beam, two prism effects, and numerous high-performance features tailored for the modern lighting professional.

Features

• On-Board Wireless DMX
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter for wash effect
• High-quality glass lens
• 2 Rotating prisms
• 0-100% smooth dimming
• Various strobe speeds
• OTA, wireless, firmware updates
• Fan cooled

Specifications

• Light Source: OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.), Color temperature: 9000K (+/- 300K)
• Color Wheel: 14 dichroic colors + white (Includes CTO (3200K), CTB (4500K & 9000K) & UV filters), Indexable color wheel for split colors
• GOBO Wheel: 15 static GOBOs + open (3 GOBOs are beam reducers), GOBO Shake Effect
• Prism Wheels: 2 Rotating prisms, 16-facet circular and 4-facet linear prisms
• Control: DMX512 & RDM protocols, DMX512 & Manual control modes, 2 DMX Channel Modes (12/16 Channels), Aria X2 Wireless Management / DMX System, Color LCD display with 4-button function menu, 0-100% smooth dimming, Various strobe speeds, Wired Digital Communication Network
• Pan/Tilt: Pan: 540 degrees (plus 16-bit fine pan), Tilt: 270 degrees (plus 16-bit fine tilt), 3 Phase, High-Speed, Pan/Tilt motors
• Connections: 5-pin DMX In/Out (Data link max: 32 fixtures), Outdoor locking In/Out power connections for daisy-chaining
• Electrical: Multi-voltage operation: 100-240V, 50/60Hz, Max power consumption: 168W (@120V), 157W (@230V), Fuze Protected: 3.15A
• Dimensions & Weight: 9â?� (L) x 12â?� (W) x 16.3â?� (H) (230 x 304 x 416mm), Weight: 16.5 lbs. / 7.5 kg.
• Approvals / Ratings: CE, cETLus (Control # 5028947), FCC

Whatâ??s Included

• 2x Omega Brackets (107 Type)
• 2M, outdoor locking 14AWG power cord

Road Cases

• QRC MH: Quad Road Case
• DRC MH: Dual Road Case

```
