American DJ Data Distro 6 | 6-Way DMX & RDM Splitter with 5-Pin XLR I/O

6-Way DMX and RDM Splitter for Lighting Control Systems

The American DJ Data Distro 6 is a compact and reliable 6-way DMX and RDM data splitter designed to simplify complex lighting setups. Whether you're running a large stage show or need streamlined cabling for a fixed installation, this device distributes DMX512 and RDM signals with stability and precision through six individually isolated 5-pin outputs. Built for professional performance, it ensures clean signal transmission and offers versatile mounting options.

American DJ Data Distro 6 Competitive Differences

• 6 isolated 5-pin DMX/RDM outputs for efficient data distribution
• Supports both DMX512 and RDM protocols
• Dedicated 5-pin XLR input and thru ports
• Truss mountable with Velcro straps or M10 clamp (clamp not included)
• Built-in Link Out / Termination and DMX / RDM protocol switches
• Locking power input for secure connection
• Certified for CE, cETLus, UKCA, and FCC compliance

American DJ Data Distro 6 Description

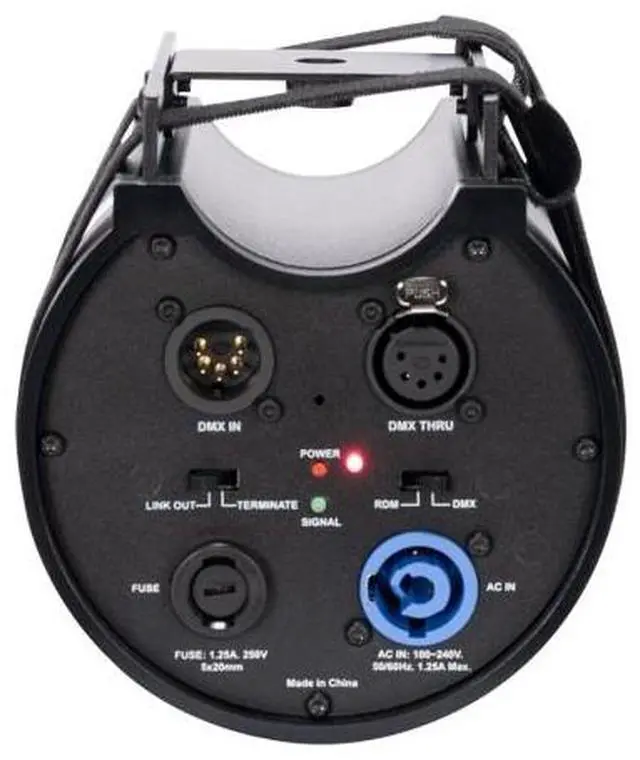

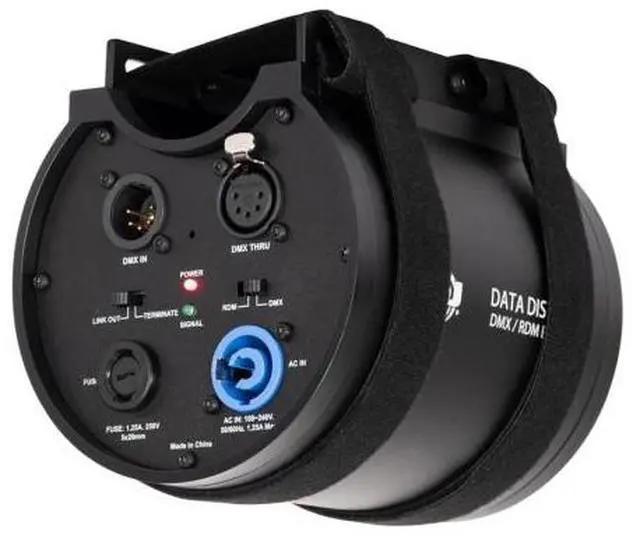

The Data Distro 6 by American DJ is a powerful and compact data management tool for professional lighting systems. With one 5-pin XLR input, one 5-pin thru, and six optically isolated 5-pin outputs, it makes distributing data across multiple DMX fixtures quick and efficient. Designed to support both DMX512 and RDM protocols, this unit is essential for setups requiring device feedback and remote configuration.

This splitter includes convenient onboard controls for switching between DMX and RDM operation, and activating termination. Its durable design includes a truss mounting bracket with Velcro straps and compatibility with an M10 clamp (not included), making it ideal for mobile or fixed installations. With universal power support and fuse protection, itâ??s ready to handle professional demands with ease and reliability.

Data Distro 6 Features

• 6-way DMX/RDM data splitter
• 1x 5-pin XLR input
• 1x 5-pin XLR thru

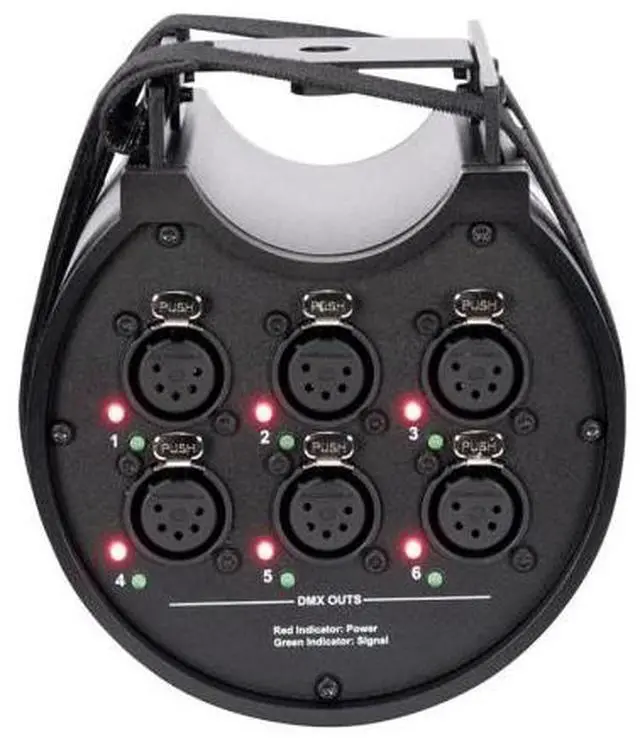

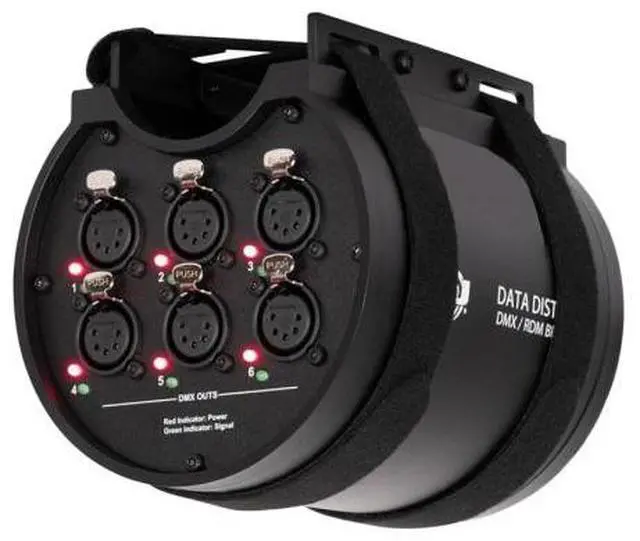

• 6x 5-pin XLR outputs (optically isolated)
• Link Out / Termination switch
• DMX / RDM protocol switch
• Locking power input socket
• Truss mountable with Velcro straps or M10 screw clamp (clamp not included)

Data Distro 6 Specifications

• Protocols supported: DMX512, RDM
• Power input: 100-240V AC, 50/60Hz
• Power consumption: 2.7W @ 120V, 2.9W @ 230V
• Power protection: Fuse, T1.25A/250 (5.2x20mm)
• Operating temperature: 32°F to 113°F (0°C to 45°C)
• Storage temperature: 77°F (25°C)
• Humidity: Less than 75%
• Certifications: CE, cETLus (Control # 5014475), UKCA, FCC
• IP rating: IP20
• Dimensions: 4.73" L x 5.43" W x 5.10" H
• Weight: 1.83 lbs (0.83 kg)
