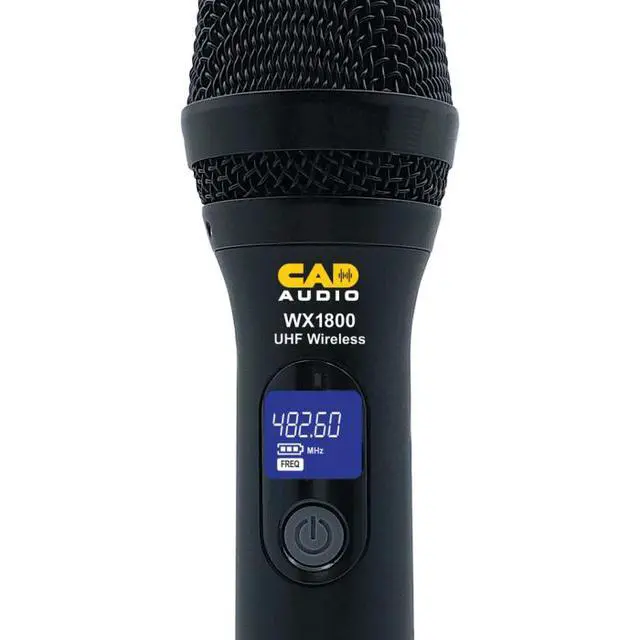

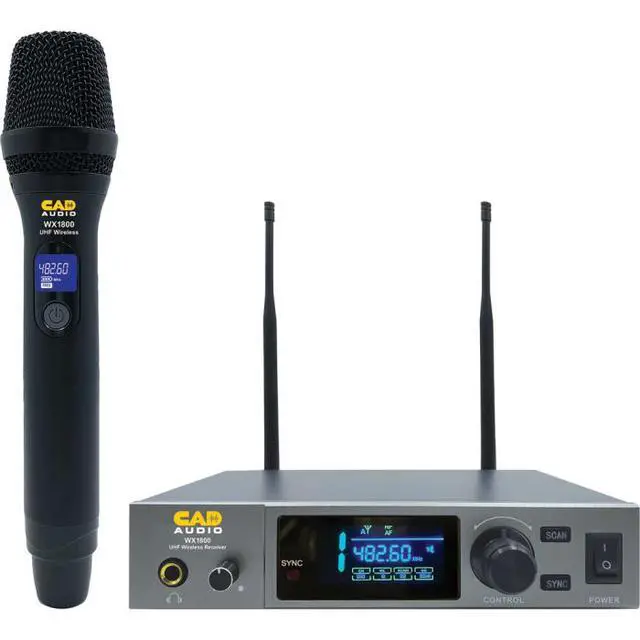

CAD WX1800HH | Handheld UHF Wireless Mic System | 100 Channels, 394ft Range

Handheld UHF Wireless Microphone System CAD WX1800HH is a frequency-agile UHF wireless system featuring a handheld transmitter with a supercardioid capsule, designed for live performance, presentations, and installations. With up to 394 feet of range, true-diversity reception, and 100 selectable frequencies, this system delivers dependable wireless audio with minimal interference and setup time. CAD WX1800HH Competitive Differences

• 394-foot wireless range with true diversity reception
• Includes rackmount kit and antenna relocation hardware

CAD WX1800HH Description The CAD WX1800HH delivers the flexibility and clarity needed in today's RF-challenging environments. Operating in the 550â??590 MHz band, it offers 100 user-selectable UHF channels and supports up to 20 systems operating simultaneously without conflictâ??ideal for events, corporate AV, and live sound. Setup is quick and painless thanks to auto-scan and IR sync, while the systemâ??s all-metal construction ensures durability in stage and touring conditions. The handheld mic includes a supercardioid capsule to reduce background bleed and feedback, providing focused vocal pickup in loud or reverberant environments. The receiver offers balanced XLR and unbalanced 1/4" outputs to integrate easily into your sound system, and clear LCD displays provide status information on both the transmitter and receiver. With up to 10 hours of operation on two AA batteries and a full rackmount and antenna kit included, the WX1800HH provides professional-grade wireless performance in a complete, road-ready package. Model Features

• Supercardioid handheld mic capsule minimizes bleed and feedback

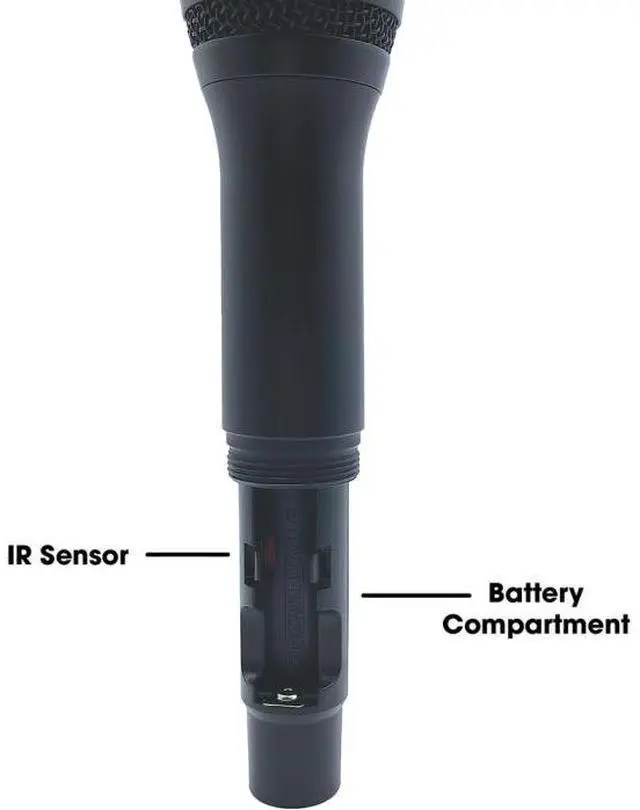

• 100 UHF frequencies with auto-scan and IR sync

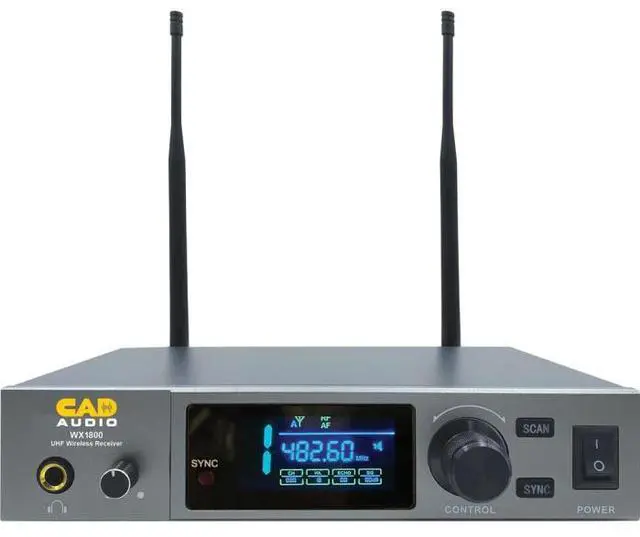

• True-diversity tabletop or rackmount receiver
• Balanced XLR and unbalanced 1/4" outputs
• Rugged all-metal housing for transmitter and receiver
• Up to 394 ft operating range
• Operates 10+ hours on 2x AA batteries
• Includes rackmount hardware and antenna kit

Model Specifications

• Wireless Technology: Analog UHF (550â??590 MHz)
• Frequency Channels: 100
• Max Operating Range: 394 ft (120.1 m)
• Microphone Polar Pattern: Supercardioid
• Audio Frequency Response: 30Hz â?? 18kHz
• RF Output Power: 10 mW

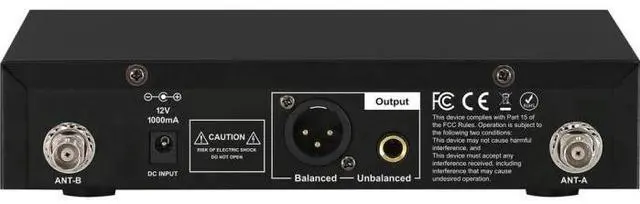

• Outputs: XLR balanced, 1/4" unbalanced
• Battery Life: 10 hours (2x AA)
• Receiver Dimensions: 16.3 x 12.8 x 2.8 in
• Package Weight: 4.685 lb
• UPC: 631922110241

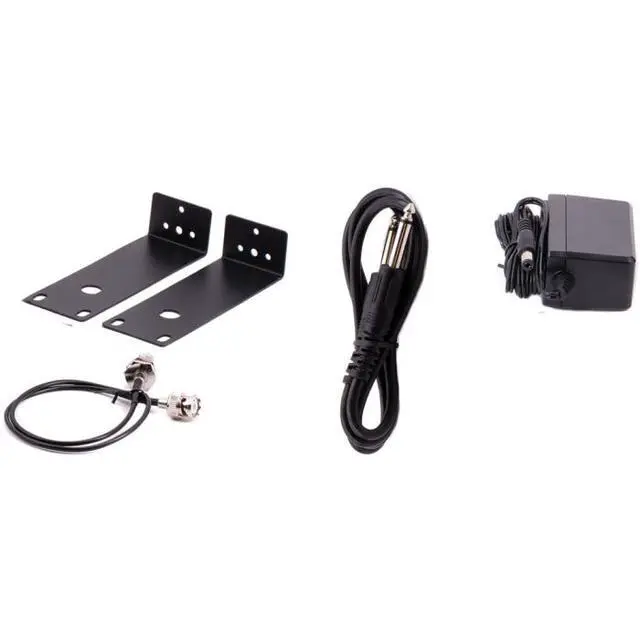

What's In The Box

• Handheld wireless microphone transmitter
• Wireless tabletop/rackmount receiver
• AC power adapter
• Rackmount hardware kit
• Antenna relocation kit
• Quick start guide
