RCF F 16XR | Ins: 10 Mic, 8 Line - Effects | USB Recording Mixer

16-channel analog mixer with effects and USB recording

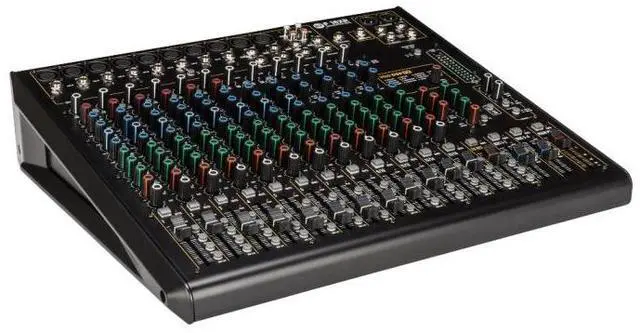

RCF F 16XR is a portable 16-channel analog mixing console that combines clean preamps, onboard PRO DSP effects, and a 2Ã?2 USB interfaceâ??ideal for live sound, rehearsals, clubs, and project studios needing reliable mixing and easy computer recording/playback.

RCF F 16XR Competitive Differences

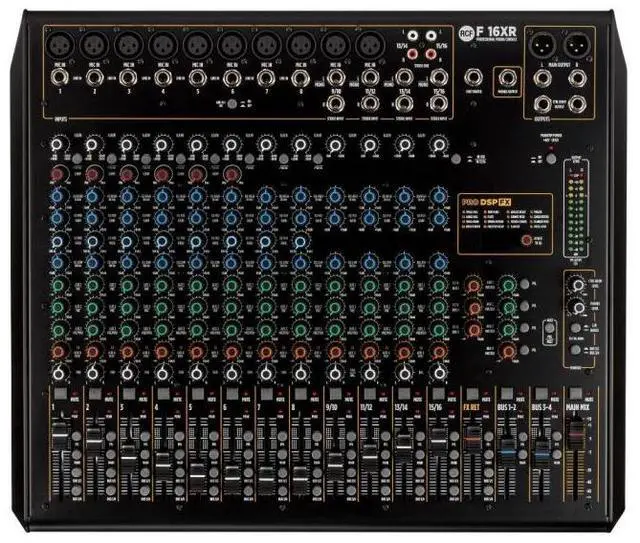

• Inputs for real-world gigs: 10 mic preamps plus 8 mono line inputs and 4 stereo line inputs
• Onboard PRO DSP FX with 16 presets (reverbs, delays, chorus, flanger, echo)
• Built-in 2Ã?2 USB audio (stereo record/playback at 44.1/48 kHz)
• Six single-knob compressors on channels 1â??6 for fast dynamics control
• Flexible routing: 2 stereo groups, 4 aux sends (2 pre, 1 pre/post, 1 post), FX send
• Balanced +28 dB main outs on XLR + TRS for robust, noise-free connections

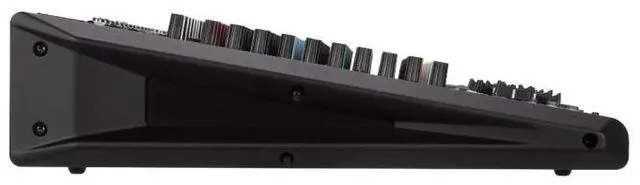

• Sturdy metal chassis with 60 mm faders and universal internal power supply
• Engineered in Italy with a fully balanced signal path from input to output

RCF F 16XR Description

The F 16XR builds on RCFâ??s analog heritage with a clean, fully balanced architecture and musical EQ. The integrated PRO DSP FX provides studio-style reverbs and delays for quick polish without extra outboard. With a 2Ã?2 USB interface, it captures stereo mixes to your DAW and plays back tracks for backing or break music.

Designed for portability and reliability, the mixerâ??s metal chassis, 60 mm faders, and +28 dB balanced main outputs make it a dependable hub for venues, bands, houses of worship, and rental rigs that need straightforward operation and consistent performance.

F 16XR Features

• 16-channel analog mixing console
• 10 mic preamp inputs; 8 mono line inputs; 4 stereo line inputs
• PRO DSP FX onboard with 16 presets (Halls, Rooms, Plates, Spring; Mono/Stereo/Multitap delays; Chorus, Flanger, Echo)

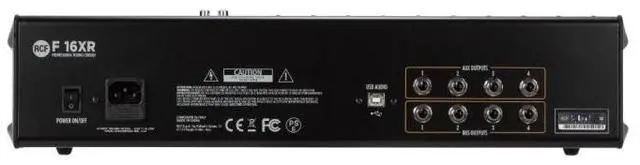

• Stereo recording and playback via USB port (2 in / 2 out)
• 6 single-control compressors (channels 1â??6)
• Balanced main output +28 dB (Stereo XLR + TRS)
• Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)
• 60 mm faders
• Internal universal power supply
• Designed and engineered in Italy

F 16XR Specifications

• Frequency Response: 20 Hz â?? 20 kHz
• THD+N (20 dB gain, 0 dBu out): <0.
