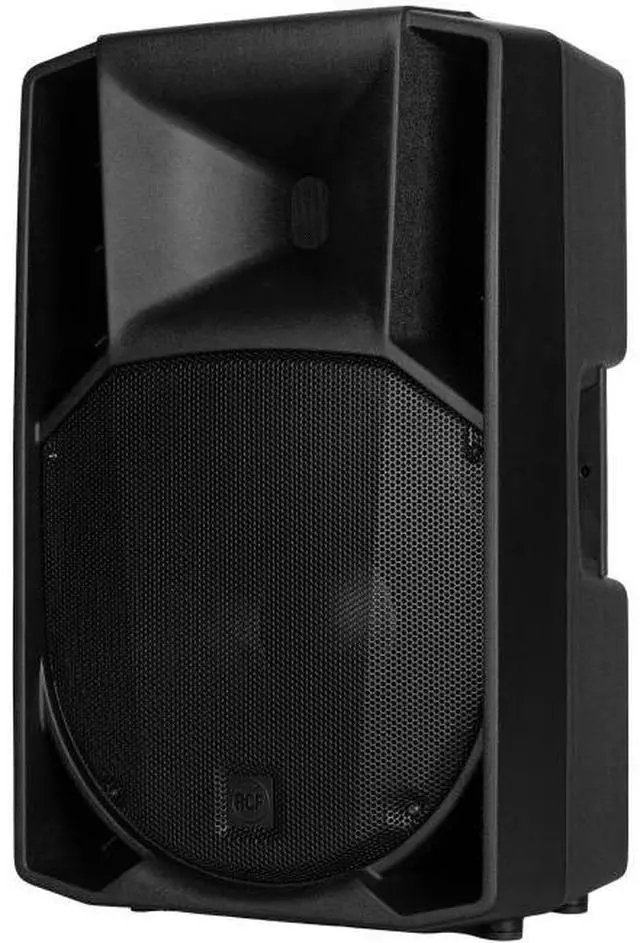

RCF ART 745A MK5 | 15in - 133dB | Flagship Speaker with XBoost Bass & FiRPHASE

Powered PA Speaker RCF ART 745A MK5 is a flagship-level active loudspeaker built for demanding live sound environments. With advanced transducer technology and deep DSP processing, it offers pristine audio performance, powerful output, and rugged portability. Whether used as a main FOH speaker or a high-output stage monitor, it provides unmatched vocal clarity and extended low-frequency response. RCF ART 745A MK5 Competitive Differences

• 4" Titanium Compression Driver with 650Hz crossover point for superior vocal clarity
• XBoost feature enhances bass depth without distortion

RCF ART 745A MK5 Description The RCF ART 745A MK5 sets the standard in the ART series with class-leading sound projection, powerful SPL output, and lightweight construction. A neodymium 15" woofer with a 3.5" voice coil delivers tight, controlled bass, while the ND940 compression driver with a 4" voice coil allows for an ultra-low 650Hz crossover pointâ??resulting in better midrange clarity and faster transient response. The onboard 1400W Class-D amplifier is optimized with RCFâ??s advanced DSP. Features include crossover management, phase control, soft limiting, and thermal protectionâ??delivering consistent performance at high volume levels. The XBoost feature provides an optional low-frequency enhancement for bass-heavy environments. The enclosure is molded from polypropylene composite to minimize vibrations and ensure durability, while the ergonomic handles and pole mount options make it ideal for portable setups, stage monitoring, or flown installations. FiRPHASE technology ensures coherent sound with accurate imaging and minimal phase distortion across the venue. Model Features

• 1400W Class-D bi-amplified system with DSP
• 4" Titanium diaphragm compression driver with neodymium magnet
• 15" neodymium woofer with 3.5" voice coil
• XBoost feature for enhanced low-end response
• FiRPHASE processing for linear phase response

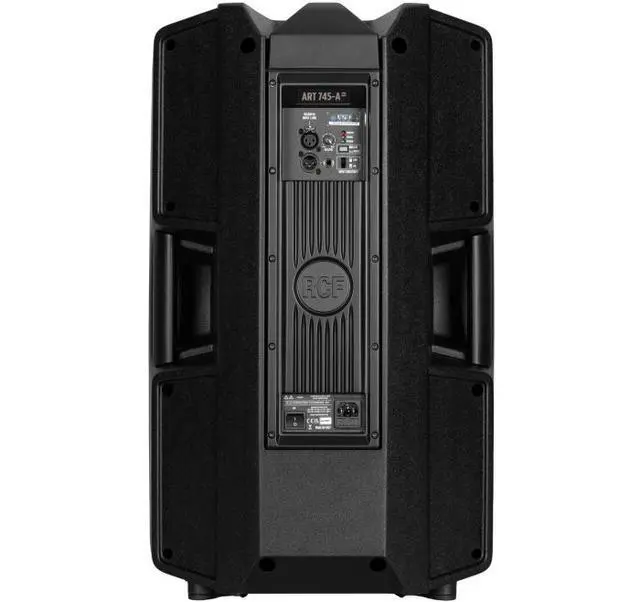

• Polypropylene cabinet with multiple mounting options

Model Specifications

• Max SPL: 133â?¯dB
• Power Output: 1400W Peak (400W HF + 1000W LF)
• Frequency Response: 45â?¯Hz â?? 20,000â?¯Hz
• Coverage Pattern: 90° H x 60° V
• Crossover Frequency: 650â?¯Hz
• Dimensions: 27.87 x 17.2 x 15.31 in (708 x 437 x 389 mm)
• Weight: 41.45 lb (18.8 kg)

What's In The Box

• RCF ART 745A MK5 Speaker
• Power Cable
• Quick Start Guide
