Yorkville EF12 | 12" Passive Speaker with 600W Program Power & ABS-Coated Birch Enclosure

12-Inch Passive Speaker for High-Power Installations and Touring Systems The Yorkville EF12 brings the performance and reliability of the Elite Series to venues and installs requiring passive loudspeakers. Engineered with premium-grade components and rugged birch plywood construction, this 12" 2-way speaker delivers powerful, full-range sound and is ideal for applications with existing external amplification. Yorkville EF12 Competitive Differences

• 1200W peak / 600W program power rating at 8 ohms for professional-level output
• 3" voice coil woofer paired with a 3" compression driver for full-range clarity and power
• ABS-coated birch plywood cabinet for superior acoustic response and durability
• Integrated flypoints and pullback for installation or flown arrays
• Multiple input options: 2x 1/4" and 2x Speakonâ?¢ 4-pin connectors
• Made in Canada with professional-grade reliability

Yorkville EF12 Description The Yorkville EF12 passive loudspeaker is a compact yet powerful solution for both portable and installed sound applications. Built for high-output audio, it houses a 12" woofer with a 3" voice coil and a titanium-diaphragm compression driver with its own 3" voice coil. Together, they deliver crisp highs, robust lows, and smooth midrange at up to 128 dB SPL peak. Housed in a 15 mm (5/8") 11-ply Russian birch cabinet finished with black Ultrathaneâ?¢ paint, the EF12 is lightweight (51 lbs) yet extremely rugged. It includes eight integrated flypoints and a pole mount adapter, making it easy to deploy in almost any configurationâ??on a stand, stacked, or suspended. EF12 Features

• 12â?� LF driver with 3â?� voice coil
• 3â?� HF compression driver with 1â?� titanium diaphragm
• ABS plastic custom waveguide horn (60° x 40°)
• 3 SK3 protection bulbs for high-frequency driver protection
• ABS-coated birch plywood cabinet with metal grille

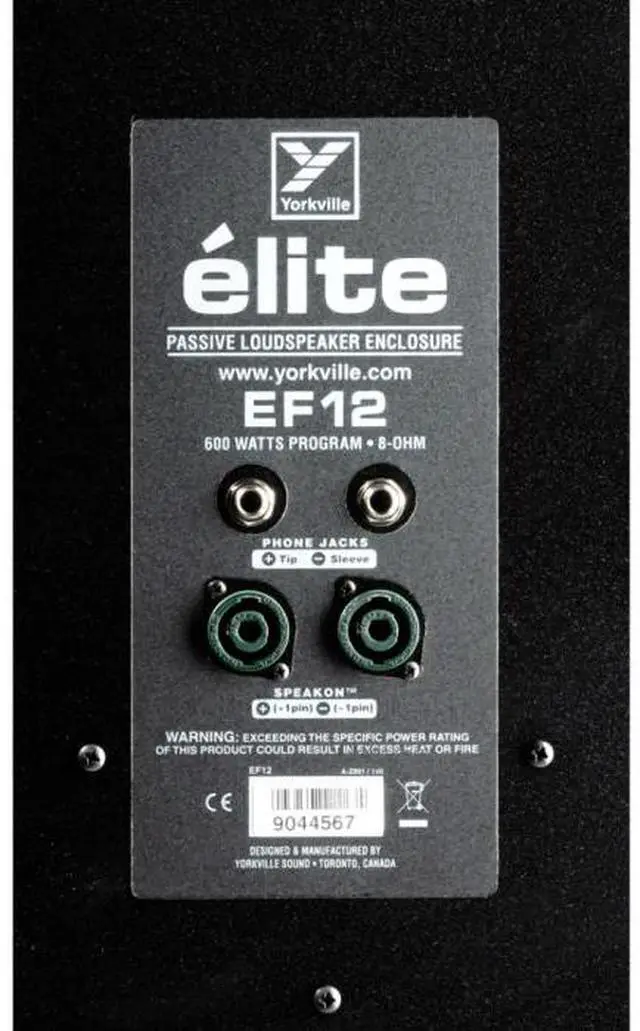

• Dual 1/4â?� and dual Speakonâ?¢ input connectors
• Three bar handles for easy transport
• Flyable with 8 flypoints and 1 pullback point

EF12 Specifications

• System Type: Passive 2-way loudspeaker
• Power Handling: 1200W peak / 600W program
• Impedance: 8 ohms
• Sensitivity: 97 dB @ 1W/1m
• Max SPL: 128 dB peak / 125 dB continuous
• Frequency Response: 55 Hz â?? 18 kHz (±3 dB)
• Crossover Frequency: 1900 Hz
• HF Dispersion: 60° x 40°
• Inputs: 2 x 1/4" jacks, 2 x Speakonâ?¢ 4-pin
• Enclosure Material: 15 mm (5/8") 11-ply Russian birch
• Grille: Perforated metal
• Finish: Black Ultrathane paint
• Dimensions (D x W x H): 14" x 16" x 25.5"
• Weight: 51 lbs (23 kg)

What's In The Box

• Yorkville EF12 Passive Loudspeaker
