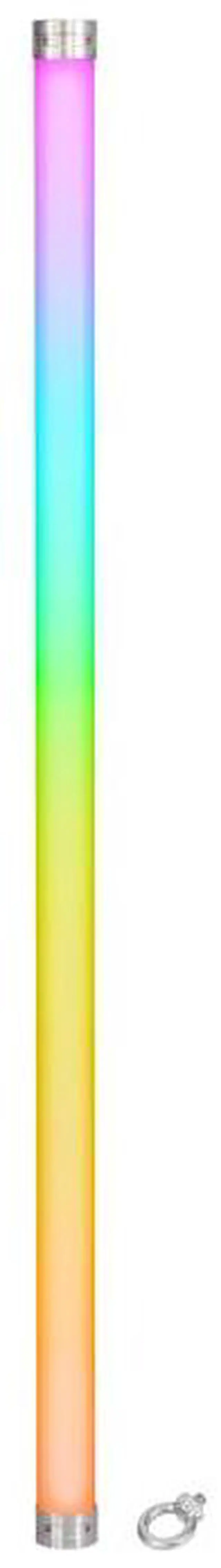

Ape Labs Neon Pix INS | 32-Pixel RGBWW LED Tube | IP65 Install Light with CRMX

Mains-Powered Multipixel LED Tube Light

The Ape Labs Neon Pix INS is a mains-powered, 1-meter RGBWW pixel tube designed for permanent indoor and outdoor lighting installations. Its 96 LEDs are divided into 32 individually controllable pixels, producing smooth animated effects, homogeneous 180° illumination, and warm white output without visible LED dots.

Ape Labs Neon Pix INS Competitive Differences

• 96 RGB and Warm White LEDs arranged across 32 individually controllable pixel zones
• Mains-powered INS version designed for permanent installations without an internal battery
• Homogeneous illumination without visible individual LED points
• 180° beam angle for wide room, profile, scenic, and architectural lighting
• CRI 90 output with dedicated 2700K Warm White LEDs
• 750-lumen output from a compact 1-meter tube
• Four selectable DMX modes, including full 32-pixel RGBWW control
• Wireless DMX through CRMX and Ape Labs CONNECT
• Automatic fixture-to-fixture signal repeating for wireless networks extending up to approximately 4,000 feet
• Flicker-free operation above 2 kHz for video, photography, and broadcast environments
• IP65-rated polycarbonate tube for indoor and outdoor installations
• Silent, fanless operation
• Flexible mounting with two removable neodymium magnets and five M6 mounting threads
• Secure device pairing and cloud-based storage of personal fixture settings
• Designed, engineered, and assembled in Germany

MusikMode: 1-Button Light Show

Ape Labs MusikMode allows compatible Ape Labs fixtures to automatically work together and create a coordinated light show that responds to music. With no traditional DMX programming required, connected fixtures distribute complementary colors and effects across the lighting system to create a synchronized, continuously changing presentation.

DMX-Like Control via Grouping

The Neon Pix INS can be assigned to one of four control groups through a compatible Ape Labs remote or the Ape Labs smartphone app. Users can independently adjust each groupâ??s color, brightness, programs, effect speed, and strobe settings without changing fixtures assigned to other groups.

Multiple groups can also be controlled simultaneously, while the app provides scene creation and cloud-based storage of personal fixture settings. Ape Labs CONNECT is required for smartphone app and Ape Labs wireless DMX control and is sold separately.
