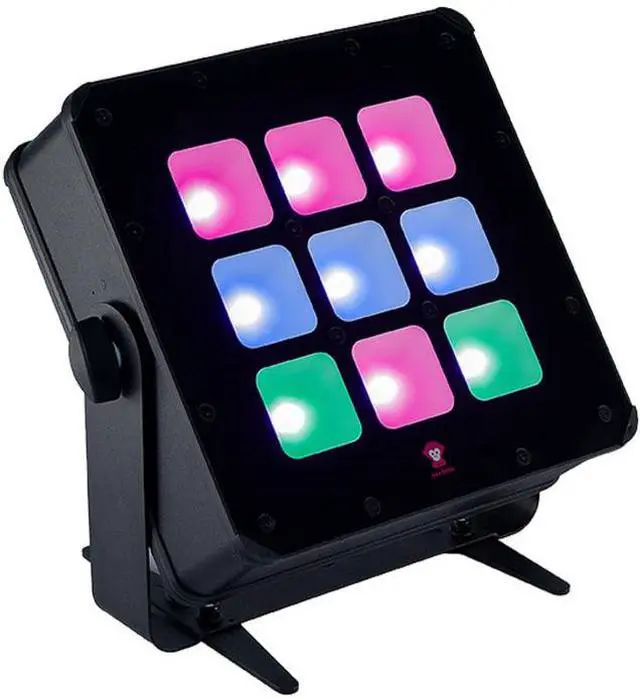

Ape Labs Marvel Pix Wash INS | IP65, 162W RGBLwWcW Wash Light | 150° Optics with CRMX

Mains-Powered Pixel LED Wash Light

The Ape Labs Marvel Pix Wash INS is a high-output, mains-powered pixel wash light designed for ultra-wide coverage on cycs, stages, scenery, and dance floorsâ??indoors or outdoors. With nine individually controllable 18W RGBLwWcW LEDs and factory-installed 150° wash optics, it delivers smooth, homogeneous color, high-CRI white light, wireless control, and flicker-free performance inside a rugged, fanless IP65-rated housing.

Ape Labs Marvel Pix Wash INS Competitive Differences

• Nine individually controllable 18W RGB, Lime, Warm White, and Cool White LED pixels
• 162W of total LED power for high-output stage, event, and architectural wash applications
• Factory-installed 150° ultra-wide wash optics for seamless cyc, stage, scenery, and dance floor coverage
• Mains-only INS version with Power Twist TR1 input and loop-through output
• Full multipixel control with 6-channel, 7-channel, 12-channel, 36-channel, and 54-channel DMX modes
• Flicker-free DUAL-DRIVE LED control without conventional PWM dimming
• Integrated CRMX wireless DMX compatibility with LumenRadio and Wireless Solution systems
• Ape Labs CONNECT wireless control and fixture-to-fixture signal repeating at approximately 3,937 feet
• CRI 90 output with dedicated 2700K Warm White and 6000K Cool White emitters
• Fanless, solid-state operation for silent venues, broadcast work, and camera applications
• IP65-rated aluminum housing for dependable indoor and outdoor use
• Integrated motion sensor and audible alarm for theft protection
• 360° continuously rotating bracket with locking fold-out feet
• Designed, engineered, and assembled in Germany

MusikMode: 1-Button Light Show

Ape Labs MusikMode allows compatible Ape Labs fixtures to automatically work together and create a coordinated light show that responds to music. Instead of relying on a basic sound-active sequence, MusikMode distributes complementary lighting behavior across connected fixtures to produce a more varied and synchronized presentation without requiring DMX programming.

DMX-Like Control via Grouping

The Marvel Pix Wash INS can be assigned to one of four groups for simplified control through a compatible Ape Labs remote or the Ape Labs smartphone app. Each group can be adjusted independently for color, brightness, programs, speed, strobe settings, and other parameters, while multiple groups can also be controlled together.

The iOS and Android app adds scene creation, cloud-based storage of personal fixture settings, and access to software updates. Ape Labs CONNECT is required for smartphone app control and is sold separately.
