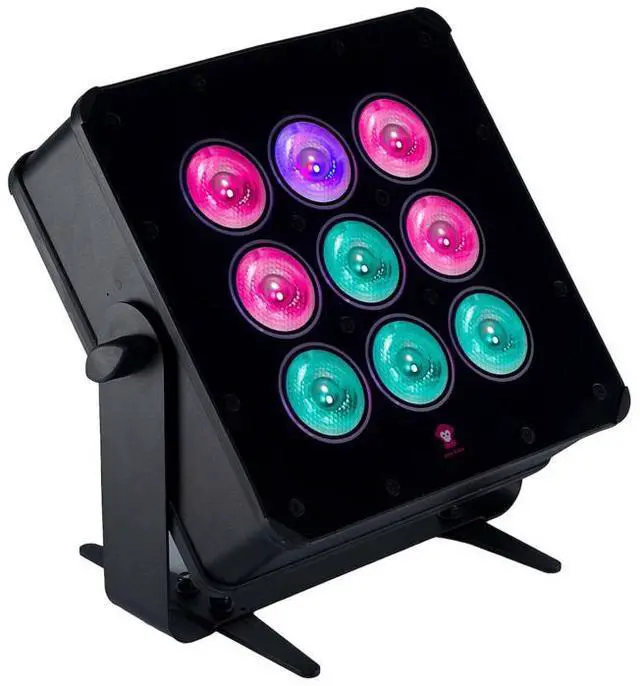

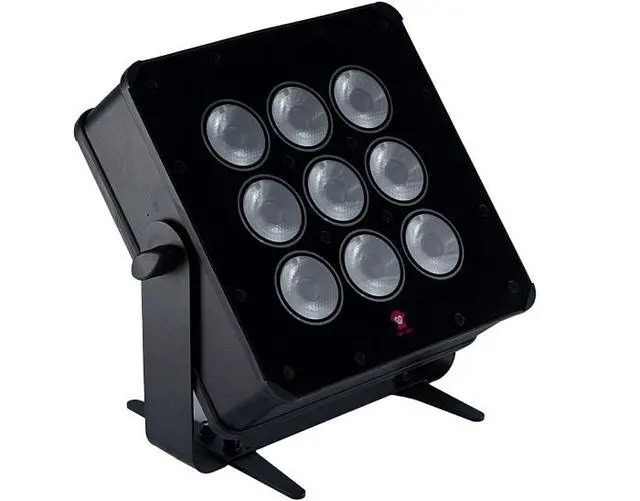

Ape Labs Marvel Pix INS | IP65, 162W RGBLwWcW Pixel Light | CRMX & Flicker-Free Dual-Drive

Mains-Powered Outdoor Pixel LED Spotlight

The Ape Labs Marvel Pix INS is a high-output, mains-powered pixel spotlight designed for outdoor uplighting, stage washes, architectural lighting, and individually controlled pixel effects. Its nine 18W RGBLwWcW LEDs deliver 162 watts of total LED power, homogeneous color mixing, a CRI of 90, and flicker-free operation inside a rugged, fanless IP65-rated housing.

Ape Labs Marvel Pix INS Competitive Differences

• Nine individually controllable 18W RGB, Lime, Warm White, and Cool White LED pixels
• 162W of total LED power for high-output stage, event, and architectural applications
• Mains-only INS version with Power Twist TR1 input and loop-through output
• Flicker-free DUAL-DRIVE LED control without conventional PWM dimming
• Integrated CRMX wireless DMX compatibility with LumenRadio and Wireless Solution systems
• Ape Labs CONNECT wireless control and fixture-to-fixture signal repeating at approximately 3,937 feet
• Five DMX channel modes, including 36-channel and 54-channel multipixel configurations
• 15° beam angle with homogeneous output and smooth color blending
• CRI 90 output with dedicated 2700K Warm White and 6000K Cool White emitters
• Fanless, solid-state operation for silent venues, broadcast work, and camera applications
• IP65-rated aluminum and acrylic-glass construction for indoor or outdoor operation
• Integrated motion sensor and audible alarm for theft protection
• 360° continuously rotating bracket with locking fold-out feet
• Designed, engineered, and assembled in Germany

MusikMode: One-Button Light Show

Ape Labs MusikMode allows compatible Ape Labs fixtures to automatically work together and create a coordinated light show that responds to music. Instead of relying on a basic sound-active sequence, MusikMode distributes complementary lighting behavior across connected fixtures to produce a more varied and synchronized presentation without requiring DMX programming.

DMX-Like Control Through Grouping

The Marvel Pix INS can be assigned to one of four groups for simplified control through a compatible Ape Labs remote or the Ape Labs smartphone app. Each group can be adjusted independently for color, brightness, programs, speed, strobe settings, and other parameters, while multiple groups can also be controlled together.

The iOS and Android app adds scene creation, cloud-based storage of personal fixture settings, and access to software updates. Ape Labs CONNECT is required for smartphone app control and is sold separately.
