LD Systems ICOA 12A | 12in - 126dB

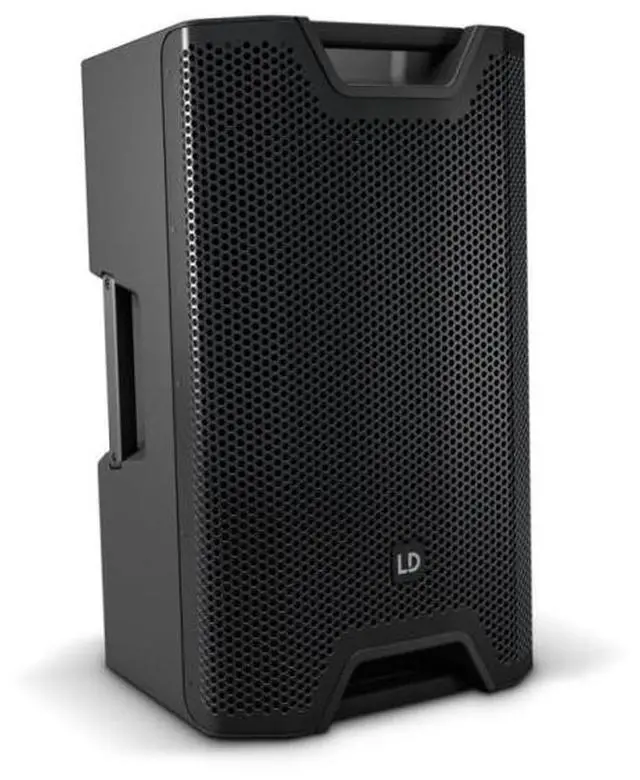

LD SYSTEMS - ICOA 12 A - 12" POWERED COAXIAL LOUDSPEAKER
Item Number: LDS-ICOA12A

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimized CD horn and extensive and precisely calibrated DynX DSP presets make this active 12" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 300 W RMS performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminum handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Features:

A genuine all-rounder for full-range, satellite and monitor applications
126 dB max. SPL and 1200 W peak power
Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimized CD horn (Patent Pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ and delay function
2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
Shock-resistant front grille for optimal protection of the speaker
4 aluminum grips with ergonomic, rubber surface
Extensive, optionally available accessories for installation and transport

Specifications:

Product Type: PA loudspeaker
Type: Actives
Low/Mid Driver Dimensions: 12 "
Woofer Size: 304.8 mm
Woofer Magnet: Ferrite
Woofer Brand: Custom-made
Horn: BEM optimized CD Horn
HF Driver Dimensions: 1 "
HF Driver Size: 25.4 mm
HF Driver Magnet: Ferrite
HF Driver Brand: Custom-made
HF Driver Voice Coil: 1 "
HF Driver Voice Coil: 25.4 mm
Amplifier: Class D
Dispersion (H x V): 90 ° x 50 °
RMS: 300 W
Peak Power: 1200 W
Frequency Response: 50 - 20000 Hz
Crossover Frequency kHz: 2 kHz
Max.
