LD Systems MAILA SPA | 1.25kW DSP Amplifier Module | Powers Up to 8 MAILA SAT

Line Array Amplifier Module

LD Systems MAILA SPA is a dedicated amplifier module for the MAILA system, delivering 1,250 watts RMS through an integrated 2-channel Class D DSP amplifier. Designed to power up to eight MAILA SAT satellites, it enables scalable system configurations for both compact ground stack setups and larger flown arrays.

LD Systems MAILA SPA Competitive Differences

• 1.25 kW RMS integrated DSP amplifier with SysCore® processing
• SmartLink+® cable-free satellite connection with automatic detection

LD Systems MAILA SPA Description

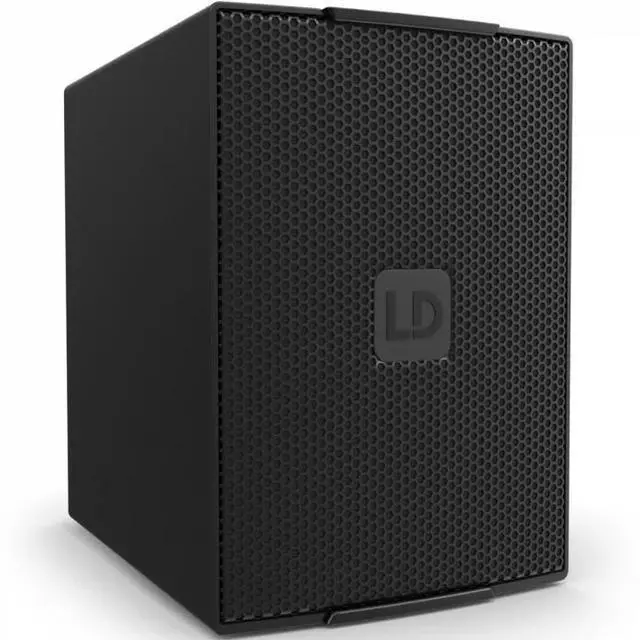

The LD Systems MAILA SPA is the only MAILA module without integrated loudspeakers, yet it plays a central role in the modular system design. Built with an elegant unibody aluminum housing, it houses a powerful 1.25 kW RMS Class D amplifier with SysCore® DSP capable of controlling up to eight MAILA SAT satellites.

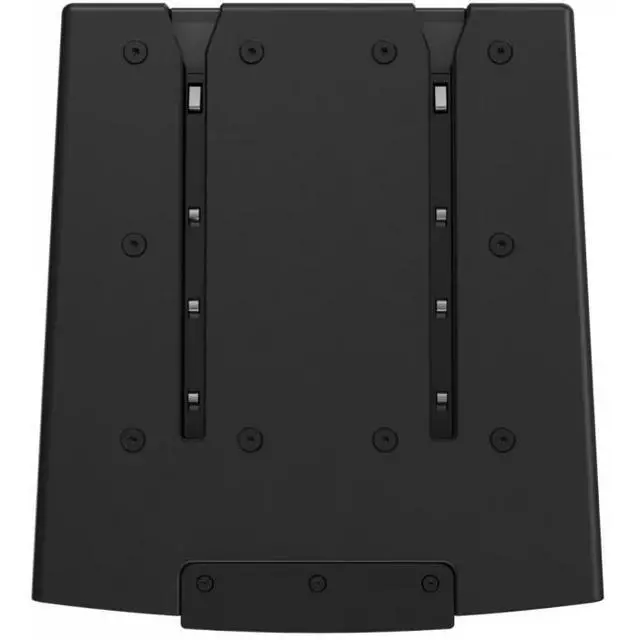

Using SmartLink+®, satellites can be directly mounted onto the module and supplied wirelessly with both signal and power. The system automatically detects connected components, allowing for efficient automatic or manual DSP configuration. Integrated protection circuits including limiter, overheating, and overload safeguards ensure reliable operation in demanding live sound environments.

The MAILA SPA supports flexible deployment options. It can be used in ground stack configurations with a speaker pole or in flown setups when paired with the optional EasyMount+® truss adapter. This makes it suitable for portable event systems, fixed installations, and scalable touring applications.

With LogoLink®, Bluetooth® antennas are seamlessly integrated into the LD logo, enabling wireless control via the free MAILA app (iPadOS). The app automatically recognizes connected MAILA components, assists with optimal system configurationâ??including SAT angle calculationâ??and allows wireless software updates. With a Bluetooth® range of up to 70 meters, system setup and control remain convenient and efficient.

MAILA SPA Features

• Amplifier module for up to eight MAILA SAT satellites
• 1,250 W RMS Class D 2-channel DSP amplifier
• SmartLink+® cable-free satellite connection
• Automatic satellite detection for DSP setup
• Bluetooth® 4.2 with up to 70 m range
• LogoLink® integrated wireless antenna system
• App control via MAILA app (iPadOS)
• Ground stack and flown array compatibility
• Limiter, overheating, and overload protection
• Aluminum continuous cast housing with powder-coated finish

MAILA SPA Specifications

• RMS Power Output: 1,250 W
• Amp Class: Class D

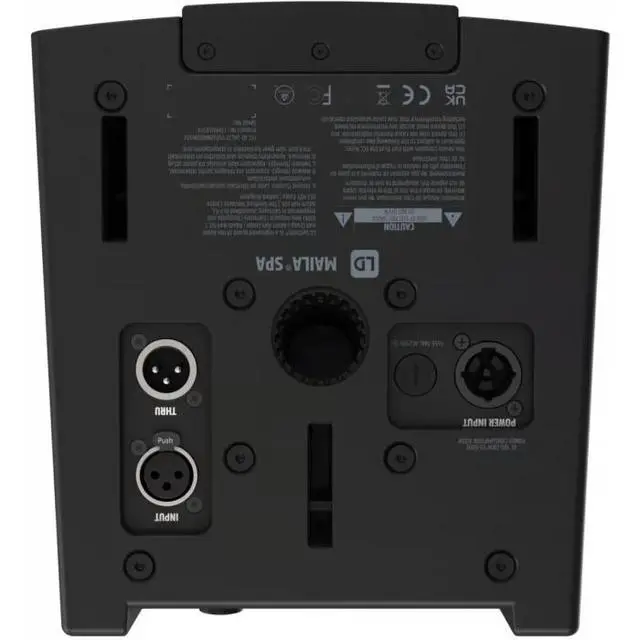

• Inputs: 1 x XLR 3-pin female
• Outputs: 1 x XLR 3-pin male
• Input Impedance (Balanced): 20 kΩ
• AD/DA Conversion: 24-bit / 48 kHz
• Bluetooth® Version: 4.2
• Bluetooth® Range: â?¤70 m (Class 1-2)
• Operating Voltage: 100 â?? 240 V AC, 50/60 Hz
• Rated Power Consumption: 400 W
• Mains Connector: Mains socket indoor power in male & powerCON®
• Cabinet Material: Aluminum continuous casting
• Finish: Powder coated
• Color: Black
• Dimensions (W x H x D): 8.07 x 11.10 x 8.90 in (205 x 282 x 226 mm)
• Weight: 16.4 lb (7.
