DJ Triangle Truss Extension Lighting System by GRIFFIN | Mounts on your Speaker Stands | Trussing Stage Kit for Smoke Machines & Dance Laser Lights | C Clamps Mounting Brackets & Platform Hardware Set

KEEP YOUR STAGE GEAR SAFE: Made of medium-duty steel with sturdy steel piping that will safely mount your heavy light cans or stage accessories. This is an extremely durable and long-lasting trussing system, perfect for all your stage lighting needs.

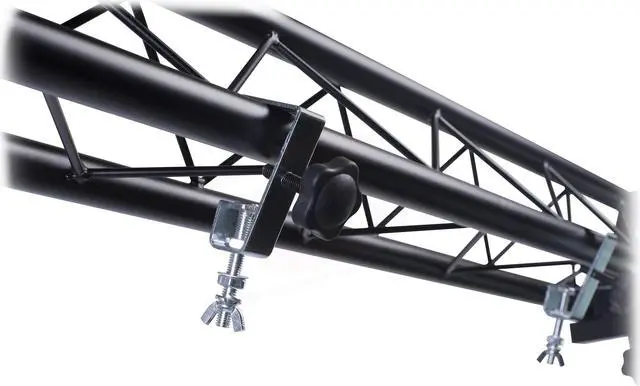

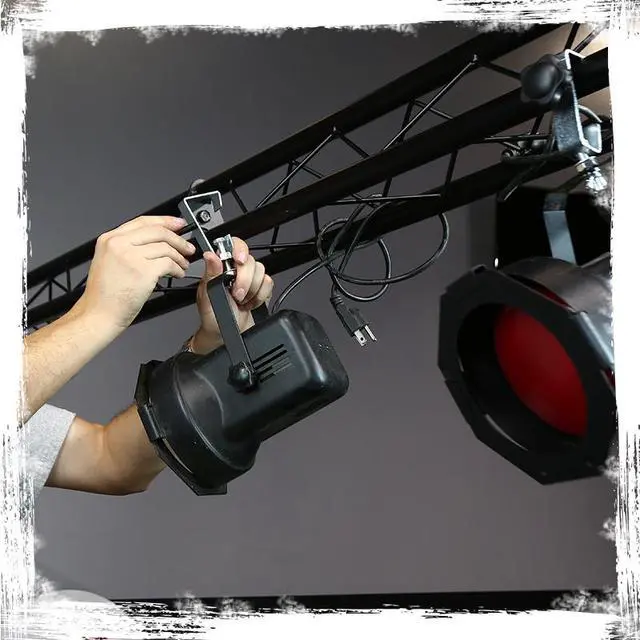

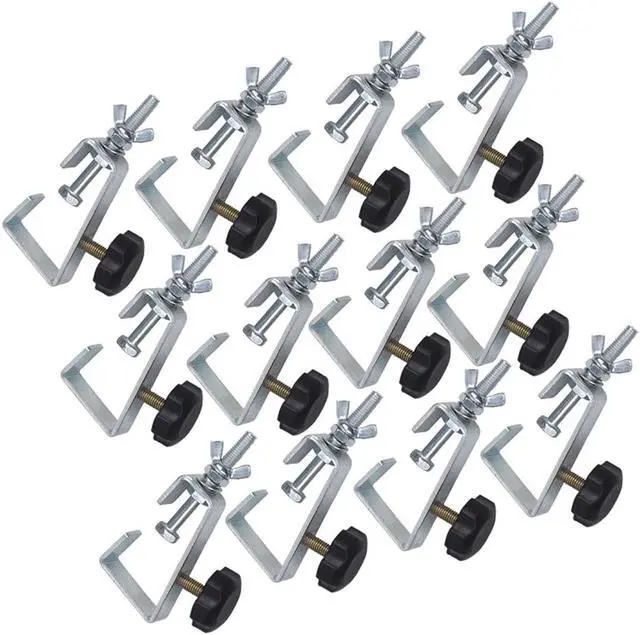

10 DJ C CLAMPS MOUNTING BRACKETS INCLUDED - PLACEMENT FOR YOUR LIGHTING TRUSS RIG: The triangle pipe design allows you to use C clamps mounts (10 total included) to mount your can lights anywhere on the truss and on any of the 3 pipes. Max weight 44 pounds on each C clamp. (Tripod Stands shown, not included)

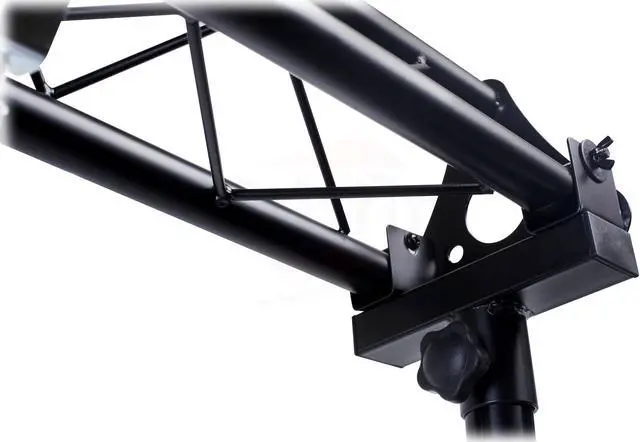

EXPAND TO EXISTING TRUSSES, OR INSTALL ON YOUR SPEAKER STANDS, WALL OR CEILING: Convert your existing speaker stands to a triangle truss system with the included 2 post mounts that can fit on top of any standard speaker stand (35mm to 39mm), which are custom fit for these truss pipes. Three (3) mounting holes at the end of each side of the truss allow you to bolt this truss together.

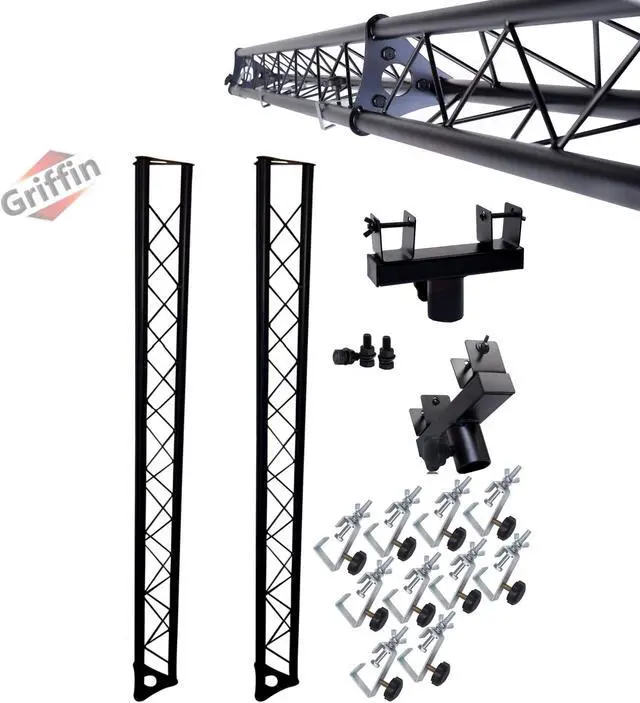

10 feet Wide - 2 Pack Triangle Truss Lighting System with Post Mount by Griffin

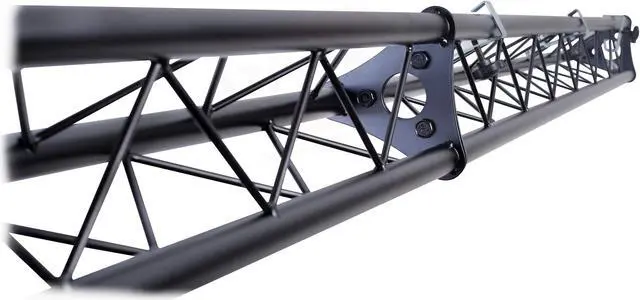

Convert your existing speaker stands to a triangle truss system! Included are 2 five-foot truss spans for a total of 10 feet span. Additionally, 2 post mounts are included that can fit on top of any standard speaker stand (35mm to 39mm), which are custom fit for these truss pipes. Also included is a total of 10 metal C-clamps that are included for mounting your light cans, mushrooms, lasers, fog machines and other equipment. Each C-clamp is rated to handle 44 pounds weight load. Triangle truss sections are 6 inches in width per side (6 x 6 x 6 inch). Each triangle trussing section is made with medium duty steel to be sturdy and durable. You can trust these triangle trusses to securely accommodate your equipment. Total load capacity of 200 pounds evenly mounted (depends on the weight load of your stands). Additional 5ft trusses can be purchased separately, to extend even further (search model# LG-Truss).

Griffin- Triangle Truss Pack SpecificationsKEY_TAB

• Total span width: 118 inches wide
• Triangle truss sections are 6 inches in width per side (6 x 6 x 6 inch)
• Diameter of truss pipes are 28.5 mm (1 1/8 inch)
• Diameter of Diagonal Bracing: 6.5 mm
• Total Weight capacity load is 200 pounds (when using 2 sections): 100 Pounds on each section.
• Total Weight capacity load is 140 pounds (when using up to 4 sections (if combinding truss sections): 50 pounds on each truss section directly connected to the Tripod Stand, 20 pounds on each truss section in the middle of the span.
• KEY_TAB C-clamp Weight capacity: 44 pounds each.KEY_TAB
• Total Product Weight: 32 pounds
• Total Shipping Weight: 36 pounds
