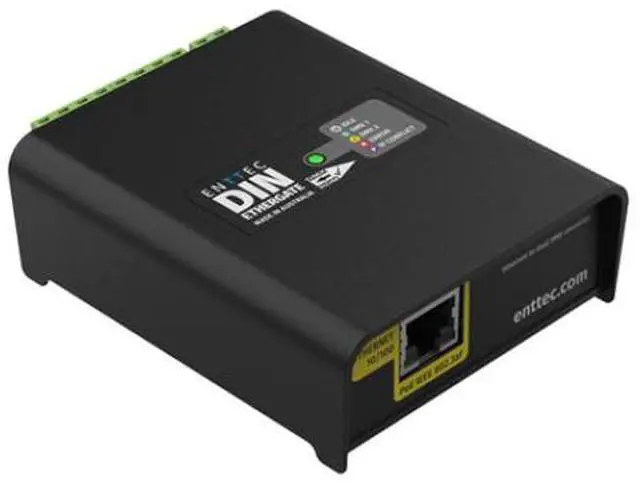

Enttec DIN ETHERGATE | Ethernet to Dual DMX (Phoenix Outs)

ENTTECs DIN ETHERGATE is a robust and reliable

installation grade DMX node engineered to take any

architectural, commercial or entertainment project to

the next level.

With 2 universes of bi-directional eDMX -> DMX

conversion and ArtRDM support, the DIN ETHERGATE is

a flexible, cost-effective method to connect physical

DMX devices to your network infrastructure.

The configuration as well as the firmware updates are

managed through the localhost web interface to

simplify commissioning from any computer on your

network.

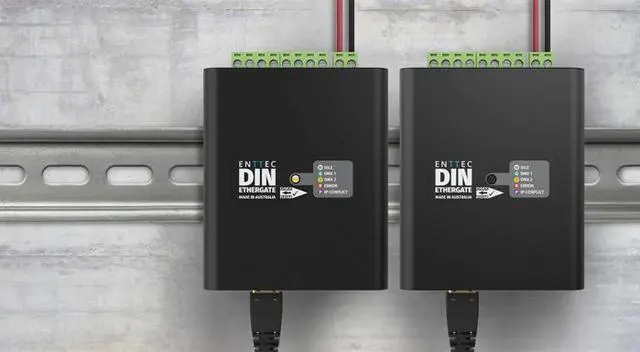

The DIN ETHERGATEs slim, 4 DIN-module electrically

insulated housing supports TS35 DIN and surface

mounting for fast installation. Pluggable terminal

blocks with inbuilt termination line make wiring

simple.

The Power over Ethernet (PoE) featuring DIN Ethergate

reduces the number of cables and can be deployed

remotely without the need for a local power source

close to the device.



FEATURES:



Two bi-directional DMX/ E1.20 RDM ports with

optional termination and RDM support.

IEEE 802.3af PoE (Power over Ethernet) or DC

12-24v input.

Support for Art-Net, sACN and ESP to DMX

conversion.

HTP/LTP merging support for up to 2 DMX

sources.

Pluggable terminal blocks and inbuilt DMX

termination.

Configurable DMX output refresh rate.

Intuitive device configuration and updates

through the inbuilt web interface.

Surface or TS35 DIN rail mount.

10/100 Mbps network speed.

Current Port Buffer allows live DMX values to

be viewed.



SPECIFICATION:



Connectors

1* LAN port (RJ45)

2* Bi-directional DMX

(4 Pin Phoenix)

1* Power Input

(2 Pin Phoenix)

IP rating IP20

LED Indicators

Forward facing status

indicator

Network Link / Activity

indicators (RJ45 Port)

eDMX protocols

Art-Net Art-RDM

sACN ESP

DMX protocols

USITT DMX512-A

ANSI E1.20 RDM

DMX & RDM timings

Break time 300ms

Mark after

Break (MAB) 15ms

Art-Net merging 2 Sources

Max. channels 2 Universes (1024ch)

Max. refresh rate 44FPS

Network Speed 10/100Base-T

Power over Ethernet IEEE 802.3af

Network configuration Static (default

192.168.0.10) / DHCP.

Firmware updates Through web interface

Inbuilt DMX termination Yes

DC input voltage 12-24V DC1

Max. power draw 7W

Max. heat dissipation 7W

Operating temperature

0°C to 50°C

32°F to 122°F

Operating humidity

5- 95%

(non-condensing)

Body material ABS plastic

Mounting options

Surface mount

TS35 DIN-Rail mount

Unit dimensions 100.5 * 72.25 * 34mm

Unit weight 0.11kg / 0.24lbs

1

Please refer latest User Manual for revision history and firmware

version.

Shipping dimensions 140 * 140* 40mm

Shipping weight 0.16kg / 0.35lbs

Warranty 3-year return to base

manufacturer warranty
