JTS RU8011DB/ RU850LTH | Handheld Wireless System

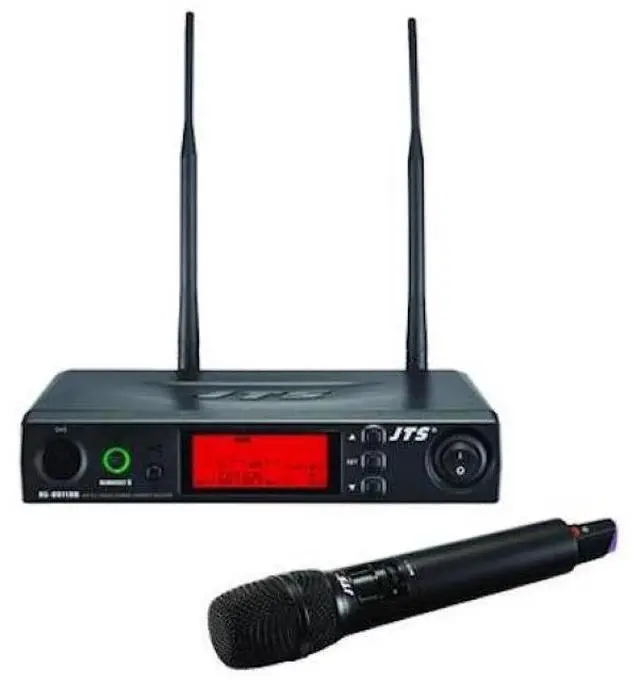

JTS RU-8011DB/RU-850LTH Wireless Handheld Microphone System



Includes:

(1) JTS RU-8011DB

(1) JTS RU-850LTH



Specifications:



RU-8011DB

Frequency Preparation PLL Synthesized Control

Carrier Frequency Range 506-542 MHz

Frequency Setting REMOSET U

Receiving Mode Antenna Diversity

Bandwidth 36MHz

S/N Ratio >105dB(A)

T.H.D <0.6%@1KHz

Sensitivity -95dBm,S/N>80dB

Rejection Ratio >80 dB

Frequency Response 50Hz~16KHz±2dB

Antenna Type BNC Socket

Antenna Booster Power DC12~15V/100mA

Display LCD

Display Contents Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF

Meter, Frequency Scan, Audio Level, Volume

Controls Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output

Attenuation(XLR), Frequency Scan(ON/OFF)

Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone

6.3 Phone Jack/ -10dBV

XLR Jack/ -4dBV(Line) -24dBV(MIC)

Audio Output Impedance 600

Squelch Pilot Tone & Noise Mute

Output Connector 1 independent balanced XLR and one Ø6.3mm unbalanced.

Power Supply DC12~15V/300mA

Dimension (mm) 212.3mm(W)* 38.3mm(H)* 144mm(D)

Notes Actual product specifications may vary depending on region

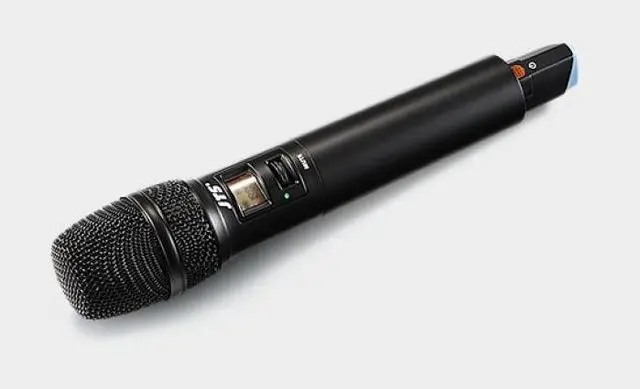

RU-850LTH

Frequency Preparation PLL Synthesized Control

Carrier Frequency Range 506-542MHz

Frequency Setting REMOSET U(Receive)

RF Outputs Low / High

Stability <±10KHz@Fc

Frequency Deviation ±48KHz

Spurious Emissions <-50dBc

Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery

Display LCD+LED

Controls Power, Mute, Group, Channel,

Frequency, Gain Adjust, Auto Power Off, Key

Lock

Battery UM3, AA x2
