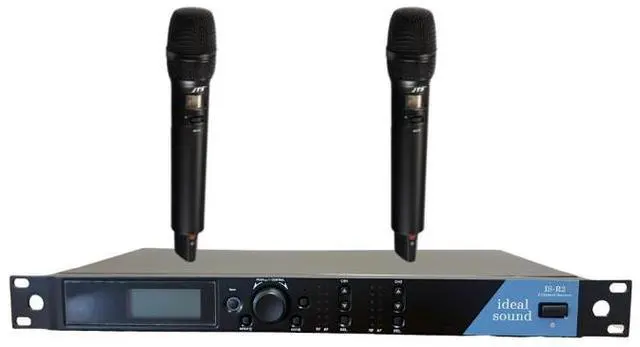

JTS IS-R2/JSS-4B | 2 Mic Wireless System w/ Dynamic Capsules

The JTS IS-R2/JSS-4B Wireless System Package is a professional audio solution designed for high-quality wireless microphone performance. This package includes the JTS IS-R2 dual-channel receiver and two JTS JSS-4B handheld transmitters, each equipped with dynamic capsules. Here's an overview of each component:



1. **JTS IS-R2 Dual-Channel Receiver**: The JTS IS-R2 is a dual-channel wireless receiver that provides reliable and clear audio reception for two wireless microphones simultaneously. It features advanced wireless technology with automatic frequency scanning, ensuring interference-free operation and high signal stability. The IS-R2 receiver is known for its excellent sound quality and is suitable for a wide range of applications, including live performances, conferences, and events.



2. **JTS JSS-4B Handheld Transmitters with Dynamic Capsules**: The JTS JSS-4B handheld transmitters are professional wireless microphones designed for robust and clear vocal reproduction. Each transmitter is equipped with a high-quality dynamic capsule, known for its durability and ability to handle high sound pressure levels without distortion. These microphones are ideal for live performances where consistent and powerful vocal delivery is essential. The JSS-4B transmitters are user-friendly and provide stable wireless transmission.



In summary, the JTS IS-R2/JSS-4B Wireless System Package with Dynamic Capsules offers a reliable and high-quality wireless microphone solution for various professional audio applications. The dual-channel receiver ensures stable and interference-free operation for two microphones, while the handheld transmitters with dynamic capsules deliver strong and clear vocal performance. This package is perfect for live performances, public speaking, events, and other situations where high-quality wireless audio is essential.



SPECIFICATIONS:



IS-R2:

KEY_TAB KEY_TAB

Frequency Oscillation Mode Phase-locked loop (PLL)

Carrier Frequency Range 470~960 MHz

Remoset Frequency 2.4 GHz Diversity

True diversity Bandwidth 36MHz Signal/Noise Ratio >105dB(A)

Total Harmonic Distortion (Thd) <0.6%@1KHz

Receiving Sensitivity-95dBmS/N>80dB

Image Rejection Ratio >80 dB

Frequency Response 50Hz~16KHz±2dB

Antenna Type 1/2 BNC detachable

Antenna Booster Power DC12V/100mA

Function Display By LCD Contents Of Display Group, channel, frequency, battery level, antenna A/ B, muting level, AF indication, RF indication, channel scanning, output level attenuation, volume indication

Control Functions Power, group, channel, frequency, muting level, button lock, volume, output attenuation (XLR),KEY_TAB KEY_TAB scan ,Mix Output Audio Frequency Output Level(MAX) Ø6.3 Phone Jack+4dBu XLR Jack+10dBu(Line)-10dBu(MIC)

Audio Frequency Output Impedance 600

Muting Noise muting and tone code locking

Output Port 2 x balanced XLR jack 2 x unbalanced Ø6.
