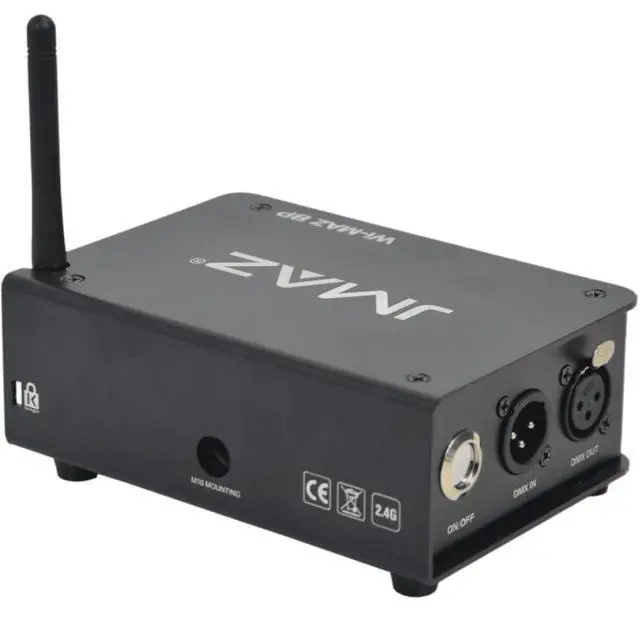

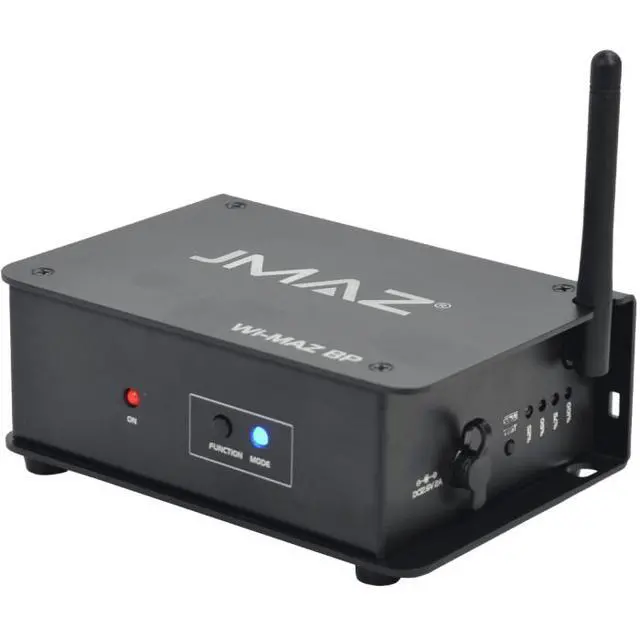

JMAZ Wi-MAZ BP | Battery-Powered Wireless DMX Transceiver with 1600ft Range

Long-Range Wireless DMX Transceiver for Lighting Professionals The JMAZ Wi-MAZ BP is a powerful, compact wireless DMX transceiver engineered for high-performance lighting control in mobile, stage, and event environments. With true wireless operation, the Wi-MAZ BP eliminates the need for data or power cables, making it ideal for clutter-free, on-the-go setups. JMAZ Wi-MAZ BP Competitive Differences

• Transmit DMX up to 1,600 feet (500 meters) line-of-sight
• Dual-function transceiver with auto transmit/receive switching
• Supports multiple DMX protocols: Wi-DMX, W-TRN, W-RCV, Generic
• Up to 80 hours runtime in receiver mode, 20 hours in transmitter mode
• UL-listed lithium-ion battery for safety and reliability
• Includes USB power cable, transmit/receive converter, and adapter

JMAZ Wi-MAZ BP Description Designed for professionals who need a simple yet robust wireless DMX solution, the Wi-MAZ BP from JMAZ is a versatile battery-powered unit that functions as both a DMX transmitter and receiver. Operating on a stable 2.4GHz frequency with frequency-hopping capabilities, it ensures reliable communication with no interference. With support for multiple wireless DMX protocols and 3-pin DMX I/O integration, the Wi-MAZ BP is compatible with nearly any setup. Its lightweight aluminum housing is both rugged and portable, while the internal fanless cooling and M10 threaded mount provide flexible installation options. Whether you're installing permanent lighting or running a large event, this unit ensures uninterrupted, high-quality DMX transmission. Wi-MAZ BP Features

• 2.4GHz wireless DMX transceiver (transmit and receive modes)
• Auto-switching between transmit and receive
• 3-pin DMX input and output ports
• Supports Wi-DMX, W-TRN, W-RCV, Generic protocols
• Battery-powered with USB charging (2-hour charge time)
• Durable aluminum enclosure with Kensington Lock security
• Integrated M10 thread for clamp mounting
• Includes USB power adapter, USB cable, and converter

Wi-MAZ BP Specifications

• Wireless Range: Up to 1,600ft (500m) line-of-sight
• Battery Time: 80 hours (receiver), 20 hours (transmitter)
• Charging Time: 2 hours
• Battery Type: UL-listed 11.1V, 2500mAh lithium-ion
• Power Consumption: 2W
• Input Voltage: 100â??240V AC, 50/60Hz
• Frequency: 2.4GHz (GFSK modulation)
• Sensitivity: -93dBm | Antenna Gain: 3dBi
• IP Rating: IP20 | Cooling: Fanless
• Certifications: RoHS, CE, FCC
• Operating Temp: 14°F to 140°F (-10°C to 60°C)
• Dimensions: 5.5â?³ x 3.8â?³ x 2.2â?³
• Weight: 1.8 lbs (0.8 kg)
• UPC: 618528599045

What's In The Box

• JMAZ Wi-MAZ BP Unit
• USB Power Cable
• AC to USB Power Adapter
• Transmit/Receive Converter
• User Manual
