Jmaz BrightBox BB1038 Osiris 1.9 | 1.9mm Pixel Pitch - 7680Hz Refresh | Fixed/Mobile Hybrid LED Video Wall

Hybrid LED Video Wall Panel

The Jmaz Osiris 1.9 GOB is a high-resolution LED video wall panel engineered for both fixed installations and mobile event production. With a tight 1.9mm pixel pitch and advanced GOB (Glue-On-Board) protection, it delivers sharp, vibrant visuals while enhancing durability for demanding environments. Its lightweight 500 x 500mm cabinet makes it ideal for staging, touring, houses of worship, corporate AV, and digital display applications.

Jmaz Osiris 1.9 GOB Competitive Differences

• 1.9mm GOB pixel pitch with â?¥7680Hz refresh rate for ultra-smooth, flicker-free camera performance
• Hybrid cabinet design supports direct wall mounting, stacking, or hanging configurations

Jmaz Osiris 1.9 GOB Description

The Jmaz Osiris 1.9 GOB features SMD1515 Black LEDs and a dense 262,144 dots/m² pixel density, producing crisp image clarity even at closer viewing distances. With 800 nits of brightness and 16-bit grayscale processing, it ensures consistent color reproduction and detailed visual performance for indoor applications.

Built for flexibility, this panel supports mobile setups and permanent installations alike. It can be directly wall mounted, stacked for ground support builds, or flown for suspended configurations. The 500 x 500mm cabinet weighs only 11 lbs (5 kg), making it manageable for touring crews and installation teams.

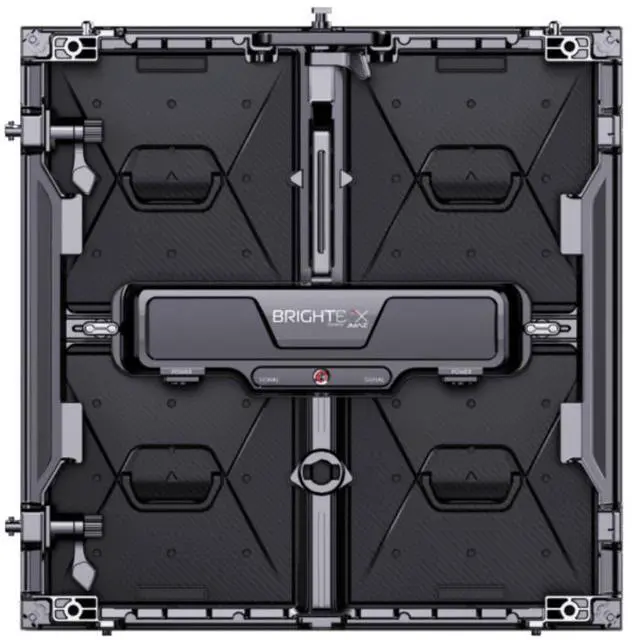

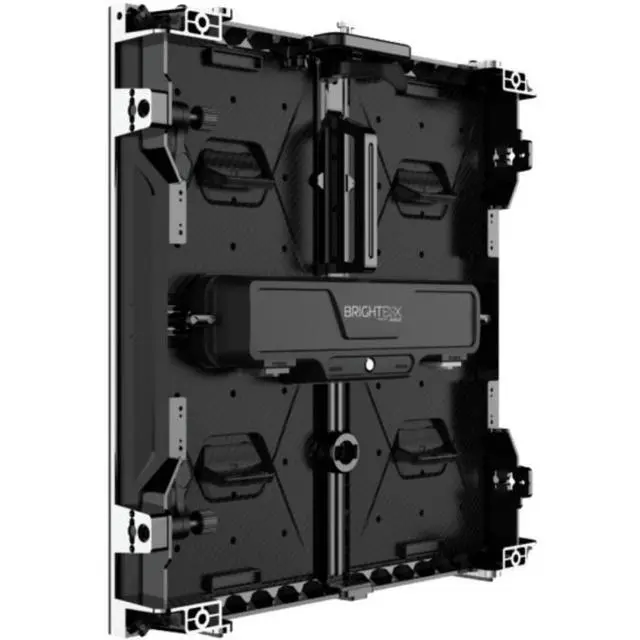

Durability is enhanced through GOB surface protection and reinforced corner protection to reduce damage during transport and setup. The swappable all-in-one power supply box simplifies servicing, while full front and rear access allows efficient maintenance without dismantling the wall.

Powered by a Novastar A8s-N control system and operating at a â?¥7680Hz refresh rate with 1/32 scanning, the panel delivers flicker-free performance suitable for live streaming, broadcast environments, and high-speed camera capture.

Osiris 1.9 GOB Features

• 1.9mm GOB pixel pitch
• SMD1515 Black LED configuration
• 256 x 256 pixel resolution per panel
• â?¥7680Hz refresh rate
• 16-bit grayscale processing
• 1/32 scan mode
• 800 nit brightness
• 262,144 dots/m² pixel density
• Front and rear serviceable design
• Swappable all-in-one power supply box
• Corner protection for added durability
• Direct wall mount, stacking, or hanging installation options
• IP30 (Front) / IP20 (Back) rating
• Novastar A8s-N control system compatibility
• FCC, ROHS, and CE certified

Osiris 1.9 GOB Specifications

• Pixel Pitch: 1.9mm GOB
• LED Type: SMD1515 Black
• Pixel Resolution: 256 x 256
• Pixel Density: 262,144 dots/m²
• Refresh Rate: â?¥7680Hz
• Grayscale: 16-bit
• Scan Mode: 1/32 Scanning
• Brightness: 800 Nit
• Max Power Usage: 150W
• Input Power: 450W
• Lifespan: 100,000 Hours
• Dimensions: 19.6 x 19.6 x 2.4 in (500 x 500 x 64 mm)
• Weight: 11 lb (5 kg)
• IP Rating: IP30 (Front) / IP20 (Back)

What's In The Box

• Jmaz Osiris 1.9 GOB LED panel
• Integrated swappable power supply box
