Professional SDI PTZ Camera
Choose AVKANS, Choose Professional
Your Budget SDI PTZ Camera for Live Streaming
PTZ Cameras for Live Streaming
With AVKANS SDI Camera, you can easily run live streaming by using native integration with the industry top video software including OBS (Open Broadcaster Software), vMix.
You can also directly stream from camera to CDN like Facebook and Youtube.
These HD PTZ cameras have SDI, HDMI and multiple standard IP streaming formats such as RTSP, RTMP, RTMPS... Built-in with the latest professional PTZ camera control technologies, remote camera operation has never been this easy.

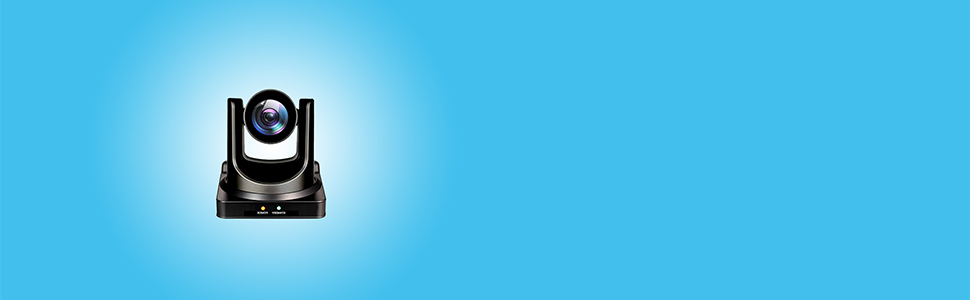

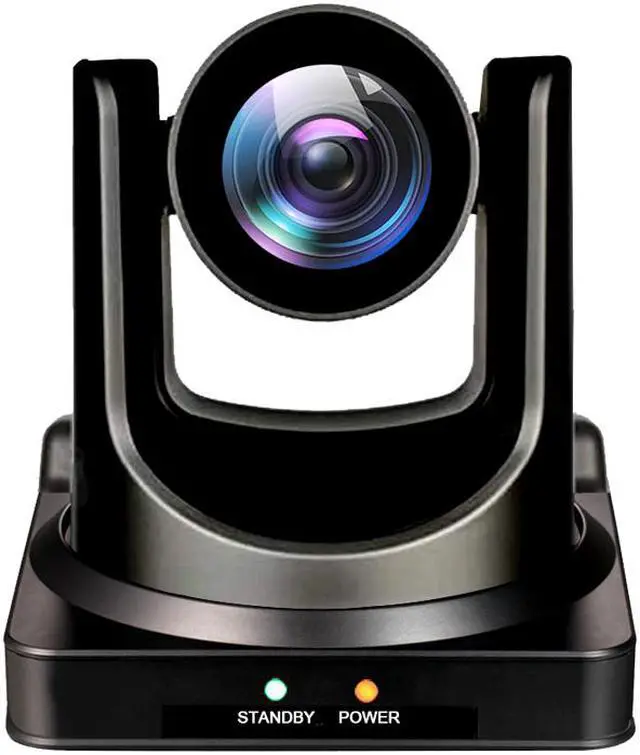

SDI PTZ Camera
Made For Professional Video Productions.
3 Simultaneous Video Outputs
Simultaneously produce 1080P video(Up to 60fps) from HDMI, 3G-SDI, and H.264/H.265/MJEPG IP Streams for maximum flexibility.
IP Live Streaming
Camera includes H.265 and H.264 IP Live Streaming. It has a good ability to live stream directly from your camera to your favorite CDN like facebook, youtube.
PoE Support
Camera supports POE 802.3af. The camera via POE consumes bwtween 12-15Watts. The IP Port can be used for Power, Video/audio streaming and Control.
Easy to Use
With our special setting for this camera, it is very easy to set up and get working out of the box. All you need is read our tips in few mins. Plug, and play.

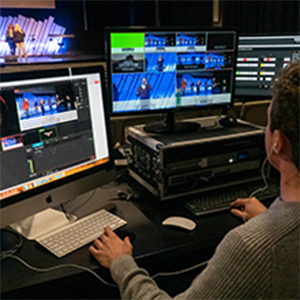

Broadcast
Engage with Your Audience in Real-Time from Anywhere to Everywhere.
House of Worship
Spread the Word and Keep Your Congregation Engaged Anywhere, Anytime.
Sport
From Basketball to Soccer, live streams sporting events to athlete friends and families.
Government
Allow Global Citizens to Stay Informed on Political Happenings in Real-Time.
Camera |
1 pcs |
Power Supply |
1 pcs |

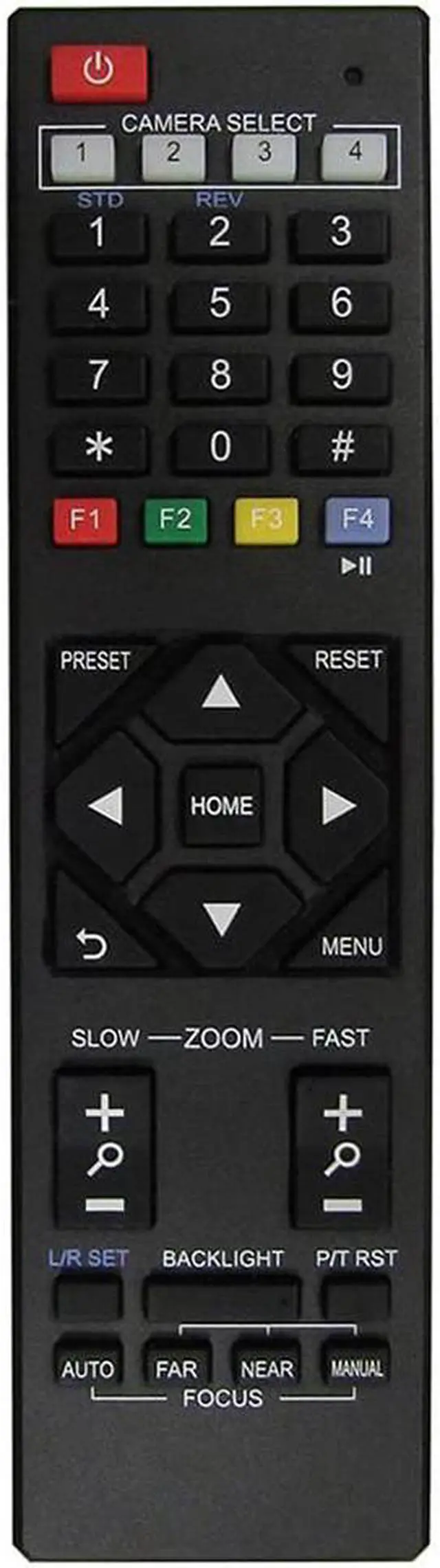

IR Controller |
1 pcs |
Manual |
1 pcs |
RS232 Cable |
1 pcs |
Spec.:
Video System 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 20x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N =55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View 44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +30°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 0.7° ~ 28°/s
H & V Flip Support
Image Freeze Support
Number of Preset 255
Preset Accuracy 0.1°

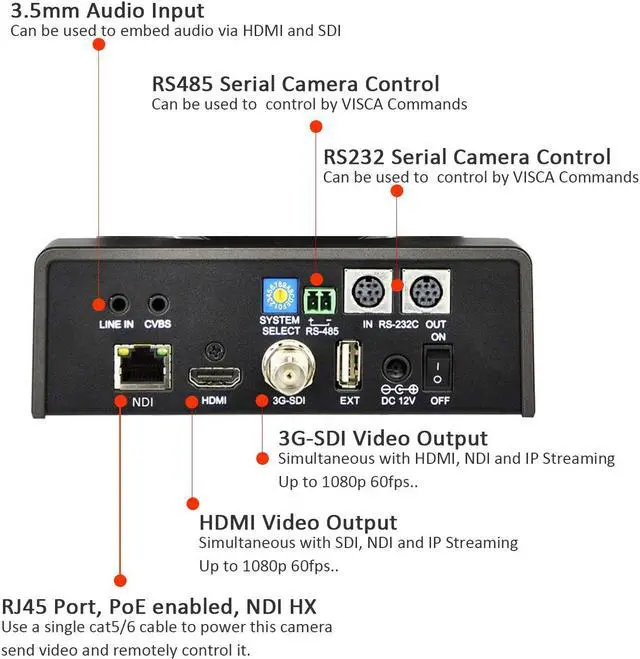

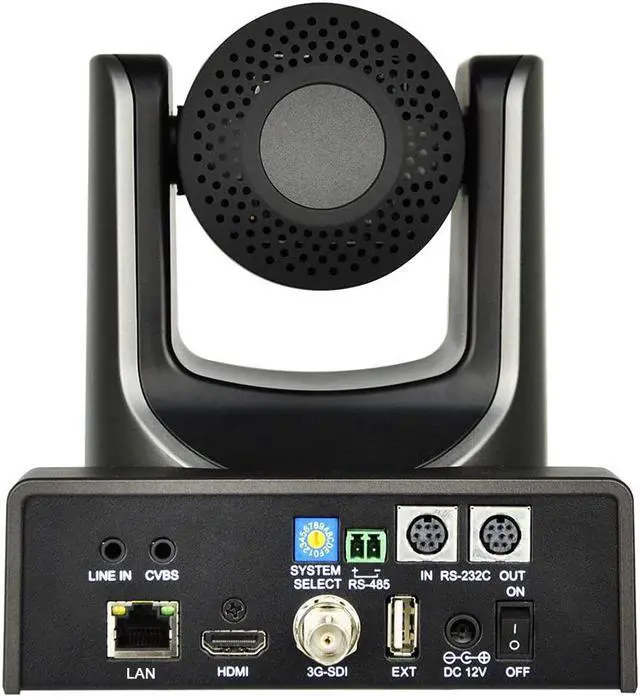

HD Interface 1xSDI
Network Interface 1xRJ45: 10M/100M Ethernet Interface
Audio Interface 1-ch: 3.5mm Audio Interface, Line In
Communication Interface 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)
Input Voltage DC 12V
Current Consumption 1.0A (Max)
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption 12W (Max)
MTBF >30000h
Size 128.5mm x 118.0mm x 156.2mm
Net Weight 0.9 Kg
