NDI PTZ Camera with Auto Tracking
20X HD NDI PTZ for Live Streaming
Featuring NEW AI Auto Tracking Technology
Following Object Automately.
What is an Auto-Tracking Camera?
Auto-tracking is all about filming without the need for a camera operator. An auto-tracking camera automatically follows a presenter, lecturer or teacher autonomously. It tracks them as they walk back and forth across a stage, classroom, training room or seminar space. An auto-tracking camera is trained to detect the human face and automatically pan, tilt and zoom to follow the targeted person. This automated camera system is especially suited for environments with a limited technical crew and is great for lecture capture, corporate training and acts of worship.
AI-enabled auto-tracking with versatile tracking modes
AI tracking cameras' ability comes from deep learning and scanning the pictures of millions of human faces. The ability to recognize human features combined with the versatility of the PTZ camera means that there is a tracking mode that can meet the needs of your production and the particular layout of your room.

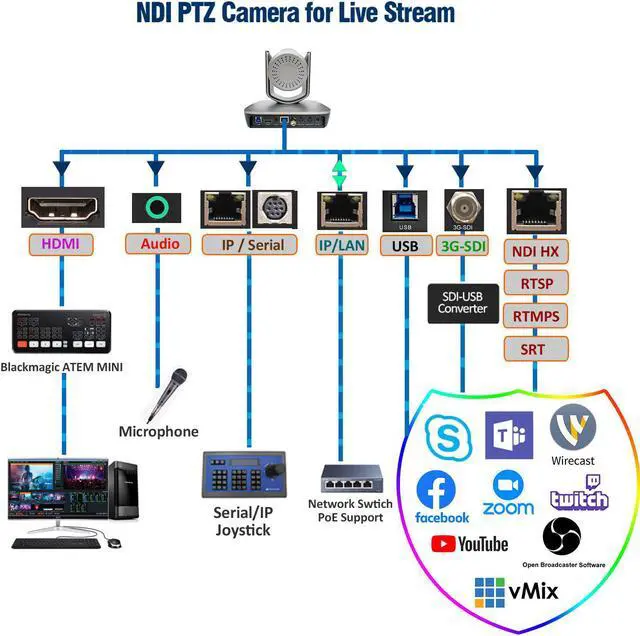

Manage and Live Stream an auto-tracking camera
AVKANS CMS software is used to set up tracking modes, fine tuning parameters, and live monitoring. CMS is also used to configure all other settings and to manage live streaming settings for distribution of video locally or to remote audiences on YouTube and Facebook.
The lecturer tracking PTZ camera adopts the most advanced deep learning, body detection and tracking technologies and enables super auto and smooth tracking performance. It always locks the moving target in the center of image and gives a nice shot of the target, with a movie-like experience of the video content. With its stability, easy-to-use and excellent performance, it is widely used in the electronic classrooms, distance learning, technical training and video conferencing room, etc. Featured Advantages * Advanced body detection and tracking technologies based on deep learning; * The camera can track lecturer all around the classroom, even if lecturer walks into student area; * The camera can adjust automatically as per the height of lecturer; *

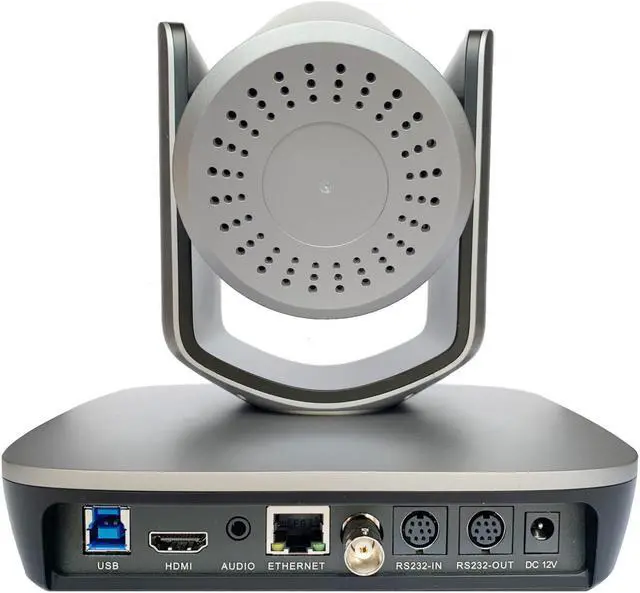

Excellentlockingandanti-interference: the camera keeps tracking on the object even when the object keeps still for a long period. Other moving objects and video from projectors do not interfere the tracking performance; * Precisely and stably track a specific target, free from any light & moving interference; Intelligent Tracking * Smooth tracking performance, free from interference of other moving objects, also even if the target turns around, stands still for a long time or his / her other small gestures will not affect the tracking effect; * Suits all kinds of the classroom with different size, shape, and type; IP (Network) * H. 265/H. 264 video compression; * Dual stream Imaging, Interfaces & Protocols * 2.14MP, 1/ 2.8 CMOS sensor, 20x optical zoom, H. FOV 59.5 °; * HDMI 1.4, USB 2.0 (with UVC and UAC), 3G-SDI, 1 Channel Line In; * Supporting VISCA protocol.
Datasheet: Optical Zoom 20X Digital Zoom 12X Focal f= 5.2 mm ~ 98 mm Iris F 1.5 ~ F 3.0 FOV 59.5 ° ~ 2.9 ° Focus Auto, Manual, PTZ Push, One Push Exposure Auto, Manual, Shutter Priority, Iris Priority, Smart Shutter Speed 1/25 ~ 1/10, 000s AGC Auto, Manual White Balance Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking S/N =50dB Digital Noise Reduction 2D/3D BLC Yes Wide Dynamic Yes PTZ Pan Angle -170° ~ +170° Tilt Angle -30° ~ +90° Pan Speed 0.2 ° ~ 120°/s Tilt Speed 0.2 ° ~ 80°/s Preset Number 64 SDI/ RJ45/HDMI Output Video output 1080P60/50/30/25, 720P60/50 Network Resolution Max. 1080P60 Image Compression H. 265, H. 264 Audio Compression AAC Protocols HTTP, TCP, UDP, RTSP, RTMP, ONVIF Dual Stream Support Interface DIP Switch 4-digit Power DC12V HDMI Interface 1×HDMI 1.4 output, Max. 1080P60 3G-SDI Interface 1×3G-SDI output, Max. 1080P60 USB Interface 1×USB 2.0 Type-A Network Interface 1×10M/100M RJ-45, POE (Reserved) Audio Interface 1×LINE IN Control Interface 1×RS-232 IN, 1×RS-232 OUT, 1×RS-485 General Protocol VISCA, PELCO-P, PELCO-D Power Consumption
