Please note:
1: The camera cannot be connected to home WiFi. The optimal connection range between the phone and the camera is a straight line distance of 1-20 meters.
2:The pacakge camera is not equipped with a battery. Please use your own 3,7V battery.
3: It is normal for the motherboard to heat up during use. Please rest assured to use it
4: The X9 APP is not compatiable with Samsung and OnePlus phones
Attention: When using X9 with different Matecam lens modules, firmware upgrades are required to function properly! Please contact us after receiving the goods to obtain the firmware. If you would like to match other lenses, please communicate with us before placing an order
Specifications

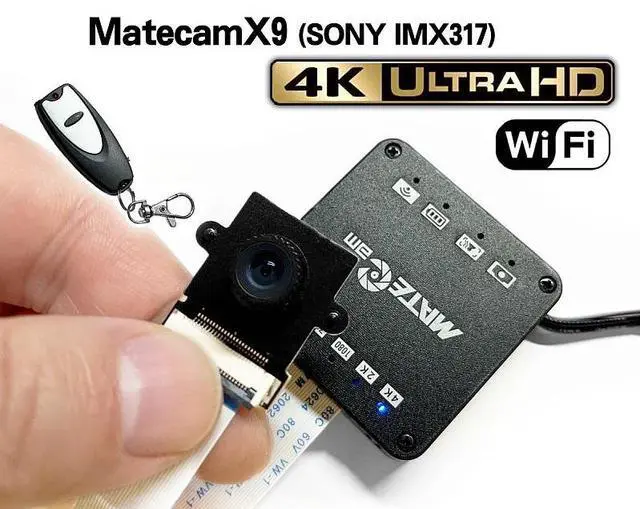

MateCam-x9
PCB SIZE:36 x 36 x10mm
Weight: 30g
Chipset:matecam-x9
WIFI:2.4G/ 802.11 a/blg/nlac
WIFI Mode:AP/Staiton
APP Software:ios/apk
Video Record:
3840*2160/60/3OFPS,
2704*1520/30FPS,
1920*1080/120FPS/6OFPS/30FPS
1280*720/240FPS/120FPS/60FPS
Image Resolution:14mP .JPG
Video Format:MOV/H.264/H.265
Memory:External:Micro sD card (SD,SDHC,SDXC)up to 512GB
HDMI:MINI_HDMI 4k output
Digital zoom:APP Magnify the number 4 times
PC_CAM:1920*1080*60FPS
Digital Mic:-26dB+-1 94dB SPL@1KHz
RTSP:1080P 30FPS
USB:Micro5 pin USB2.0
LED Indicator:8 LED mode
