    Vstarcam C7823WIP HD 720P IP Camera Home Wireless/WiF P2P Pan/Tilt Micro SD Card Slot Audio&Microphone

    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Model No. :C7823WIP
    Feature
    Features: Small body size,perfect combination of hardware and software through software limit, and more stable.
    System
    OS: Embedded Linux OS
    system security: Three level user authority management
    online users: support 4 online visitors simultaneously
    DDNS: Free DDNS
    Control protocol: ONVIF 2.0 protocol, high interoperability

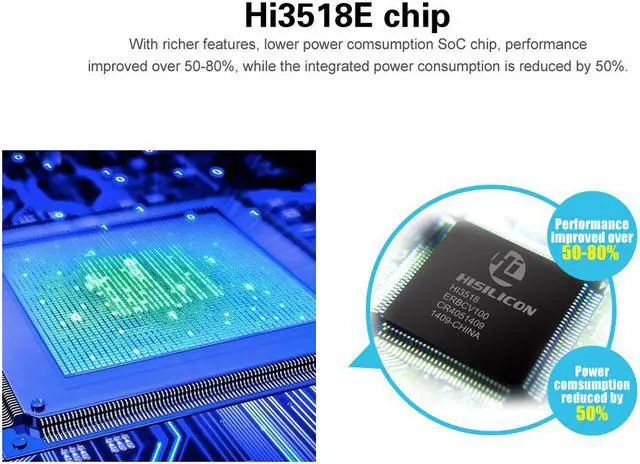

    Processor: Hisilicon processor,built-in ARM926 @Max. 440MHz and a high-speed video co-processor.
    Reset: Long press for 15 seconds to restore back to factory settings
    Collection
    Image sensor: 1/4inch 720p Progressive scan CMOS sensor
    CMOS; support AWB, AGC, BLC
    sensor size: 3.84mm×2.16mm
    SNR: =39dB
    Minimum illumination: 0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode)
    Lens/viewing angle: [email protected]/56.14°
    Night vision: Dual IR-CUT filter auto switch, 9pcs 850nmF5mm LED,10m IR distance
    IR control;
    IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
    Video
    Compression Format: H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
    Video coding process: Multi-stream:720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG snapshot
    Resolution: 720p/VGA/QVGA
    Bit Rate: CBR/VBR, output bit rate range:128~4096kbps
    Frame rate: 25fps
    Picture Adjustment: Contrast, brightness, saturation, chroma are adjustable.
    Audio
    Input: Built in -48dB Microphone
    Output: Built in speaker(8O1W)
    Sampling frequency / width: 8KHz/16bit
    Compression format: ADPCM/32kbps
    Network
    Interface: 10Base-T / 100Base-TX, RJ45 connector
    Network Protocol:
    TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,ONVIFetc.
    WIFI: WiFi802.11b/g/n
    Antenna: 3dBi antenna,stronger signal, more stable
    Wireless network security: one key setup WiFi, do not need network cable .
    storage
    Storage mode: Local storage / client storage
    card : support 64G TF card .
    Interface: Micro SD
    Pan-Tilt

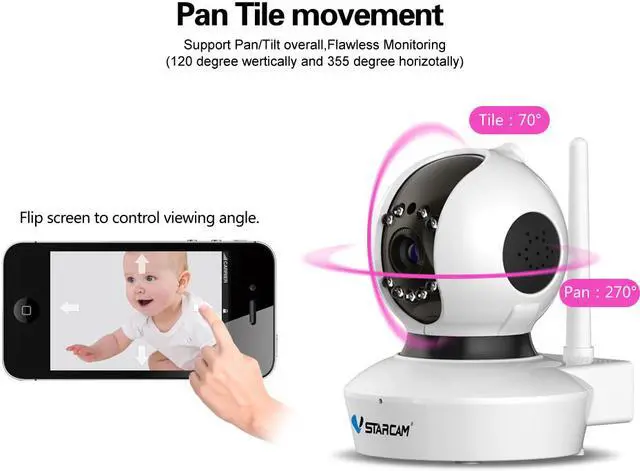

    P/T Pan:270°,Tilt:70°
    Preset Postion : support up to 15 preset postions
    Limit method: Software limit position, more accurate preset positions,lower Pan Tilt failure rate
    Alarm
    Motion detection: Support motion detection
    Alarm action: Image upload via email/FTP server
    Physical index
    Rated Voltage: DC5/2A±0.3V
    Power comsumption: Rated power:3.0W(IR ON)
    Working environment: Working Temperature:-20~70?,Working Humidity 90%
    Weight: Gross Weight :295g (Note: in kind prevail)
    Housing material: ABS plastics
    Camera size: 98x105x120mm(L×W×H)
    Installation: Wall mounting, ceiling mounting
    Only for reference

    Package included:

    * 1 x 3.0MP CMOS HIKVISION waterproof Network IR Dome Camera.

    * 1 x User Manual

    * 1 x Installation screws

    * 1 x Retail Packaging Box

    * 1 x Power adapter

    * 1 x International warranty card (One year warranty)
