When you've put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it's a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.

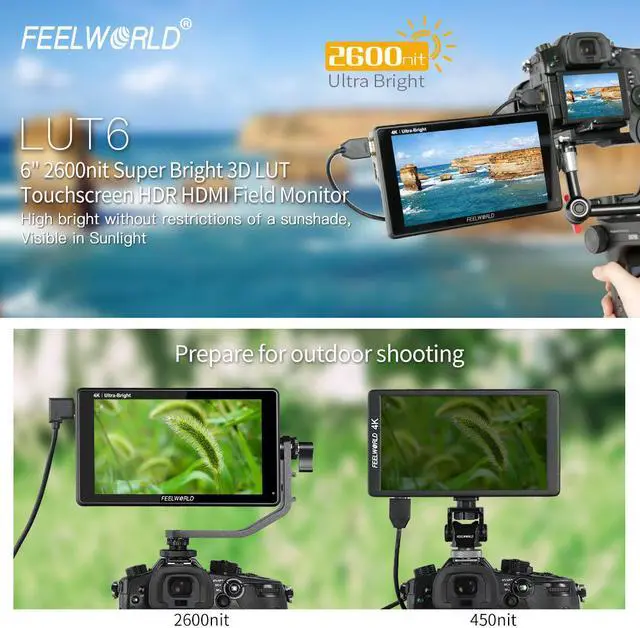

The fully adjustable 2600nits screen is incredibly bright, making it perfect for shooting indoors or out. The high bright 2600nits screen is at almost 5 times the brightness of conventional field monitors, lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!

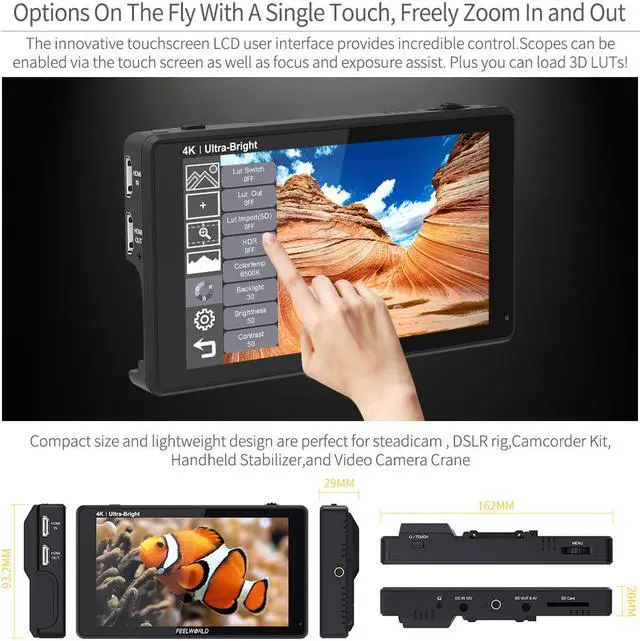

The innovative touchscreen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUTs!

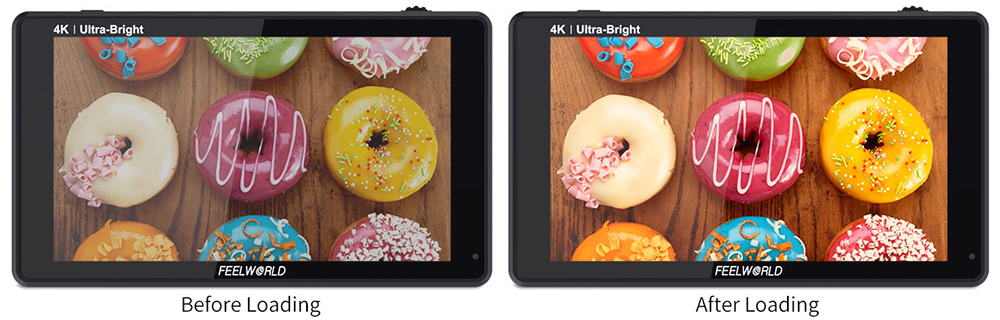

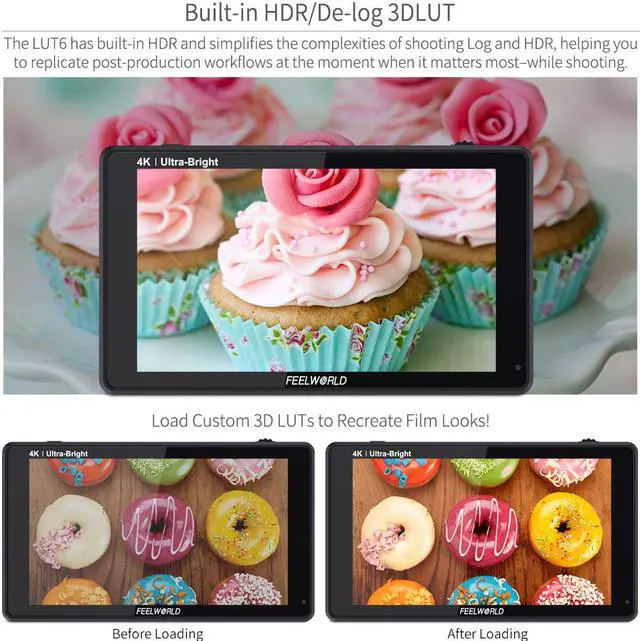

Some cameras can output logarithmic colorspace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. You could use built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65.). LUT6 allows you to load internally up to 50 custom LUTs , looks or profiles at any time via the SD Card ( Support for FAT32 and NTFS) Slot and instantly select between them, maintaining creative intent, always.

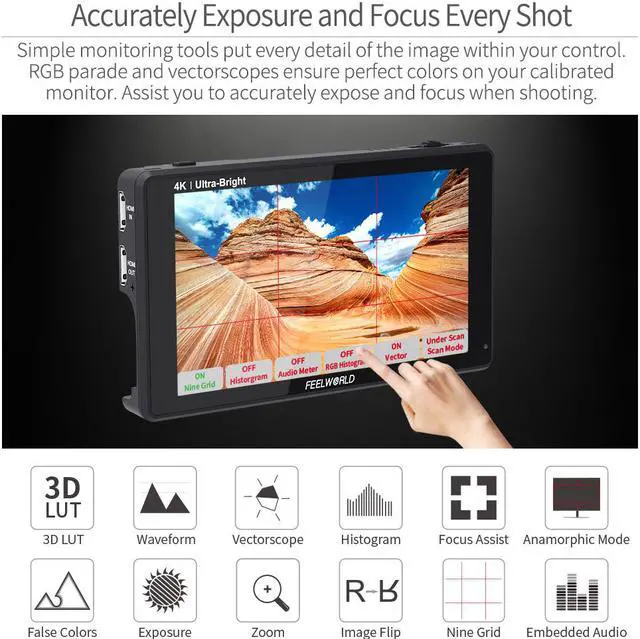

Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc.) along with a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files), HDR monitoring and options for anamorphic de-squeeze monitoring.

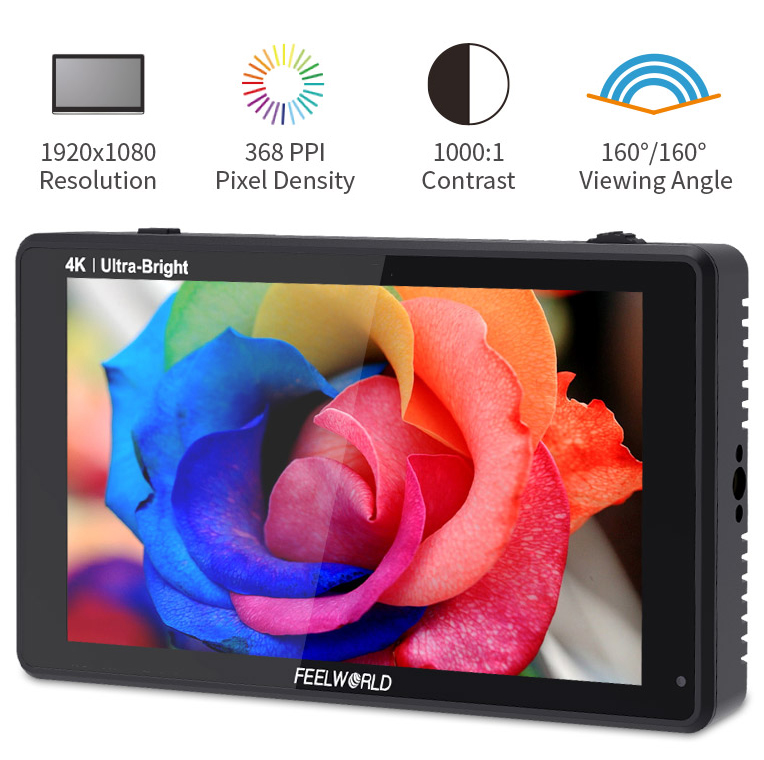

The LUT6 enables clear and precise field monitoring and image analysis during daytime shoots. It displays your stills and monitoring content at superior color fidelity and 1920 x 1080 maximum resolution on a 6-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. But what really sets it apart is its light-emitting diode (LED) backlighting, which outputs a brightness of 2600 nits and displays a 1000:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions. With the monitor displaying your content at 368 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on the spot. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.

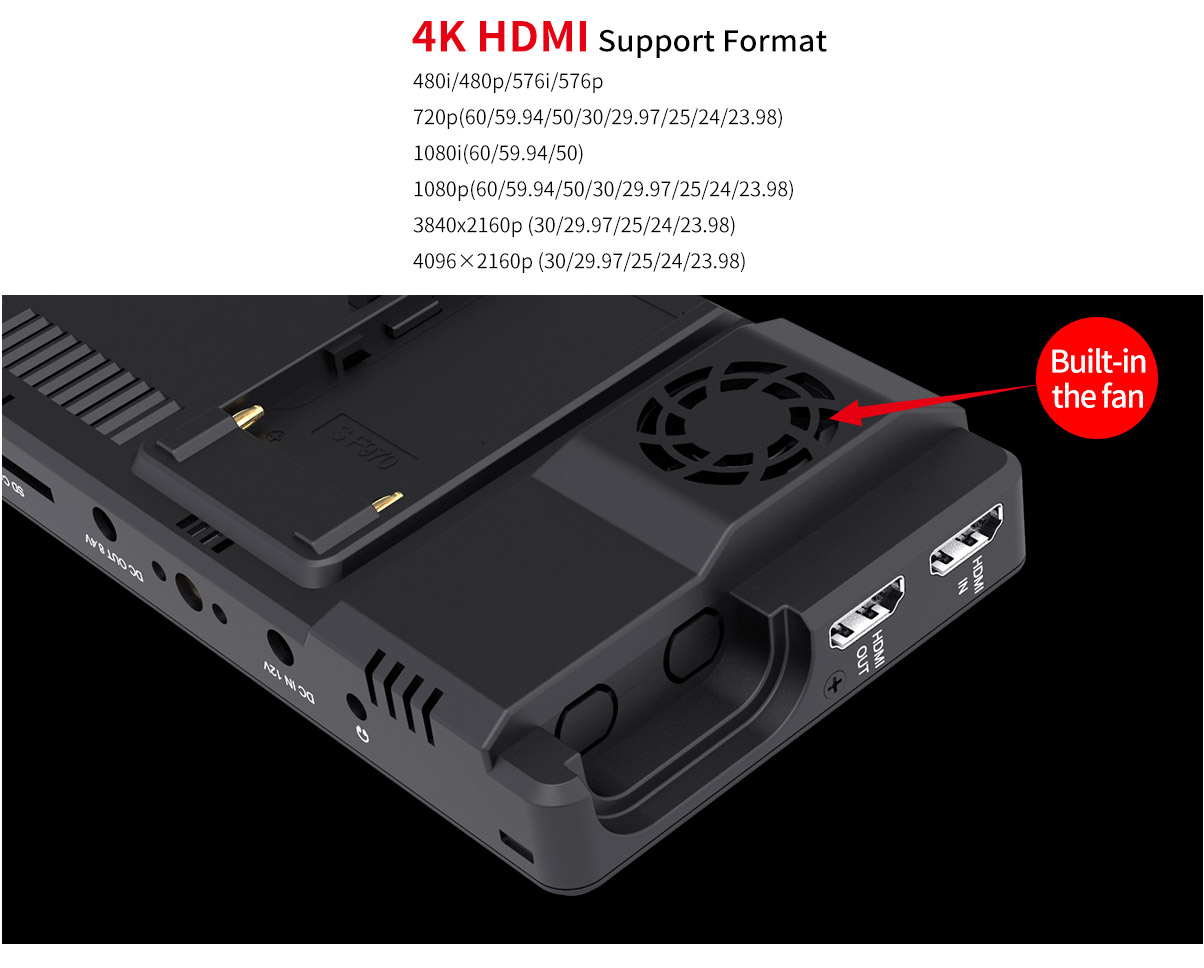

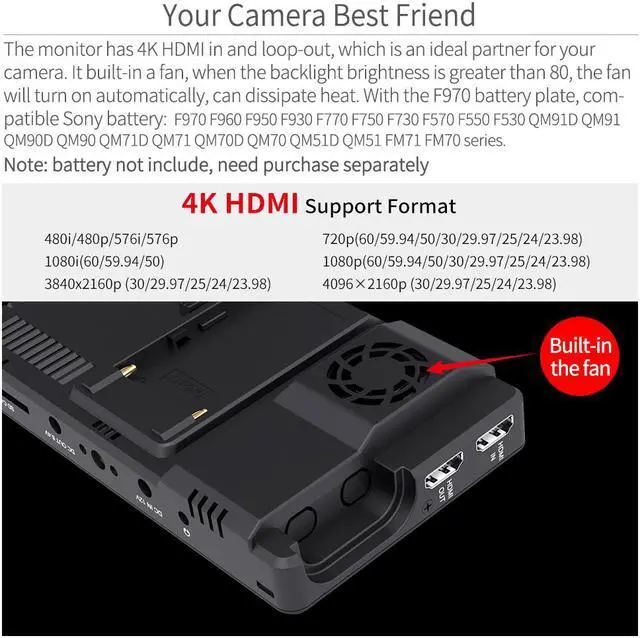

With 4K HDMI inputs, you can connect it to consumer camera or DSLR camera. You also get loop thru outputs, so you can display live video or expand display on external screens or projectors with embedded audio. You can also monitor audio using the 3.5mm stereo headphone jack. For power, there s a 12V DC input (can be using 12A/3A adapter) and one NP-F battery slots. The back of the monitor have the fan that automatic heat dissipation according to backlight brightness. Under "auto", if the backlight brightness is greater than 80, the fan will turn on automatically. Check the monitor support formats whether can work with your camera.
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.

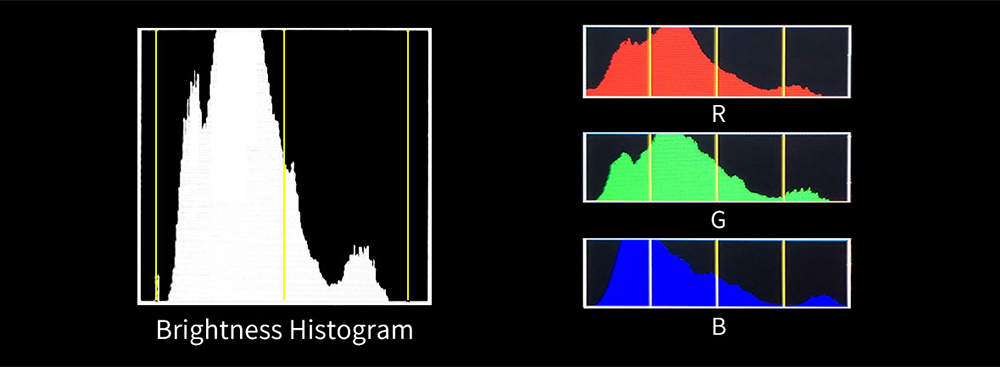

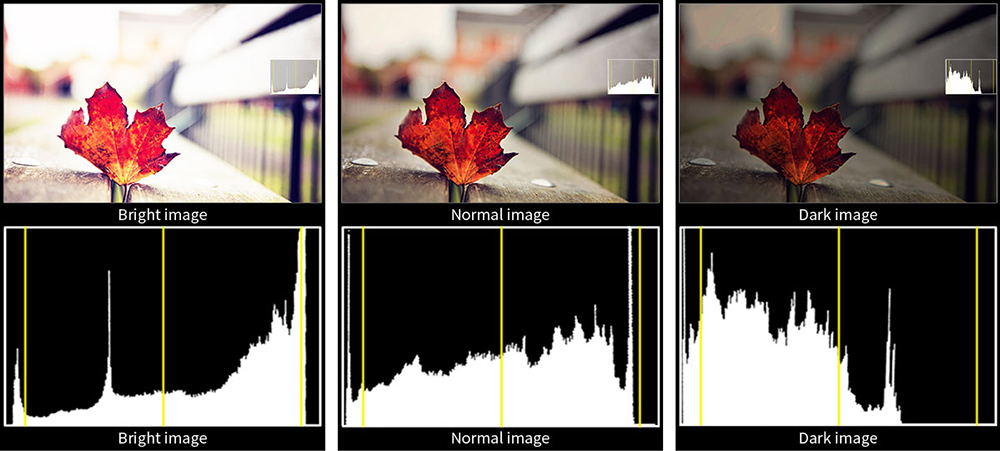

The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.

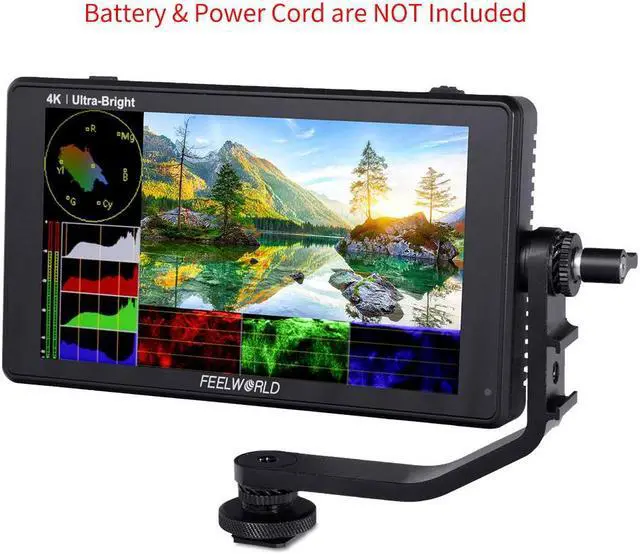

This mode shrinks your video image to approximately the size of a 6" display and tiles your choice of waveform, vectorscope, histogram, and embedded audio on the border of your video.
| Screen Size | 6 inch IPS |
|---|---|
| Pixel Pitch | 0.069 (L) x 0.069 (W) (mm) |
| Brightness | 2600cd/m2 |
| Backlight | LED |
| Input | HDMI |
| Audio Out | 3.5mm Stereo Headphone |
| Power Consumption | 16W |
| Storage Temperature | -30 degree Celsius to 60 degree Celsius |
| Resolution | 1920x1080 pixels |
|---|---|
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 160 degrees |
| Output | HDMI, DC OUT |
| Input Voltage | DC7 - 24V |
| Working Temperature | -20 degree Celsius to 50 degree Celsius |
| Install Way | 1/4 inch-20 Thread Socket (Right, Bottom) |
