When you've put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it's a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.

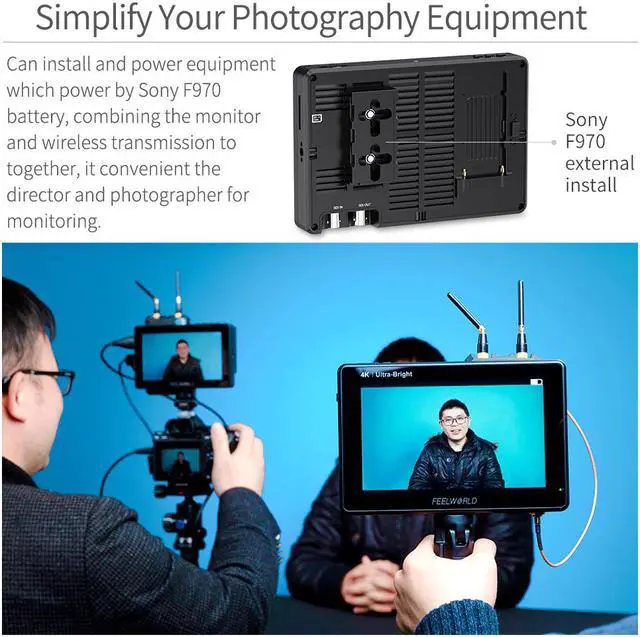

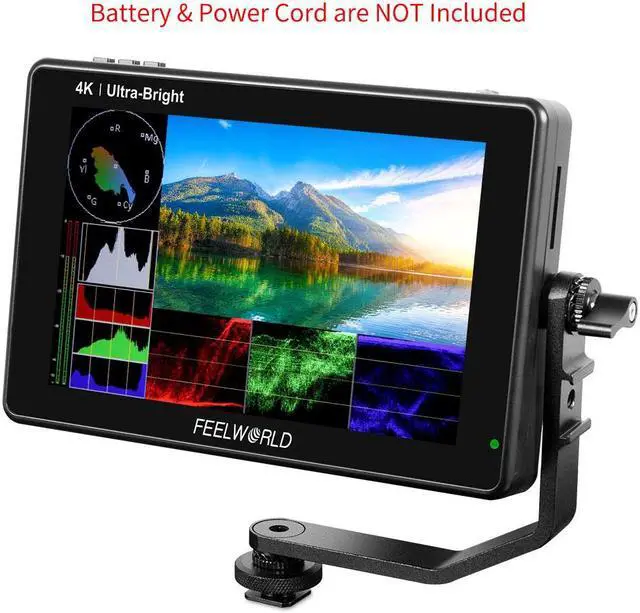

The LUT7S PRO field monitor supports HDMI input & output, SDI input & output. You can connect it to any consumer cameras or broadcast cameras or even DSLR cameras. You also get loop thru outputs, so you can display live video or expand display on external screens or projectors with embedded audio. You can also monitor audio using the 3.5mm stereo headphone jack. For power, there's a 12V DC input (can be using 12V/3A adapter) and one NP-F battery slot.(Note: Battery is not included.)
SDI Support Format
720p(60/59.94/50/30/29.97/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/23.98)

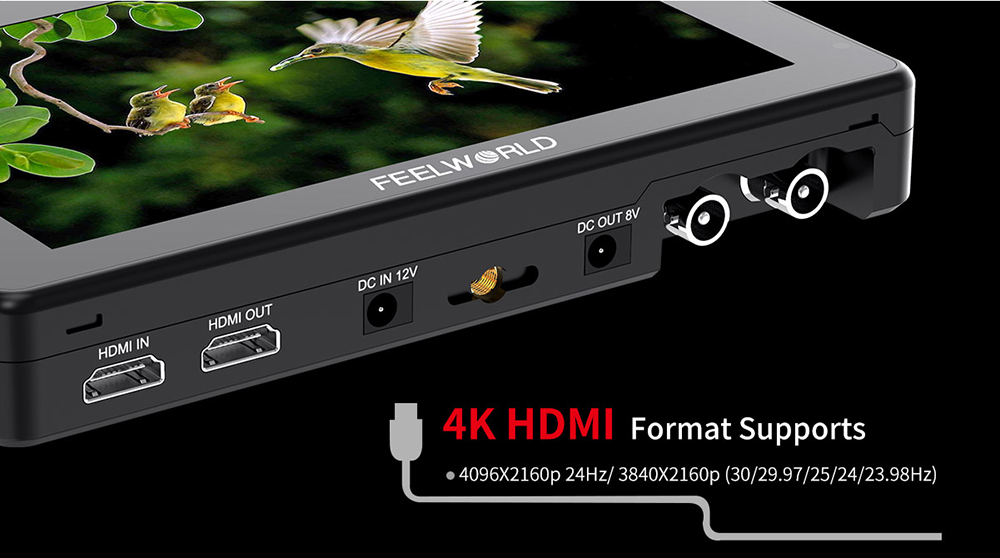

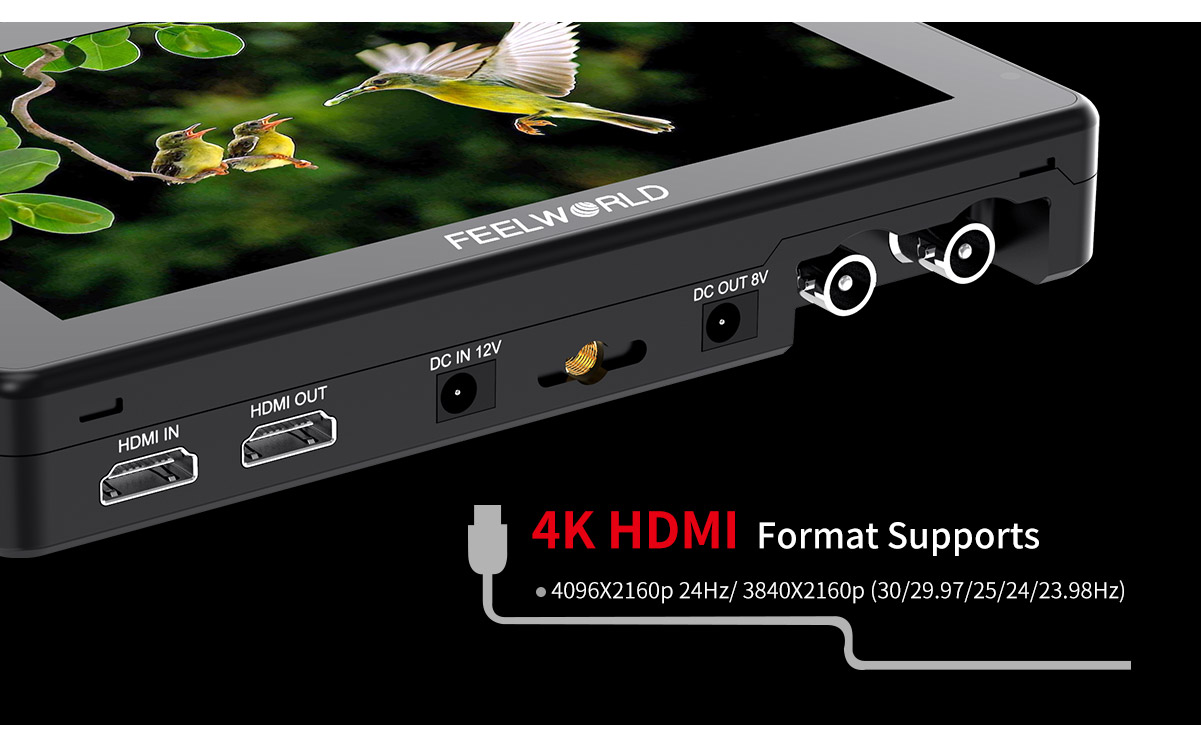

HDMI Support Format
480i/576i/480p/576p
1080i(60/59.94/50)
720p(60/59.94/50/30/29.97/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/23.98)
4K UHD 3840x2160p(30/29.97/25/24/23.98Hz), 4096x2160p(24Hz)

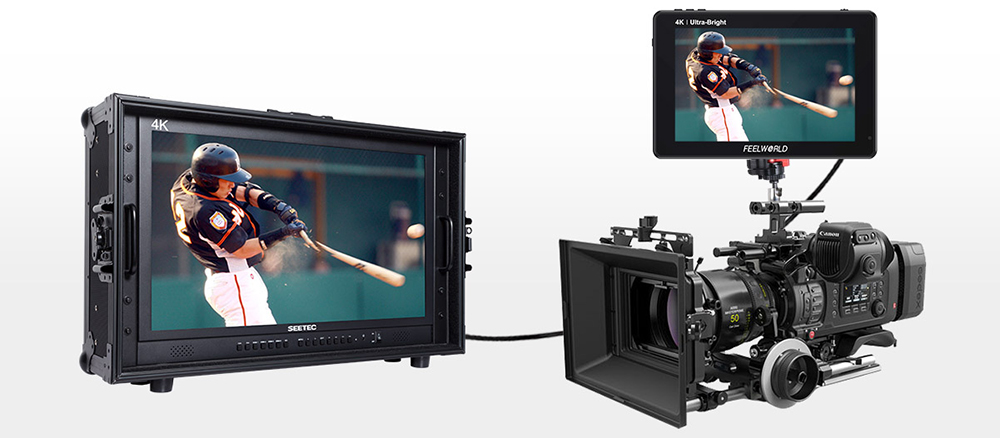

The LUT7S PRO monitor also with 3G-SDI signal LUT loop-out function, which can output custom LUT image to other displays, so that the director and photographer can see the images with LUT at the same time. When the signal is SDI, and you need to use this function, just turn on "LUT Switch" and "LUT Out" on the menu.

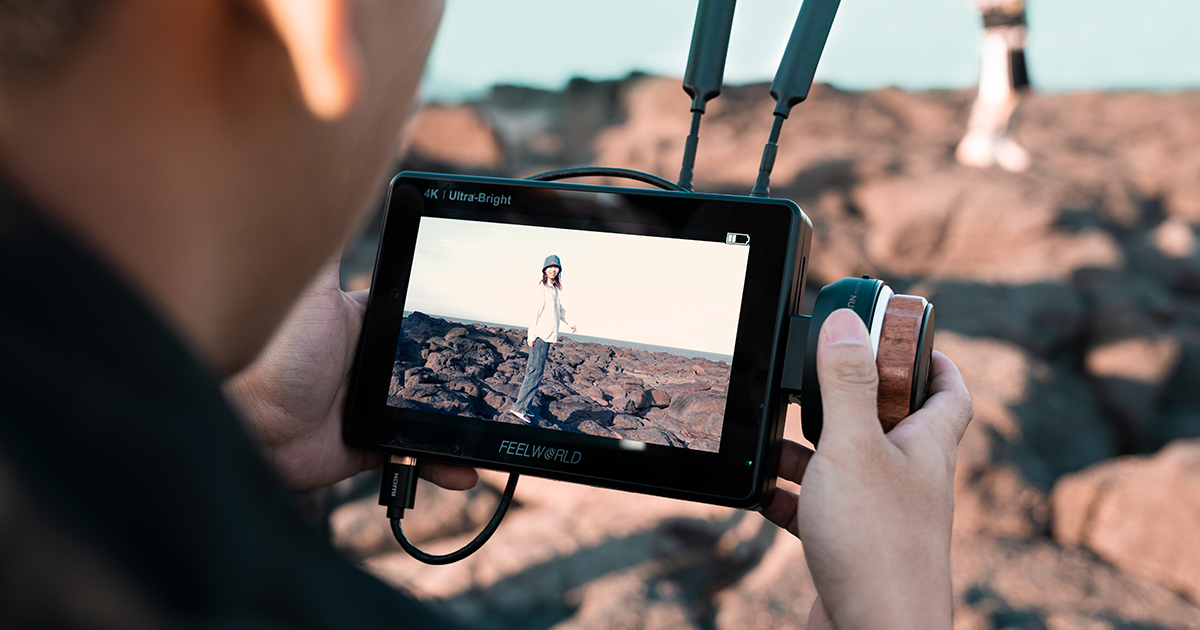

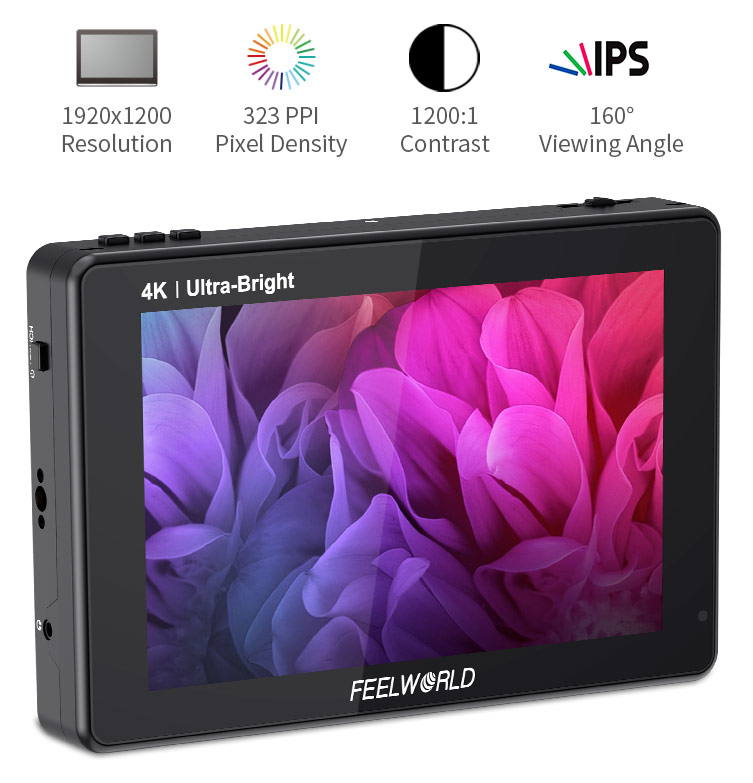

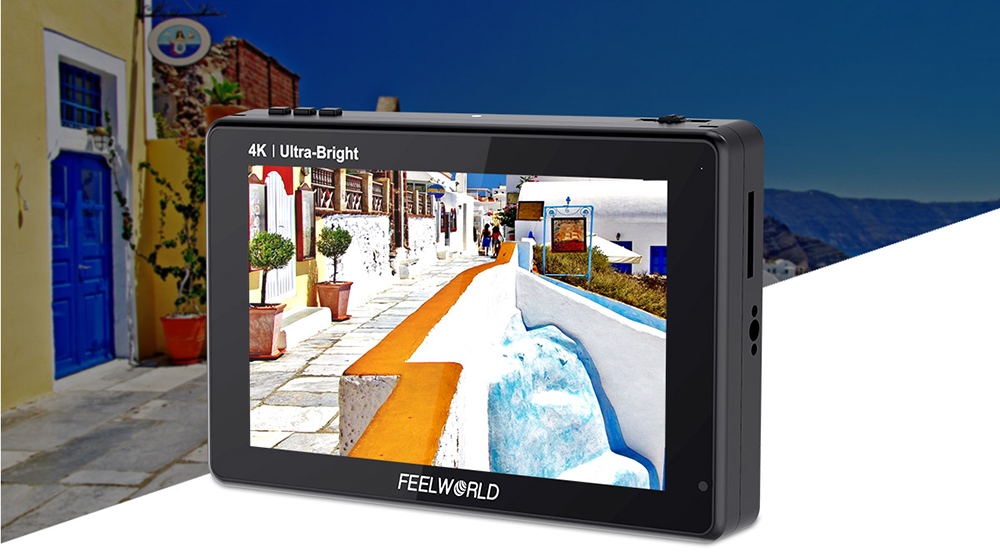

The FEELWORLD LUT7S PRO enables clear and precise field monitoring and image analysis during daytime shoots. It displays your stills and monitoring content at superior color fidelity and 1920 x 1200 maximum resolution on a 7-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. But what really sets it apart is its light-emitting diode (LED) backlighting, which outputs a brightness of 2200 nits and displays a 1200:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions. With the monitor displaying your content at 323 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on the spot. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.

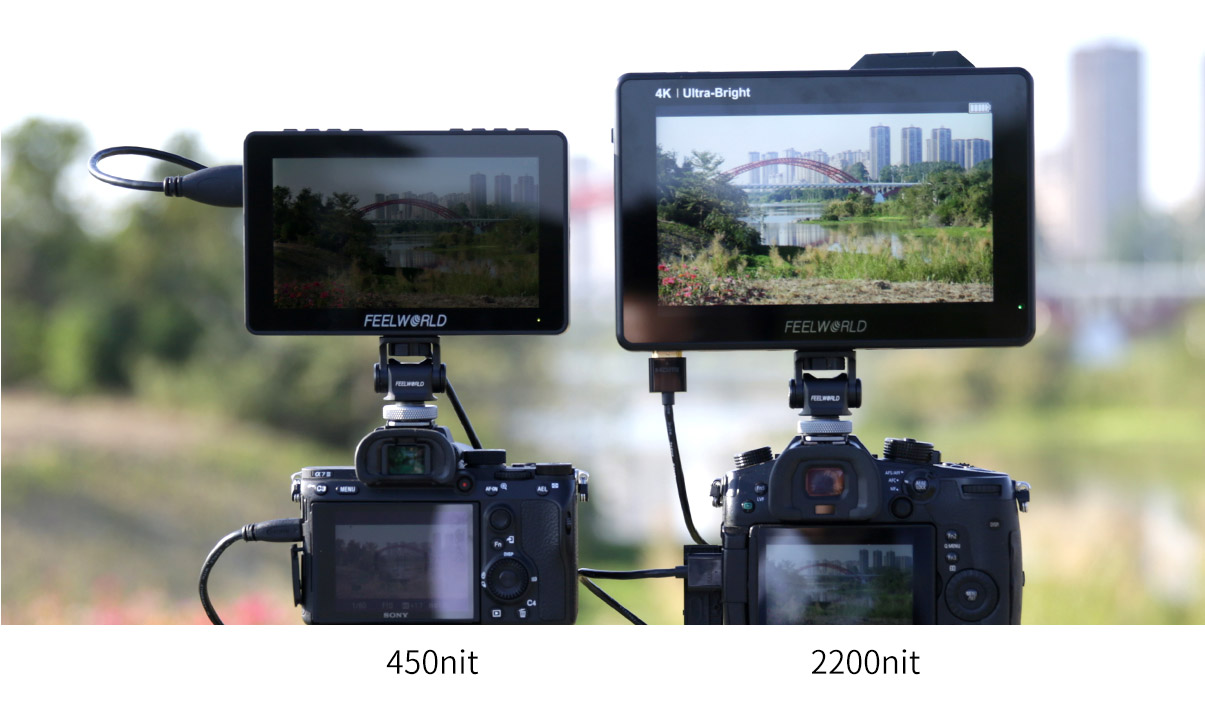

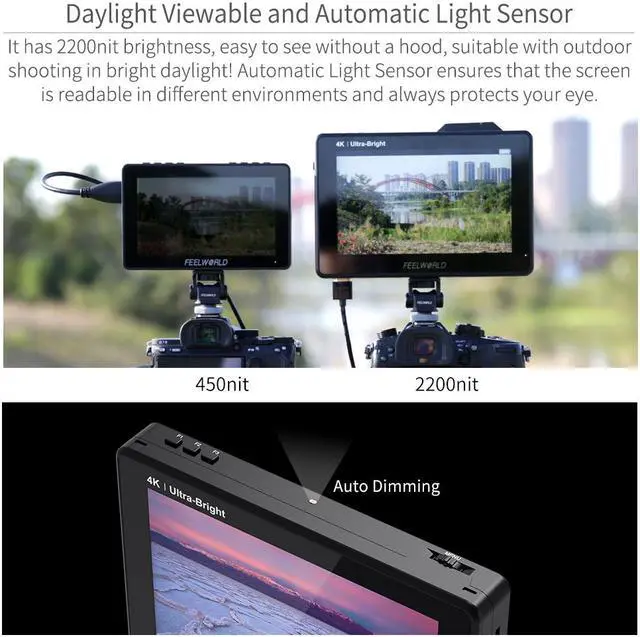

The 7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!

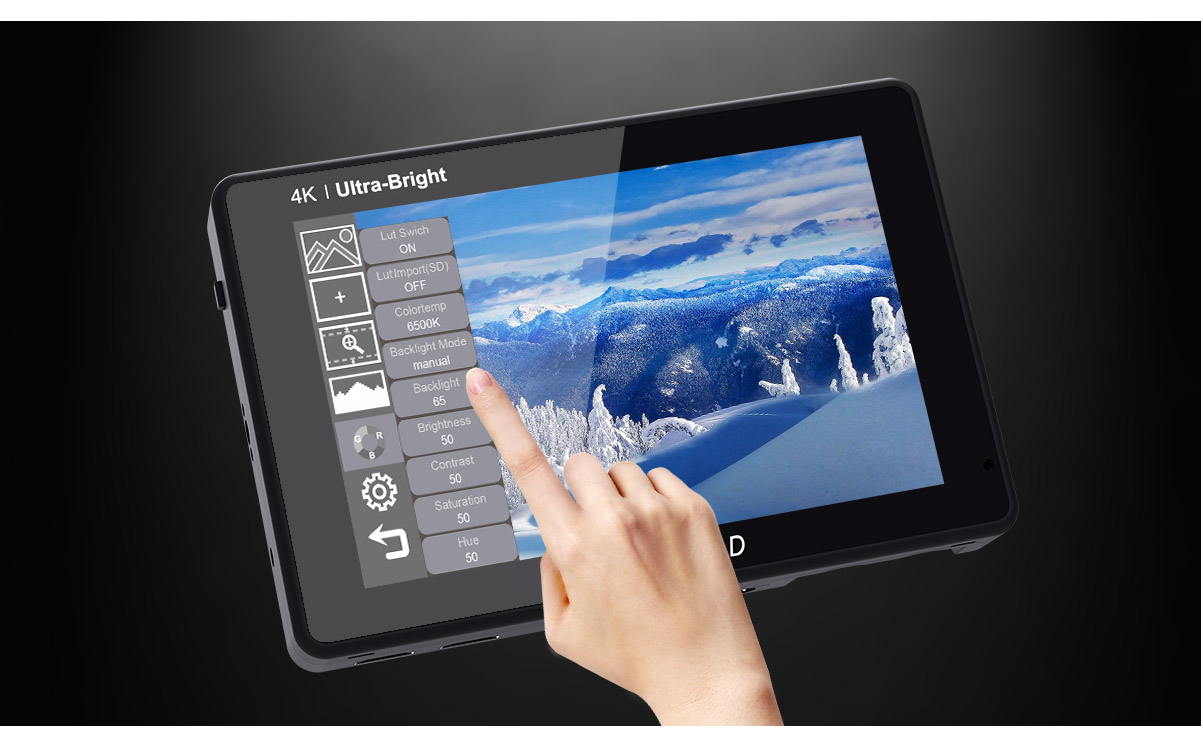

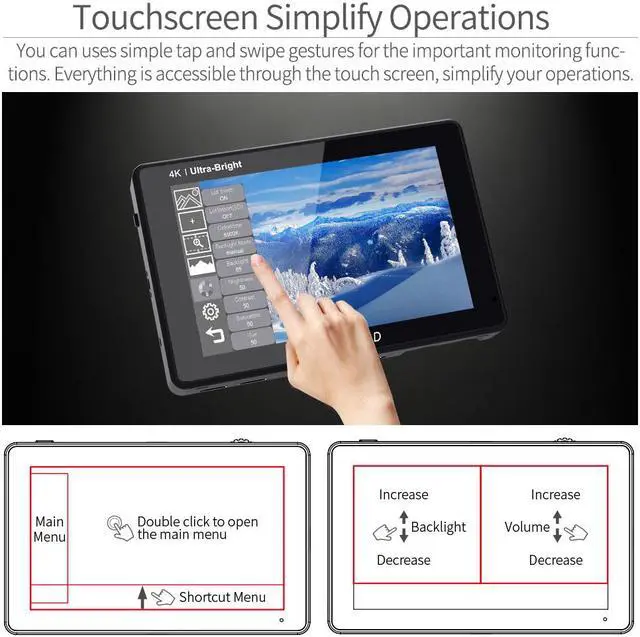

The innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUTs!

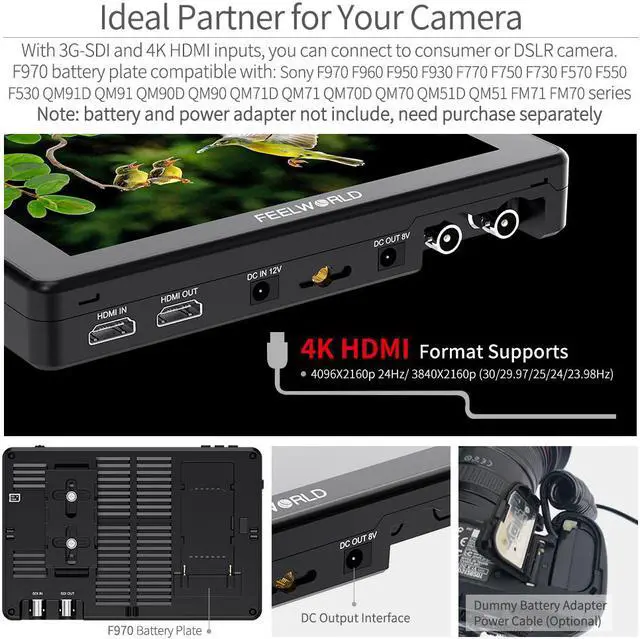

With both 3G-SDI and 4K HDMI inputs, you can connect it to any consumer cameras or broadcast cameras or even DSLR cameras. You also get loop thru outputs, so you can display live video or expand display on external screens or projectors with embedded audio. You can also monitor audio using the 3.5mm stereo headphone jack . For power, there s a 12V DC input (can be using 12V/3A adapter) and one NP-F battery slot.

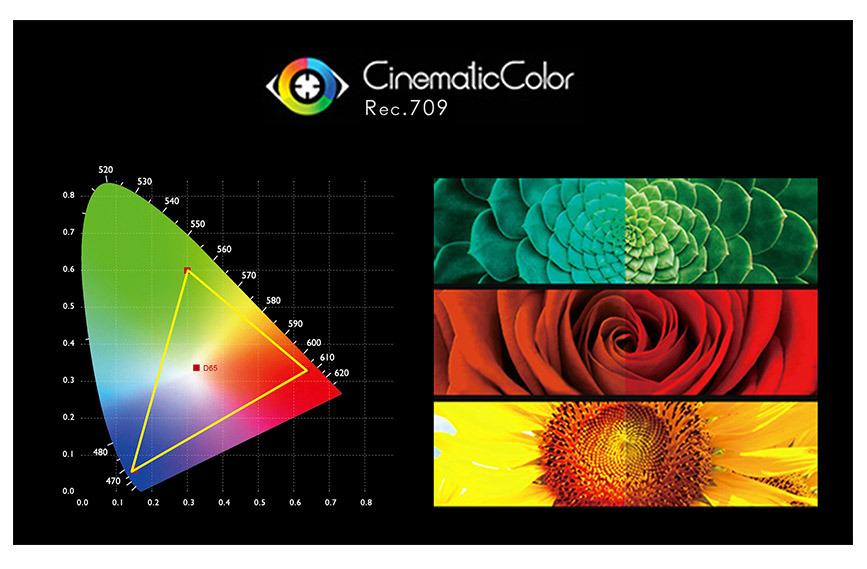

FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
LUT7S PRO supports HDR(high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most while shooting. When the HDR function is turned on, you can select Gamma and Gamut corresponding to the company Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.

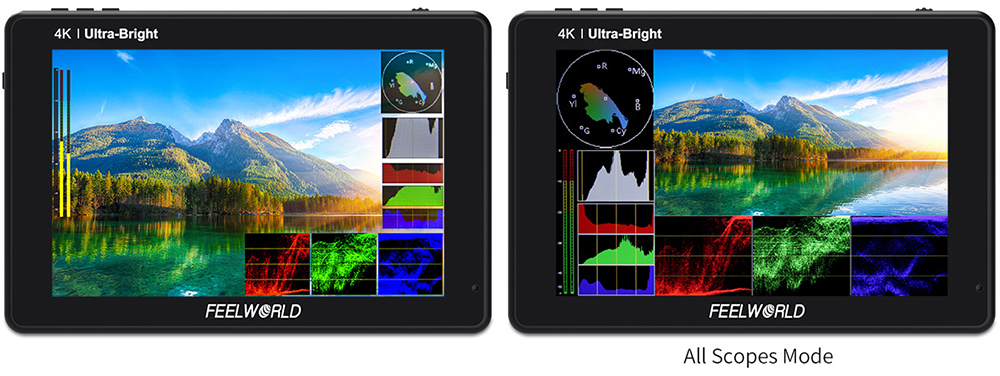

When you need to analyze image quality more accurately than simply looking at the picture then use LUT7S PRO's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. LUT7S PRO is perfect for live production monitoring and removes the need for separate expensive scopes!
| Screen Size | 7" IPS |
|---|---|
| Pixel Pitch | 0.07875 (H) x 0.07875 (W) (mm) |
| Brightness | 2200cd/m2 (Light Sensor) |
| Backlight | LED |
| Input | 3G-SDI, HDMI |
| Audio | 3.5mm Stereo Headphone |
| Power Consumption | 18W |
| Storage Temperature | -30 degree Celsius to 60 degree Celsius |
| Resolution | 1920x1200 pixels |
|---|---|
| Aspect Ratio | 16:10 |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 160 degrees |
| Output | 3G-SDI, HDMI, DC Out |
| Input Voltage | DC7 - 24V |
| Working Temperature | -20 degree Celsius to 50 degree Celsius |
| Install Way | 1/4"-20 Thread Socket (Left, Right, Bottom) |
