When you've put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it's a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.

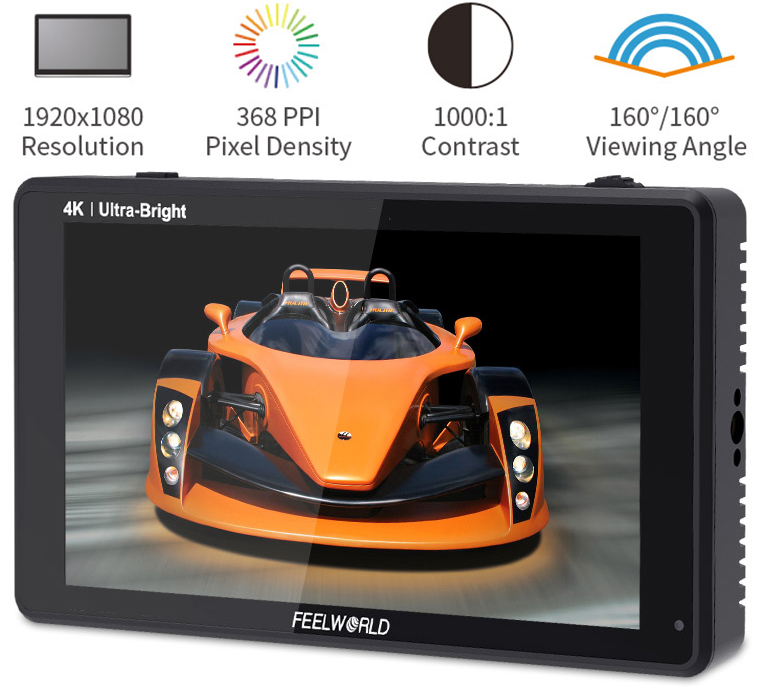

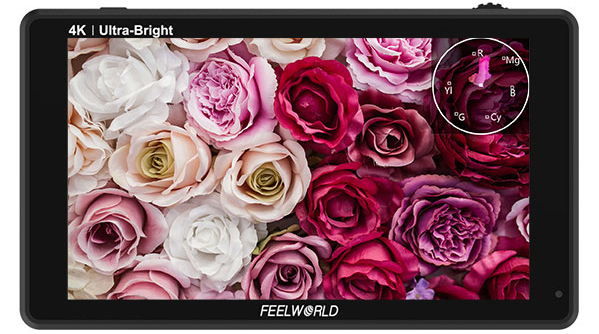

The LUT6S enables clear and precise field monitoring and image analysis during daytime shoots. It displays your stills and monitoring content at superior color fidelity and 1920 x 1080 maximum resolution on a 6-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. But what really sets it apart is its light-emitting diode (LED) backlighting, which outputs a brightness of 2600 nits and displays a 1000:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions. With the monitor displaying your content at 368 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on the spot. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.

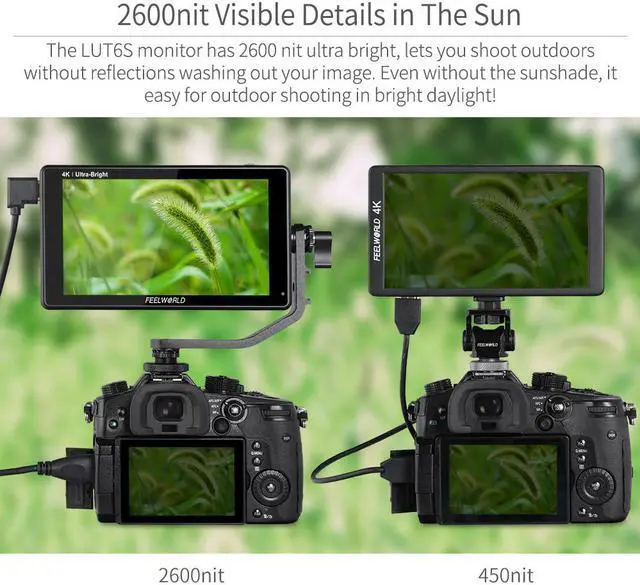

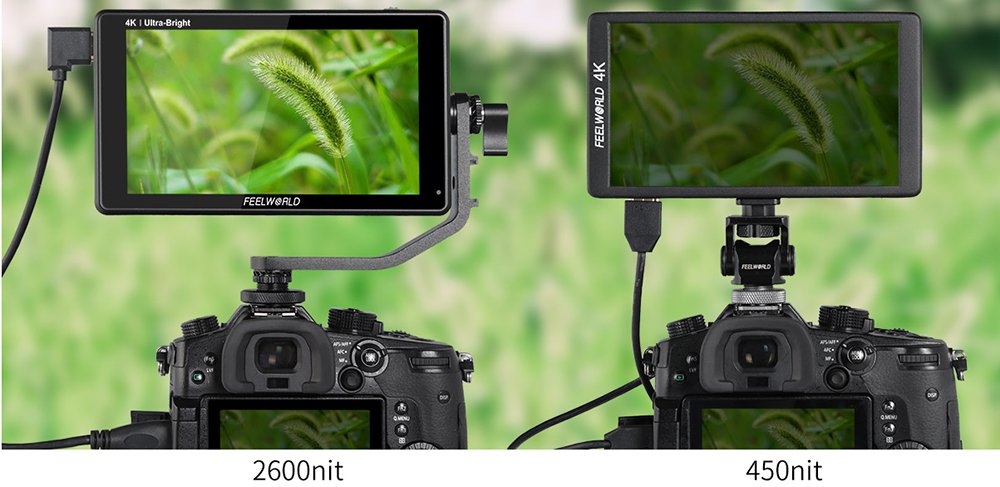

The fully adjustable 2600nits screen is incredibly bright, making it perfect for shooting indoors or out. The high bright 2600nits screen is at almost 5 times the brightness of conventional field monitors, lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!

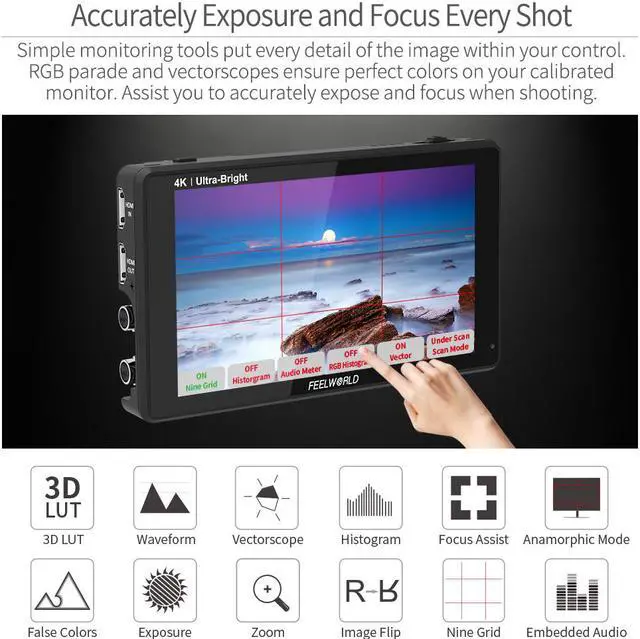

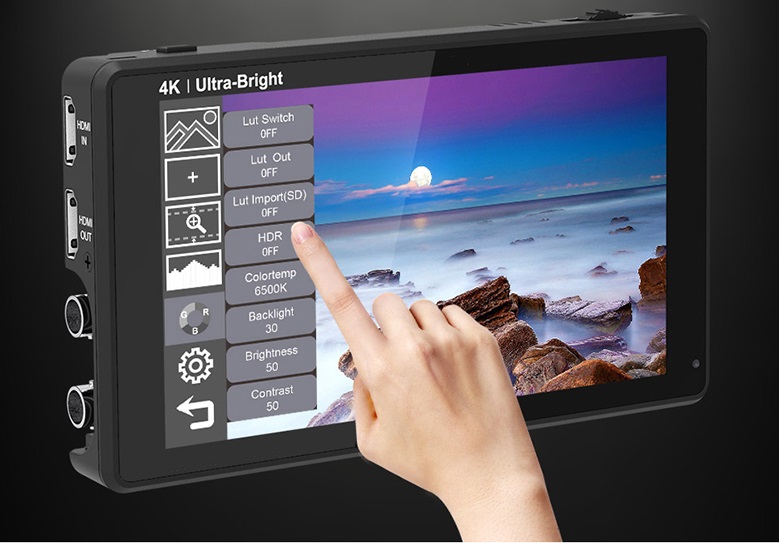

The innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUTs!

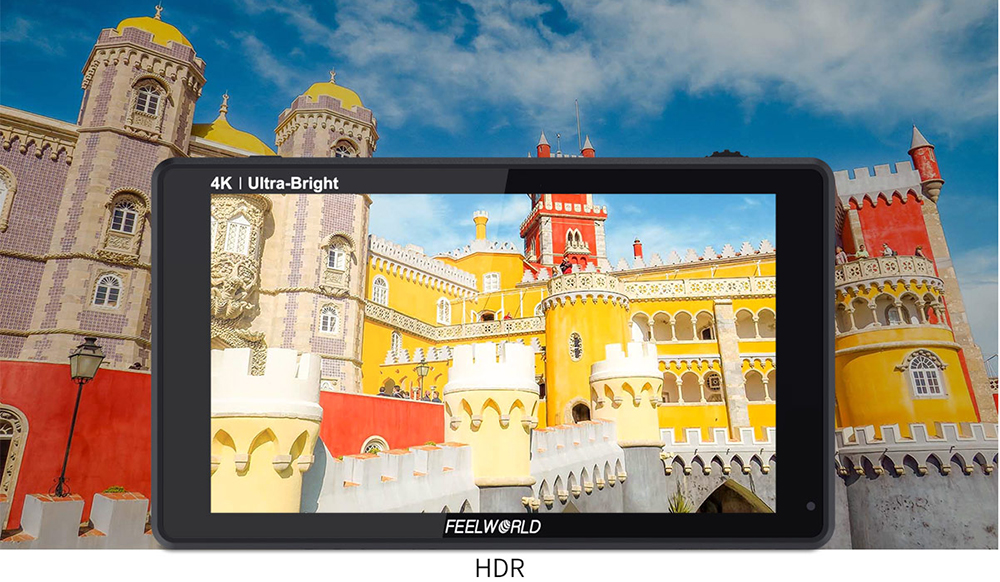

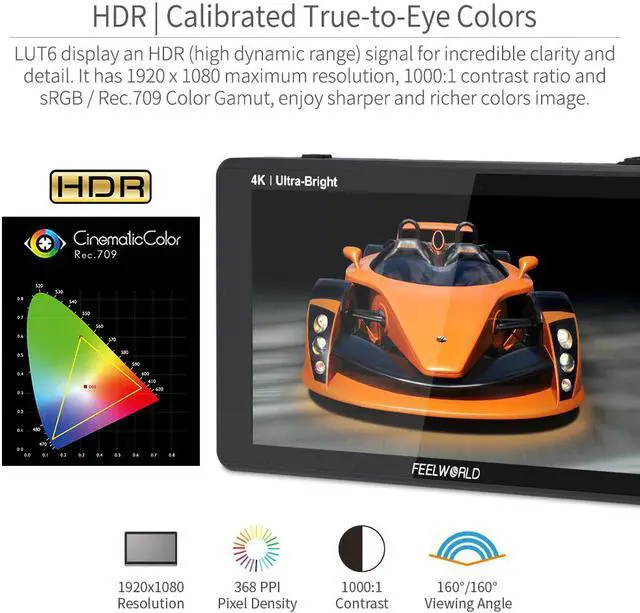

LUT6S supports HDR (high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most-while shooting. When the HDR function is turned on, you can select Gamma and Gamut corresponding to the company Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.

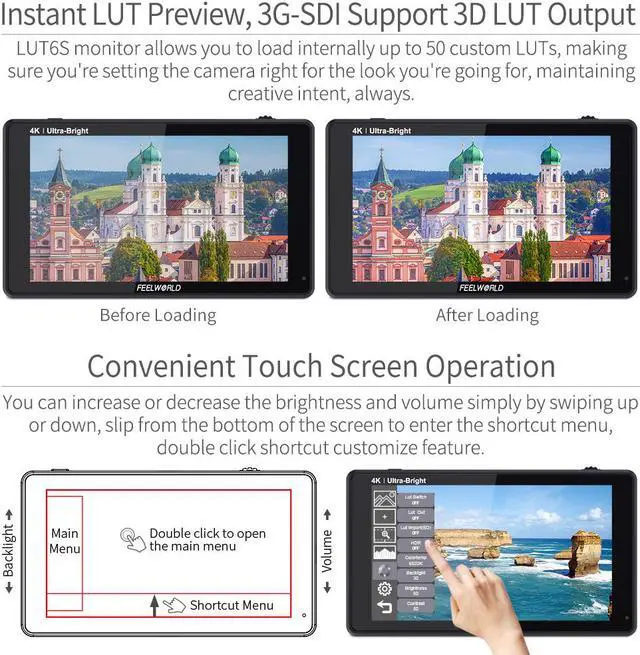

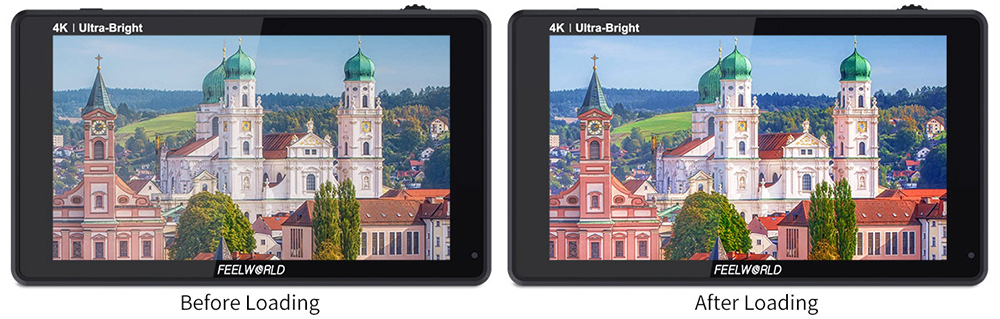

Some cameras can output logarithmic colorspace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. You could use built-in LOG to Rec.709 video or upload .cube files( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65). LUT6S allows you to load internally up to 50 custom LUTs , looks or profiles at any time via the SD Card ( Support for FAT32 and NTFS) Slot and instantly select between them, maintaining creative intent, always.

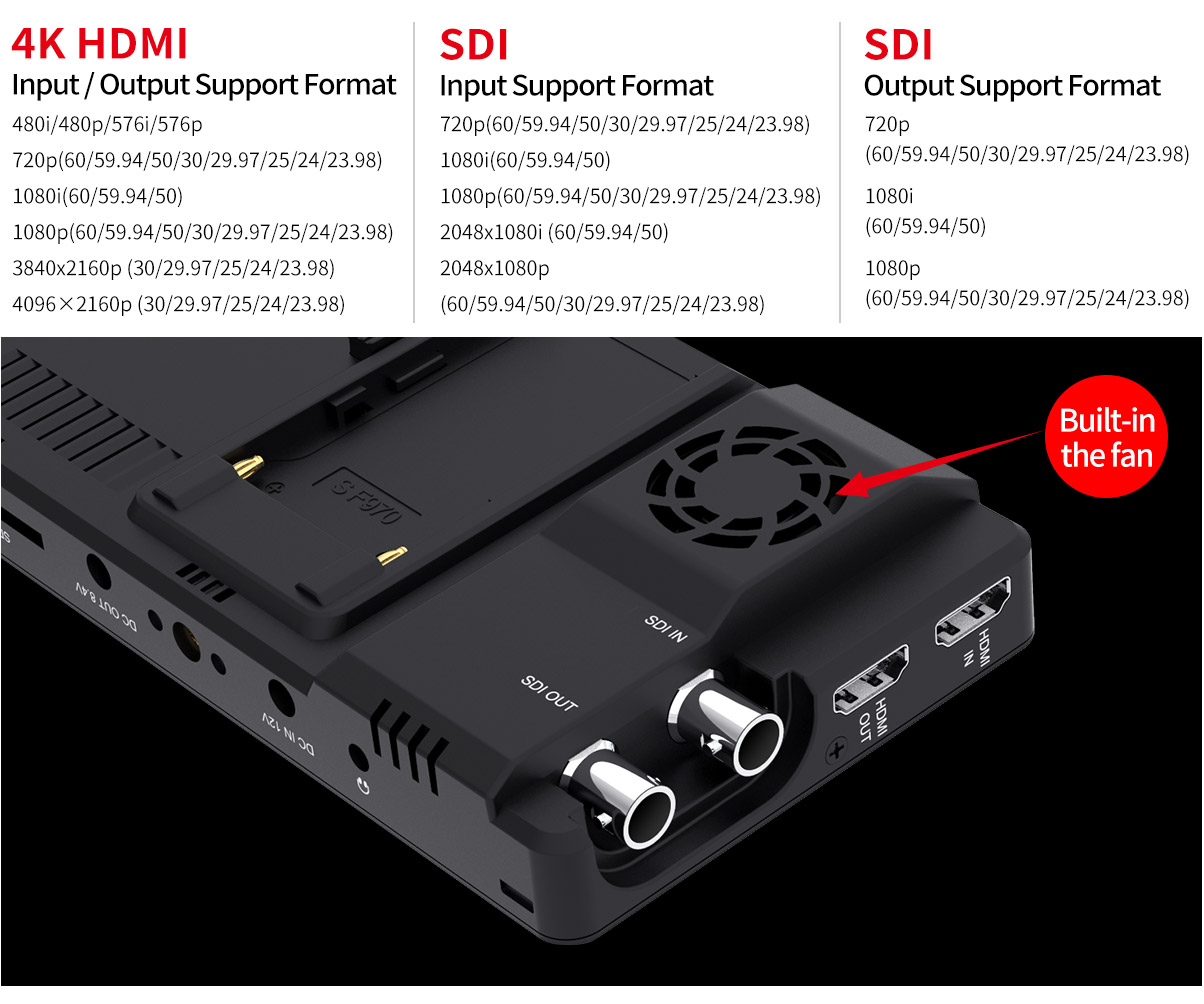

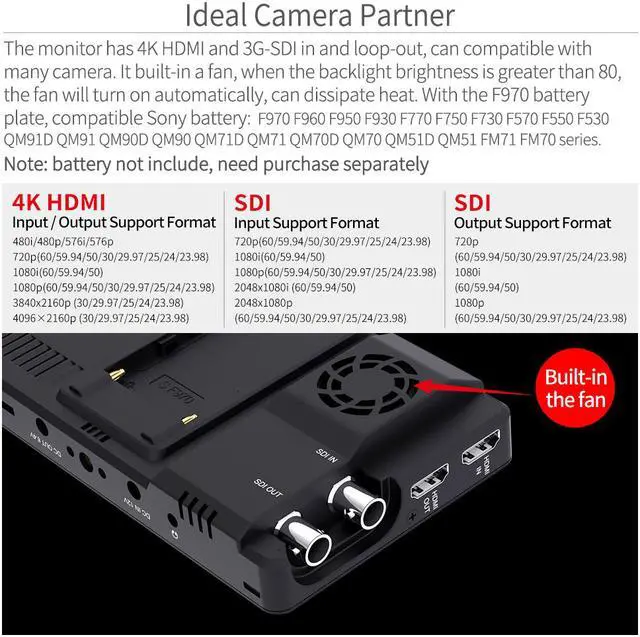

With both 3G-SDI and 4K HDMI inputs you can connect it to any consumer camera, broadcast camera or even DSLR cameras. You also get loop thru outputs, so you can display live video or expand display on external screens or projectors with embedded audio. You can also monitor audio using the 3.5mm stereo headphone jack. For power, there s a 12V DC input (can be using 12V/3A adapter) and one NP-F battery slot.The back of the monitor have the fan that automatic heat dissipation according to backlight brightness. Under "auto", if the backlight brightness is greater than 80, the fan will turn on automatically.

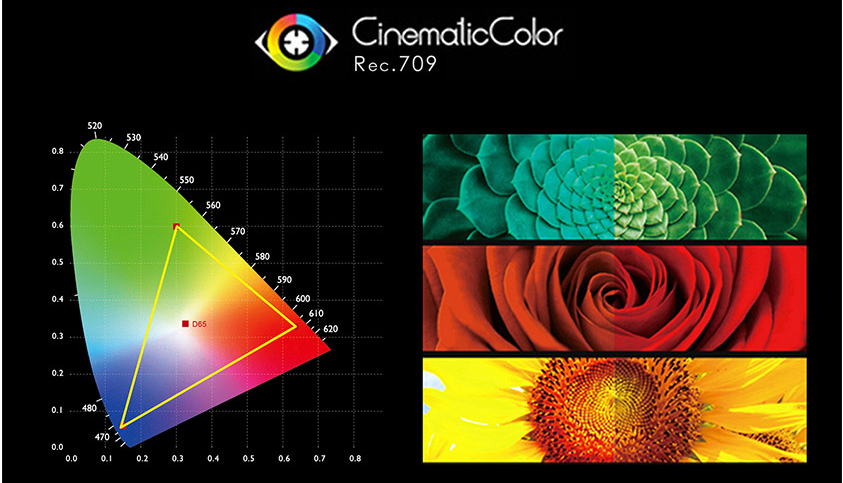

FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

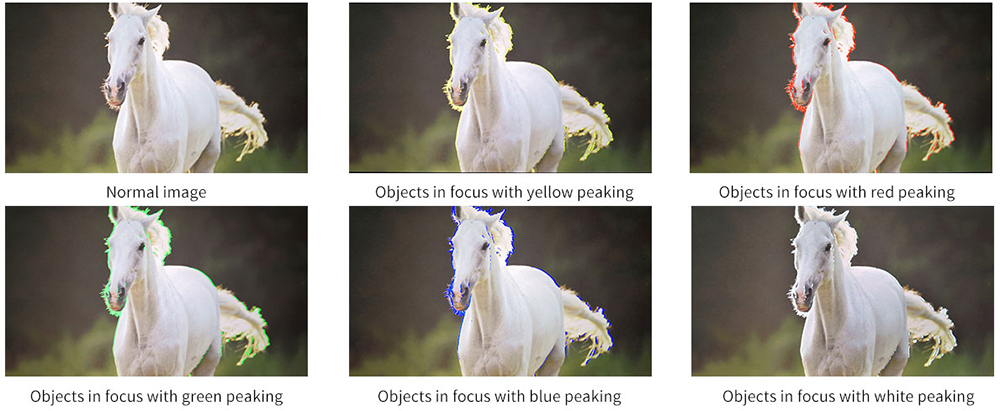

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the peaking color between yellow, red, green, blue, white according to different tone of the subject. The focus level can be adjusted from 1 to 10 levels.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.

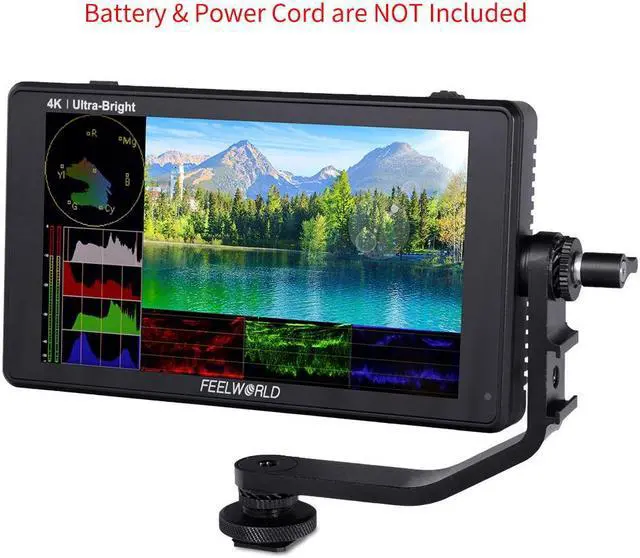

Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
| Screen Type | LCD IPS Touch Screen |
|---|---|
| Pixel Pitch | 0.069 (L) x 0.069 (W) (mm) |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 160 deg |
| Max Power Consumption | 16W |
| Storage Temperature | -30 Celsius degree to 60 Celsius degree |
| Output | 3G-SDI, HDMI, DC OUT 8.4V |
| Application 1 | For 4K Sony Canon Nikon Camera Mirrorless |
| Resolution | 1920x1080 pixels |
|---|---|
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Input Voltage | DC 7 - 24V |
| Working Temperature | -20 Celsius degree to 50 Celsius degree |
| Input | 3G-SDI, HDMI, DC IN 12V, SD Card |
| Audio Out | 3.5mm Headphone Jack |
| Application 2 | For Gimbal, Handheld Stabilizer |
