hen you've put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it's a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.
More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.

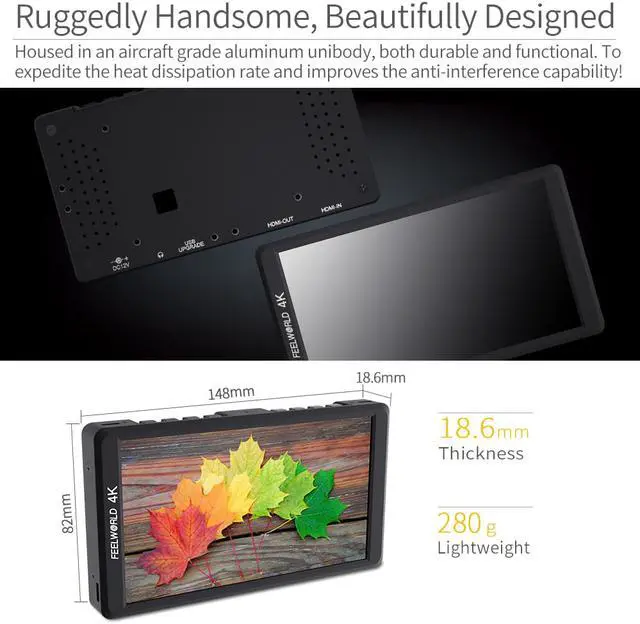

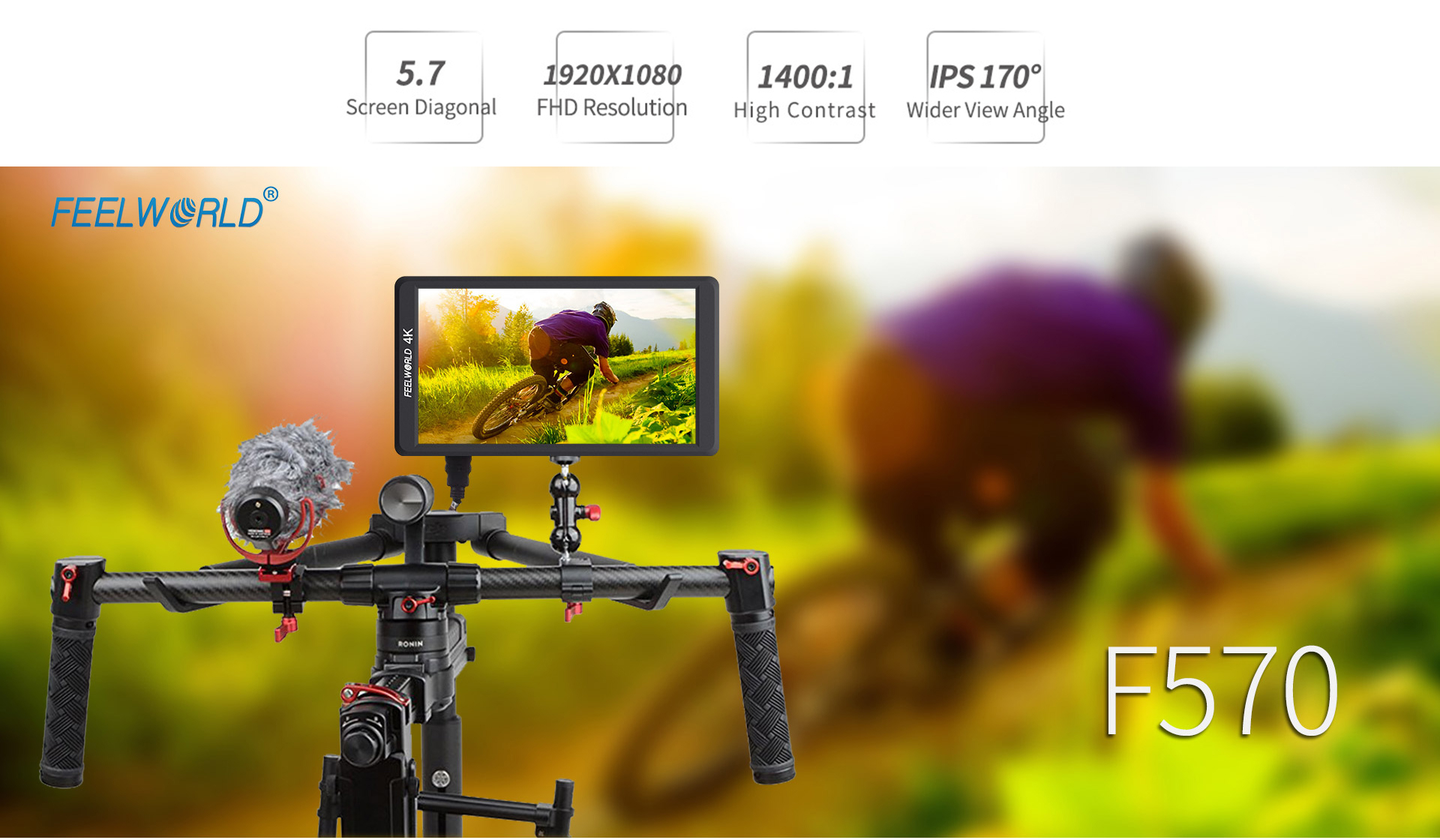

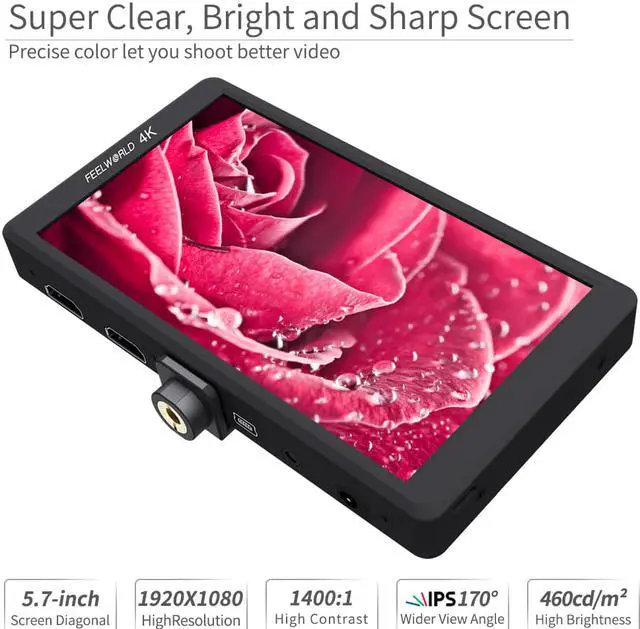

FEELWORLD F570 delivers amazing picture quality in an incredibly thin lightweight design. The wide 170° viewing angle makes it easy for multiple members of the crew to watch it at the same time.

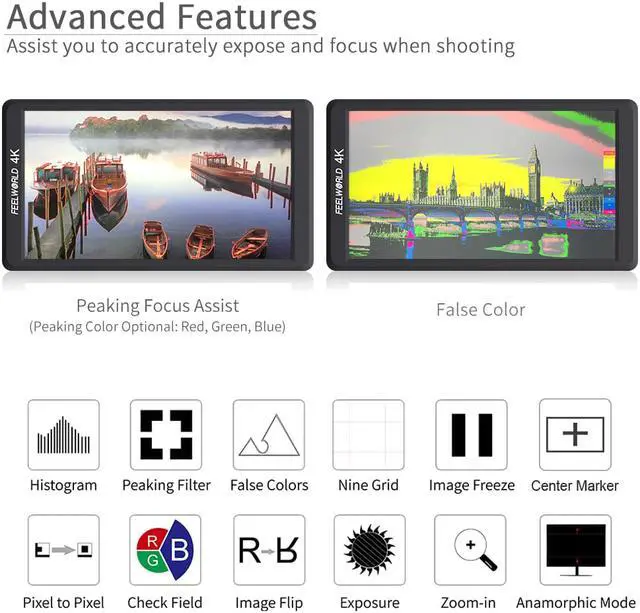

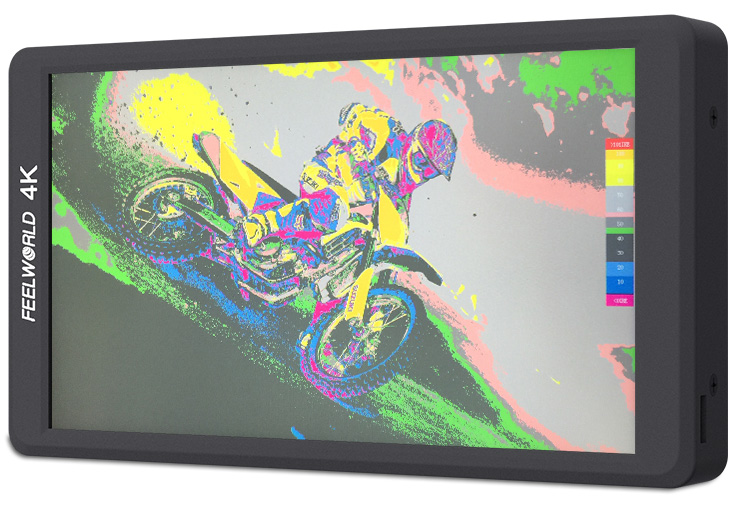

FEELWORLD F570 features powerful focus and exposure tools that help you get the best shots! Focus peaking indicators can be displayed as red, green or blue overlays that indicate exactly which parts of the image are in focus. In addition, false color tools make it easy to properly set exposure. The false color tools work by highlighting specific color ranges of luminance with a solid color overlay. Using false color helps you keep exposure consistent from shot to shot!

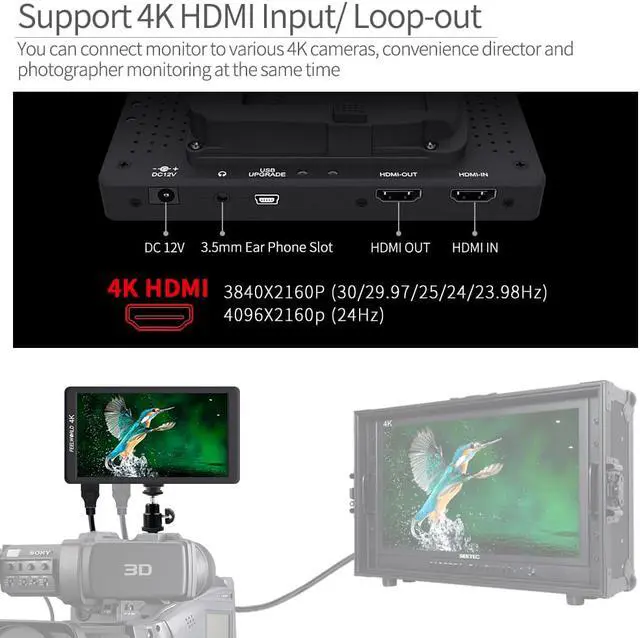

FEELWORLD F570 is jam packed with features in a small, lightweight package. It is equipped with 4K HDMI input and output interface, so you can connect monitor to various 4K camera, you can also 4K HDMI video signal synchronization output, convenience director and photographer monitoring at the same time. You can also monitor audio using the 3.5mm stereo headphone jack.

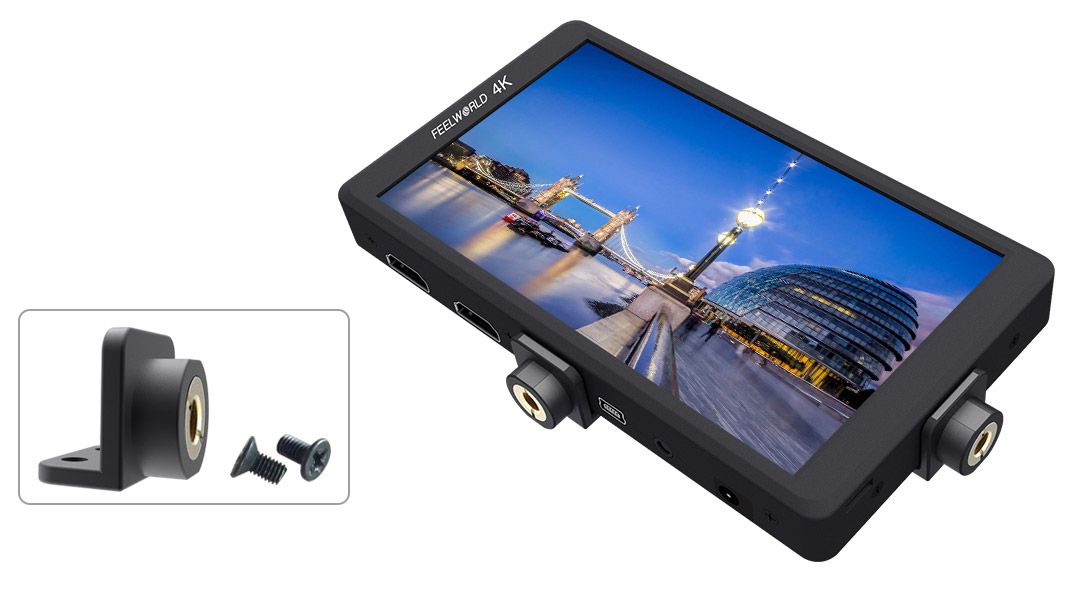

FEELWORLD F570 features standard 1/4" mount points for attaching it to cameras and rigs. The external 1/4 screw design is used to make the monitor lighter and thinner.

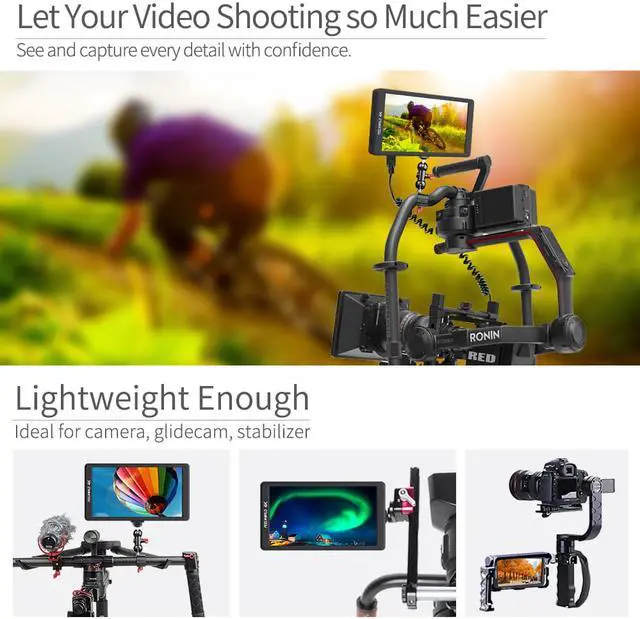

Using the 1/4 inch hole, you can sit on a table using the built in kick stand or securely attach it to the top of your camera as the ultimate HD viewfinder!

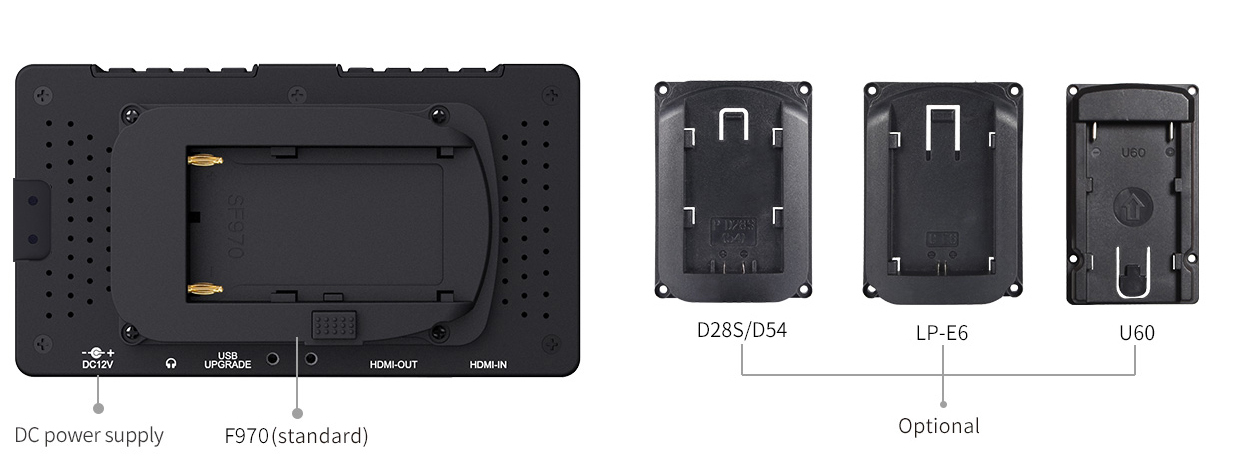

For power, there's a 12V DC input on the side (can be using 12V/1.5A adapter) and space for a battery plate on the back. When connected to the 12V DC input you get continuous power or you can run it off of compatible rechargeable battery. And the F570 supports F970 (standard), D28S/D54, LP-E6 and U60 battery plate of your choice. (Note: 1. The 5V Type-C port is only used for power supply, not for data transmission, and cannot provide loop-out power.2.The battery not including, please purchase separately.)
Flexible installation, create effective monitoring environment

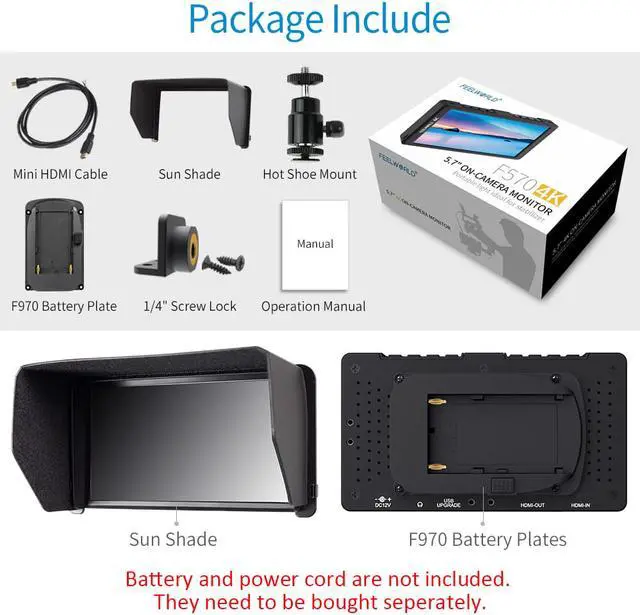

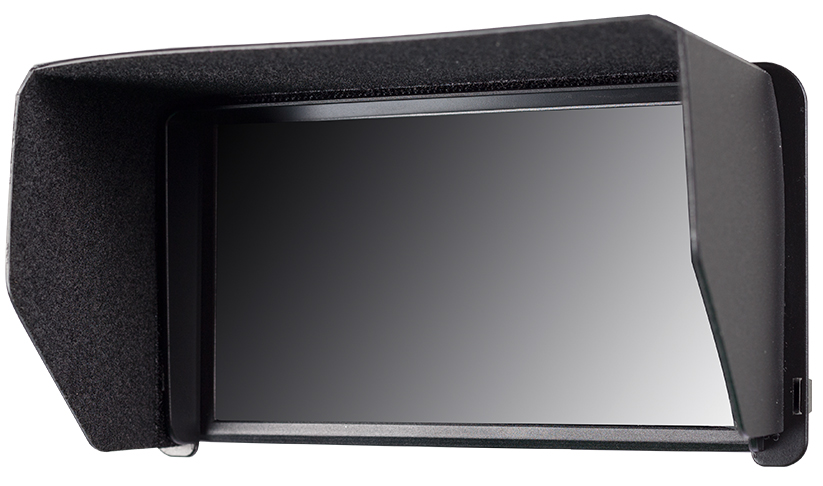

FEELWORLD sunshade design for you in the light under the location of shooting light to monitor the impact of the screen to provide an effective monitoring environment.

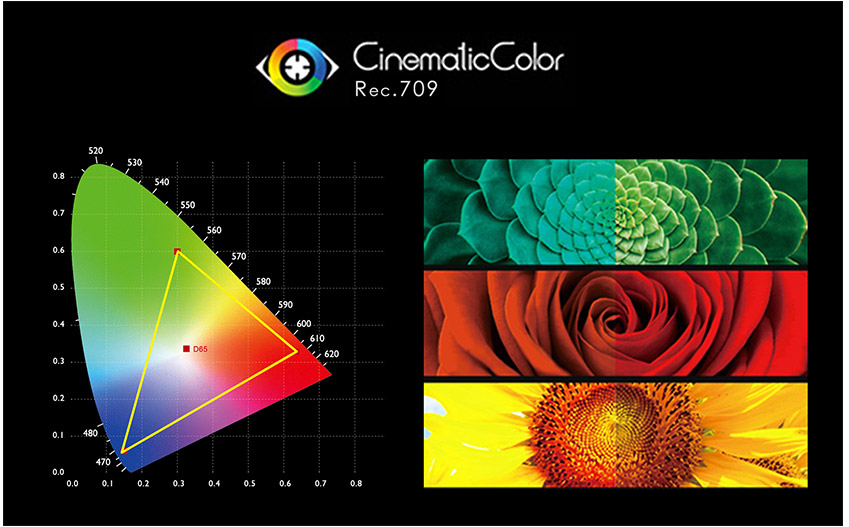

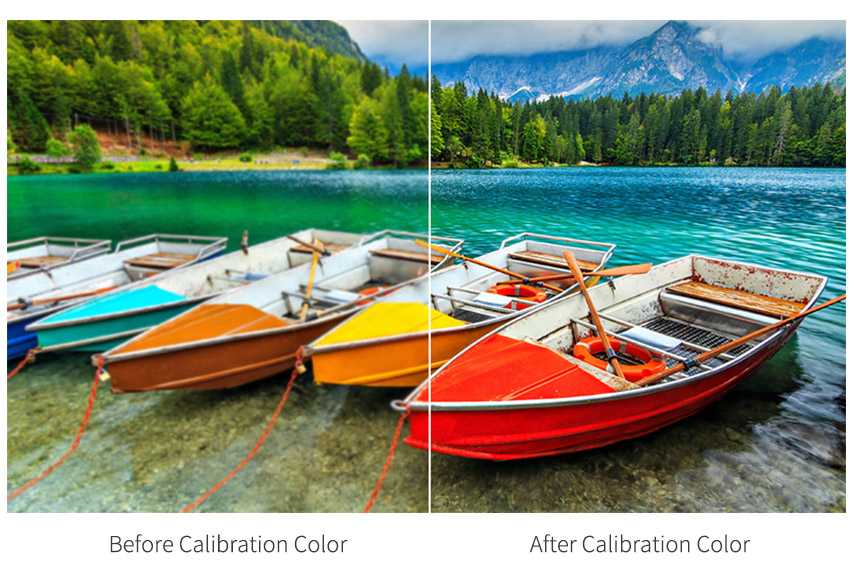

FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

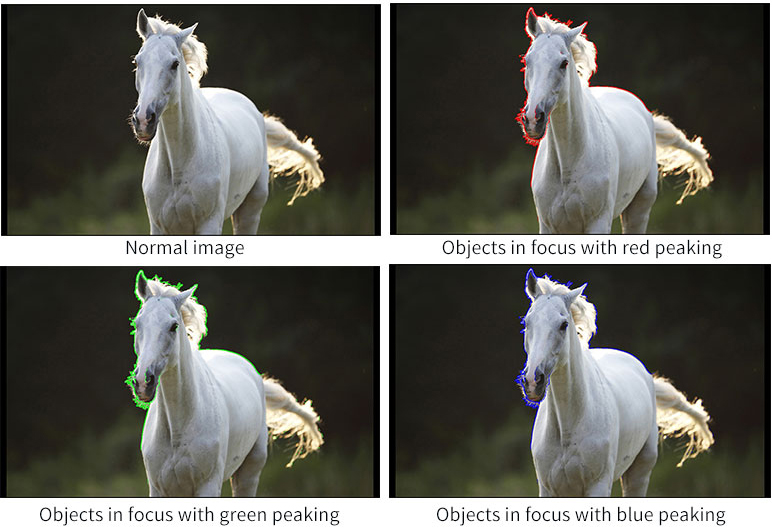

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.
| Screen Size | 5.7 inch IPS |
|---|---|
| Pixel Pitch | 0.0657x0.0219 mm |
| Brightness | 460cd/m2 |
| Backlight | LED |
| Input | HDMI |
| Audio Out | Stereo Headphone |
| Power Consumption | 8W |
| Storage Temperature | -30 Celsius degree to 65 Celsius degree |
| Resolution | 1920x1080 pixels |
|---|---|
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1400:1 |
| Viewing Angle | 160 degrees |
| Output | HDMI |
| Input Voltage | DC 7 - 24V |
| Working Temperature | -20 Celsius degree to 55 Celsius degree |
| Install Way | 1/4 inch-20 Thread Socket |
