T7 Plus 7 Inch 3D LUT DSLR Camera Field Monitor with Waveform Histogram Peaking Focus False Colors 4K HDMI Input Output Full HD 1920x1200 Solid Aluminum Housing

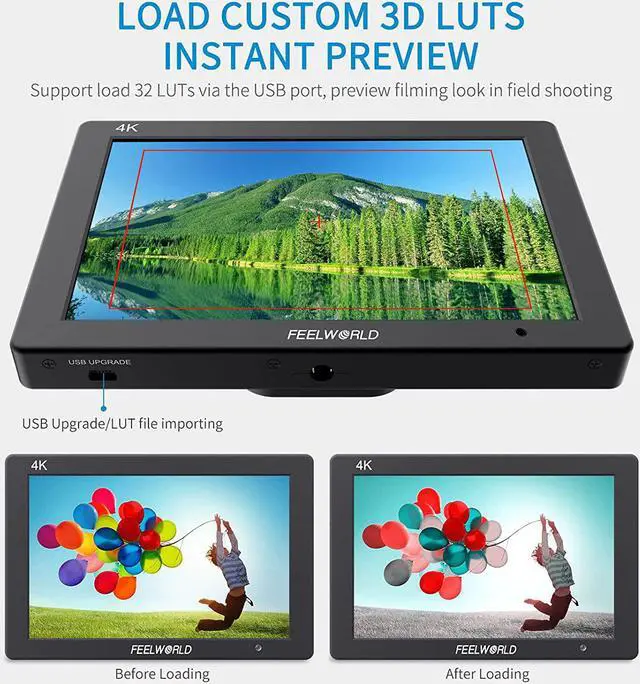

- Load Customs 3D LUTCan load in your own which is great for creating a custom LUT for your project, preview when shooting LOG and making sure you're setting the camera right for the look you're going for.

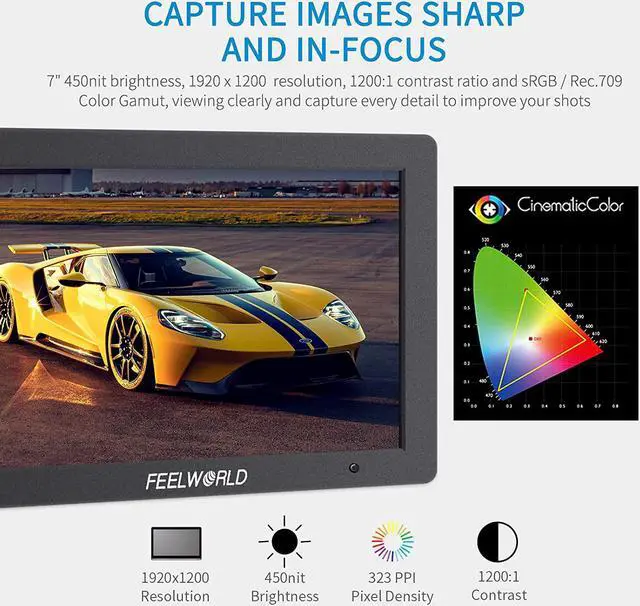

- Capture Images Sharp and In-focus450nit Full HD 1920x1200 high resolution precise color 323 PPI, clear, vibrant picture, see and capture every detail with confidence
- Accurately Exposure and FocusThe video assist features such as waveform, focus peaking and false colorsare must haves to streamline production, helps you to improve your video quality.

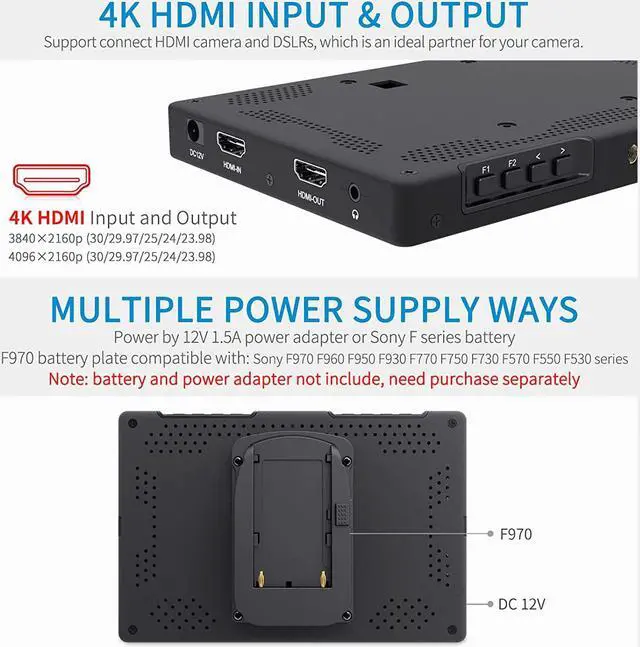

- Ideal Partner of Your Camera4K HDMI input output, compatible for many camera. Supports 4K@30Hz signal, which is transmitting without loss and the screen is clearer.

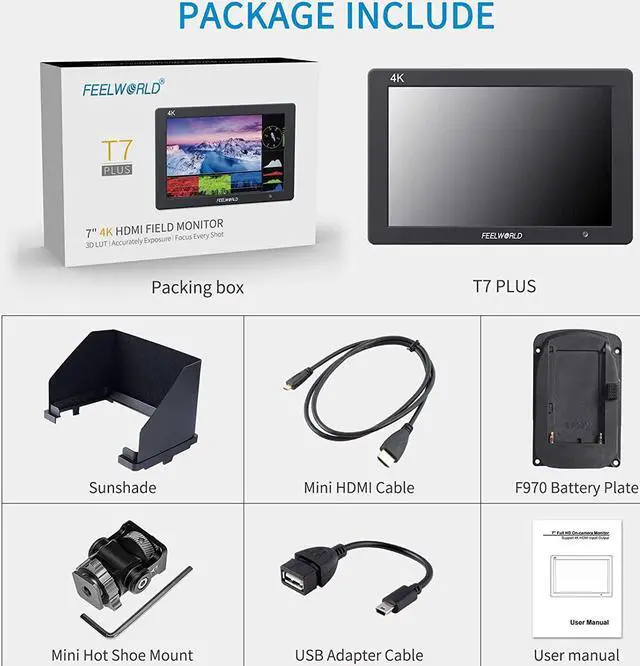

- Package Include1× Mini HDMI Cable, 1× Sunshade, 1× Mini Hot Shoe Mount, 1× USB Adapter Cable, 1× F970 Battery Plate, 1× Operation Manual Not include the battery and power adapter, you need purchase separatly
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
1.
High Resolution: Full HD 1920x1200, High
Contrast: 1200:1, High
Brightness: 450cd/m², 160°wide viewing angles IPS Panel
2. Custom 3D LUT import (up to 32)
3. All waves, Waveform (RGB, Y, YUV), Histogram (RGB1, Y, RGB2), Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
4. False Colors, Zebra Exposure, Nine Grid, Embedded Audio, Color Temperature Adjustment
5. Scan Mode (Under Scan, Over Scan), Zoom (4x, 9x, 16x), Anamorphic Mode ( 1.3 x, 2.0 x, 2.0 x mag, User-defined
adjustment: 1.20X ~ 2.00X )
6. Pixel to Pixel, Center Marker, Safe Area (80%, 85%, 90%, 93%, 96%, 2.35: 1), Ratio Marker ( 4:3, 13:9, 14:9, 15:9, 16:9, 1.85: 1, 2.35: 1)
7. Marker Color (Red, Green, Blue, White, Black), Check Field (Red/Green/Blue/Mono)
8. Image Flip (H, V, H/V), Image Freeze
9. Zoom All (0~500 adjustable), U/D & L/R Zoom (0~500 adjustable)
1. Can't turn on the monitor Make sure to use the standard 12V 1.5A power adapter to connect the monitor. If power is supplied by battery, please check if the battery is fully charged. 2. Have noise during recording Long press " is increase the volume. 3. The monitor display " no signal" 1)Try another HDMI cable. 2)And please try to connect monitor HDMI to your computer, try if the monitor have signal? 3)Change the camera output singal, confirm the monitor input signal whether support the camera output signal. 4. When you turn on the focus peak, the information on the monitor will also display the focus peak and other problems. You can try to turn off the "HDMI Information Display" under the "HDMI Settings" tab in the menu system, so that when the focus is turned on, it will not A similar situation occurred.
1.
High Resolution: Full HD 1920x1200, High
Contrast: 1200:1, High
Brightness: 450cd/m², 160°wide viewing angles IPS Panel
2. Custom 3D LUT import (up to 32)
3. All waves, Waveform (RGB, Y, YUV), Histogram (RGB1, Y, RGB2), Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
4. False Colors, Zebra Exposure, Nine Grid, Embedded Audio, Color Temperature Adjustment
5. Scan Mode (Under Scan, Over Scan), Zoom (4x, 9x, 16x), Anamorphic Mode ( 1.3 x, 2.0 x, 2.0 x mag, User-defined
adjustment: 1.20X ~ 2.00X )
6. Pixel to Pixel, Center Marker, Safe Area (80%, 85%, 90%, 93%, 96%, 2.35: 1), Ratio Marker ( 4:3, 13:9, 14:9, 15:9, 16:9, 1.85: 1, 2.35: 1)
7. Marker Color (Red, Green, Blue, White, Black), Check Field (Red/Green/Blue/Mono)
8. Image Flip (H, V, H/V), Image Freeze
9. Zoom All (0~500 adjustable), U/D & L/R Zoom (0~500 adjustable)
1. Can't turn on the monitor Make sure to use the standard 12V 1.5A power adapter to connect the monitor. If power is supplied by battery, please check if the battery is fully charged. 2. Have noise during recording Long press " is increase the volume. 3. The monitor display " no signal" 1)Try another HDMI cable. 2)And please try to connect monitor HDMI to your computer, try if the monitor have signal? 3)Change the camera output singal, confirm the monitor input signal whether support the camera output signal. 4. When you turn on the focus peak, the information on the monitor will also display the focus peak and other problems. You can try to turn off the "HDMI Information Display" under the "HDMI Settings" tab in the menu system, so that when the focus is turned on, it will not A similar situation occurred.
