When you've put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it's a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.

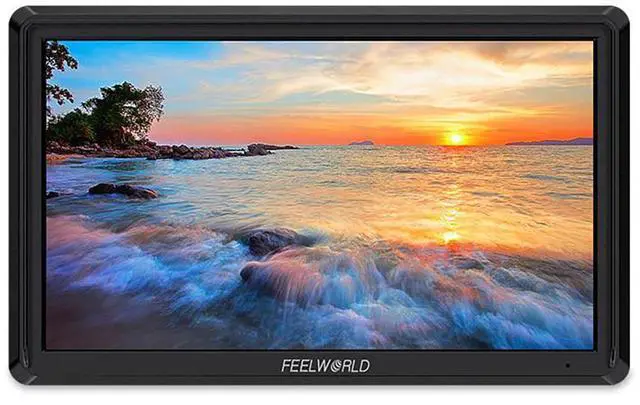

The FW568 V3 provides a sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920x1080 high resolution and 16:9 display, 450cd/m2 brightness, 1000:1 contrast ratio, delivers excellent detail, so you can enjoy sharper and richer colors image, full-screen display uniform, no difference, no trailing. Its size, weight and resolution make it an attractive option for DSLR shooters looking to attach it straight to the camera.

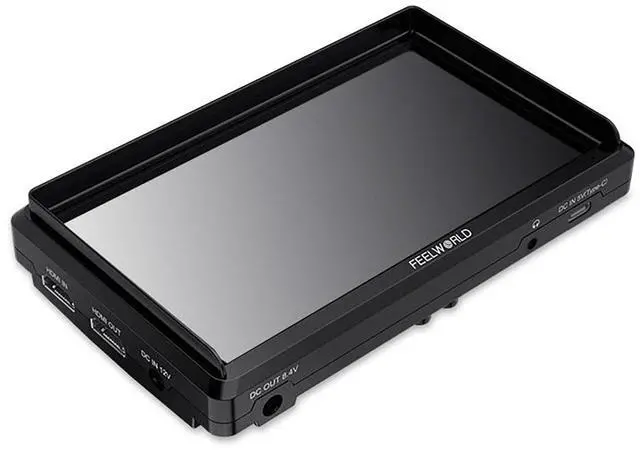

The FW568 V3 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

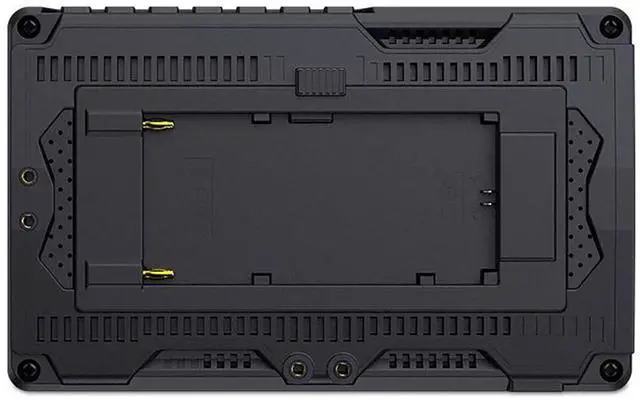

In addition to the DC 12V power input (can be using 12V/1.5A adapter), FW568 V3 also has a compatible F970/LP-E6 dual-purpose battery plate, and supports 5V Type-C input which can be powered by mobile phone chargers or power banks (at least 5V/2A).
(Note: Battery and power cord are not included. They need to be bought seperately.)
The FW568 V3 is sure to add instant production value for mirrorless and DSLR shooters. Its bright display, professional software tools, and convenient mounting is invaluable for shooters looking to do more with less gear. The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel to pixel, frame guides, nine grid etc.
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use 4 built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65). FW568 V3 allows you to load internally up to custom LUTs (Up to 32 user files can be imported), looks or profiles at any time via the TYPE-C to USB connector . Slot and instantly select between them, maintaining creative intent, always.

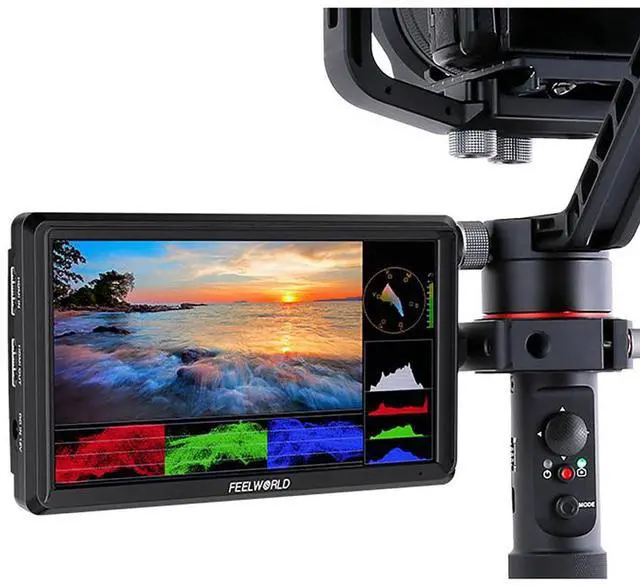

When you need to analyze image quality more accurately than simply looking at the picture then use FW568 V3's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FW568 V3 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

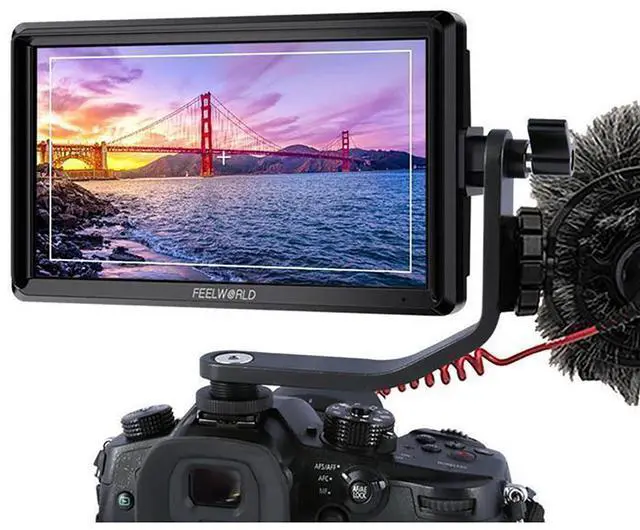

Every FW568 V3 monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile. Allows the FW568 V3 monitor to rotate 360 degrees for viewing convenience. Secure and lightweight mounting via shoe mount or 1/4"-20 thread. Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
IPS monitor, gives you a large visual view to enjoy, offers consistent image clarity and colors from 160-degree viewing angle vertically and horizontally. And he wide viewing angle makes it easy for multiple crew members to watch at the same time.
| Screen Size | 6" IPS |
|---|---|
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (H) × 0.069 (V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m2 |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80/80(L/R) degrees, 80/80(U/D) degrees |
| Input | HDMI, DC 12V, 5V Type-C |
|---|---|
| Output | HDMI, DC 8.4V, 3.5mm Ear Phone Slot |
| Input Voltage | DC7 - 24V |
| Power Consumption | 8W |
| Power Connector | DC |
| Working Temperature | -20 - +55 Celsius degree |
| Storage Temperature | -30 - +65 Celsius degree |
| Install Way | ¼-20 thread points |
