When you've put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it's a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.

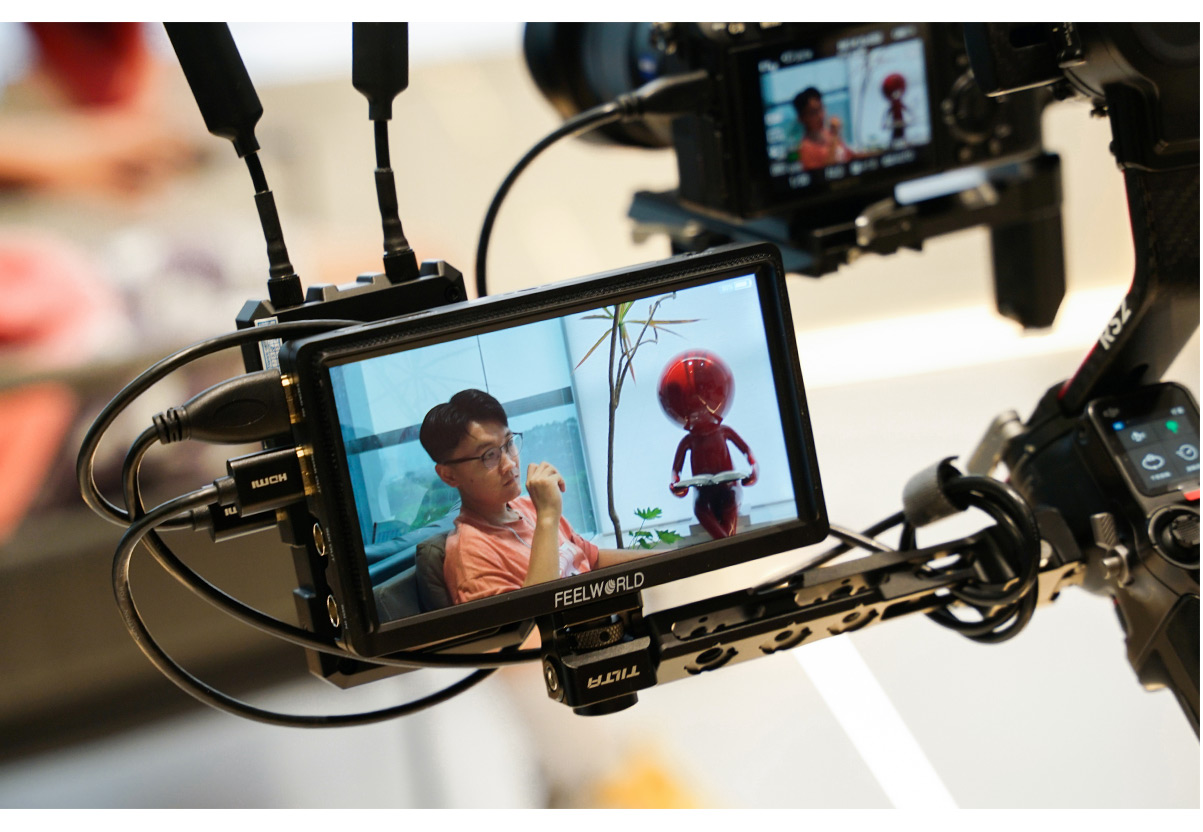

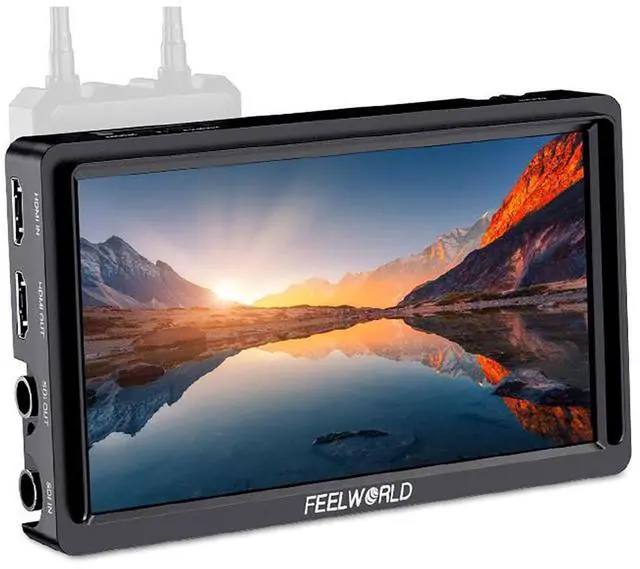

FEELWORLD FW568S is a 6-inch full HD field monitor, equipped with 3G-SDI, 4K HDMI input and output interfaces, and provides a series monitoring and framing tools with new menu layout, various numerical parameters are clear at a glance, easy to setting. There is a F970 external install and power kit on the rear of FW568S, which can install such as wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables. And the FW568S compact and lightweight especially suitable for use with gimbal, to meet the photographers and 1st AC to move on set

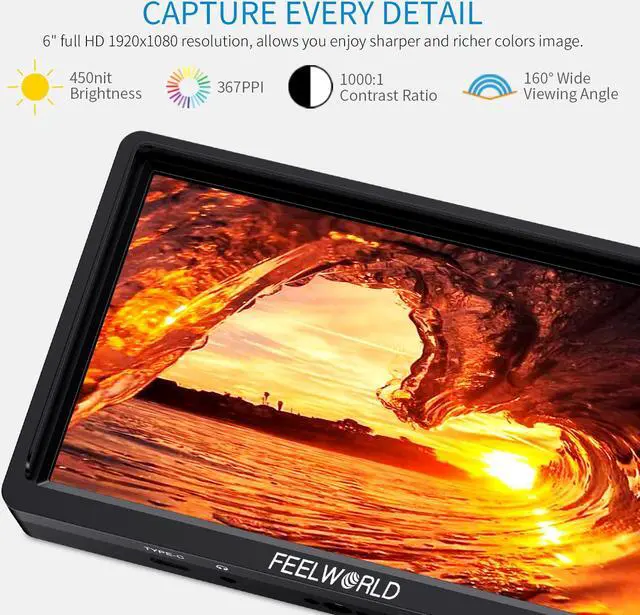

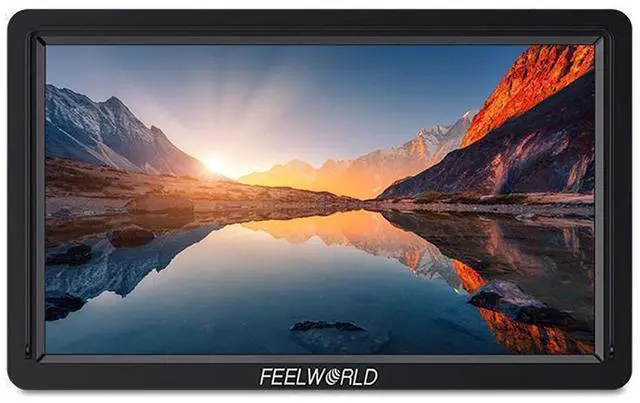

FW568S comes with full HD 1920x1080 resolution, provides excellent details, so you can enjoy sharper and richer colors image.

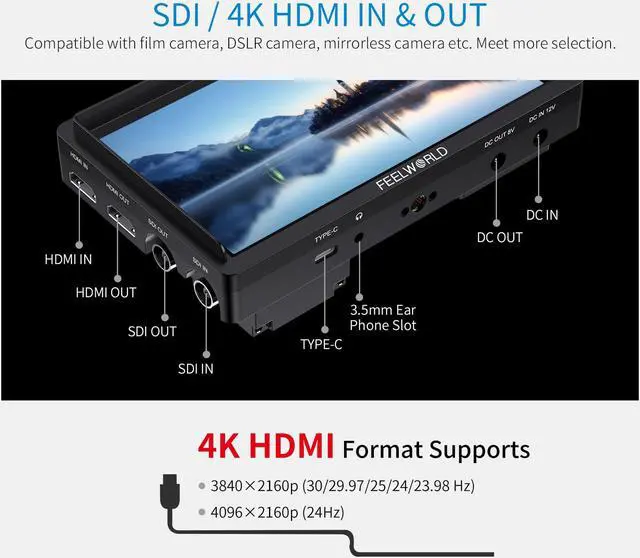

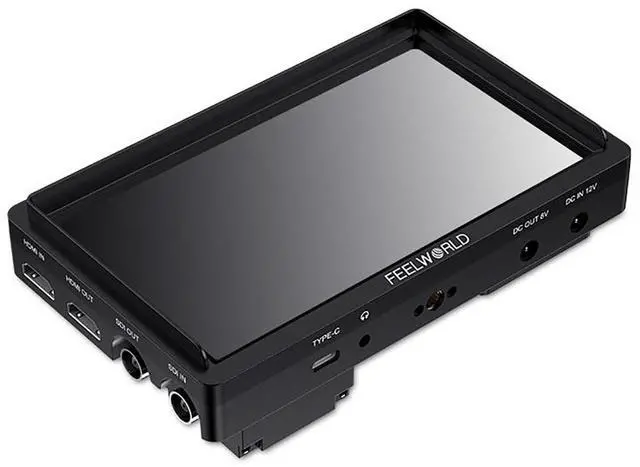

The monitor equipped with SDI and 4K HDMI input and output, compatible with film camera, DSLR camera, mirrorless camera, realize simultaneous monitoring by directors, photographers and 1st AC, support up to 4K@30Hz, the screen is smooth and clear. And provides 3.5mm headphone jack to monitor audio.
The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel to pixel, frame guides, nine grid etc. As well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files).
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. FW568S allows you to load internally up to custom LUTs (Up to 32 user files can be imported), looks or profiles at any time via the TYPE-C to USB connector . Slot and instantly select between them, maintaining creative intent, always.

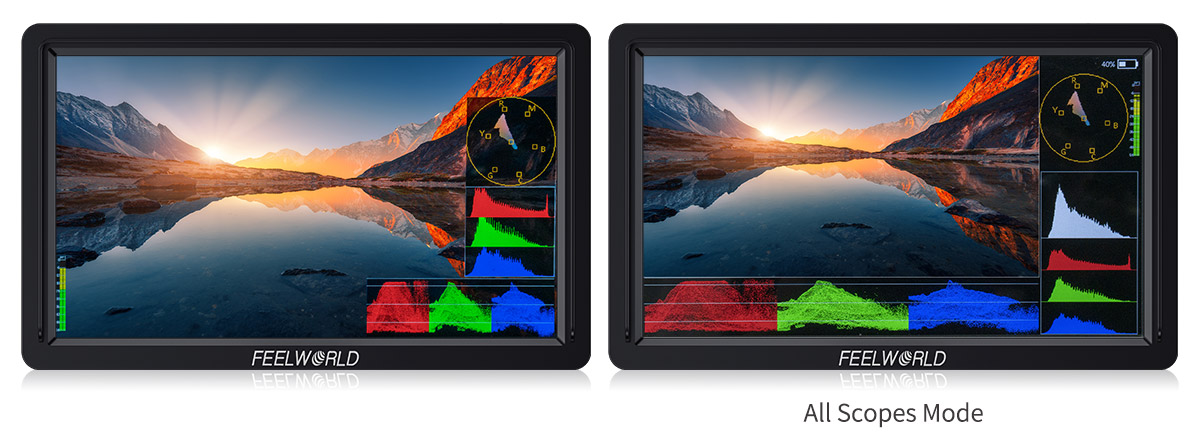

When you need to analyze image quality more accurately than simply looking at the picture then use FW568S's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vector, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FW568S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

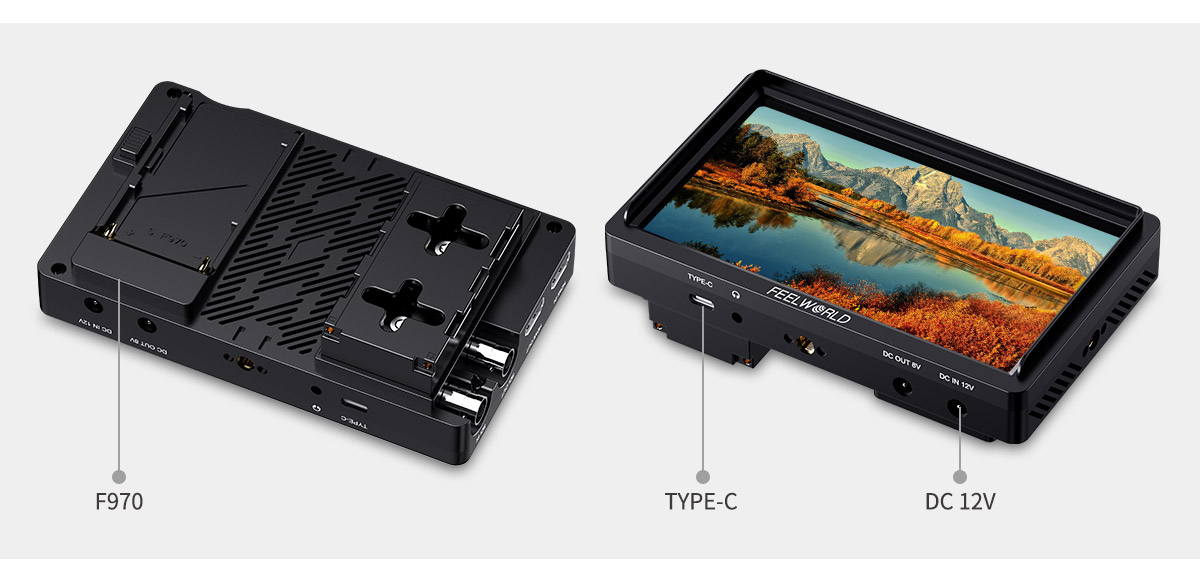

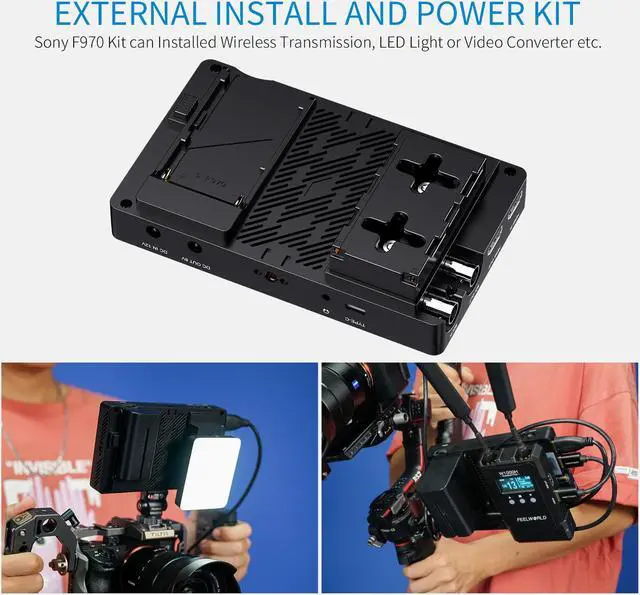

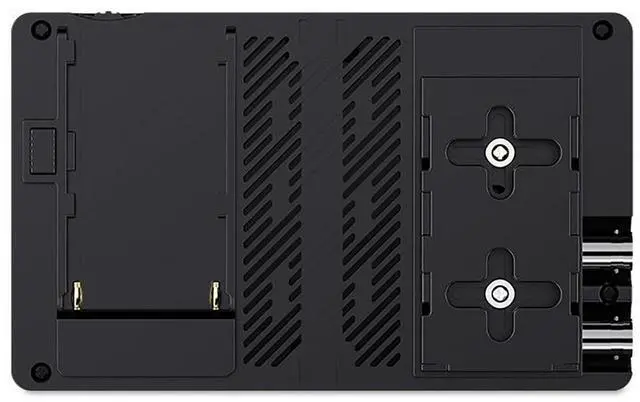

A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. Greatly saving the space occupied by the equipment and reducing the weight of photography equipment. The kit has two cross slots, you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can directly loosen the screws to remove the kit.

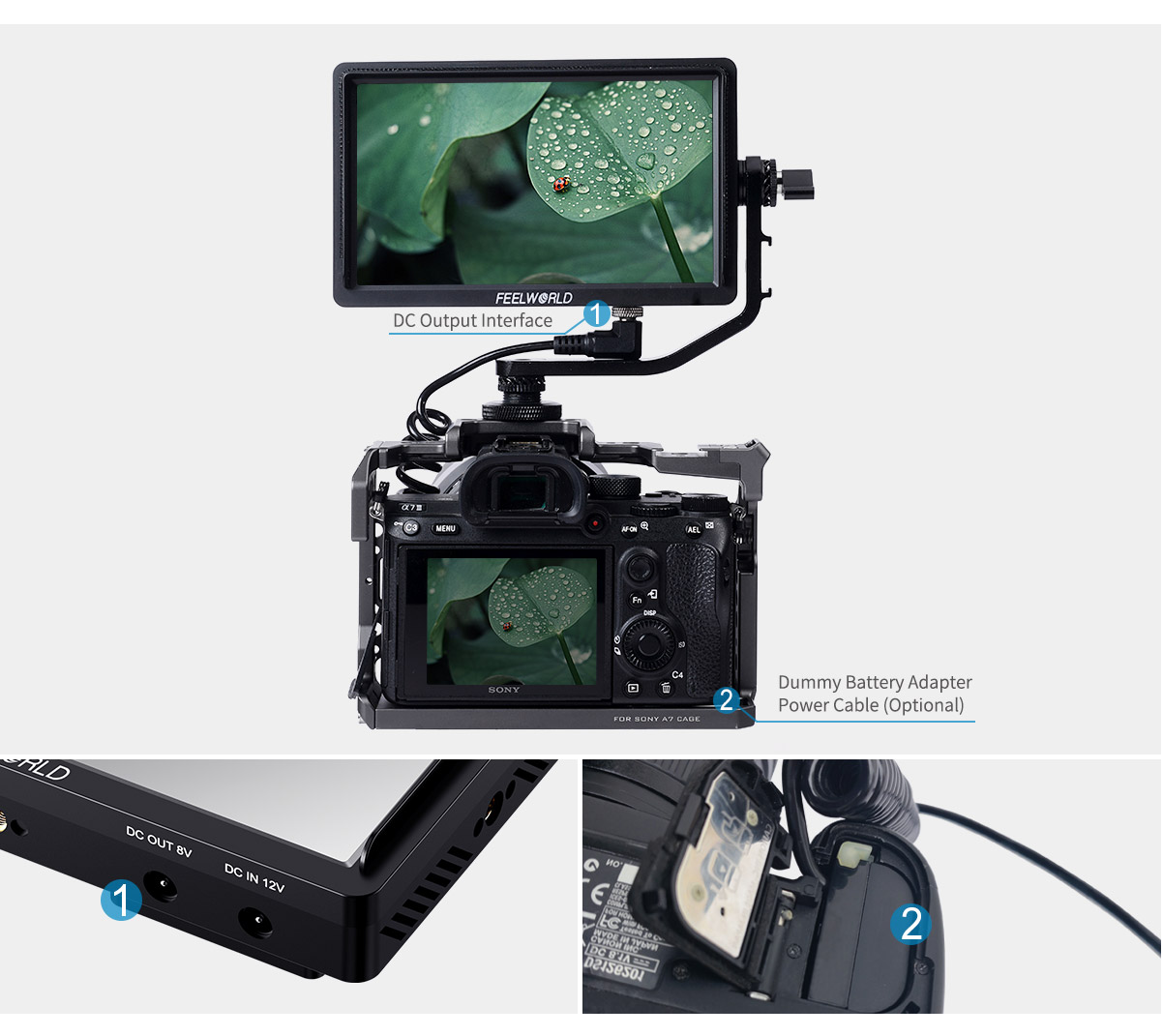

Provides auxiliary power out (DC OUT 8V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the FW568S extends camera run-time, while providing a more usable display. Barrel output for powering your camera with a separately available DC coupler via adapter (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters coming soon. Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.
In addition to the DC 12V power input (can be using 12V/1.5A adapter), FW568S also has a F970 battery plate, and supports 5V Type-C input which can be powered by mobile phone chargers or power banks (at least 5V/2A). Compatible Battery: Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530 series. (Note: the battery not including, please purchase separately)

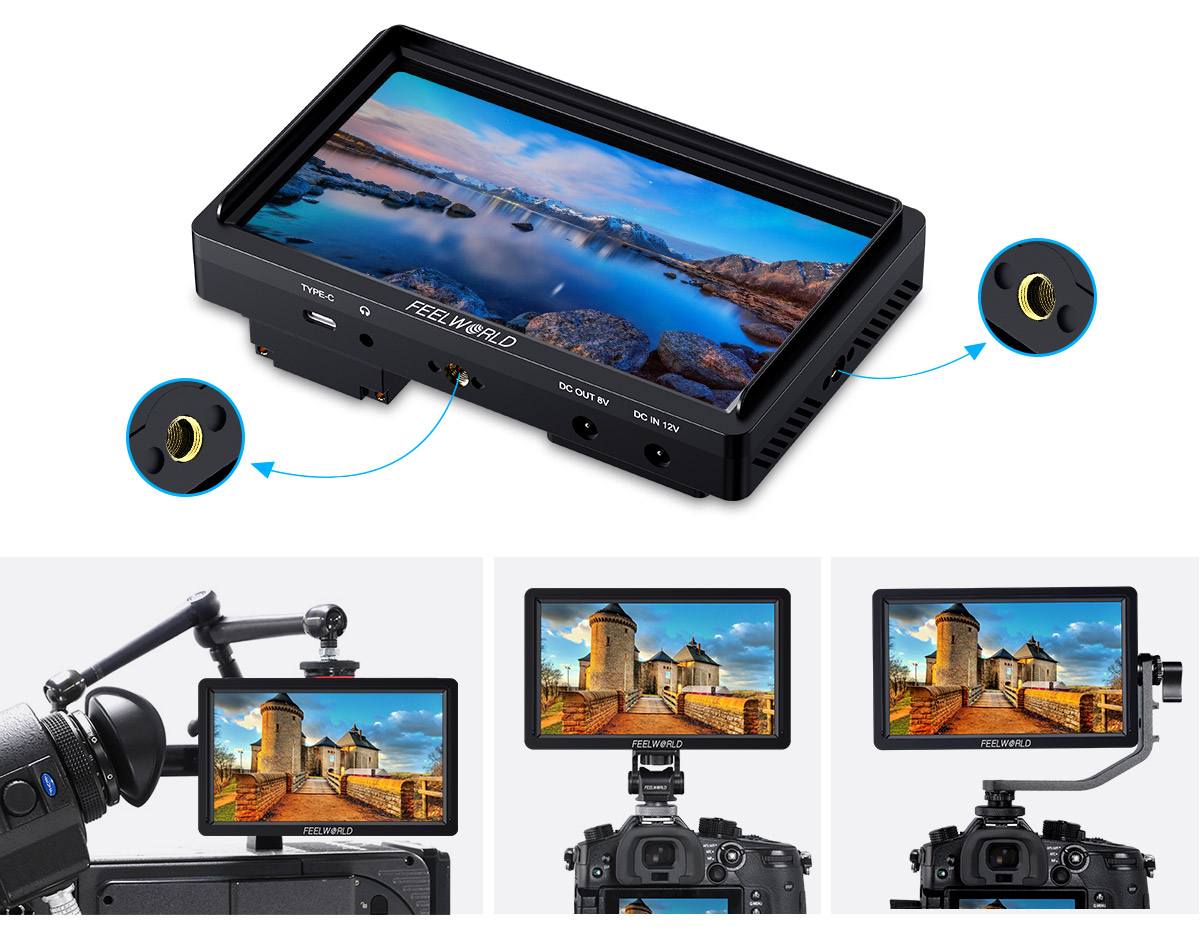

The monitor is equipped with 3 standard 1/4 mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc. Whether it is horizontal or vertical shooting, you can accurately monitor.
| Screen Size | 6" IPS |
|---|---|
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (H) × 0.069 (V) (mm) |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m2 |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80/80(L/R) degrees, 80/80(U/D) degrees |
| Input | HDMI, 3G - SDI, Type-C, DC IN 12V |
|---|---|
| Output | HDMI, SDI, 3.5mm Ear Phone Slot, DC OUT 8V |
| Input Voltage | DC7 - 24V |
| Power Consumption | 9W |
| Working Temperature | -20- +50 Celsius degree |
| Storage Temperature | -30- +60 Celsius degree |
| Install Way | 1/4 -20 Thread Socket ( Right, Top, Bottom) |

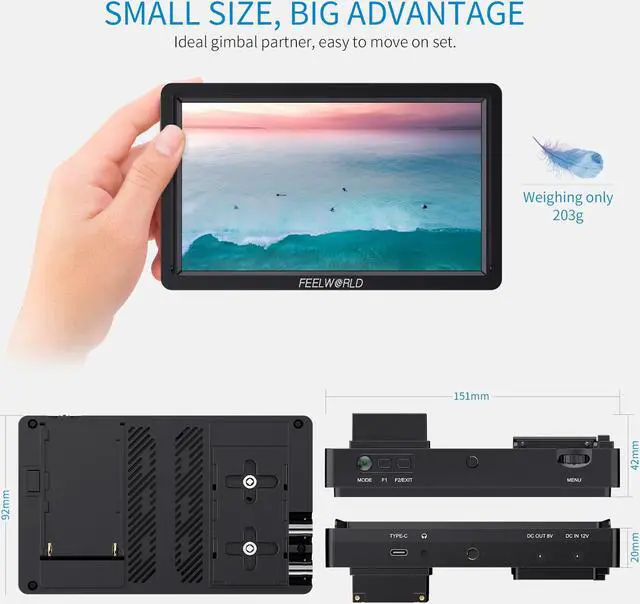

| Unit Size | 151Lx92Hx31.4D(mm) |
