When you've put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it's a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.

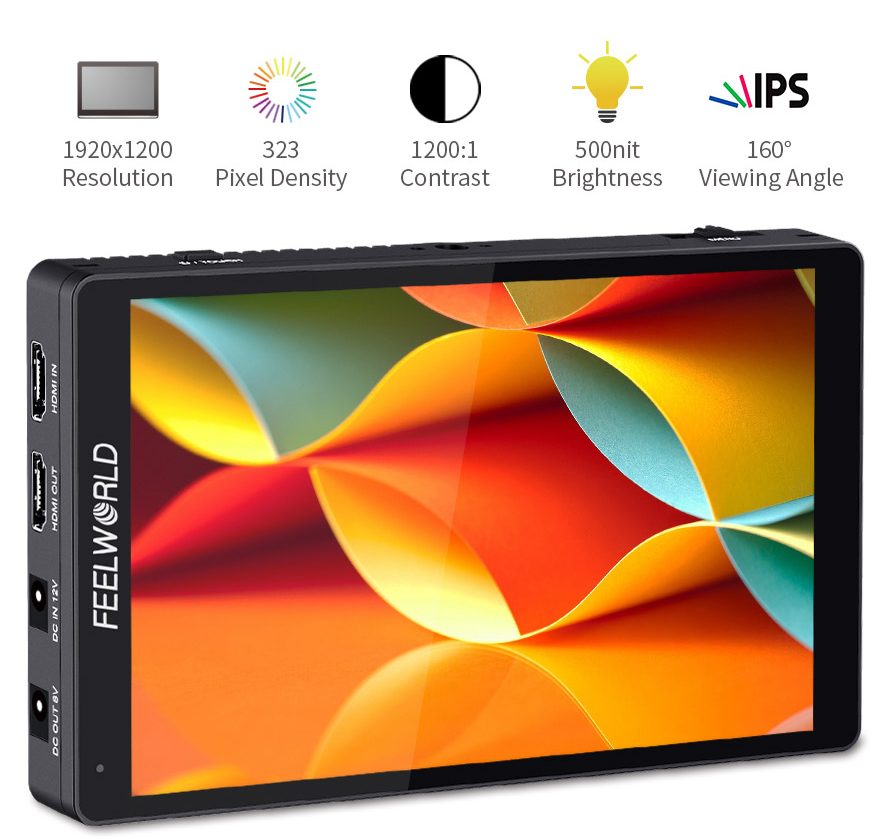

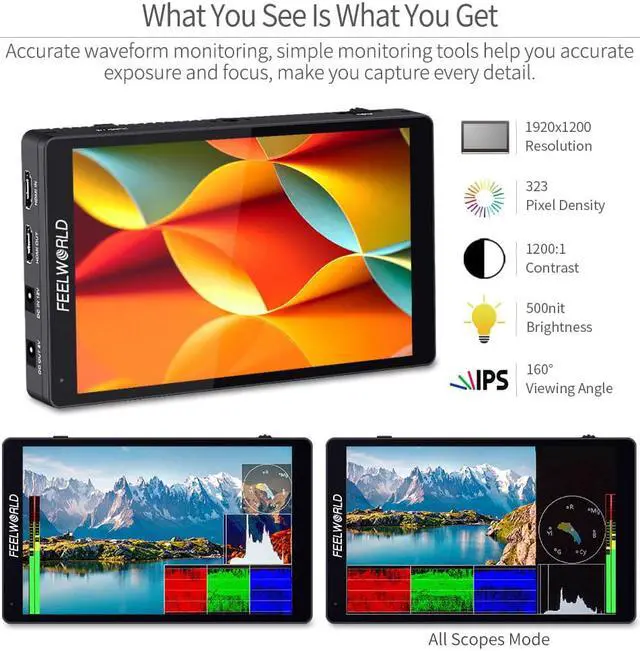

The F7 RPO provides a 7-inch screen and sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920x1200 high resolution and 16:10 display, 500cd/m2 brightness, 1200:1 contrast ratio, delivers excellent detail. The 160°wide viewing angle is convenient for monitoring from multiple angles.

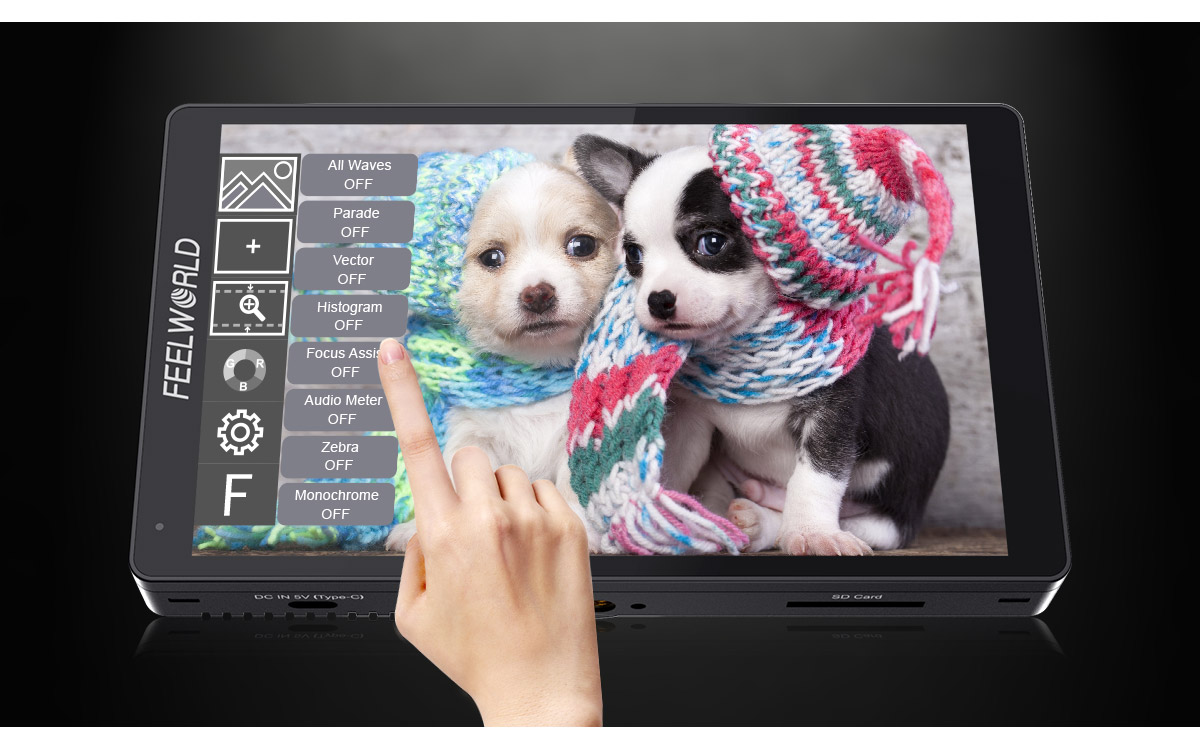

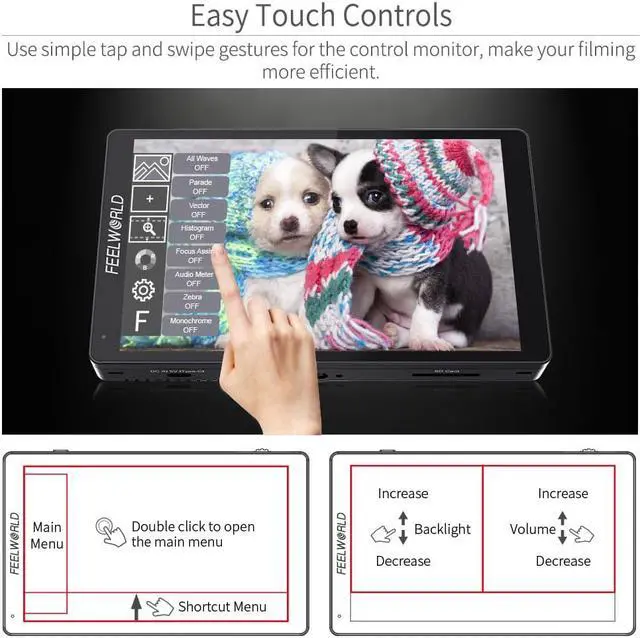

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

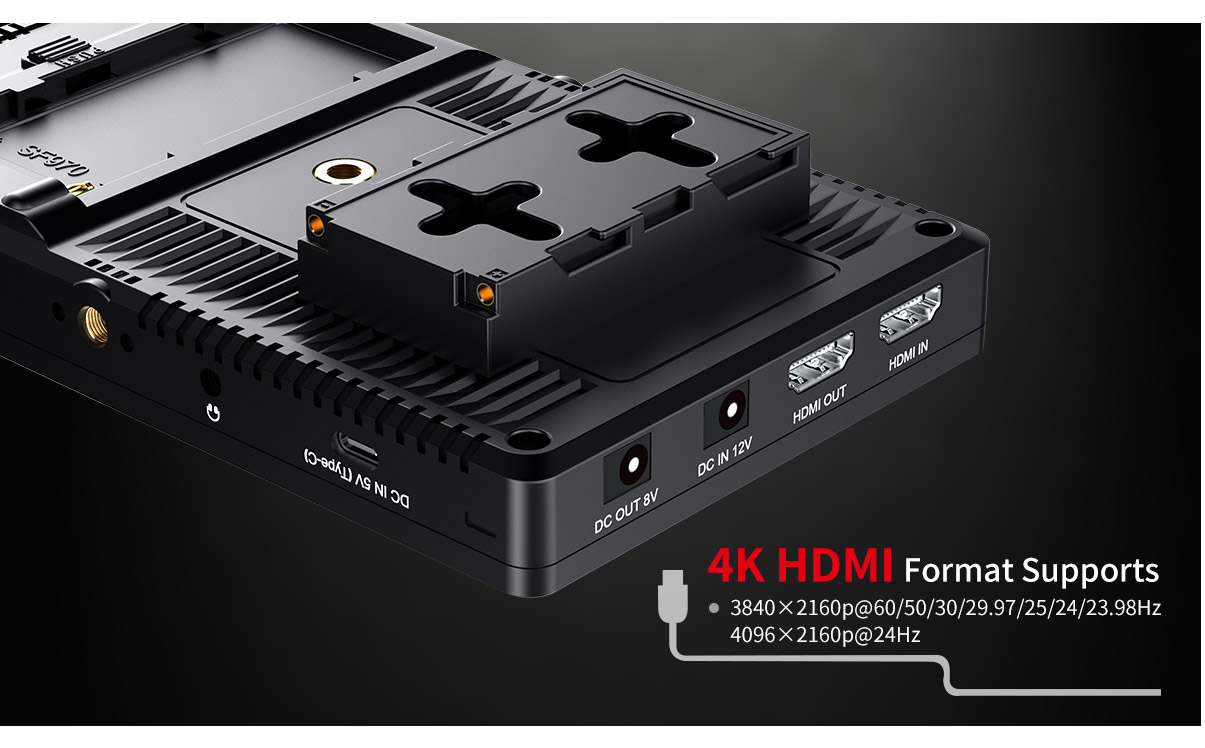

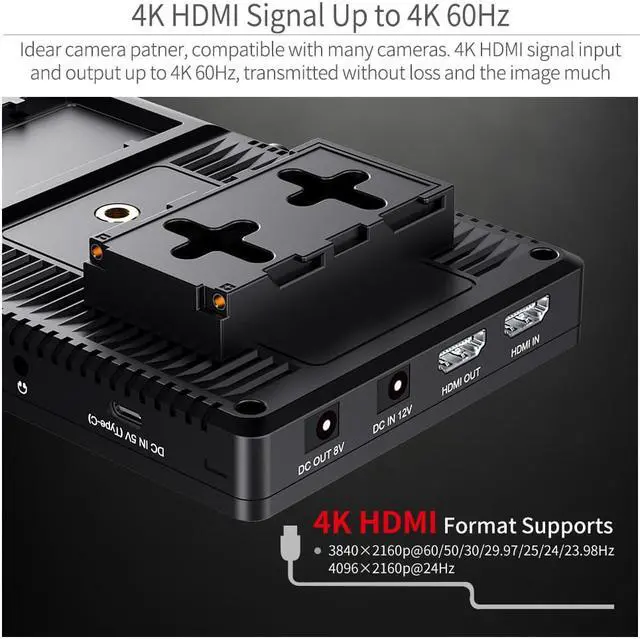

F7 PRO supports 4K HDMI signal input and output up to 4K 60Hz, which is transmitted without loss and the screen is clearer.
Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) along with a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring.

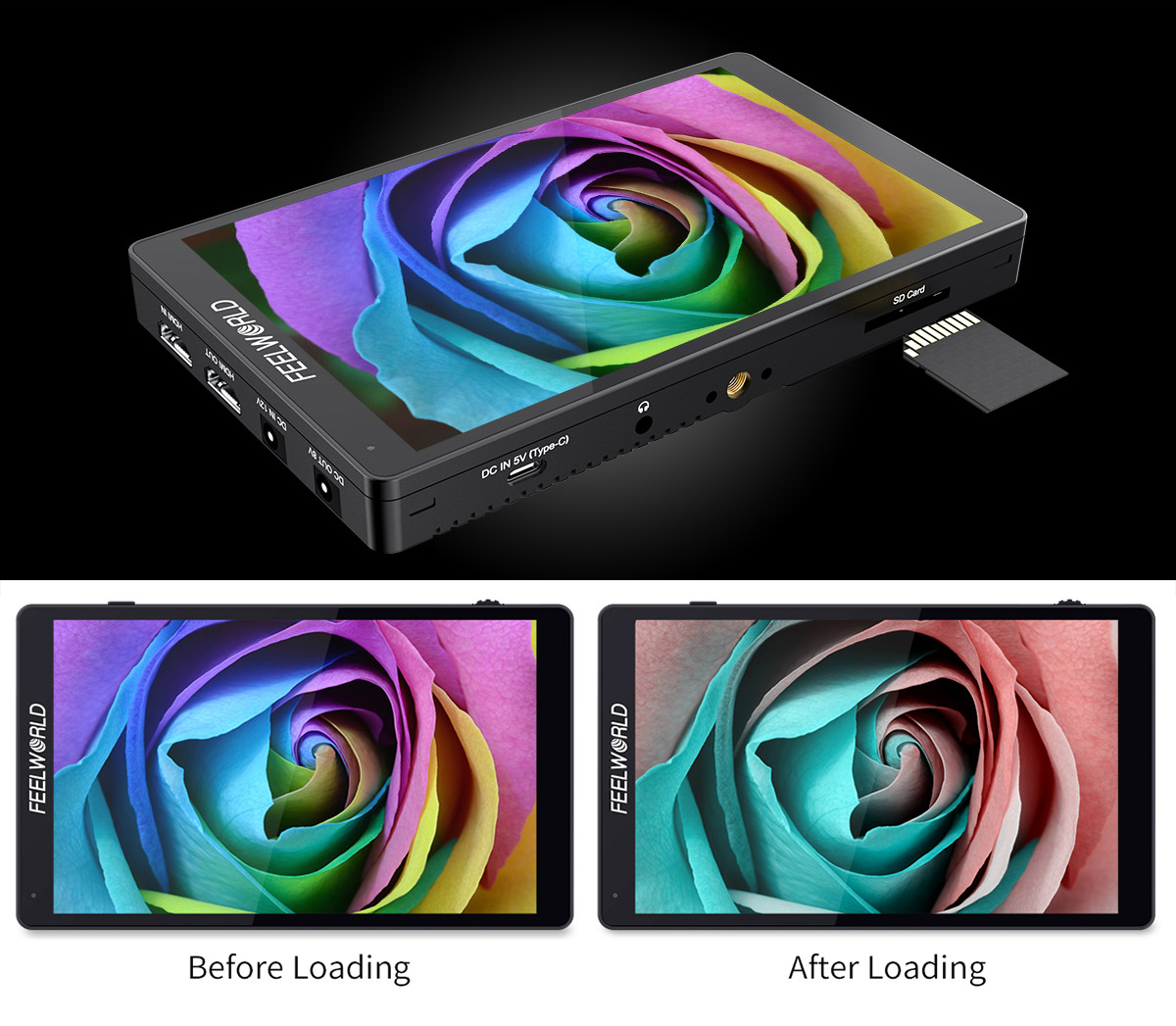

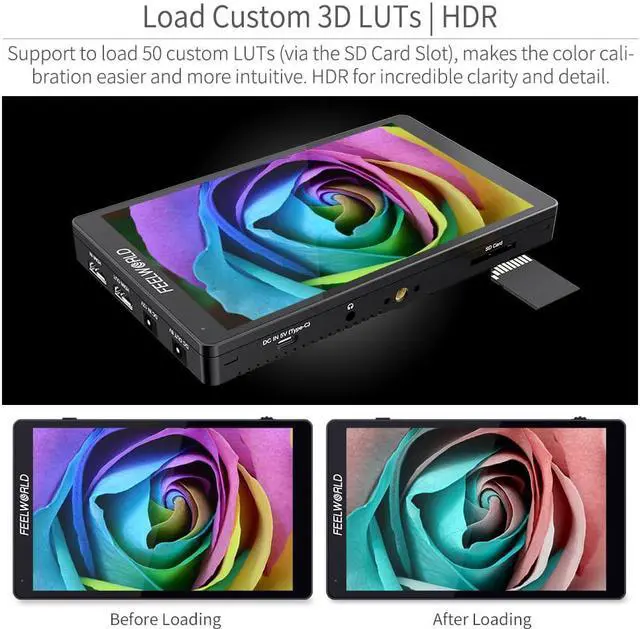

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. F7 PRO allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.

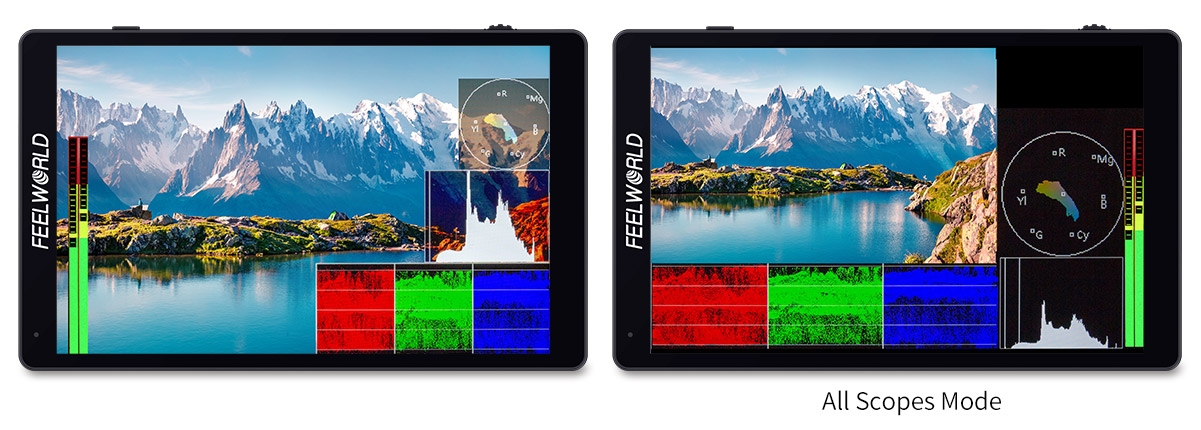

When you need to analyze image quality more accurately than simply looking at the picture then use F7 PRO's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. F7 PRO is perfect for live production monitoring and removes the need for separate expensive scopes!

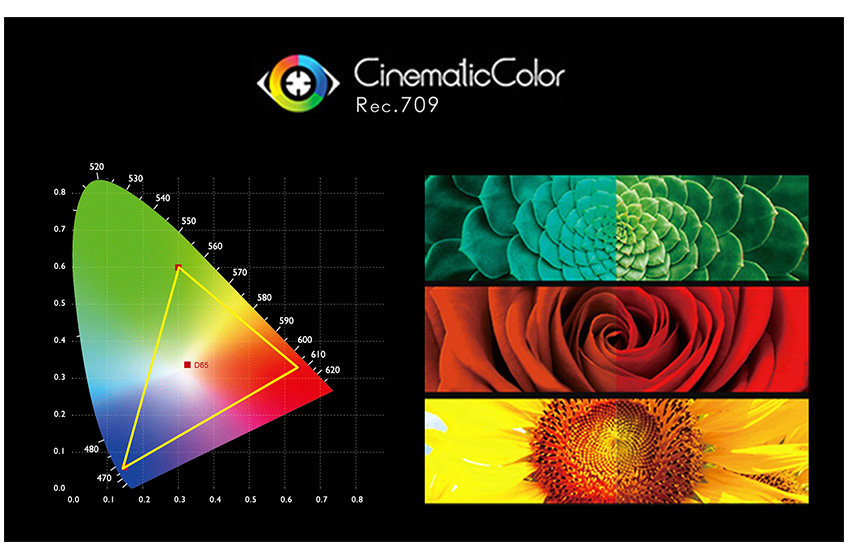

FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of the shooting, enabling users to accurately evaluate the quality of various input video signals.

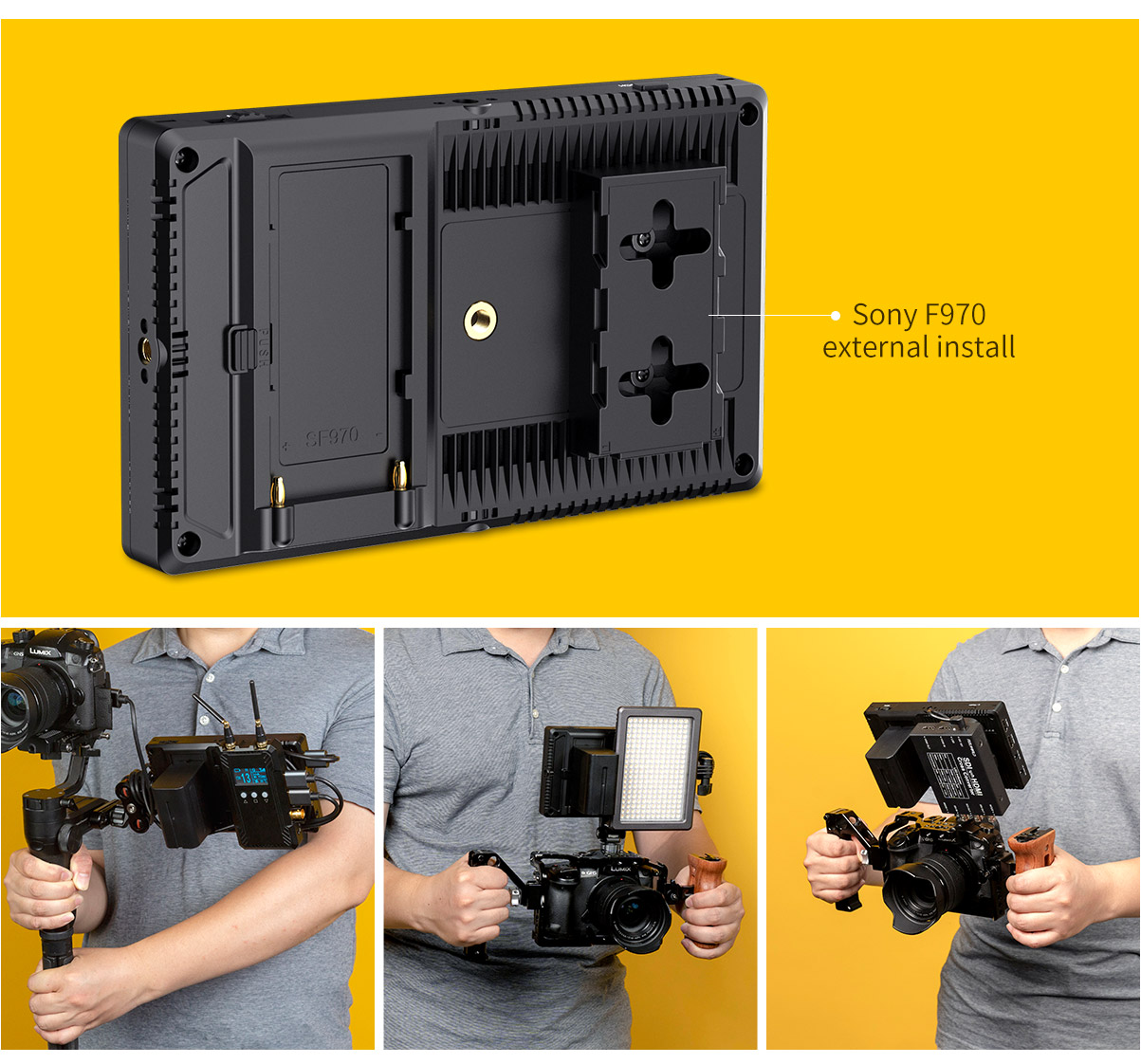

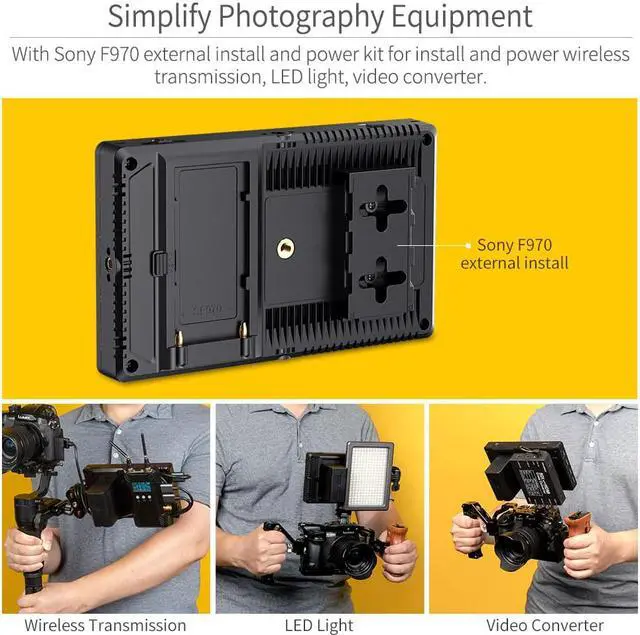

F7 PRO can not only be powered by the F970 battery plate and 12V DC power input (can be using 12V/1.5A adapter), but also supports 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A). Compatible Sony Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series.(Note: 1. The 5V Type-C port is only used for power supply, not for data transmission, and cannot provide loop-out power.2.The battery not including, please purchase separately. )

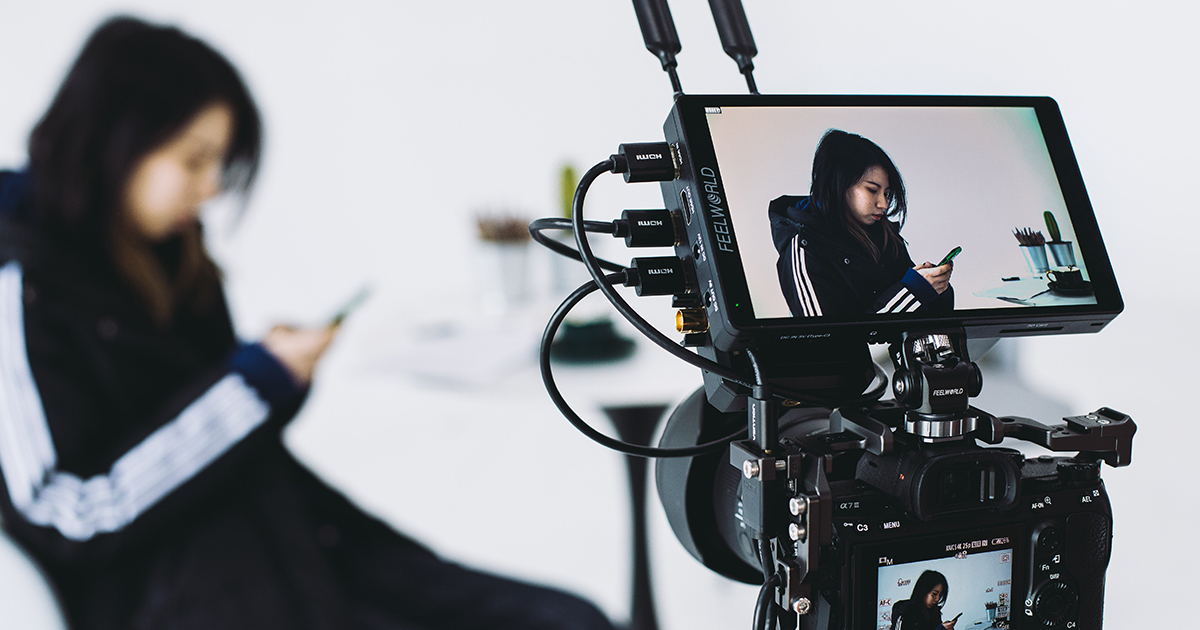

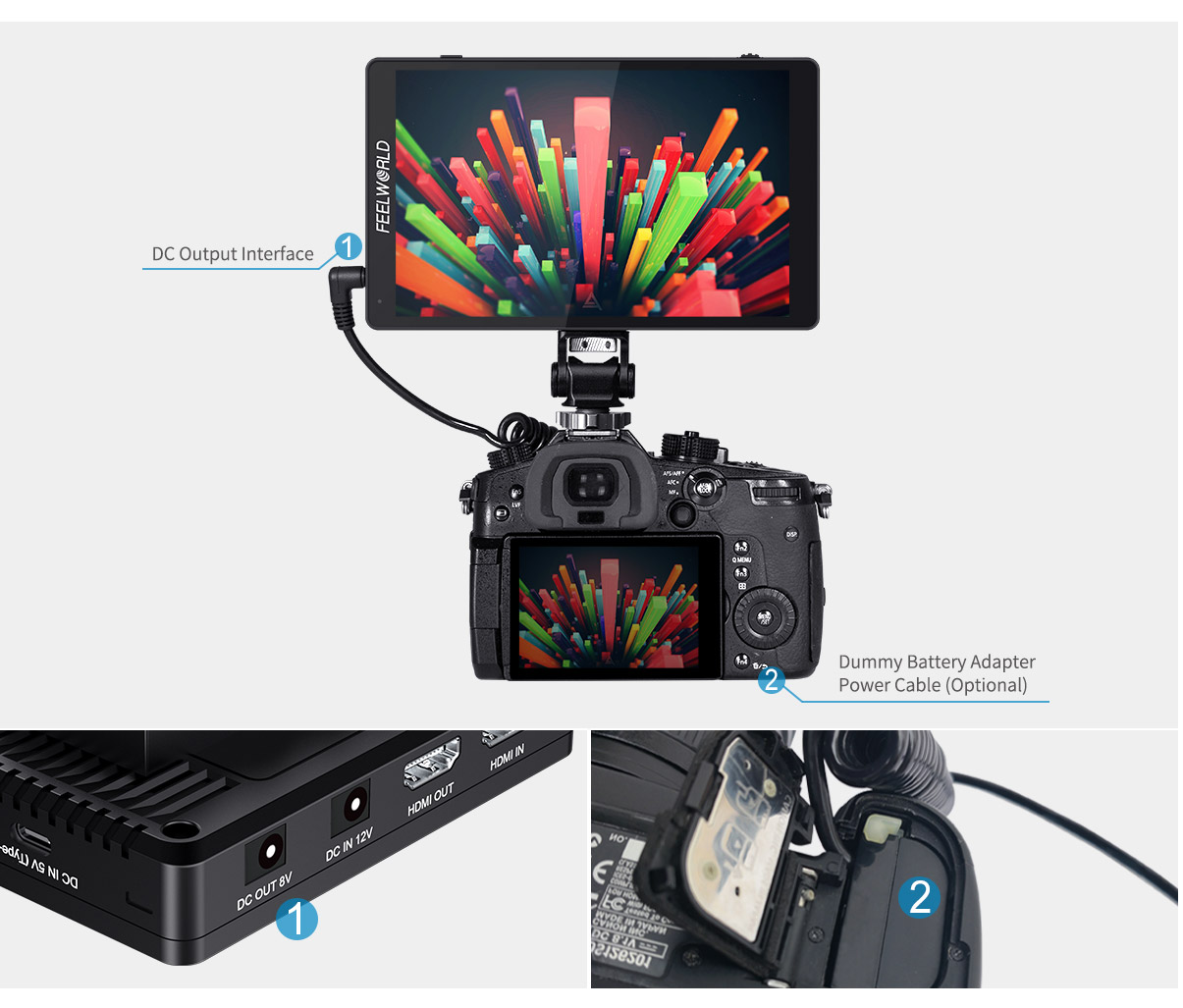

The FEELWORLD F7 PRO is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the F7 PRO provides auxiliary power out (DC OUT 8V); allowing shooters to power their cameras. With a battery adapter cable (Optional), the F7 PRO extends camera run-time, while providing a more usable display.Barrel output for powering your camera with a separately available DC coupler via adaptor (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters coming soon. Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.
| Screen Size | 7" IPS |
|---|---|
| Resolution | 1920x1200 pixels |
| Pixel Pitch | 0.07875 (H) x 0.07875 (W) (mm) |
| Aspect Ratio | 16:10 |
| Brightness | 500cd/m2 |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80/80(L/R)degrees, 80/80(U/D) degrees |
| Input | HDMI, DC IN 12V, 5V Type-C |
|---|---|
| Output | HDMI, DC OUT 8V, 3.5mm Ear phone Slot |
| Input Voltage | DC7 - 24V |
| Power Consumption | 9W |
| Working Temperature | -20 - +50 Celsius degree |
| Storage Temperature | -30 - +60 Celsius degree |
| Install Way | 1/4"-20 Thread Socket (Top, Left, Right, Bottom) |
| Unit Size | 175Lx105Hx22D(mm) |
