| Model | P6X |
|---|---|
| Screen Size | 5.5" IPS |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (H) × 0.069 (V) (mm) |
| Aspect Ratio | 16:9 |
| Brightness | 1000cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| Backlight | LED |

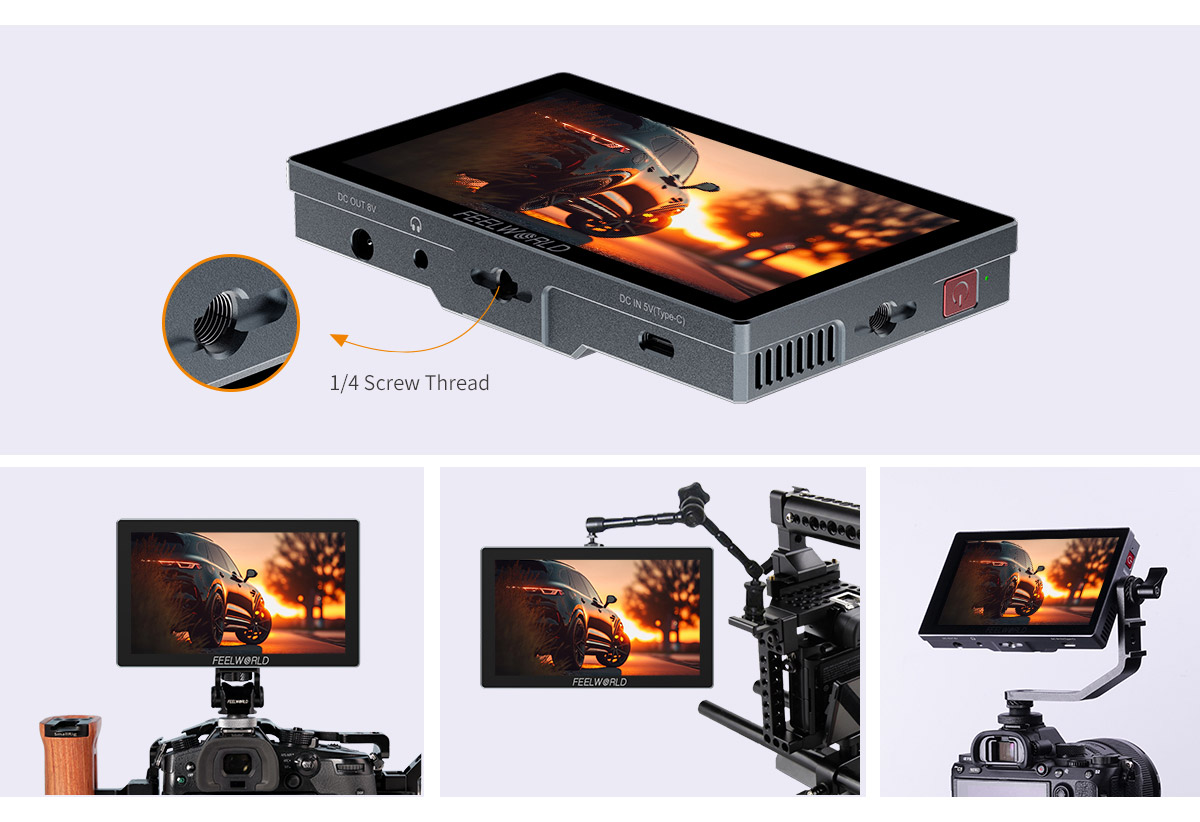

| Install Way | 1/4"-20 Thread Socket (right, top, bottom) |
| Storage Temperature | -30°C~60°C |
| Working Temperature | -20°C~50°C |
| Power Consumption | BELOW 11W |
| Unit Size | 138.5x84.5x22(mm) |
| Unit Weight | 249g |
Adopts CNC aluminium housing, the unit weight only 249g,durable and portable, suitable for various shooting environment.
With extremely high resolution 5.5 inch IPS panel,provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
P6X has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, instagram.

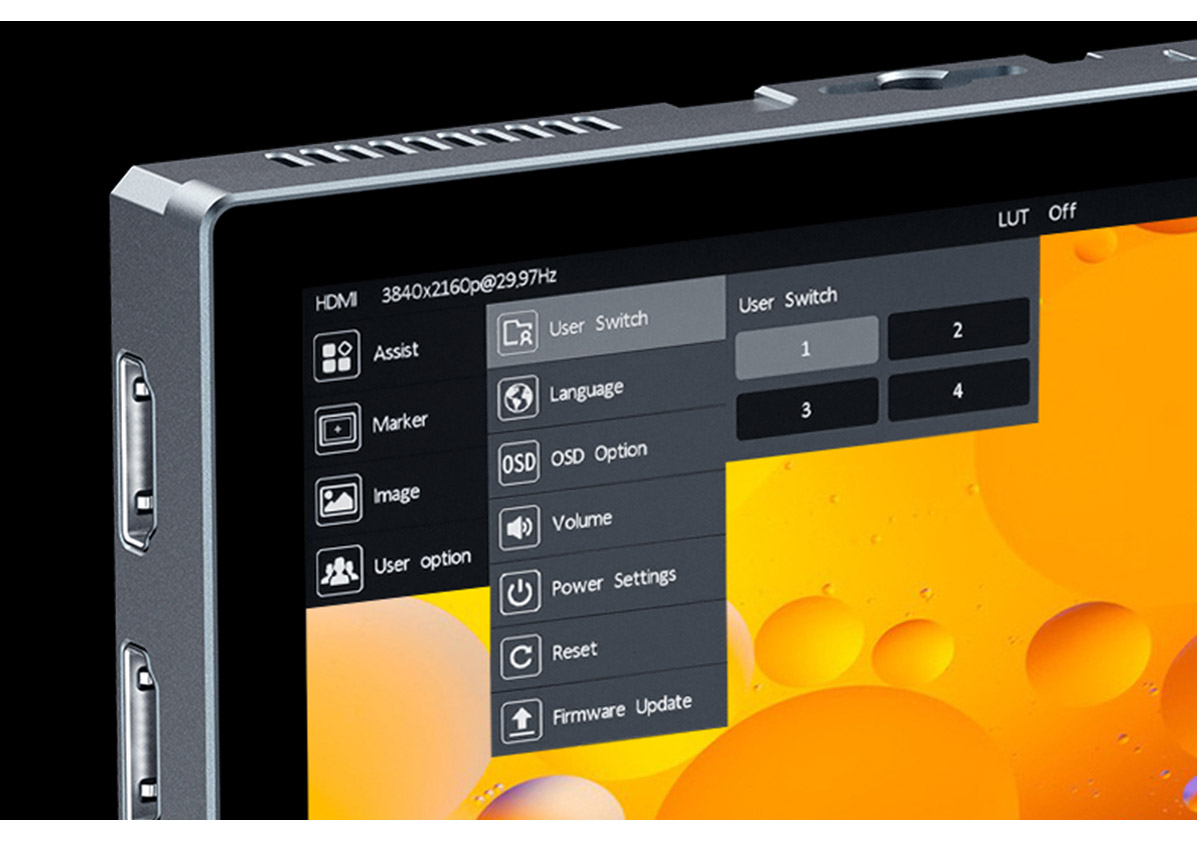

P6X provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically, and can be called directly or switch next time.

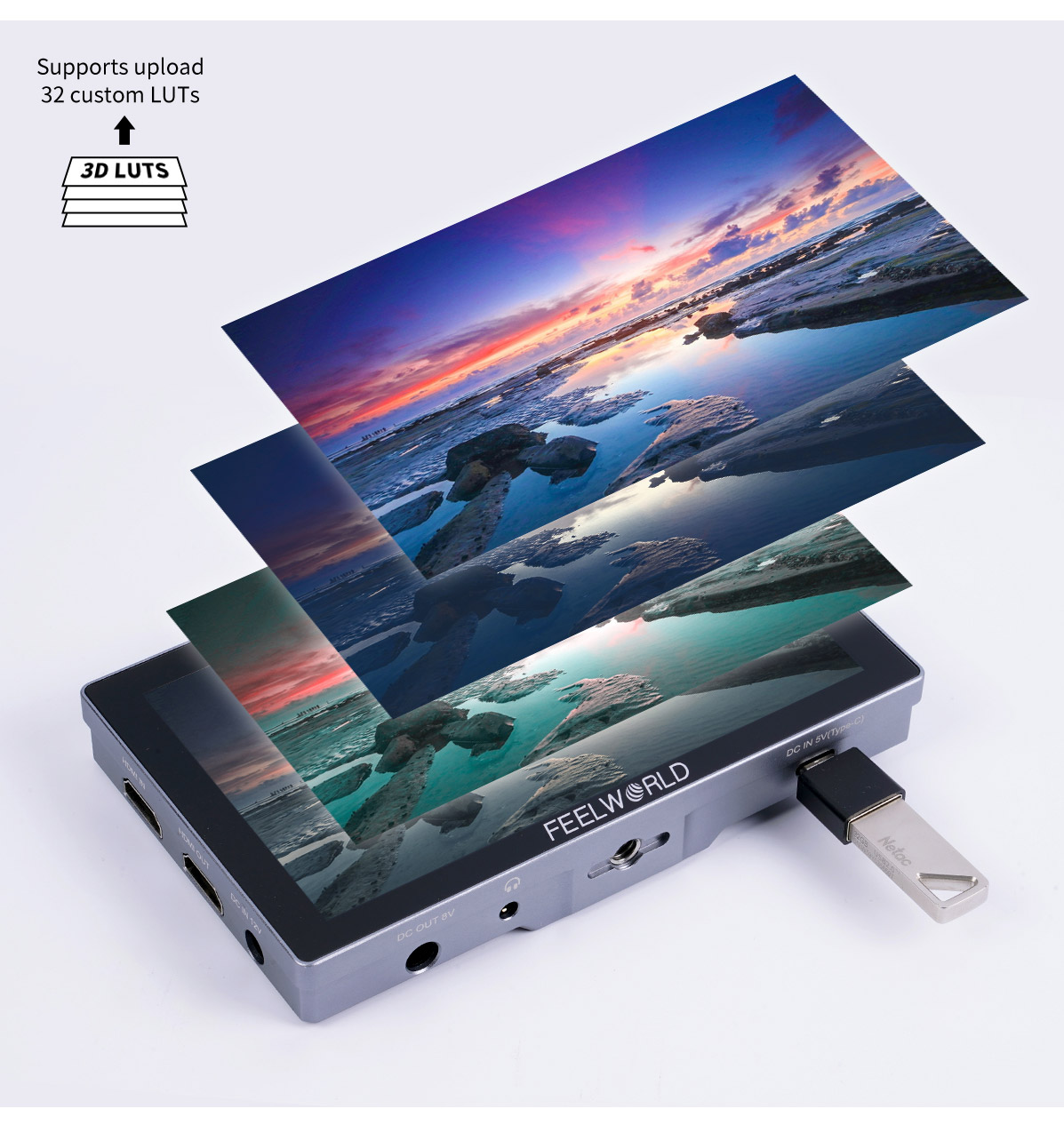

Supports upload 32 custom LUTs
3D LUT is a table for quickly looking up and output specific color data. By loading different 3D LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE log LUT , you also can load the custom .cube file via USB flash driver (up to load 32). Insert the USB flash driver to the standard accessory Type- C to USB adapter, then connect with Type-C interface of P6X.

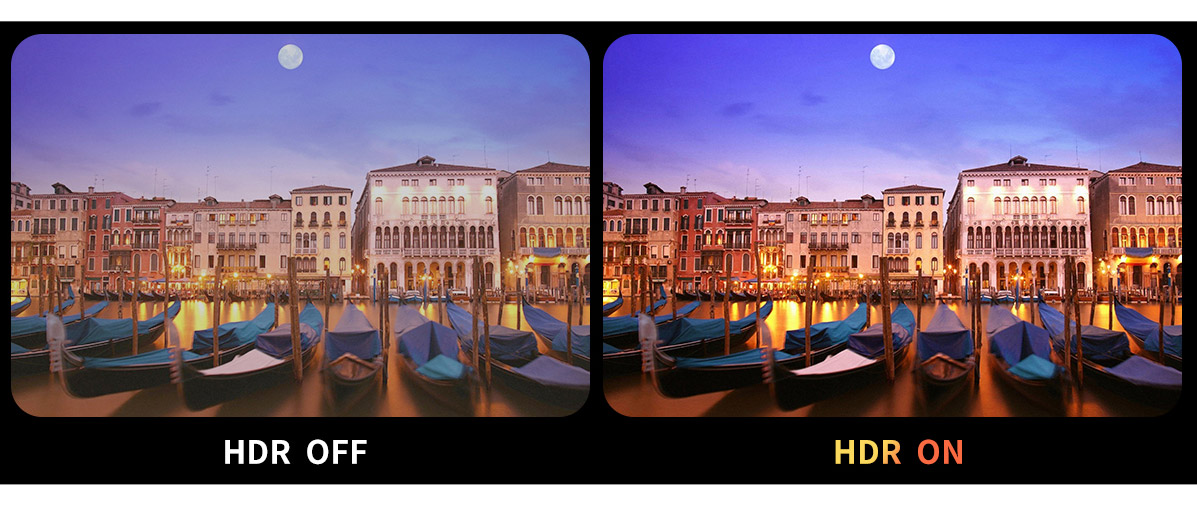

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty,it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

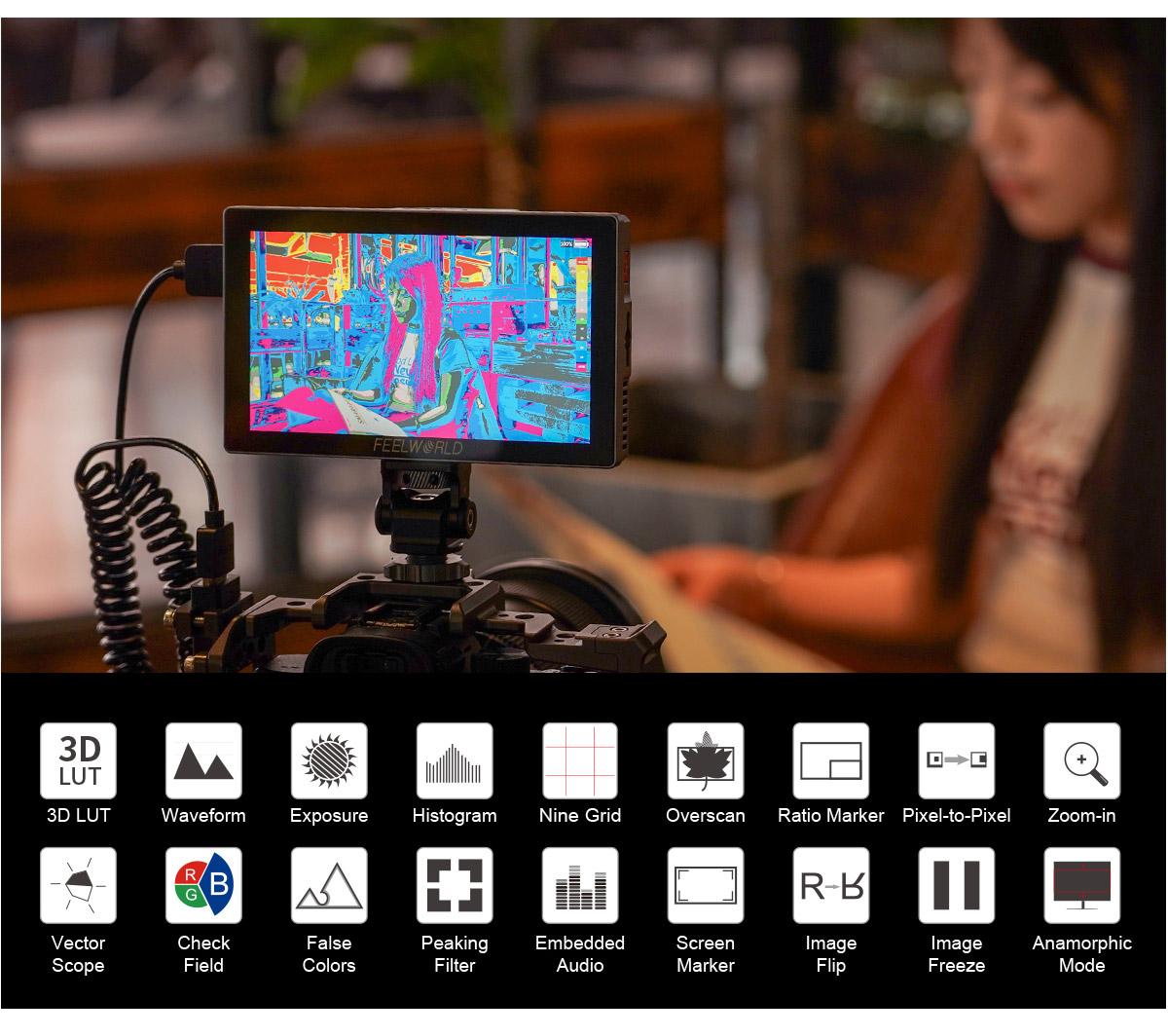

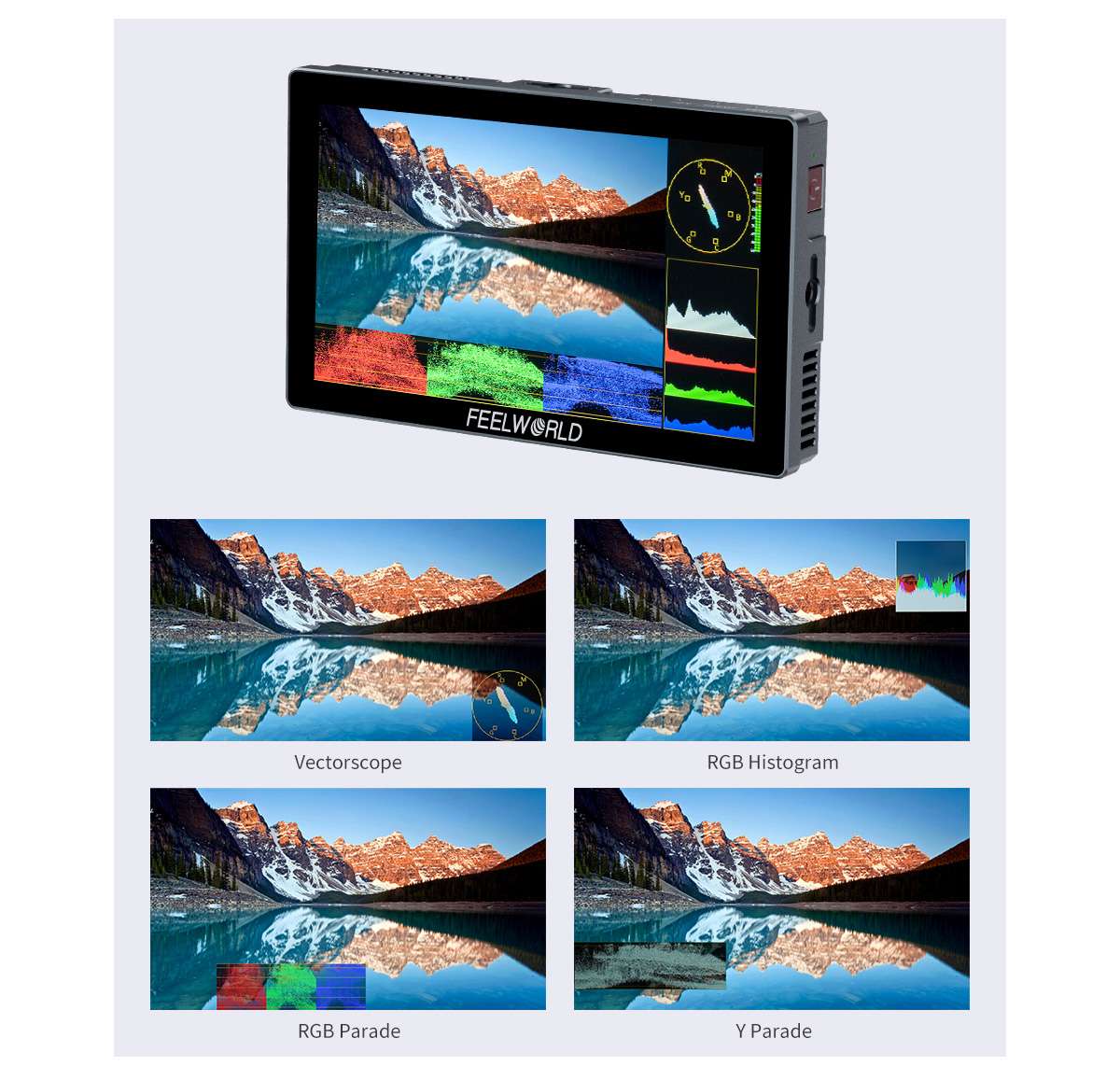

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. P6X becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

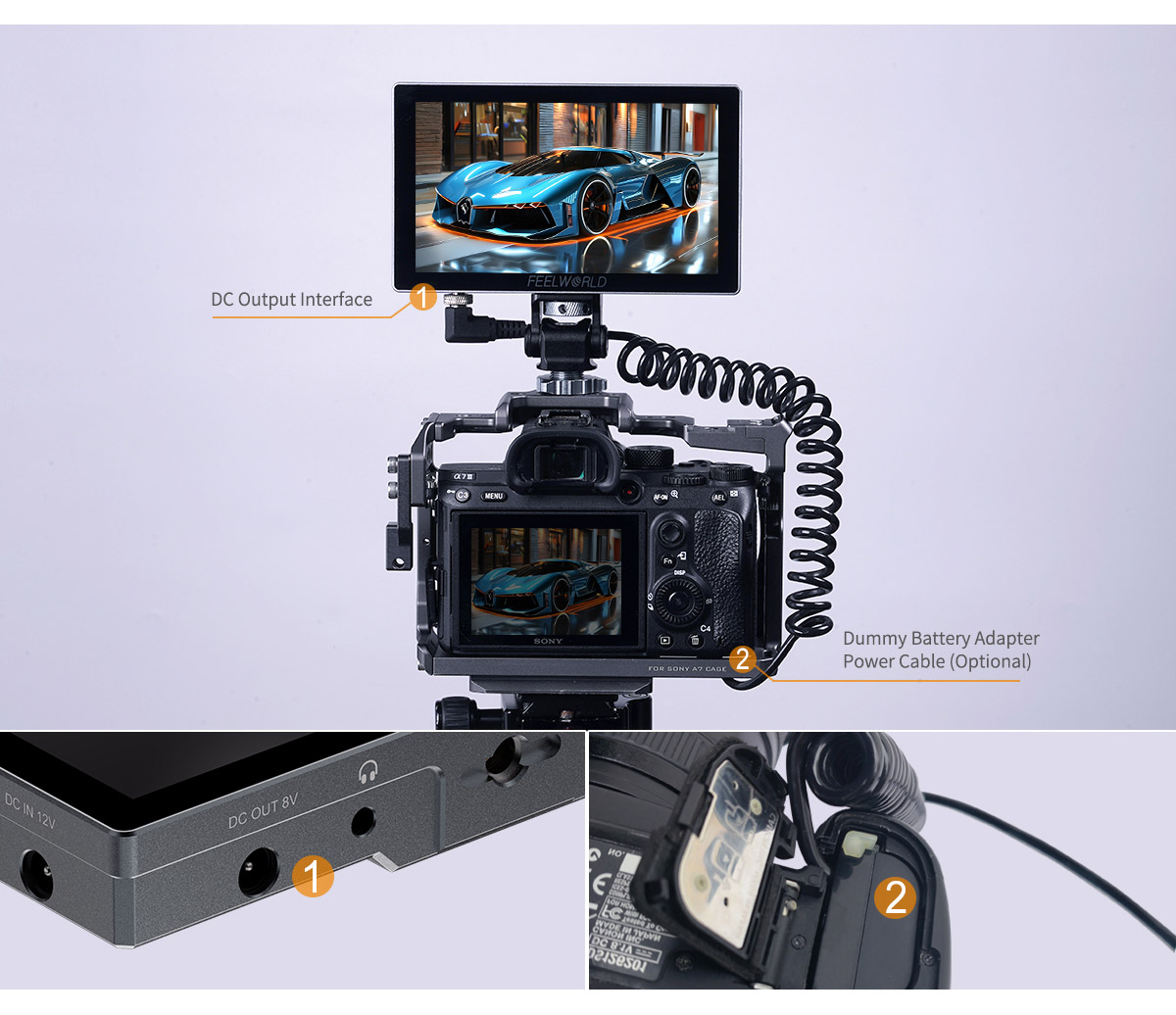

P6X provides auxiliary DC 8V power out (suitable DC 5.5*2.1mm power plug), allowing shooters to power their cameras. With a battery adapter cable (Optional), the P6X extends camera run-time, while providing a more usable display

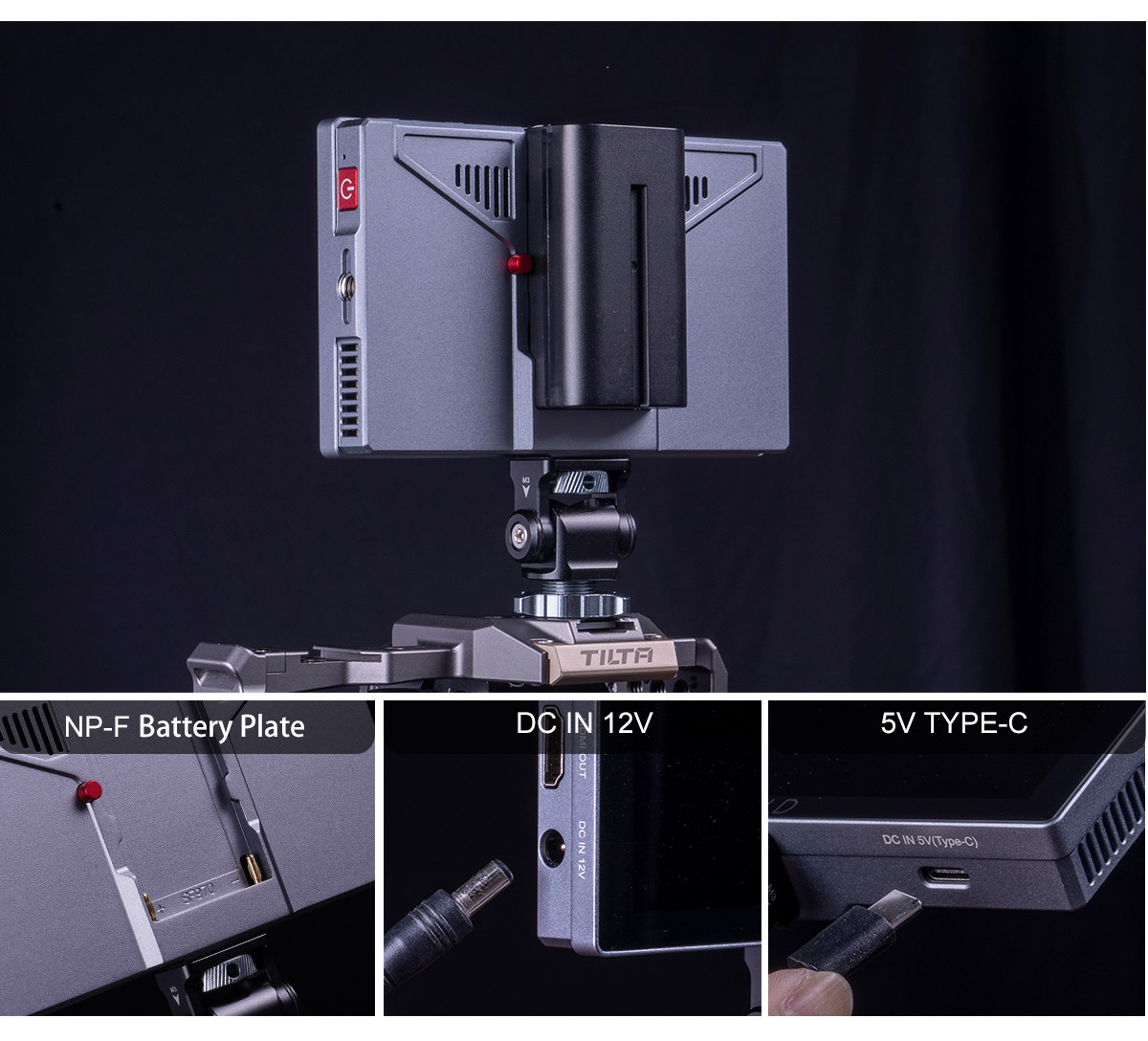

You can connect to DC power input to get continuous power (suitable for use 1.5A power adapter,DC 5.5X2.1mm power cable plug) or use the standard NP-F battery plate to install NP-F series battery for mobile application. Install one F750 battery (4400mah) last for about 3 hours. The monitor also provides a 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A).
Note:the battery excluding, please purchase separately.

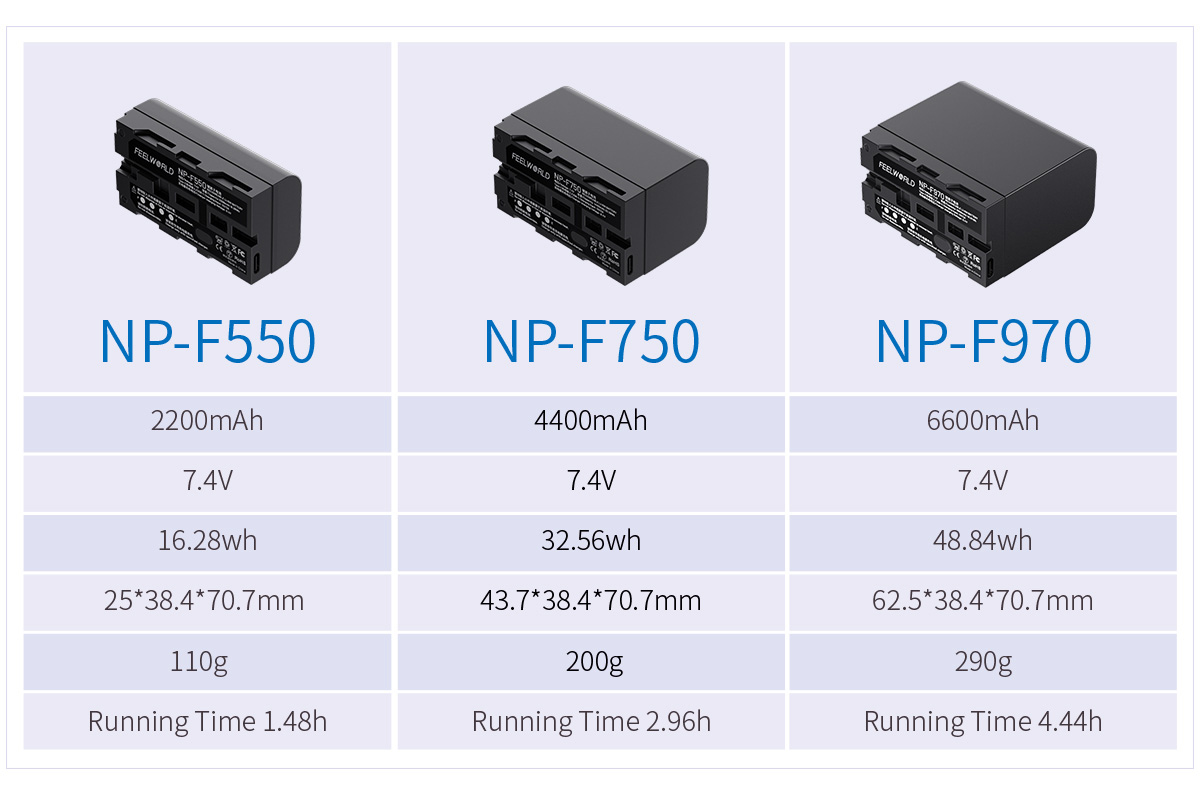

The power consumption of P6X is 11W, and you can choose a suitable optional FEELWORLD NP-F battery to power it according to your shooting needs.
