- Let your video shooting become easier.
- SEETEC has been committed to providing the comprehensive broadcast monitoring and solutions for the professional filmmakers.
- Whether the upgrade of the excellent display technology from HD to FHD or to UHD 4K resolution, SEETEC aims to support the professional creators to obtain the greater benefits and to create more exciting stories, with the most advanced technology to improve the production efficiency.

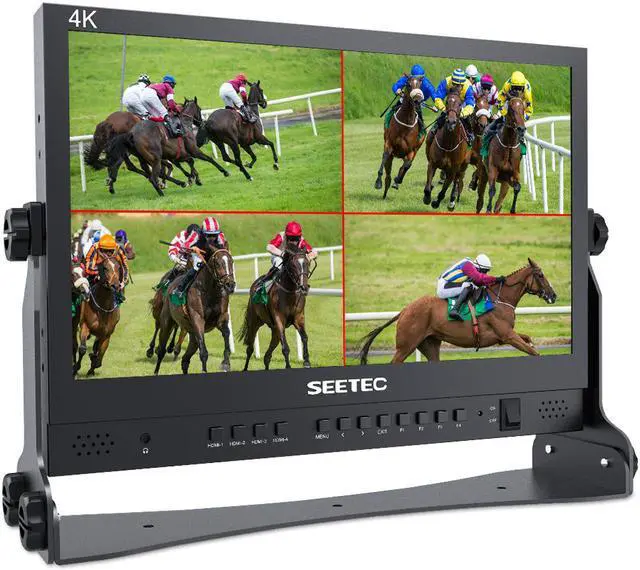

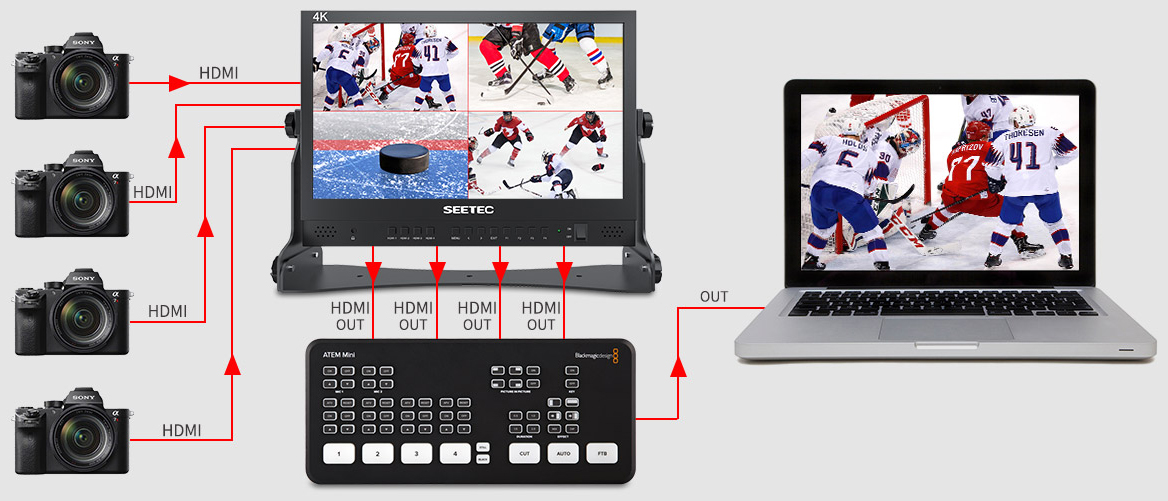

When your switcher does not have a multiview function, such as ATEM Mini, then you may need an ATEM156. When doing larger live productions with multiple cameras, you can first connect the camera to the ATEM156 monitor, check the shooting images of each camera on the ATEM156 monitor, and then put them to air, so you don't have to worry about the broadcast content. Help you preview the image and avoid the "blind cut" channel status.

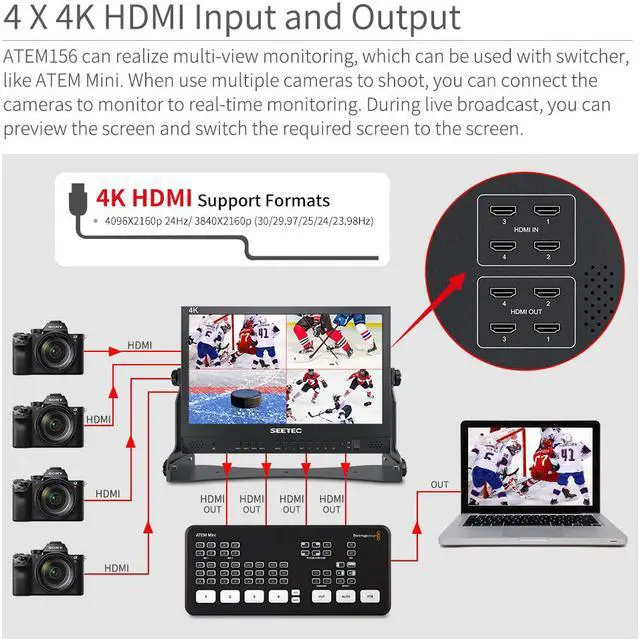

ATEM156 monitor has 4 x 4K HDMI inputs and outputs, which can connect up to 4 cameras, game consoles, computers and other equipment. At the same time, it can also loop out 4 HDMI signals to other devices, such as ATEM Mini or ATEM Mini Pro. This is very useful for studio and live multi-camera shooting.
HDMI Support Format
480p/576p
720p(60/59.94/50/30/29.97/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/23.98)
3840x2160p(30/25/24), 4096x2160p(24)

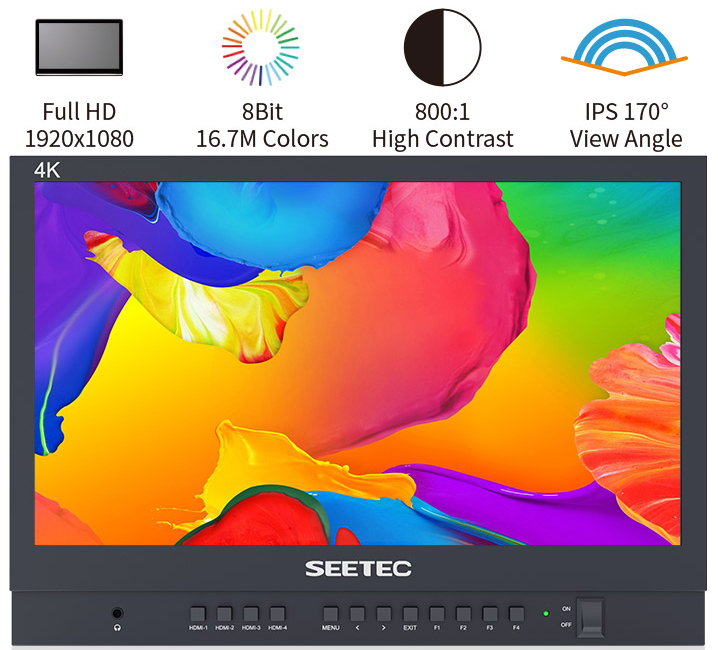

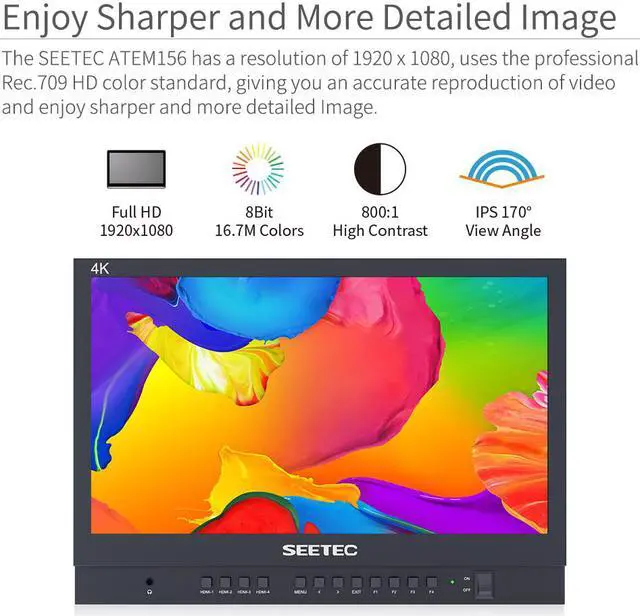

The SEETEC ATEM156 equipped with a 15.6 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 800:1, and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It combines a wide 170° viewing angle in both horizontal and vertical directions. Easy viewing is ensured by reducing color changes due to the viewing angle.

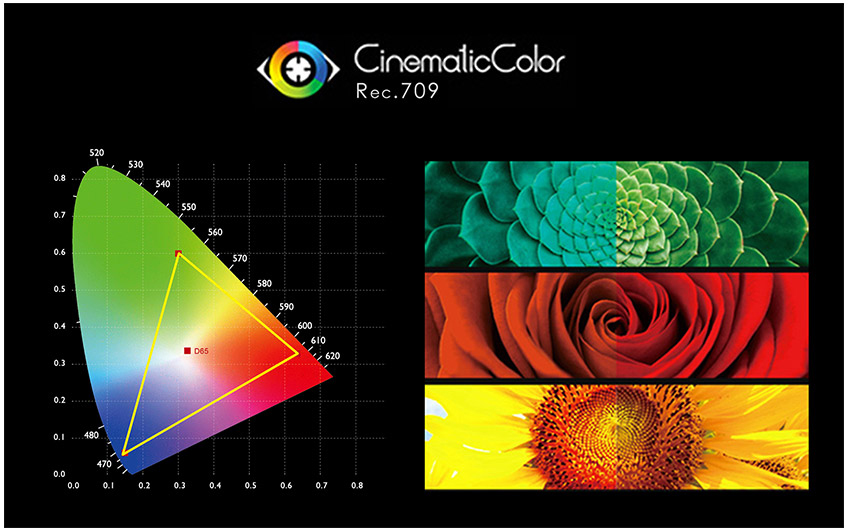

SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

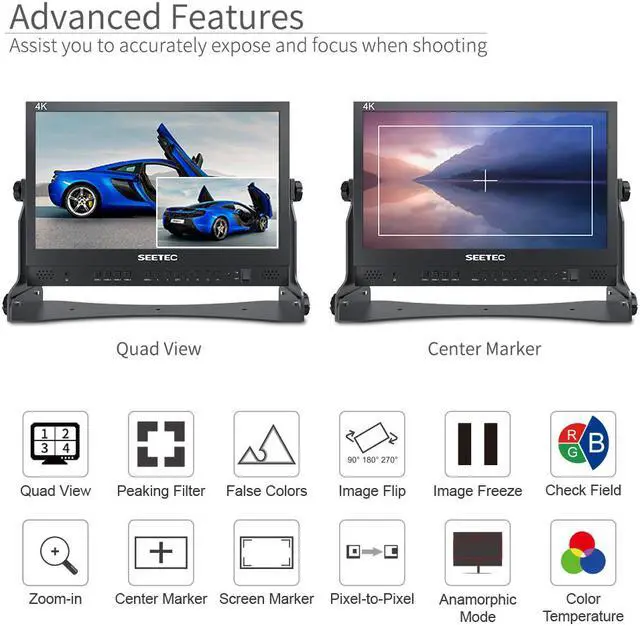

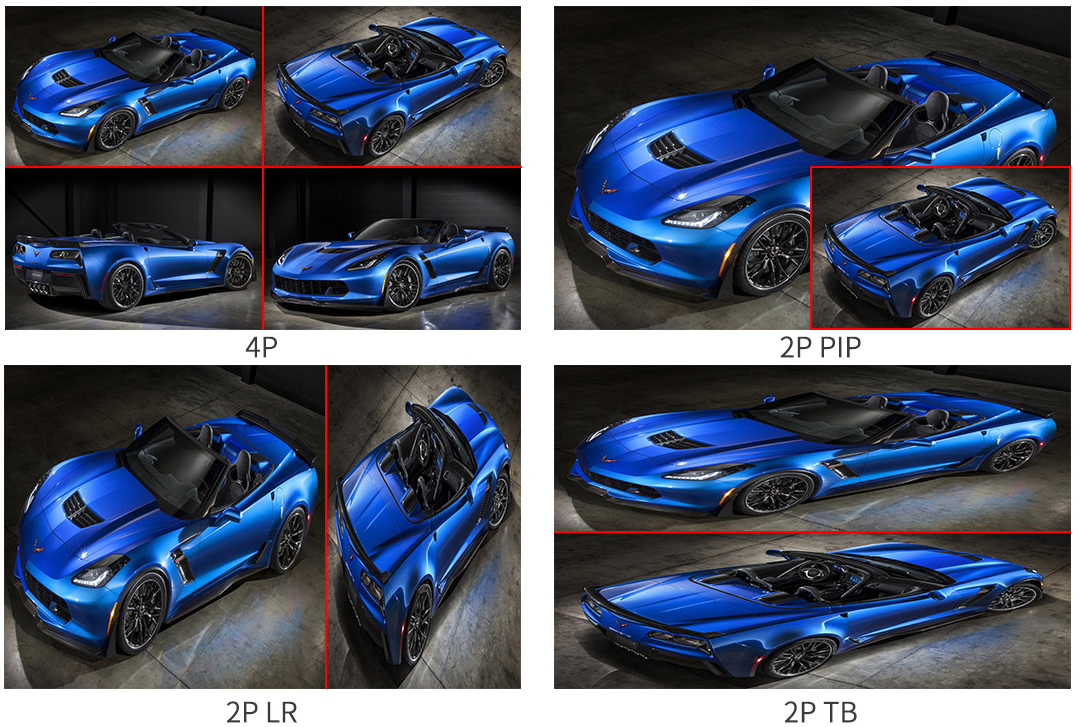

When you are creating a live program from multiple cameras, it is important to be able to see more video sources at the same time. ATEM156 has four 4K HDMI inputs and outputs, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi camera monitoring in any location.

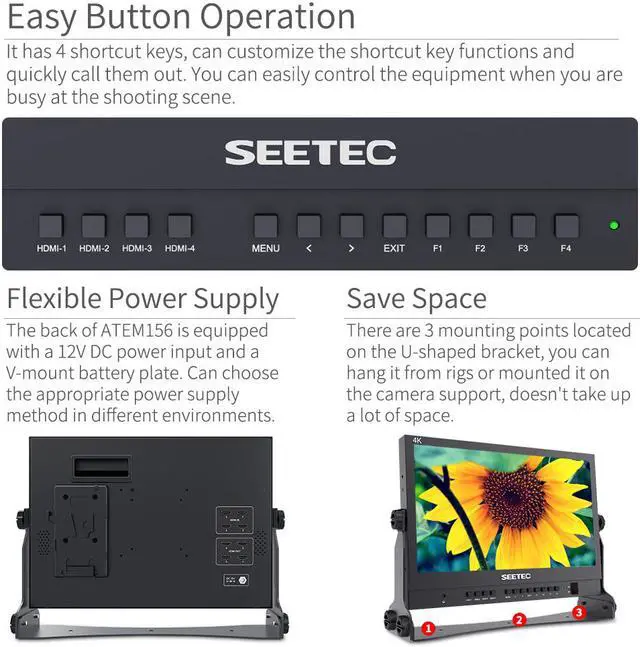

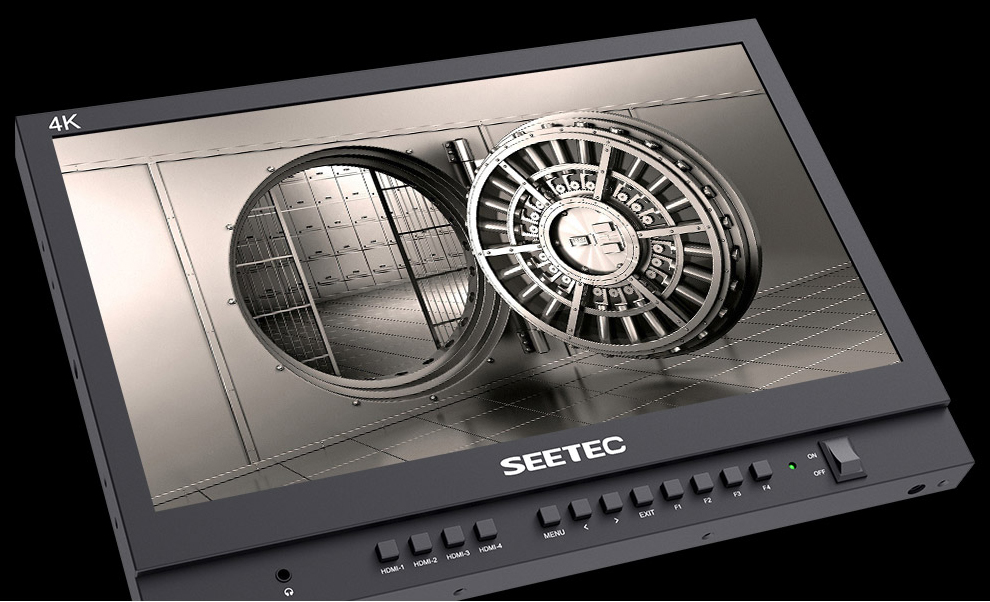

The frame of ATEM156 is made from extremely durable and lightweight aircraft grade aluminum, the weight of the ATEM156 is as low as 1.57kg (without bracket), and this metal material has very sturdy and durable characteristics, suitable for high-intensity production such as mobile shooting, location shooting or live broadcast.
| Screen Size | 15.6 inch IPS |
|---|---|
| Resolution | 1920x1080 pixels |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 800:1 |
| Viewing Angle | 170 degrees |
| Output | 4 x HDMI |
| Input Voltage | DC12 - 24V |
| Working Temperature | -10 to 50 degree Celsius |
| Color Depth | 16.7M colors (8-bits) |
|---|---|
| Pixel Pitch | 0.17925 (H) x 0.17925 (V) mm |
| Brightness | 250cd/m2 |
| Backlight | LED |
| Input | 4 x HDMI |
| Audio Out | 3.5mm Stereo Headphone |
| Power Consumption | less than 12W |
| Storage Temperature | -20 to 60 degree Celsius |
