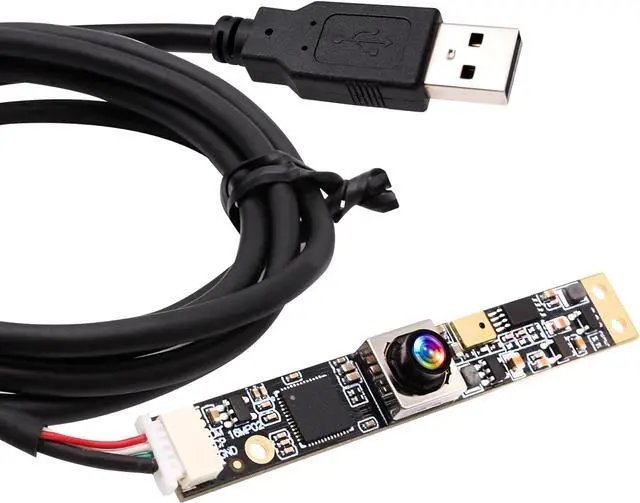

16MP Autofocus USB Camera with Microphone for Computer Mini UVC USB2.0 Lightburn Camera Micro USB Security PC Camera Module Laser Engraver Webcam Board (100degree No Distortion Lens)

Based on 1/ 2.8 SONY IMX298 image sensor, autofocus, UVC compliant USB 2.0 cameras. This is a mini 62.3 x9x 5.5 mm 16mp usb camera board that can be installed in most hidden and narrow position for a home surveillance system, wildlife photography, dashcam, baby camera, home security monitoring, online teaching, live streaming, online meeting or embedded industrial project.
No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.
Auto control the focusing process to capture the moving object, works like the human eye, and shots the imaging you want.
4656*3496 Ultra HD resolution meets your request for higher quality video still pictures resolution.

SPECIFICATIONS
Camera
- Sensor: 1/ 2.8 SONY IMX298

- Resolution: 16mp 4656 x 3496

- Data Format: MJPG/YUY2

- Frame Rate: MJPG 4656 x 3496 MJPEG@10fps, 1920 x 1080 MJPEG@30fps Y

Lens
- Field of View (FOV): H= 97°

- Lens Mount: M12

- Focusing Range: 0.33 ft (10CM) to infinity

Functionality and Compatibility
- Adjustable parameter: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Exposure.

- System Compatibility: Windows, Linux, Mac, and Android with UVC.

Power
- Power Supply: USB BUS POWER 4P- 1.0 mm Socket

- Working Current: MAX 370mA

Physical
- Operating Temp.: 14°F~158°F (-10~70)

- Dimension: 62.3 x 9 x 5.5 mm / about 20g

- Cable Length: 3.3 ft (1M)

APPLICATIONS:
- Video conference

- Home video surveillance system

-Object recognition and tracking

- Dashcam

- Monitoring 3D printer

- Baby Camera

- Robot and machine vision

16megapixel Ultra Clear
Max Resolution:

4656 (H) X 3496 (V) 16Megapixel
16megapixel high pixel technology for sharp image and accurate color reproduction.

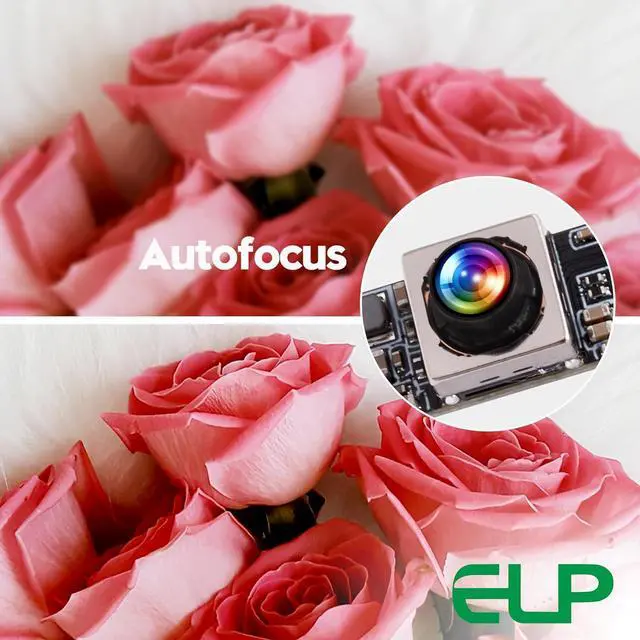

Autofocus Lens
Shoot objects at millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.

100 degree no distortion lens
Mini USB camera with none-distortion lens, FOV is about 97 degree.

Built with Mic:
Capture Video with Audio, idea for video recording.

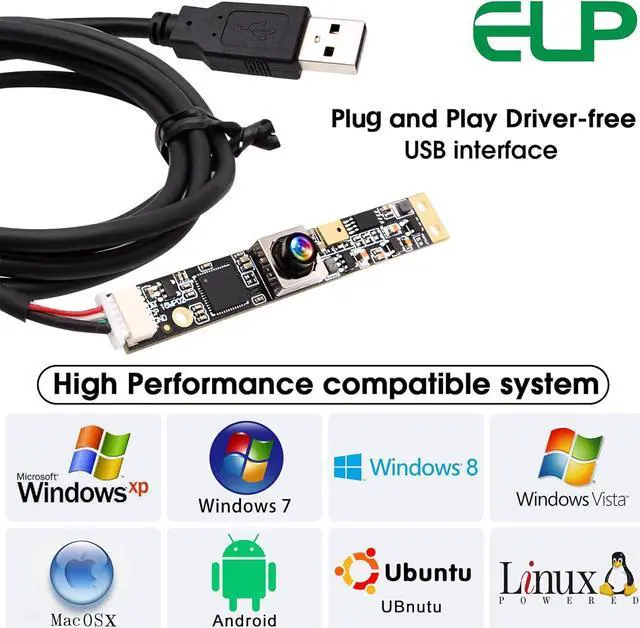

Plug and Play/Free Driver
UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

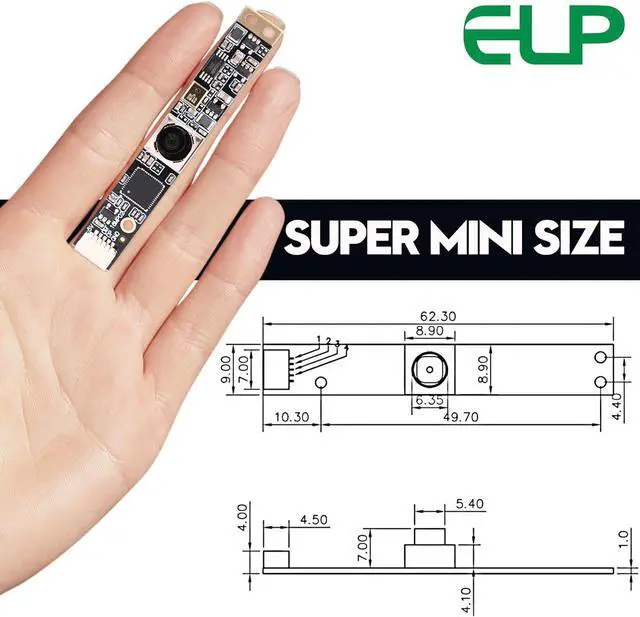

Mini size:
Mini 62.3 x 9 x 5.5 mm camera board can be installed in most hidden and narrow position for a home surveillance system, wildlife photography, dashcam, baby camera, etc.
