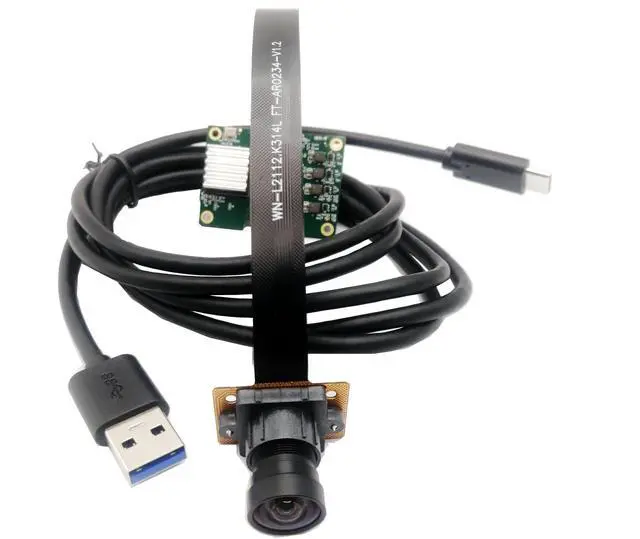

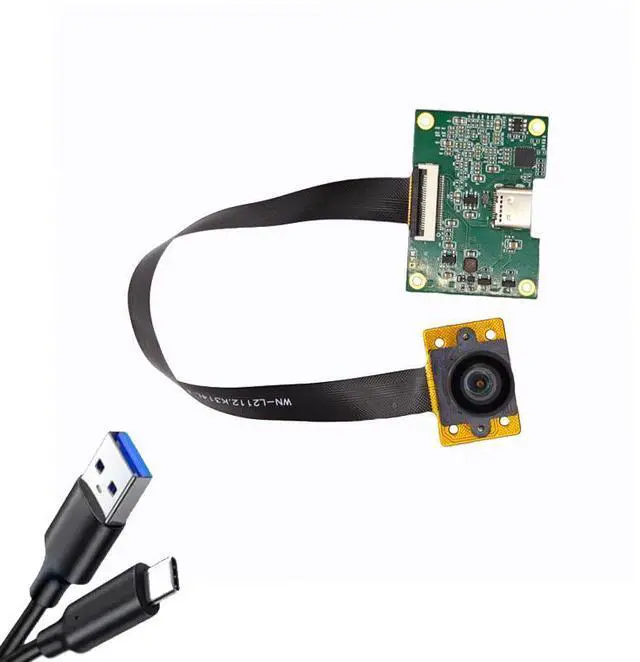

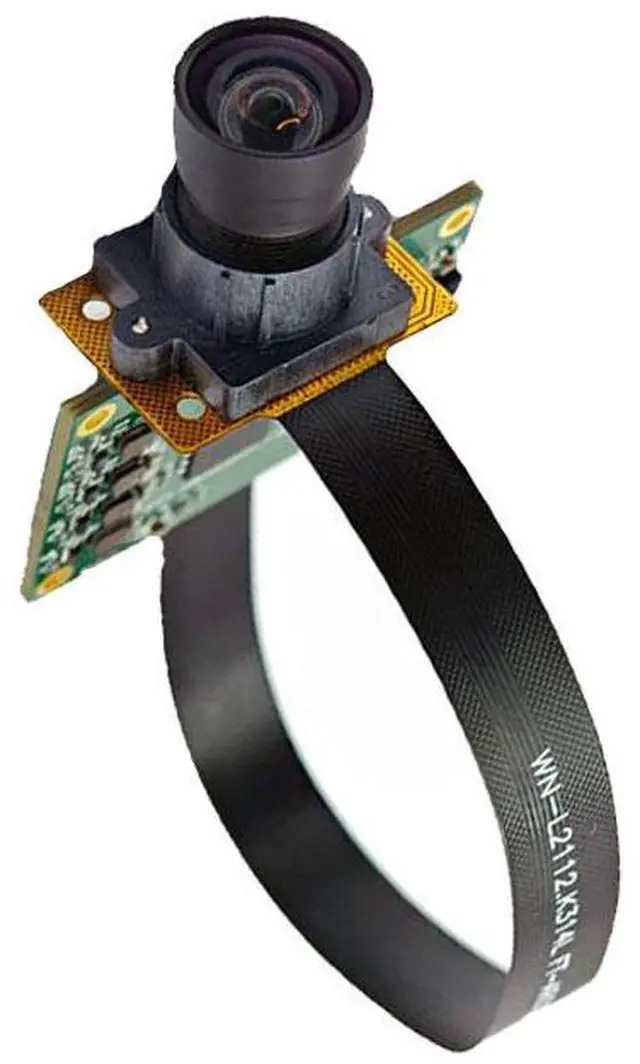

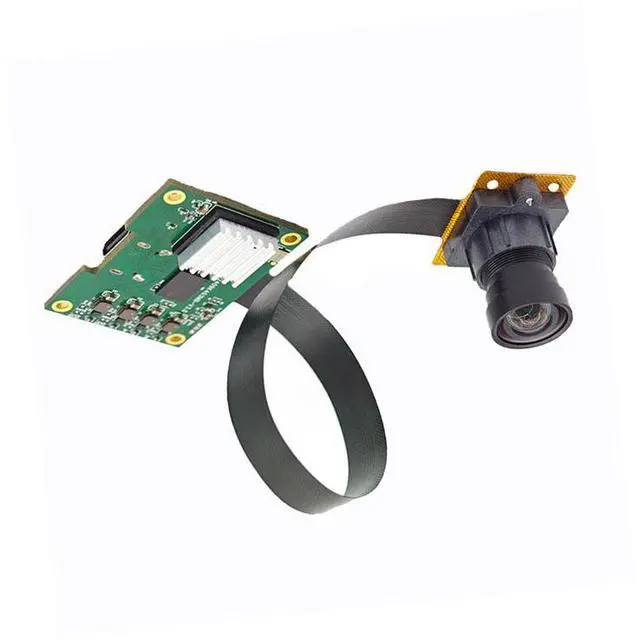

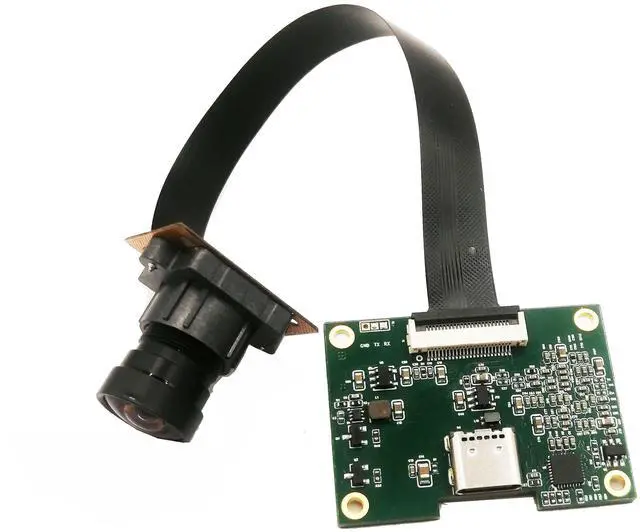

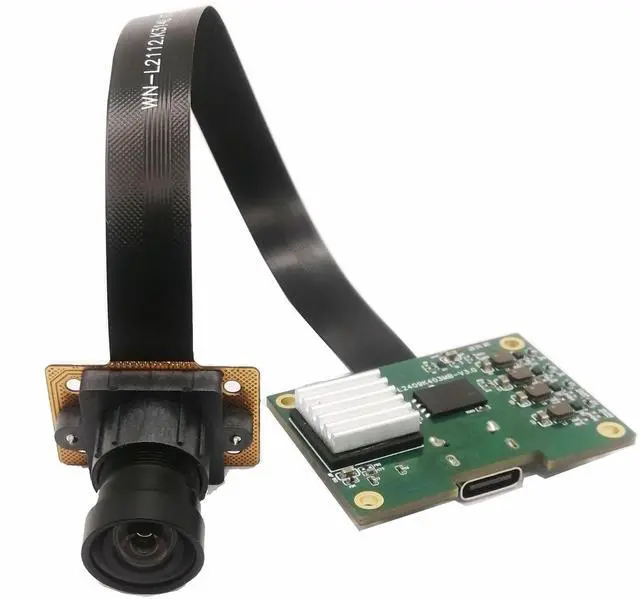

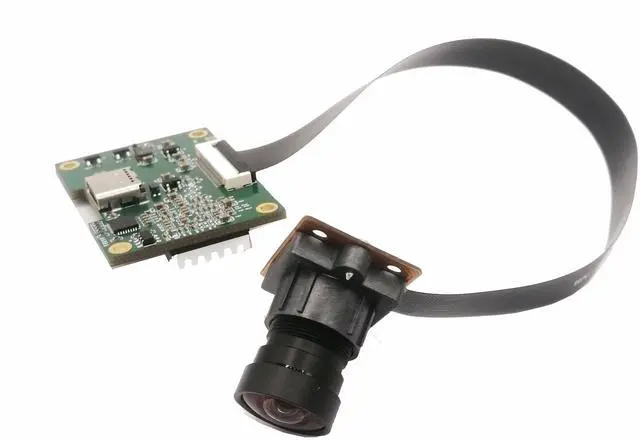

2MP HD 1/2.6-Inch AR0234 1080P USB3.0 Camera Module 120FPS Global Shutter MJPG, YUY2, H.264 FF 100° Type-C For documents
- 1.1/2.6-Inch AR0234
- 2.High Speed USB3.0
- 3.Global exposure
- 4.1920H x 1080V
- 5.MJPEG, YUV2,NV12,H.264 ,H.265
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Module Size:
Mother board:40X29X9.9MM
FPC:196.76X26X24.5MM
Sensor:1/2.6-Inch AR0234
RGB/mono:RGB
Resolution:1920H x 1080V
Pixel Size:3.0*3.0µm
Output Format:MJPEG, YUV2,NV12,H.264 ,H.265,
FOV:DFOV:100° HFOV:87° VFOV:56°
Lens:M12 P0.5 4G+2P IR 650NM
TV distortion:<0.5%
FEL:3.24
F/NO:2.7
Focus Type:FF
Shutter Type:Global exposure
Output and Power Supply:High Speed USB3.0
Interface:TYPE C USB3.0
Controllable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS:Windows10,Windows11, Android, Linux(can't support H.265),
Format
MJPEG
1920x1080 (1080P)@120FPS
1280x720 (720P)@120FPS
640x480 (VGA)@120FPS
YUY2
1920x1080 (1080P)@60FPS
1280x720 (720P)@120FPS
640x480 (VGA)@120FPS
NV12
1920x1080 (1080P)@60FPS
1280x720 (720P)@120FPS
640x480 (VGA)@120FPS
H.264
1920x1080 (1080P)@120FPS
1280x720 (720P)@120FPS
640x480 (VGA)@120FPS
H.265
1920x1080 (1080P)@120FPS
1280x720 (720P)@120FPS
640x480 (VGA)@120FPS
