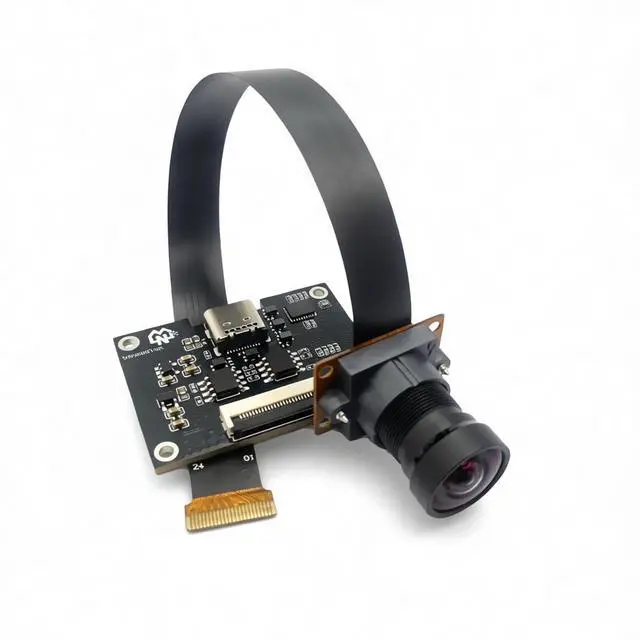

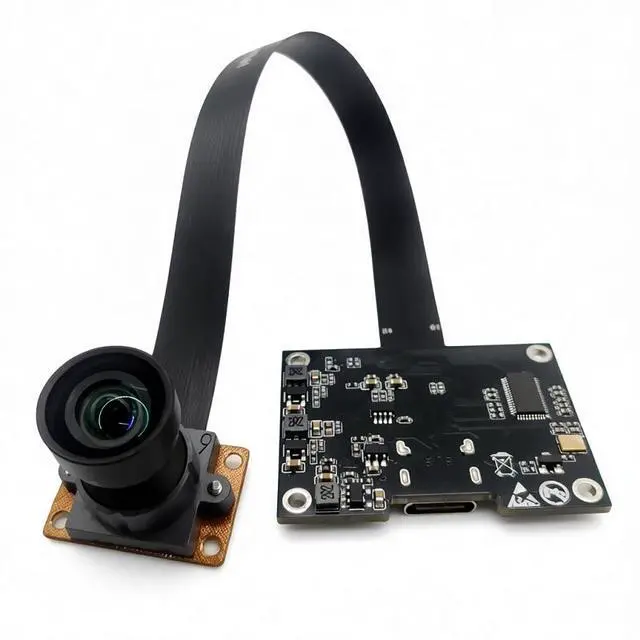

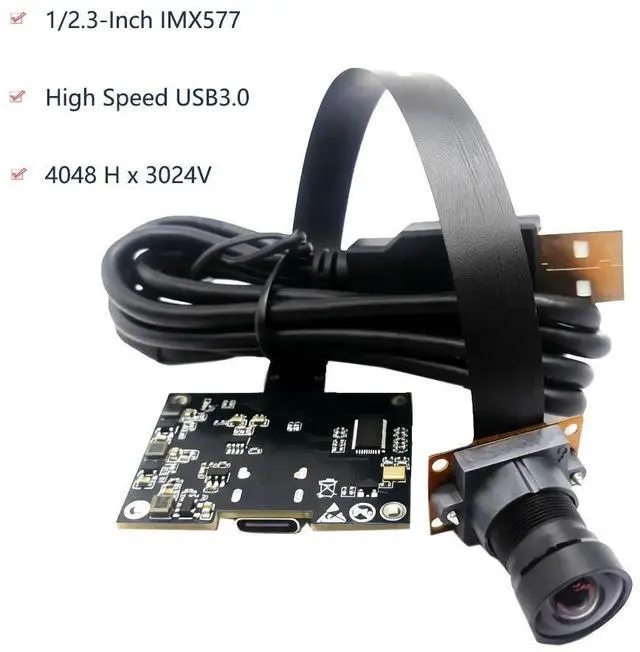

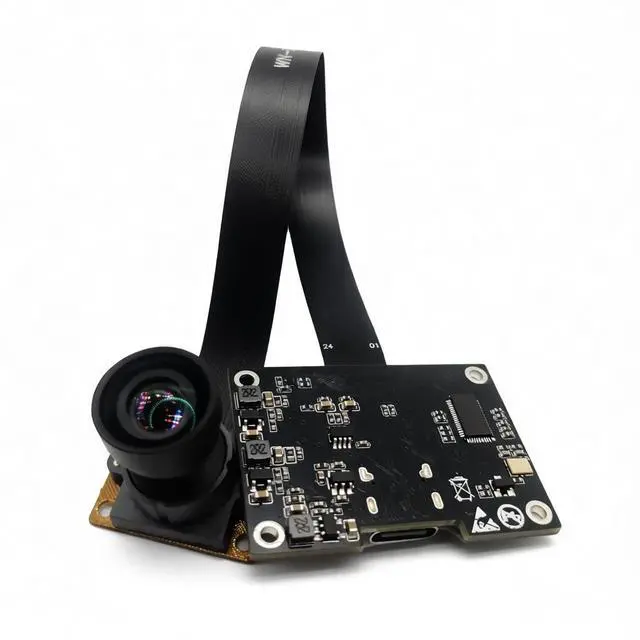

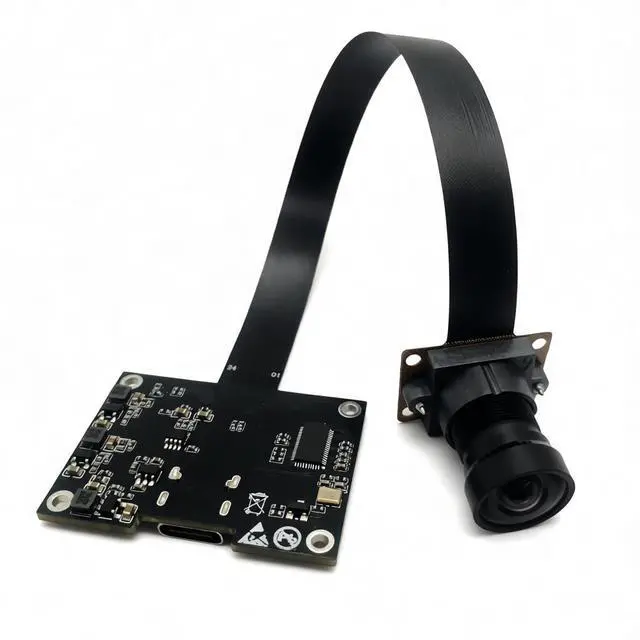

4K 12MP HD 1/2.3-Inch IMX577 USB3.0 Camera Module with 4048x3024 30FPS FF 101.5° TYPEC UVC Play and Plug For Face Recognition
- 1.1/2.3-Inch IMX577 CMOS
- 2.4048x3024
- 3.MJPEG, YUY2
- 4.High Speed USB3.0
- 5.UVC-compliant, Plug and Play
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Name:USB3.0 12MPCamera Module

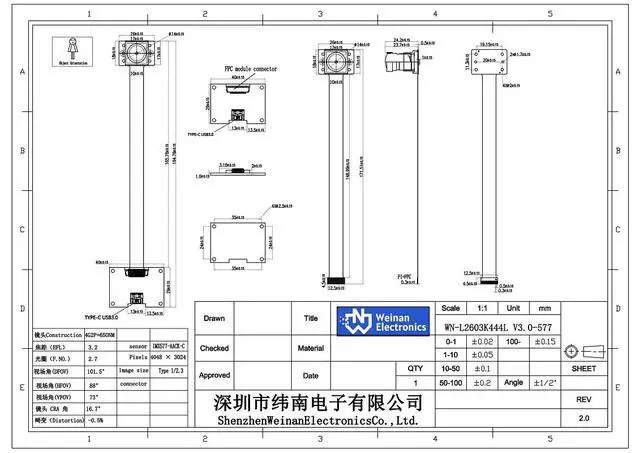

Module Size:PCB: 40*29*9.9MM /FPC:196.76*26*24.5MM
Image Sensor:1/2.3-inch CMOS Sensor
Max. Resolution:4048H*3024V
Pixel Size:1.55*1.55m
Lens:EFL:3.24, F/NO. 2.7, 4G+2P IR 650mm
Output Format:YUV2, MJPEG,
Field of View:D 101.5°x H 88°x V 73°(or TBD)
Focus Mode:Fixed Focus
Shutter Mode:Electronic Rolling Shutter
Interface:TYPE C USB 3.0
Output & Power Supply:High Speed USB3.0
Connection Cable:Default 1.5Meter USB Cable
Controllable Parameter:Brightness,Contrast,Saturation,Hue,Sharpness, Gain, Gamma,WhiteBalance,Backlight Contrast, Exposure
Supported OS:UVC-compliant, Plug and Play for Windows10, Windows11,Android, Linux etc.
MJPG
4048*3024@30FPS
4000*3000@30FPS
3840*2160@30FPS
2592*1944@30FPS
2048*1536@30FPS
1920*1080@30FPS
1280*720@30FPS
640*48030FPS
YUY2
4048*3024@10FPS
4000*3000@10FPS
3840*2160@15FPS
2592*1944@30FPS
2048*1536@30FPS
1920*1080@30FPS
1280*720@30FPS
640*480@30FPS
